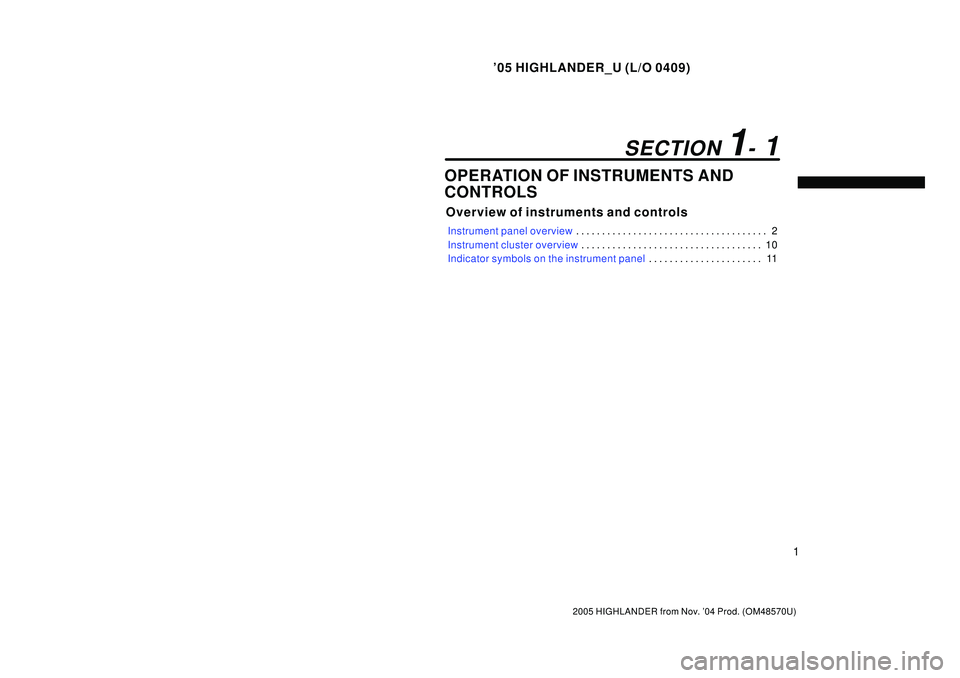

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 1 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview2 . . . . . . . . . . .

Page 114 of 2572

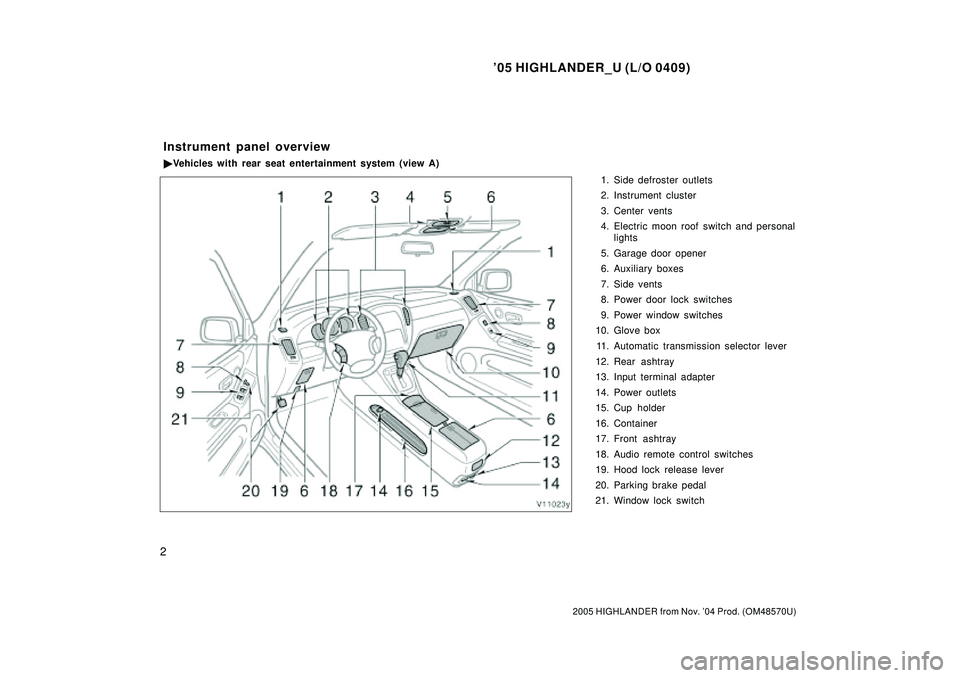

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 2 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Side defroster outlets 2. Instrument cluster 3. Center vents 4. Electric moon roof switch and personal lights 5. Garage

Page 115 of 2572

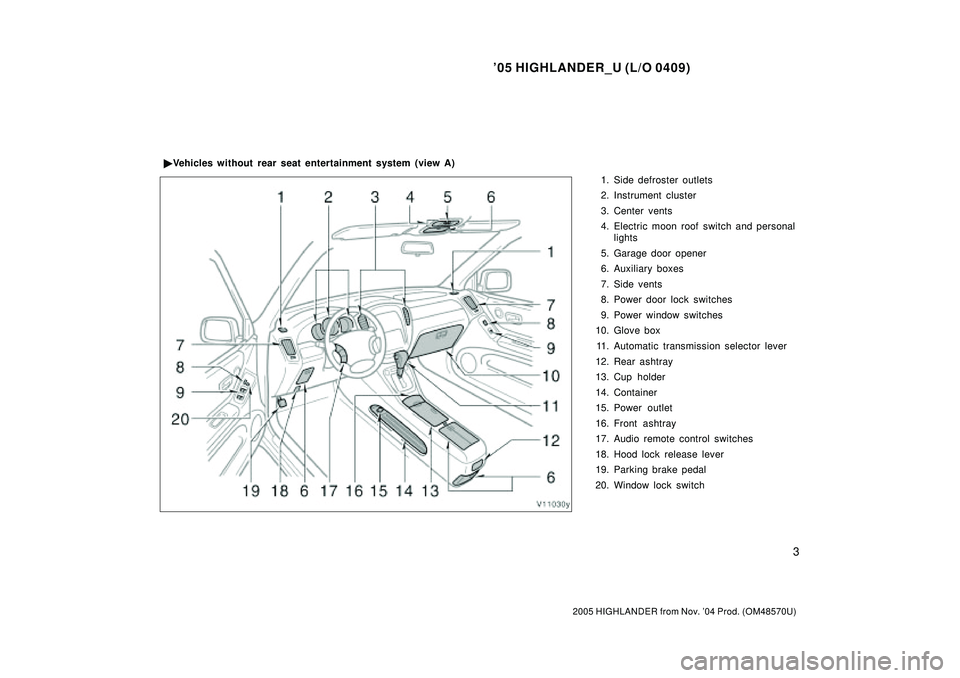

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 3 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Side defroster outlets 2. Instrument cluster 3. Center vents 4. Electric moon roof switch and personal lights 5. Garage

Page 116 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 4 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Headlight, turn signal and front fog light switches 2. Wiper and washer switches 3. Emergency flasher switch 4. Clock 5.

Page 117 of 2572

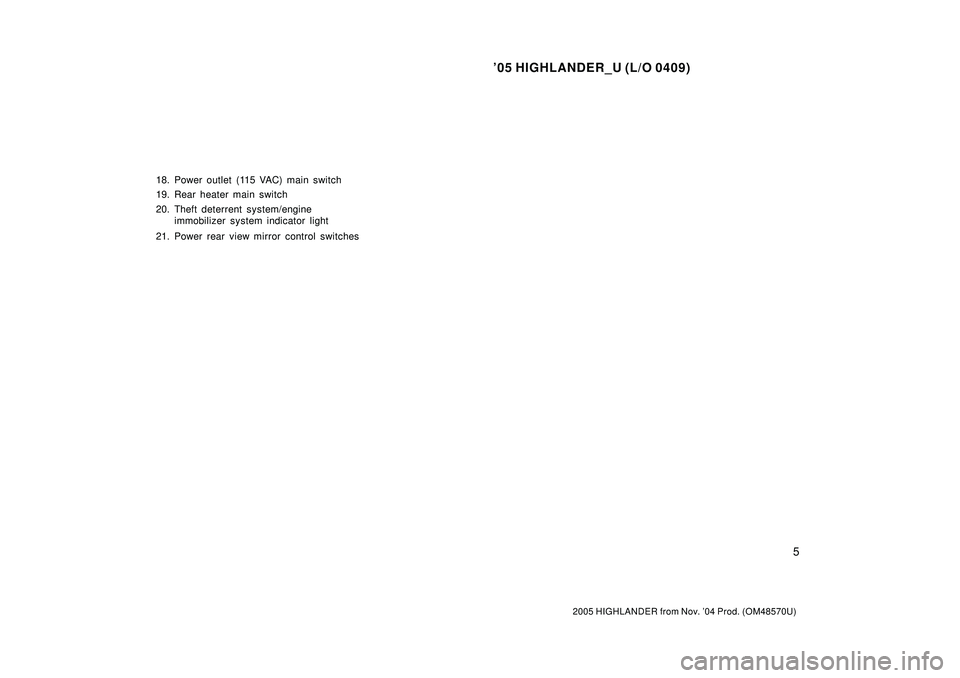

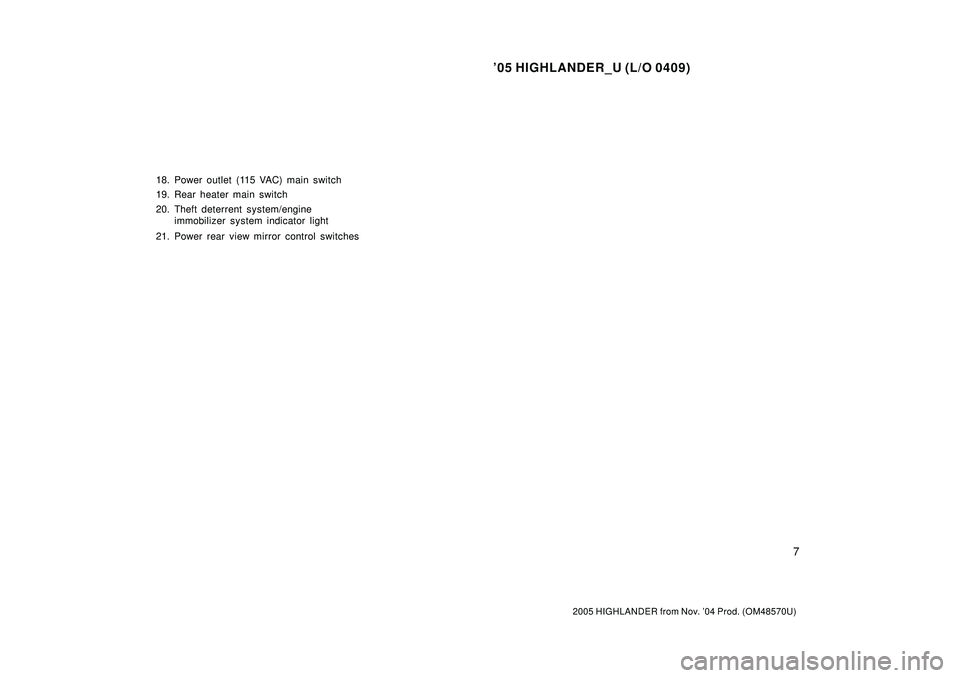

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 5 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 18. Power outlet (115 VAC) main switch 19. Rear heater main switch 20. Theft deterrent system/engine immobilizer system ind

Page 118 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 6 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Headlight, turn signal and front fog light switches 2. Wiper and washer switches 3. Emergency flasher switch 4. Clock 5.

Page 119 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 7 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 18. Power outlet (115 VAC) main switch 19. Rear heater main switch 20. Theft deterrent system/engine immobilizer system ind

Page 120 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 8 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Headlight, turn signal and front fog light switches 2. Wiper and washer switches 3. Emergency flasher switch 4. Clock (S
