TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
81
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations a

'05 HIGHLANDER_U (L/O 0409)
81
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are
shown in the illustration.
1. SRS warning light
2. AIRBAG ONº and AIRBAG OFFº indi-
cator lights
3. Curtain shield airbag modules
(airbag and inflator)
4. Front passenger occupant classification
system (ECU and sensors)
5. Side airbag modules
(airbag and inflator)
6. Curtain shield airbag sensors
7. Side and curtain shield airbag sensors8. Front passenger 's seat belt buckle
switch
9. Airbag sensor assembly
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the airbags with non- toxic gas to help
restrain the lateral motion of the occu-
pants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non- toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, and roof side rail may be
hot for several minutes, but the airbags
themselves will not be hot. The airbags
are designed to inflate only once.
CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
second outside passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.

Page 202 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
82
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

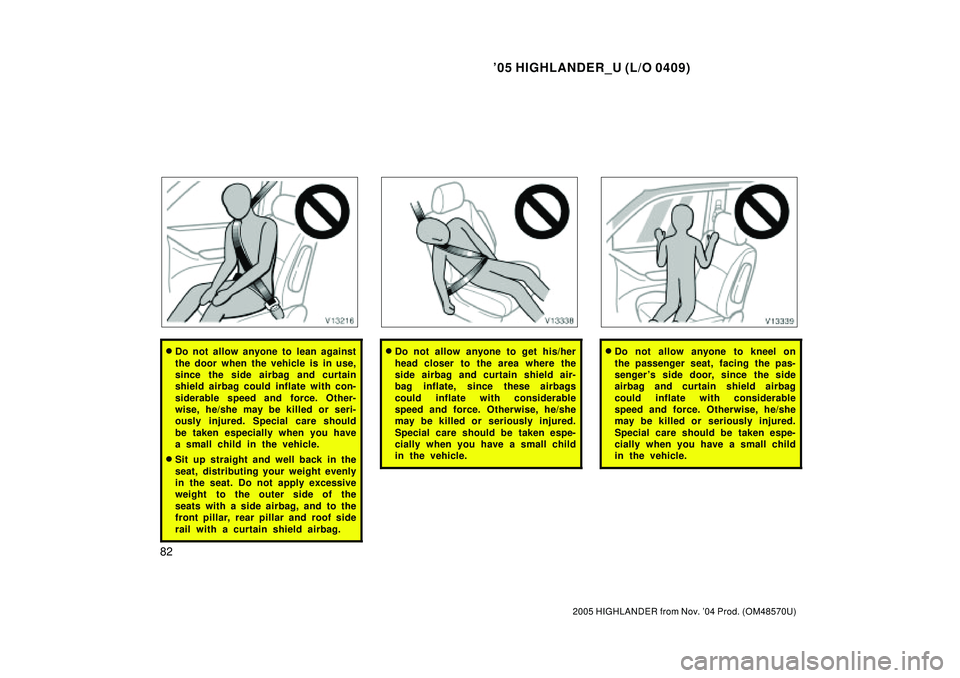

Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag

Page 203 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
83
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

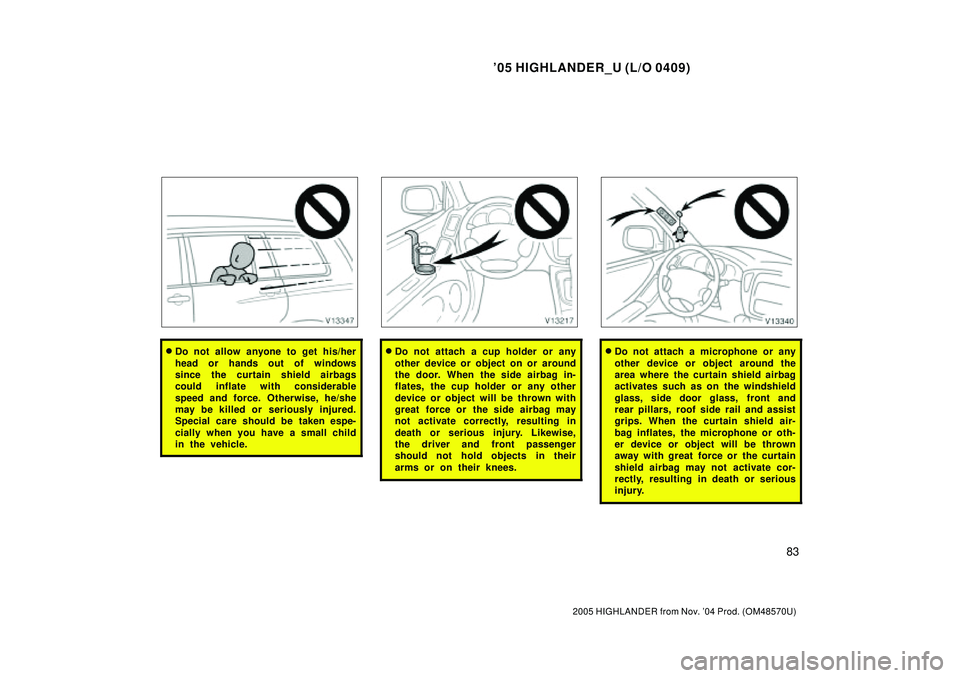

Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with cons

Page 204 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
84
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

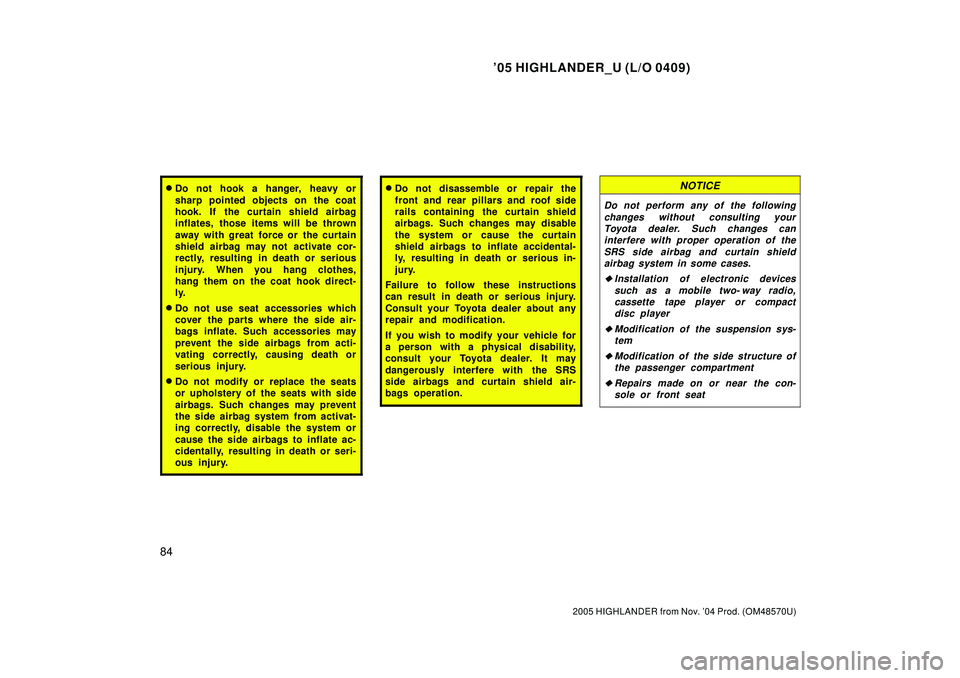

Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items

Page 205 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
85
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
This indicator comes on when the igni-
tion key is turned to the ONº position.
It goes off after about 6 seconds. This
m

Page 206 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
86
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

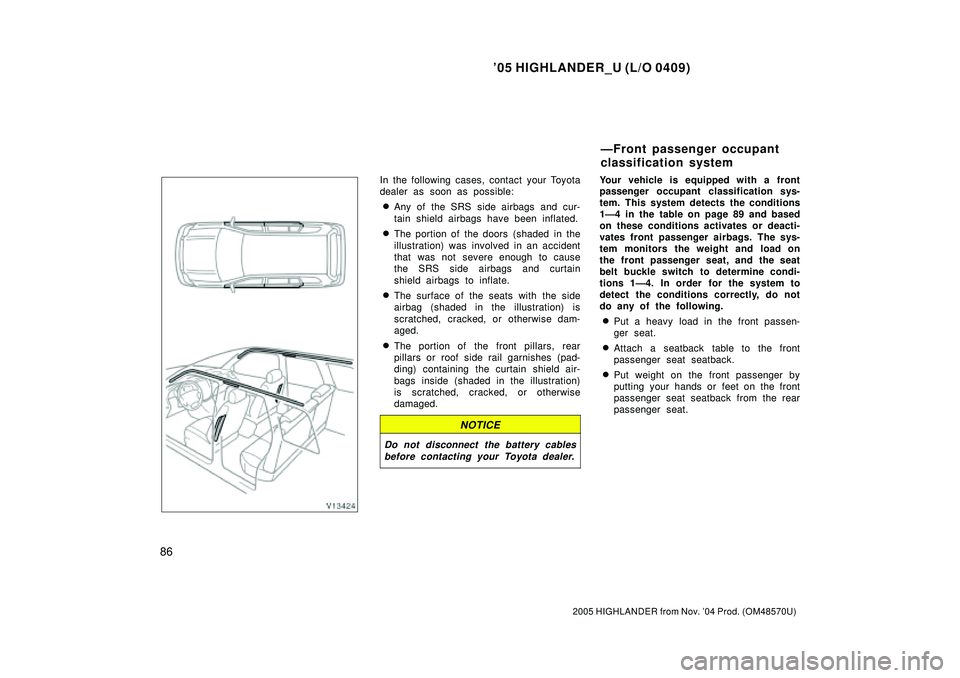

In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield

Page 207 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
87
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

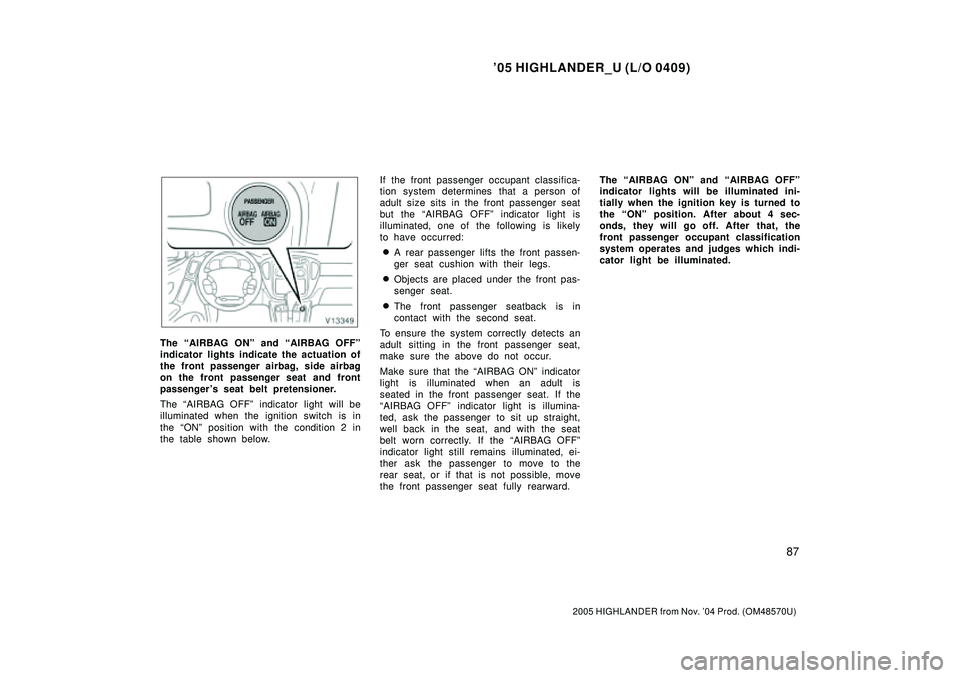

The AIRBAG ONº and AIRBAG OFFº
indicator lights indicate the actuation of
the front passenger airbag, side airbag
on t

Page 208 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
88
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

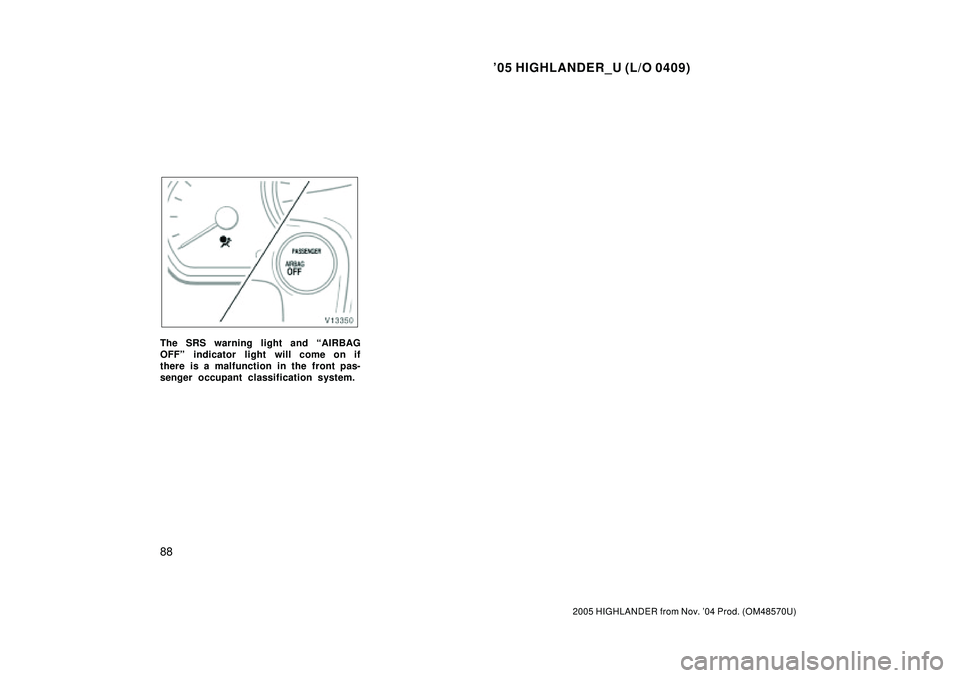

The SRS warning light and AIRBAG
OFFº indicator light will come on if
there is a malfunction in the front pas-
senger oc
