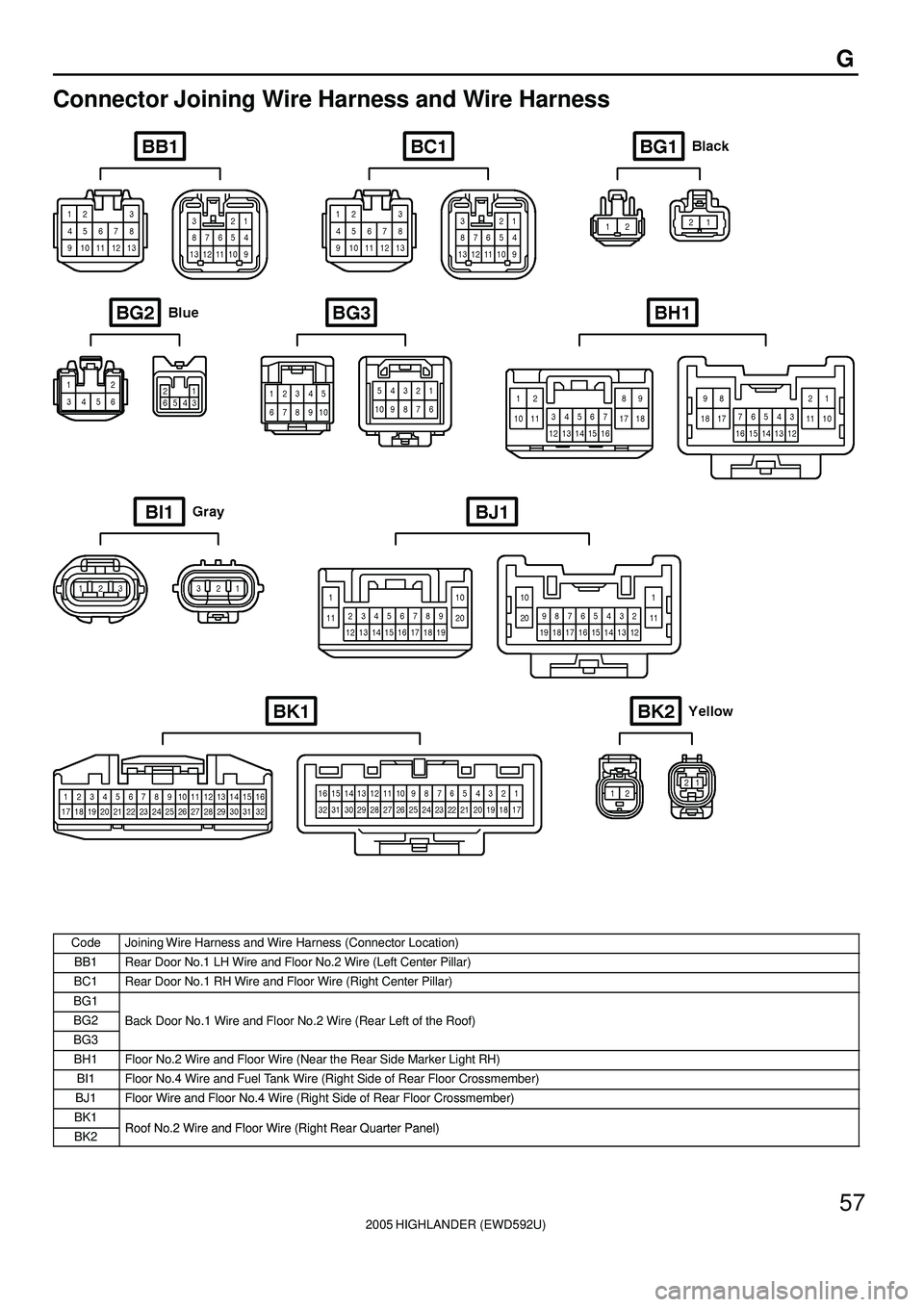

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 57 G Connector Joining Wire Harness and Wire Harness CodeJoining Wire Harness and Wire Harness (Connector Location) BB1Rear Door No.1 LH Wire and Floor No.2 Wire (Left Center

Page 2082 of 2572

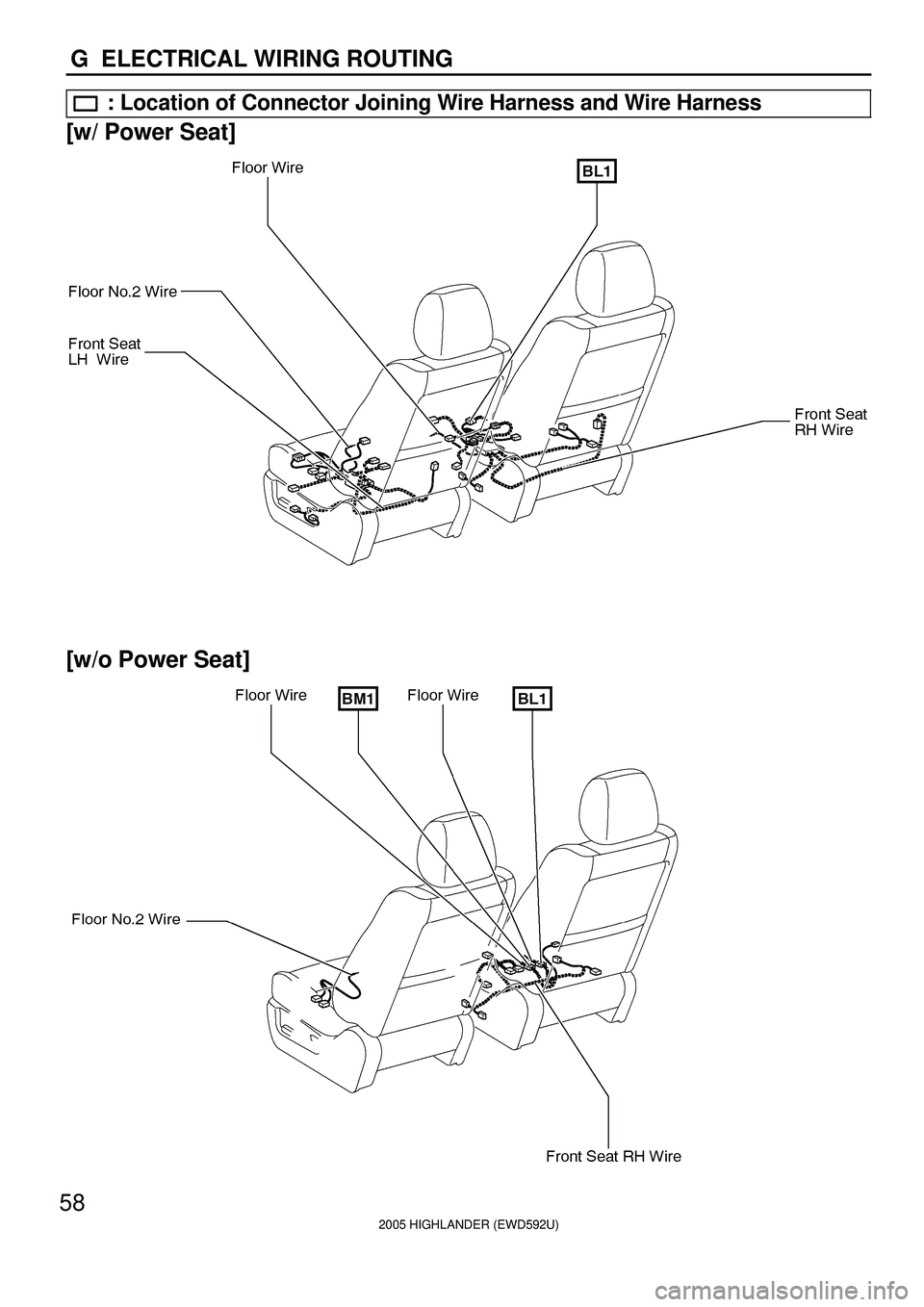

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 58 G ELECTRICAL WIRING ROUTING : Location of Connector Joining Wire Harness and Wire Harness [w/ Power Seat] [w/o Power Seat]

Page 2083 of 2572

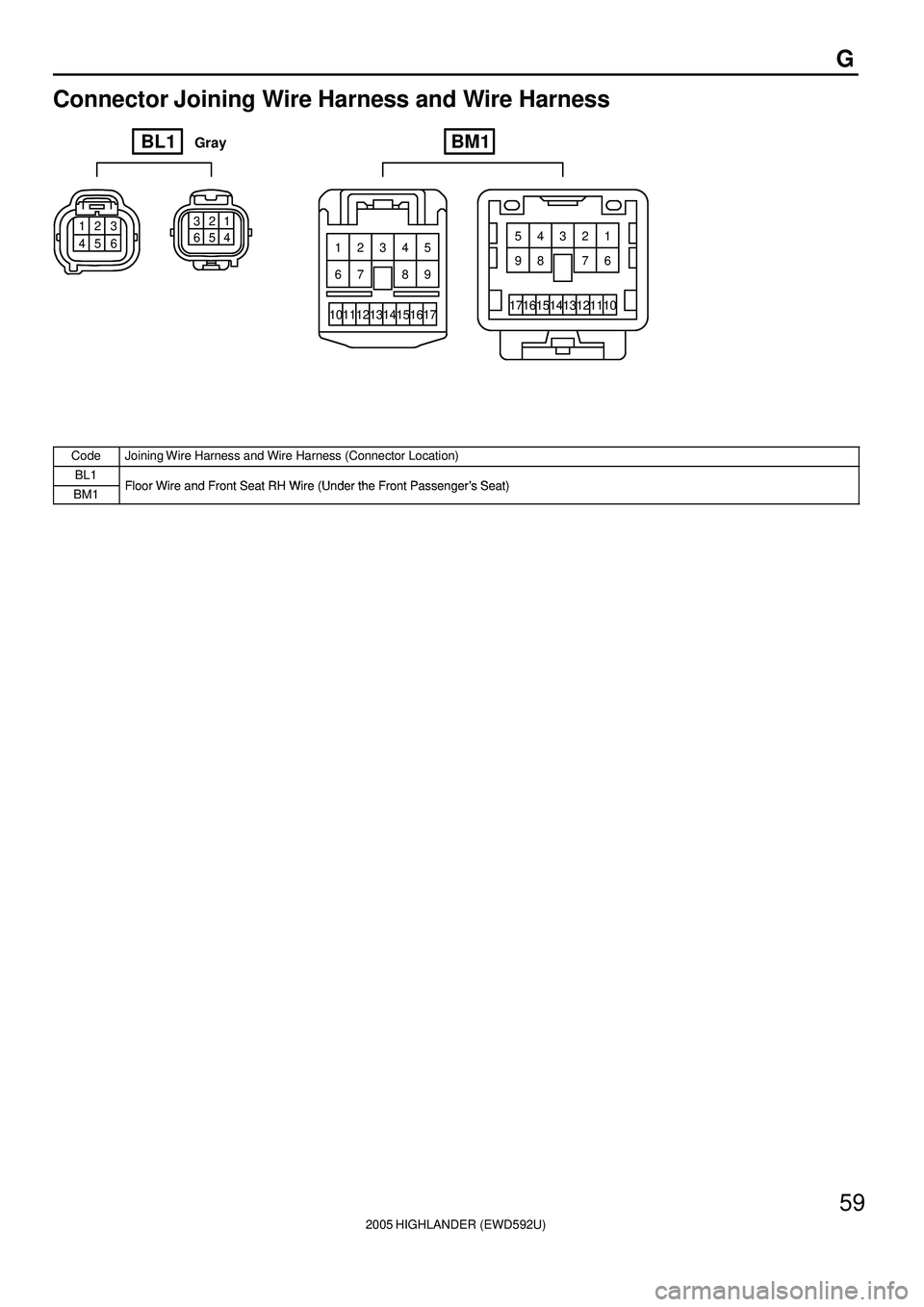

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 59 G Connector Joining Wire Harness and Wire Harness 123 4561 2 3 4 5 6 9 12345 8 7 6 17 16 15 14 13 12 11 101 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 BL1GrayBM1 CodeJoining

Page 2084 of 2572

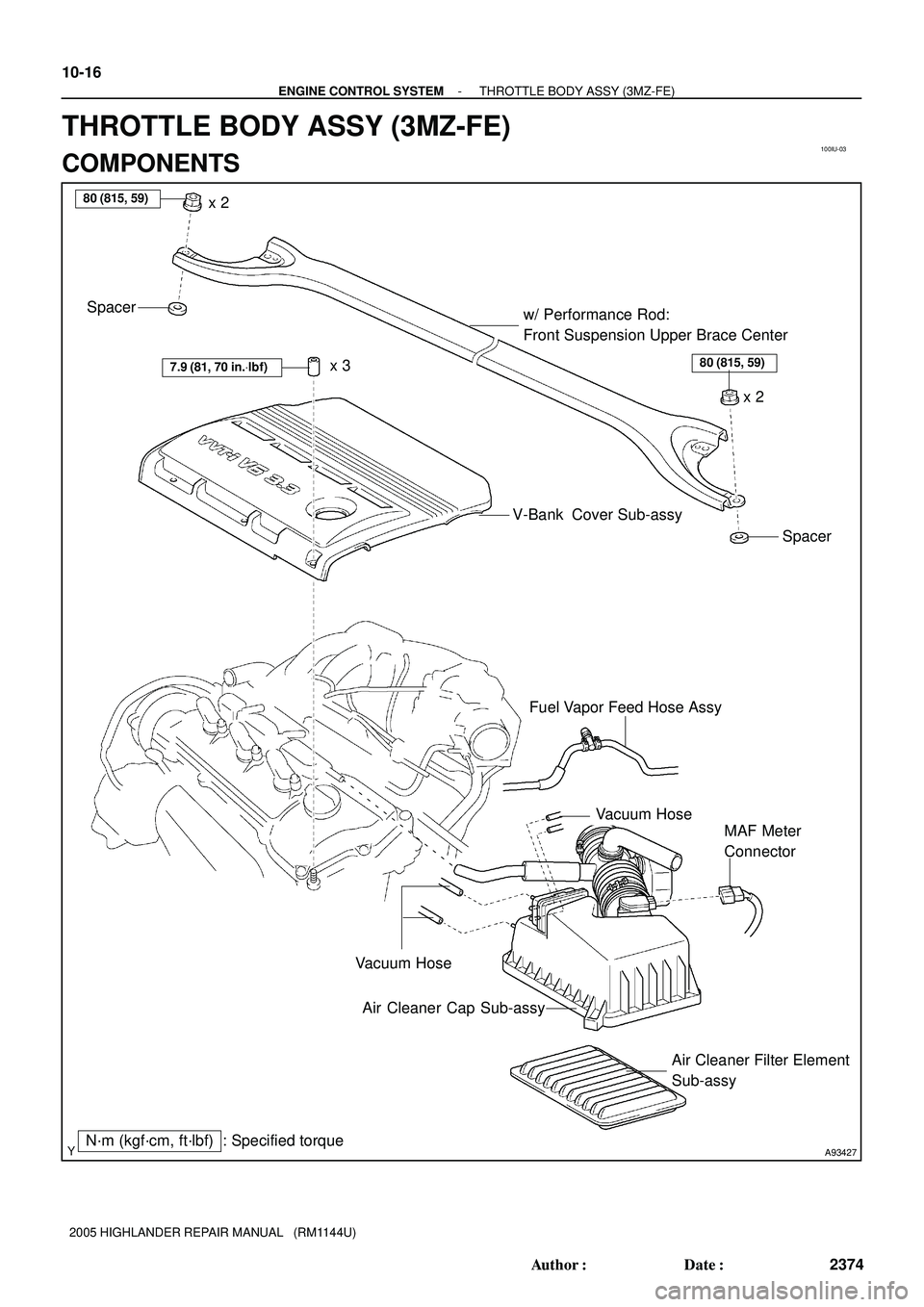

TOYOTA HIGHLANDER 2001 Service Repair Manual 100IU-03 A93427N´m (kgf´cm, ft´lbf) : Specified torque 7.9 (81, 70 in.Vlbf)x 3 V-Bank Cover Sub-assy Vacuum Hose Air Cleaner Filter Element Sub-assy Air Cleaner Cap Sub-assyMAF Meter Connector F

Page 2085 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual A82430 Non-reusable part N´m (kgf´cm, ft´lbf) : Specified torque Gasket Throttle Body Assy Water By-pass Hose No. 2 Water By-pass Hose No. 3Throttle Control Motor & Throttle Position Sensor Conne

Page 2086 of 2572

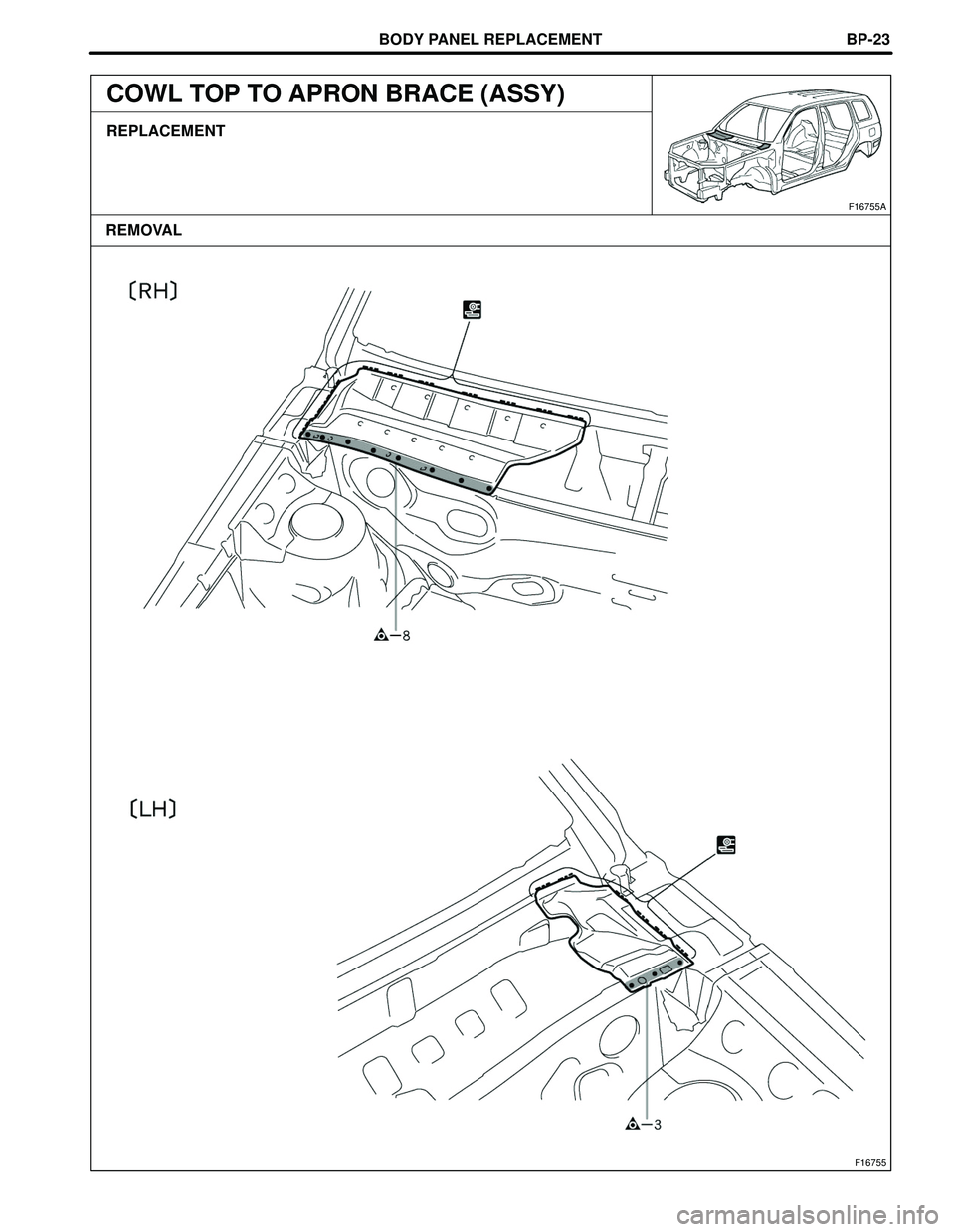

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16755 F16755A REMOVALBP-23 COWL TOP TO APRON BRACE (ASSY) REPLACEMENT

Page 2087 of 2572

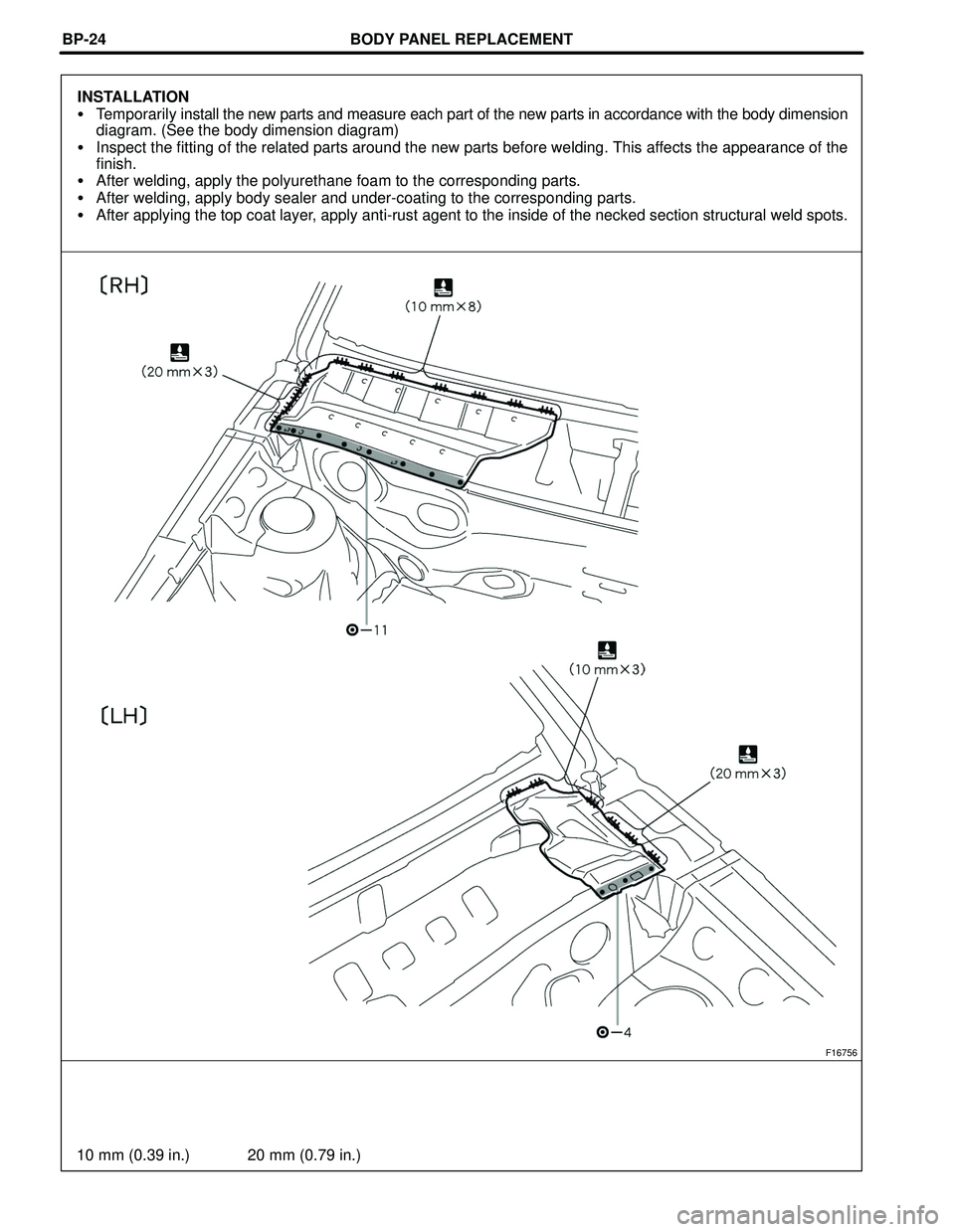

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16756 10 mm (0.39 in.) 20 mm (0.79 in.) BP-24 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagr

Page 2088 of 2572

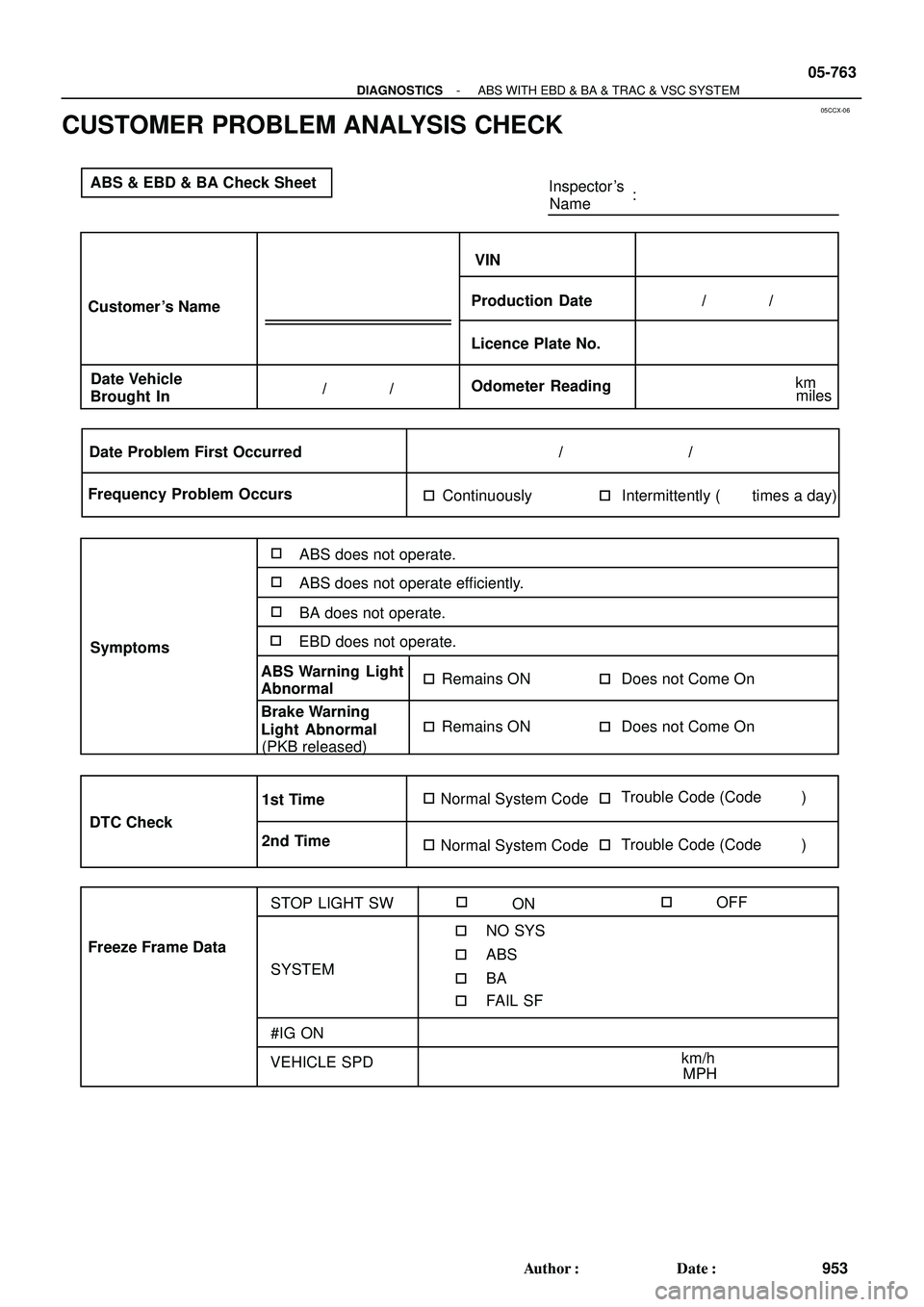

TOYOTA HIGHLANDER 2001 Service Repair Manual 05CCX-06 ABS & EBD & BA Check SheetInspector s Name: Customer s Name Date Vehicle Brought InProduction DateVIN Licence Plate No. Odometer Reading/ / / / Date Problem First
