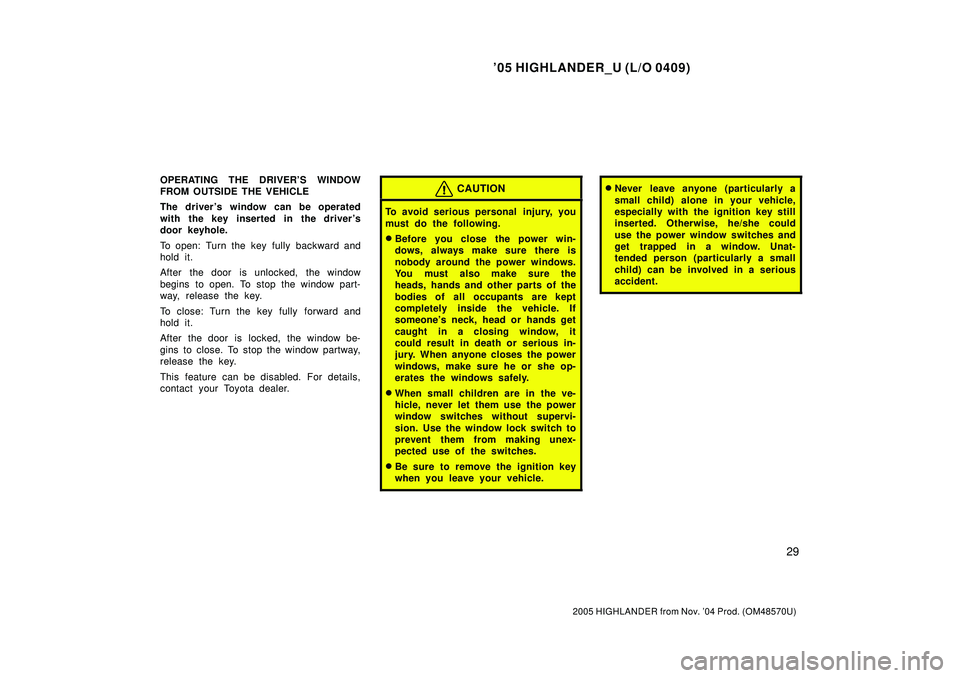

Page 145 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
29
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
OPERATING THE DRIVERS WINDOW
FROM OUTSIDE THE VEHICLE
The driver s window can be operated
with the key inserted in the d

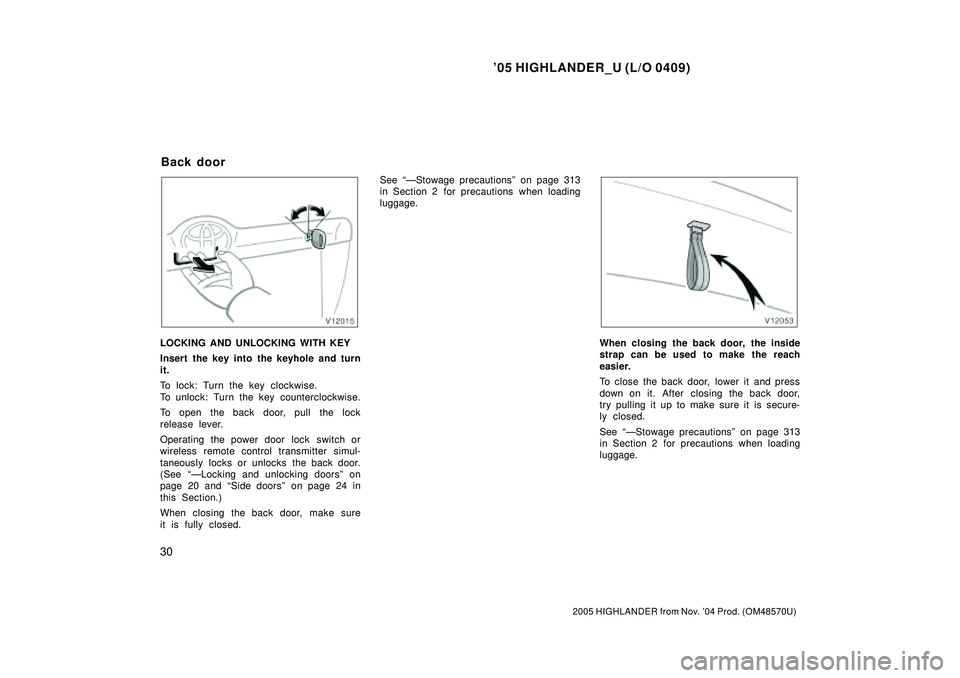

Page 146 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
30
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Tu

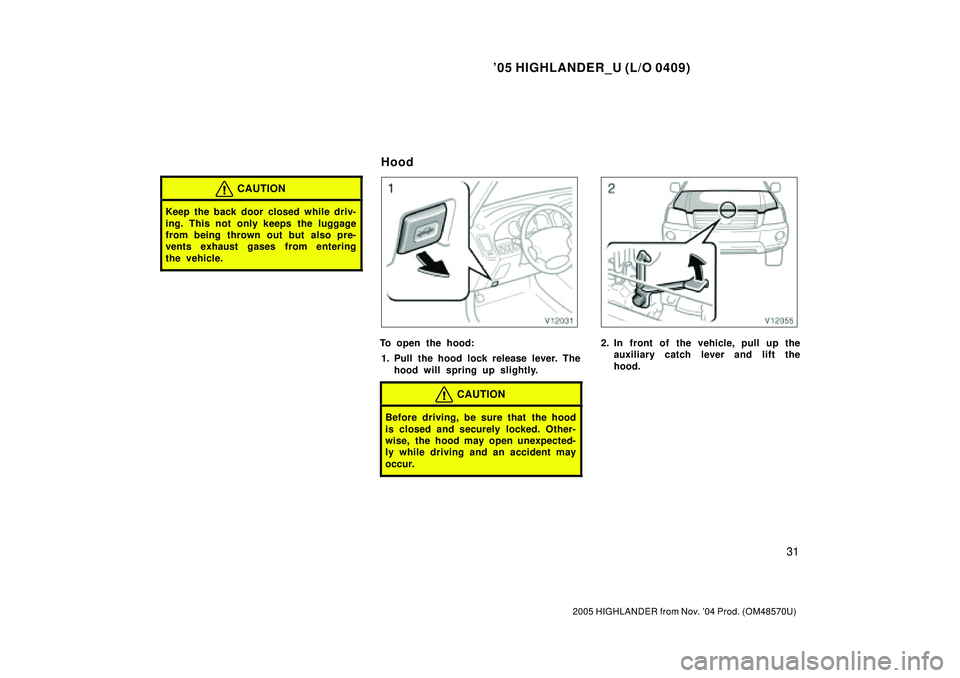

Page 147 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
31
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
ven

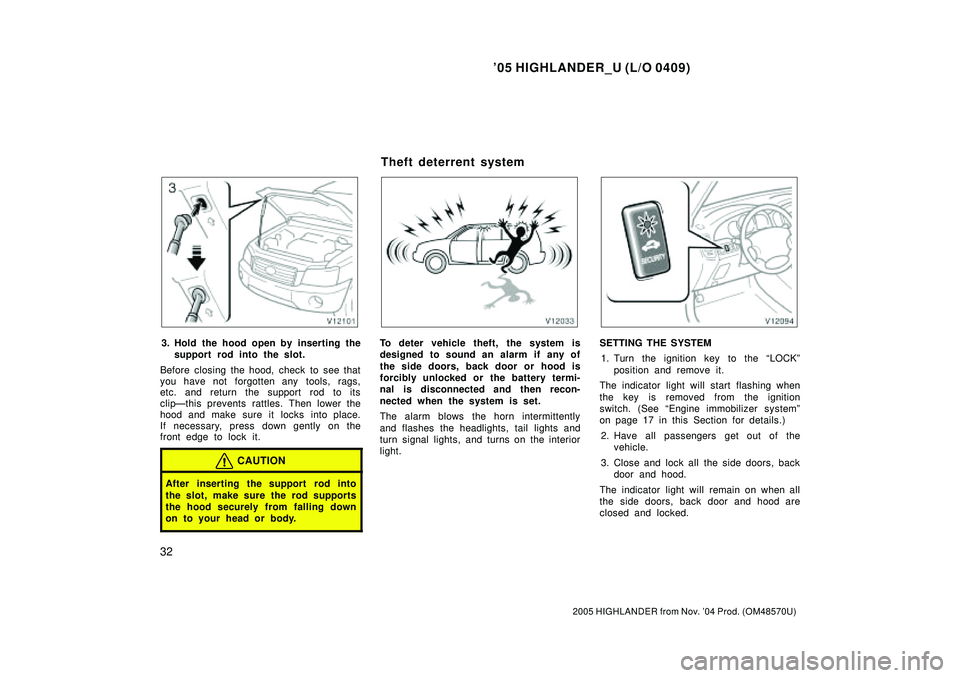

Page 148 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
32
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not

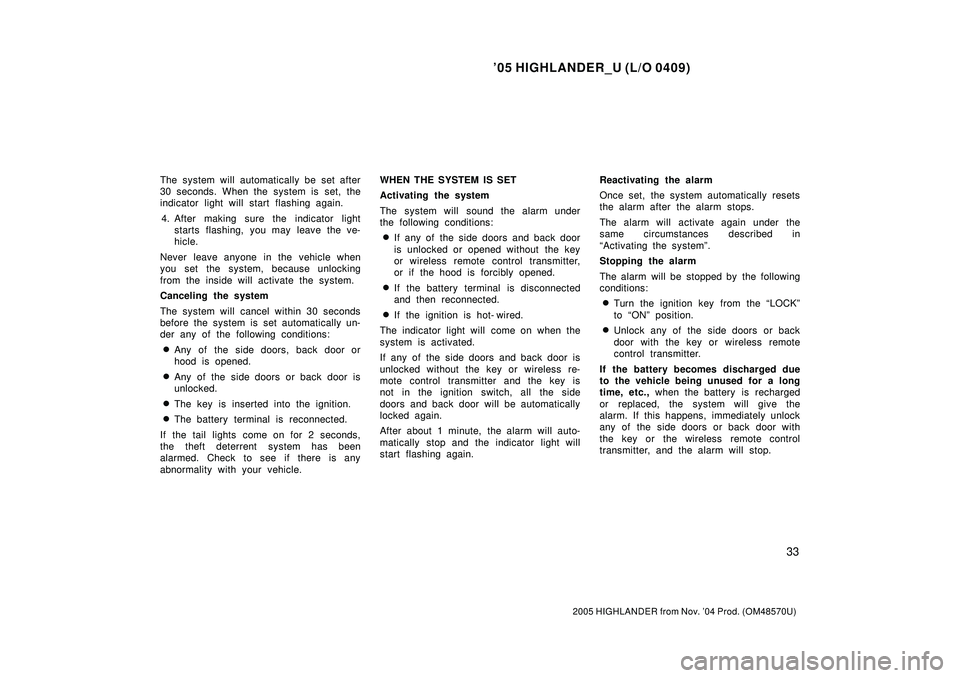

Page 149 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
33
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing ag

'05 HIGHLANDER_U (L/O 0409)
33
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
Canceling the system
The system will cancel within 30 seconds
before the system is set automatically un-
der any of the following conditions:
Any of the side doors, back door or
hood is opened.
Any of the side doors or back door is
unlocked.
The key is inserted into the ignition.
The battery terminal is reconnected.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle.WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors and back door
is unlocked or opened without the key
or wireless remote control transmitter,
or if the hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hot- wired.
The indicator light will come on when the
system is activated.
If any of the side doors and back door is
unlocked without the key or wireless re-
mote control transmitter and the key is
not in the ignition switch, all the side
doors and back door will be automatically
locked again.
After about 1 minute, the alarm will auto-
matically stop and the indicator light will
start flashing again.Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
Activating the systemº.
Stopping the alarm
The alarm will be stopped by the following
conditions:
Turn the ignition key from the LOCKº
to ONº position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
If the battery becomes discharged due
to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will give the
alarm. If this happens, immediately unlock
any of the side doors or back door with
the key or the wireless remote control
transmitter, and the alarm will stop.

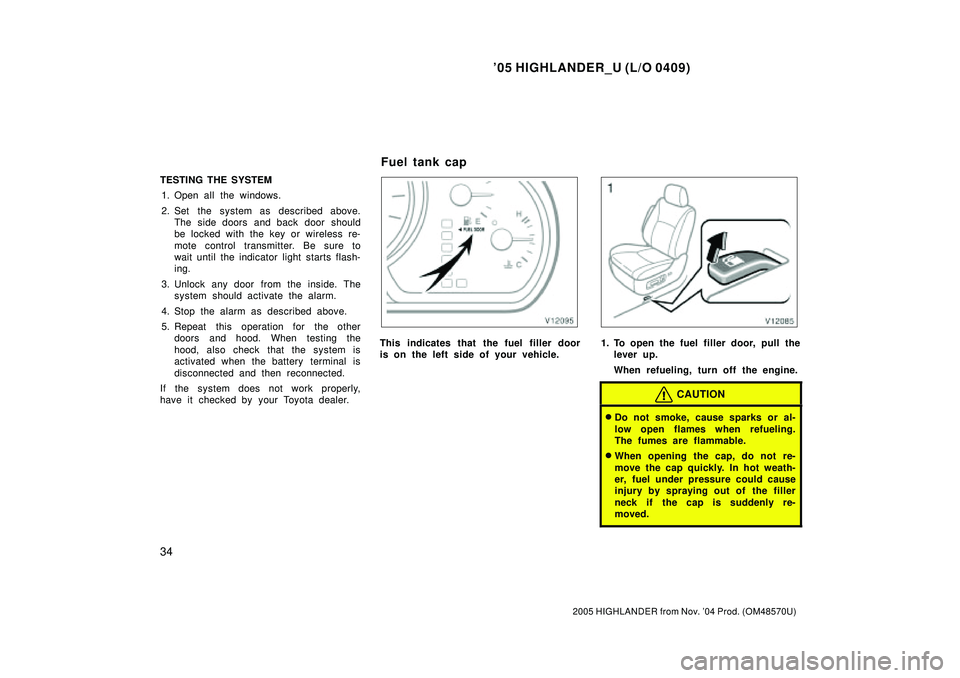

Page 150 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
34
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
b

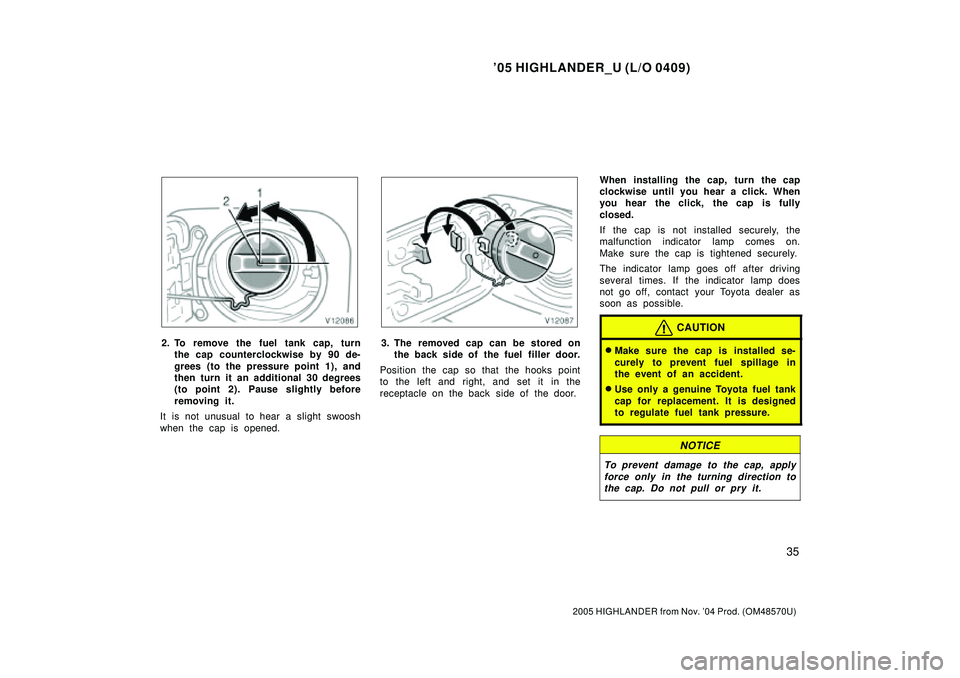

Page 151 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
35
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it

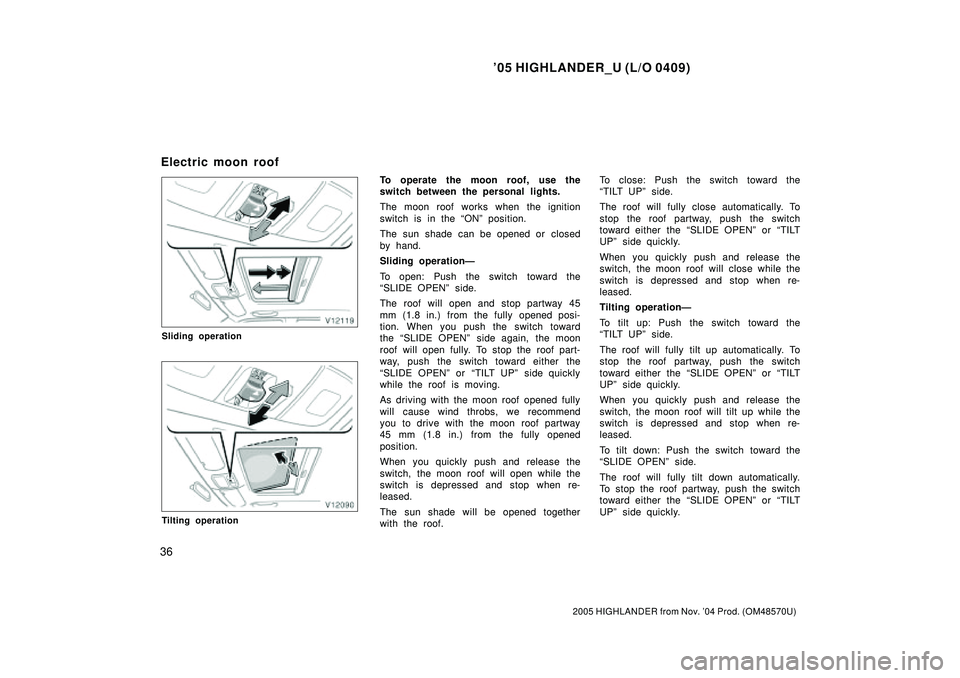

Page 152 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
36
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Sliding operation
Tilting operation
To operate the moon roof, use the
switch between the personal lights.
The moon roof wo
