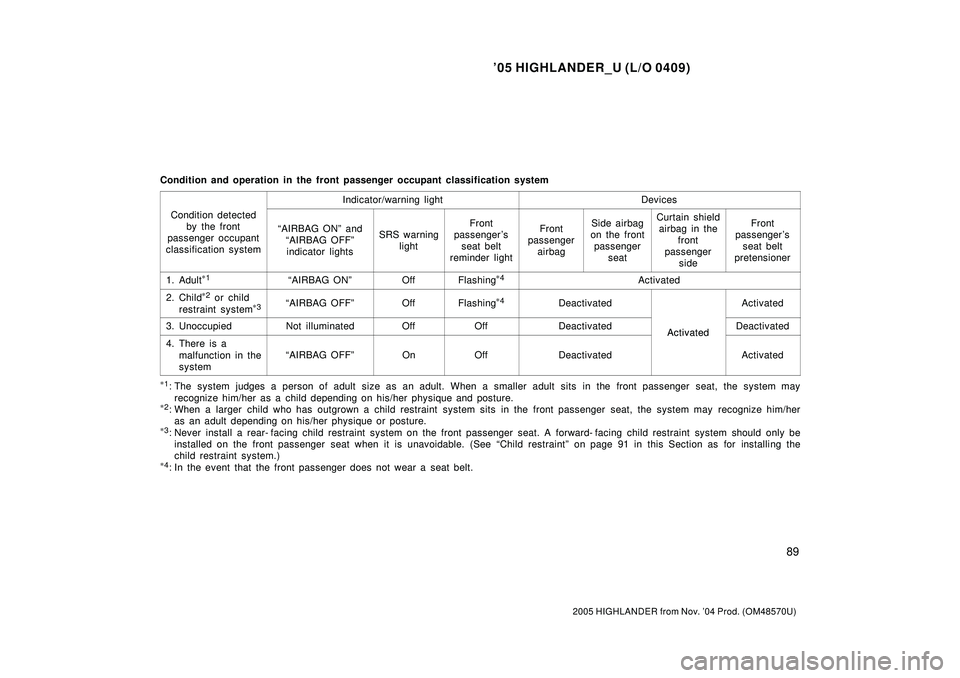

Condition and operation in the front passenger occupant classification system
Indicator/warning lightDevices
Condition detected
by the front
passenger occupant
classification system
AIRBAG ONº and
AIRBAG OFFº
indicator lightsSRS warning
light
Front
passenger 's
seat belt
reminder lightFront
passenger
airbagSide airbag
on the front
passenger
seatCurtain shield
airbag in the
front
passenger
sideFront
passenger 's
seat belt
pretensioner
1. Adult*
1AIRBAG ONºOffFlashing*
4Activated
2. Child*
2 or child
restraint system*
3AIRBAG OFFºOffFlashing*
4DeactivatedActivated
3. UnoccupiedNot illuminatedOffOffDeactivatedActivatedDeactivated
4. There is a
malfunction in the
system
AIRBAG OFFºOnOffDeactivated
Activated
Activated
*
1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
*
2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her
as an adult depending on his/her physique or posture.
*
3: Never install a rear- facing child restraint system on the front passenger seat. A forward- facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See Child restraintº on page 91 in this Section as for installing the
child restraint system.)
*
4: In the event that the front passenger does not wear a seat belt.
