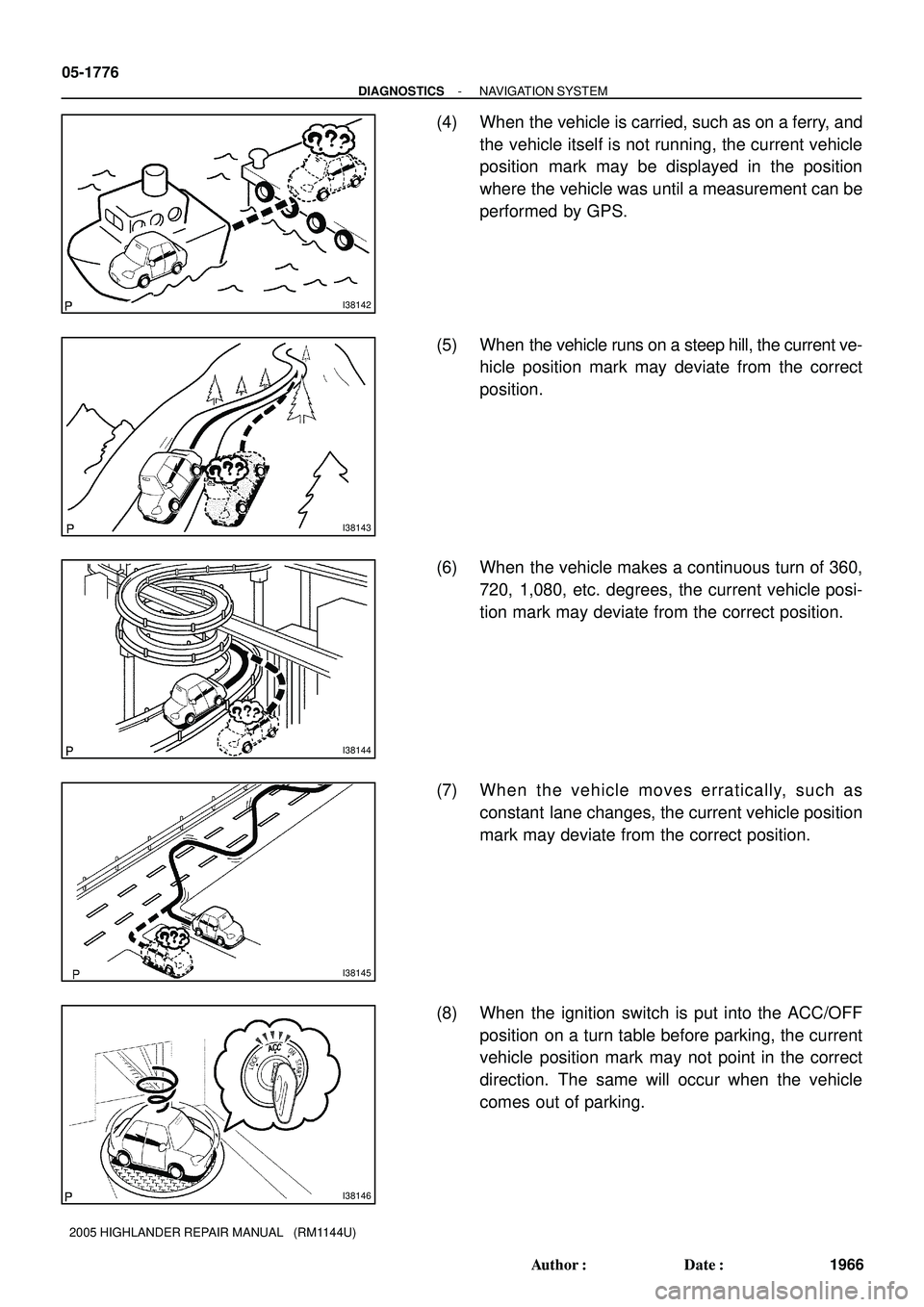

Page 2041 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I38142 I38143 I38144 I38145 I38146 05-1776 - DIAGNOSTICSNAVIGATION SYSTEM 1966 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) (4) When the vehicle is carried, such as on a ferry, and the ve

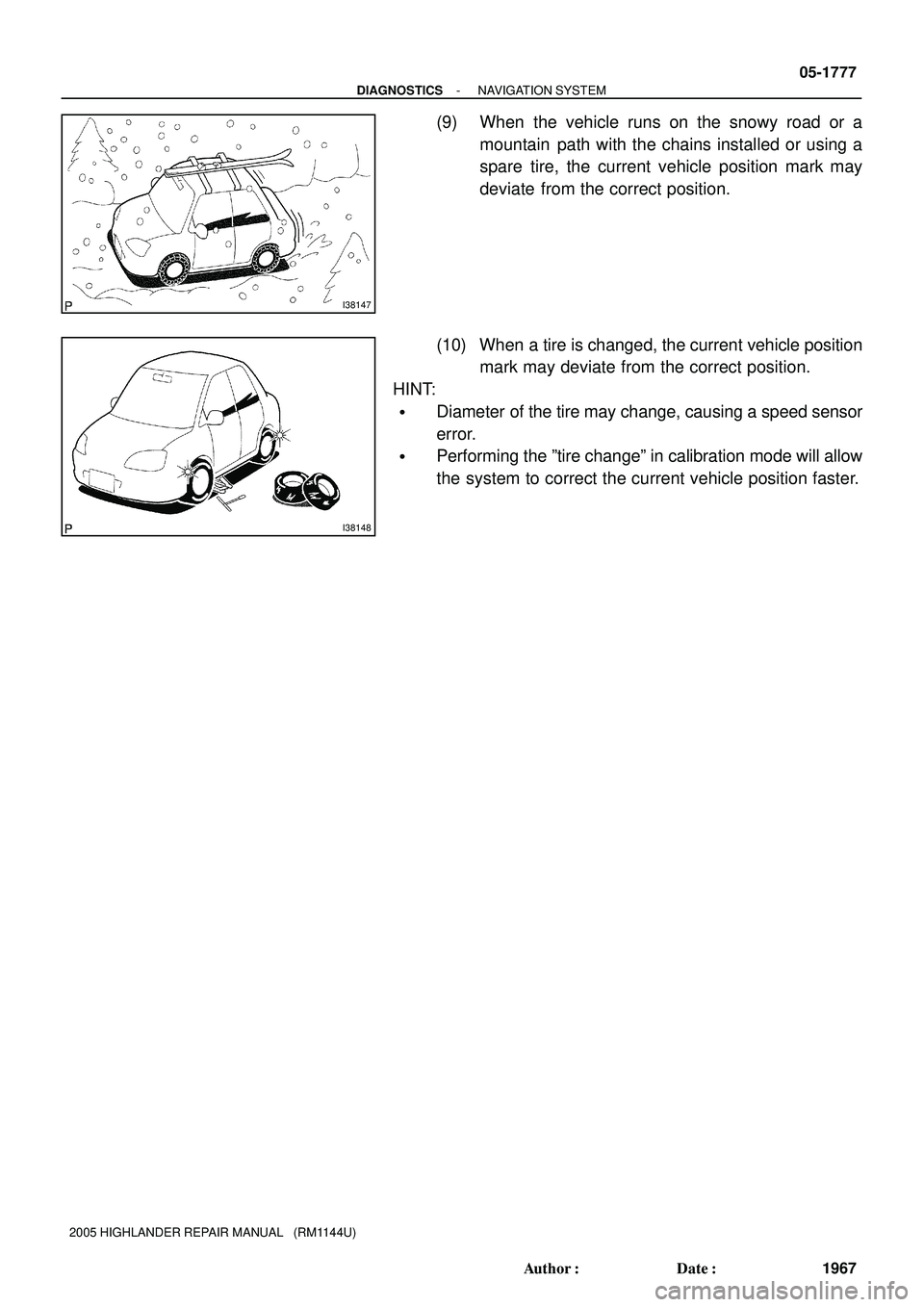

Page 2042 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I38147 I38148 - DIAGNOSTICSNAVIGATION SYSTEM 05-1777 1967 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) (9) When the vehicle runs on the snowy road or a mountain path with the chains inst

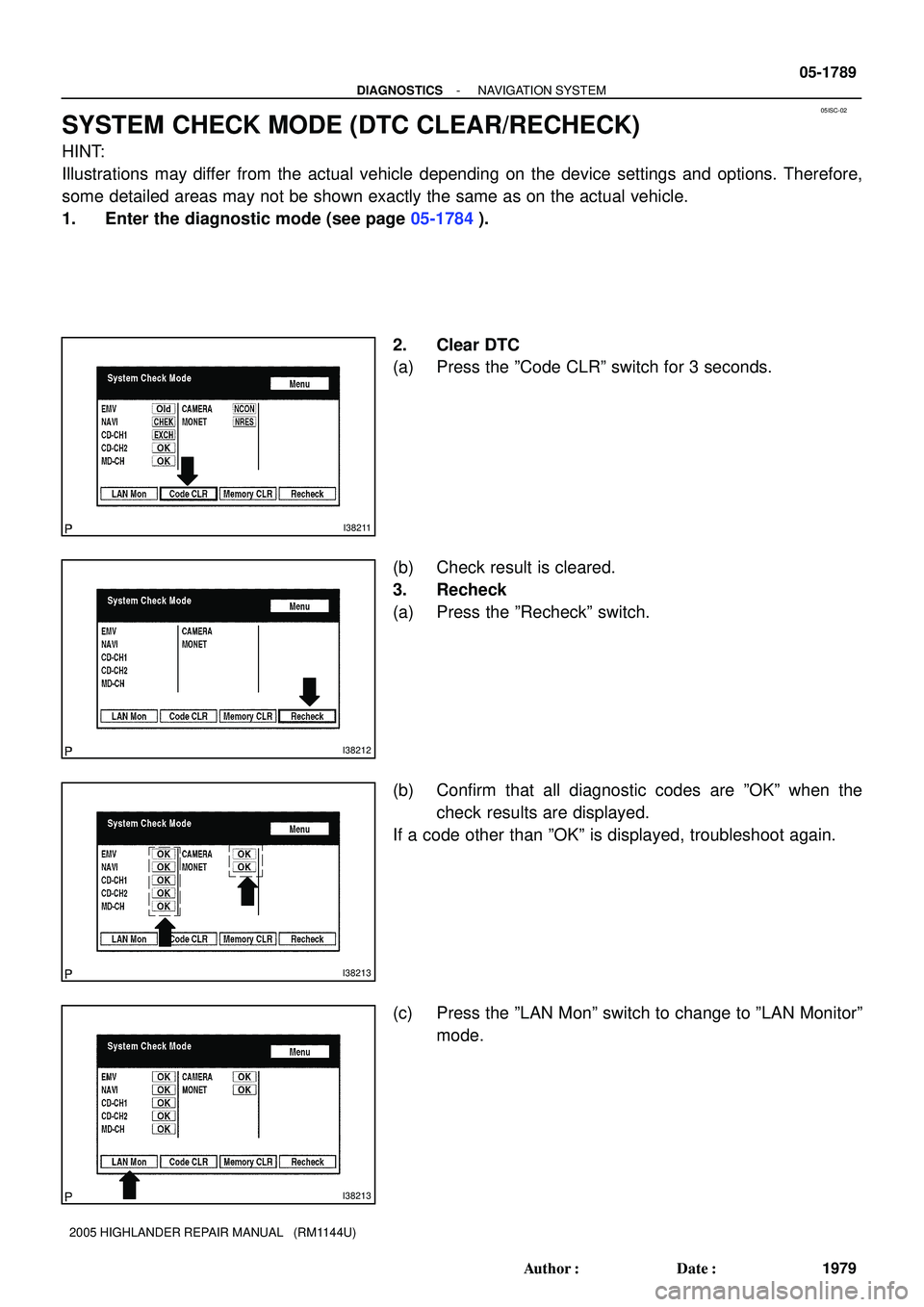

Page 2043 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05ISC-02 I38211 I38212 I38213 I38213 - DIAGNOSTICSNAVIGATION SYSTEM 05-1789 1979 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) SYSTEM CHECK MODE (DTC CLEAR/RECHECK) HINT: Illustrations may

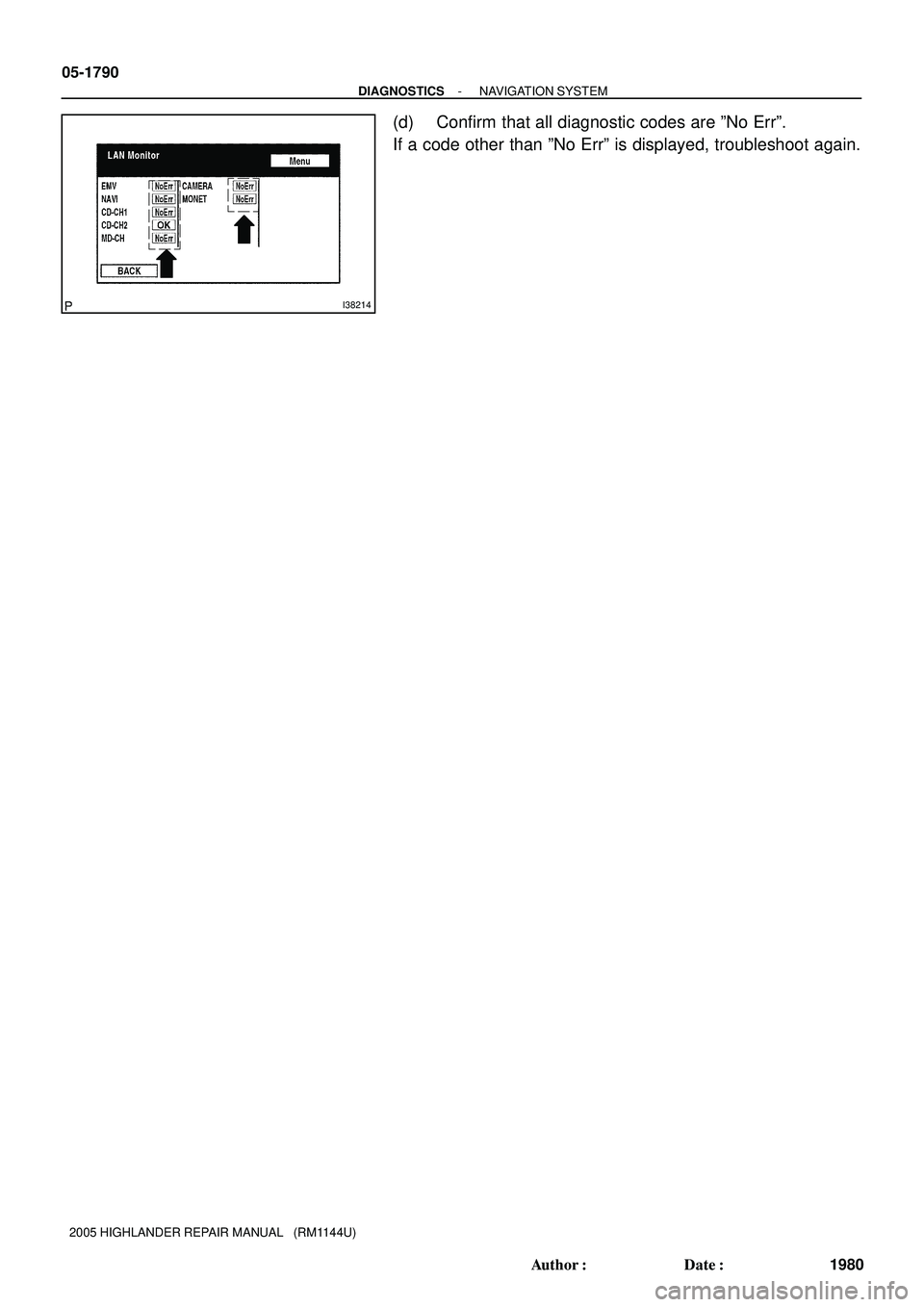

Page 2044 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I38214 05-1790 - DIAGNOSTICSNAVIGATION SYSTEM 1980 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) (d) Confirm that all diagnostic codes are ºNo Errº. If a code other than ºNo Errº is di

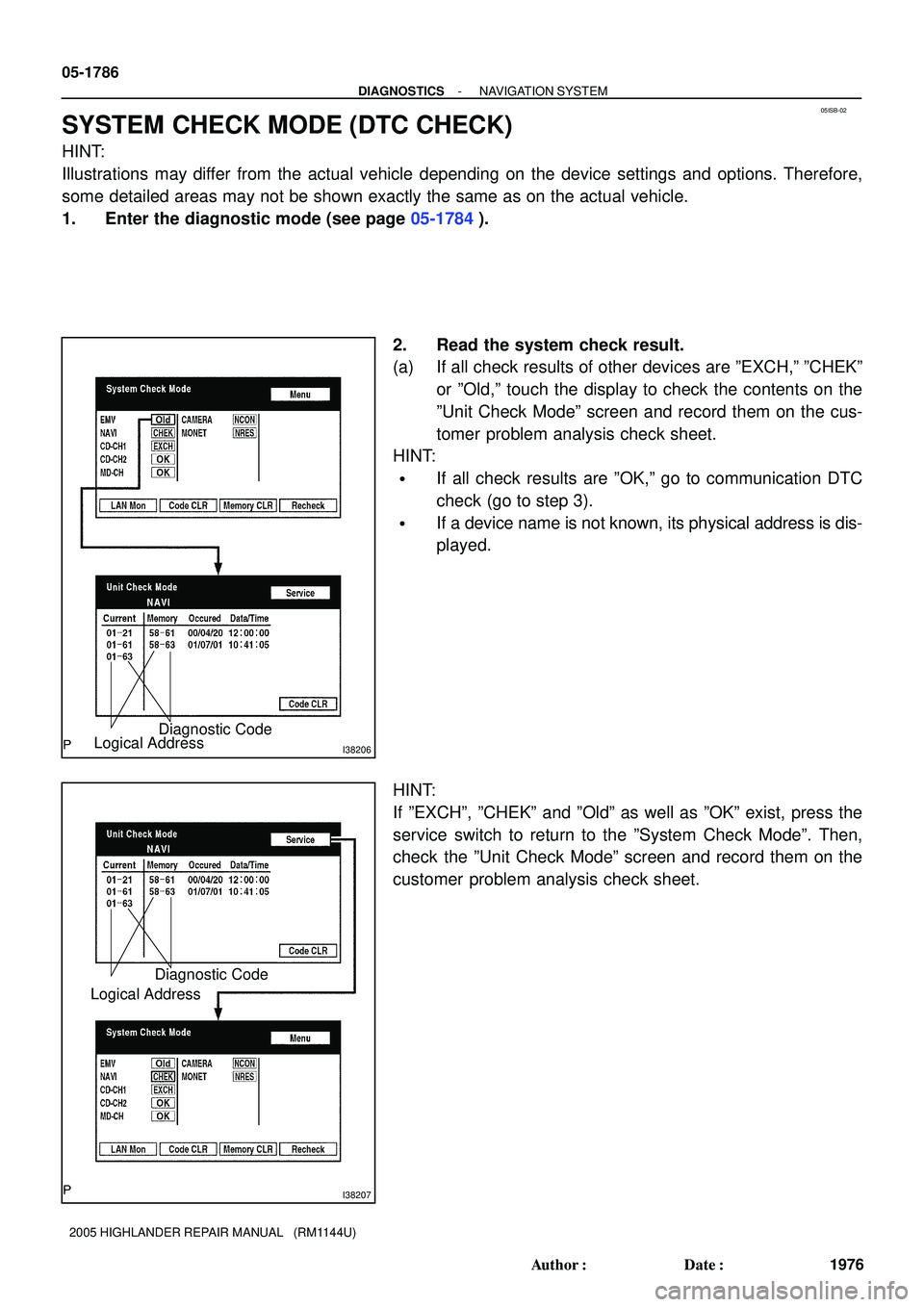

Page 2045 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05ISB-02 I38206Logical AddressDiagnostic Code I38207 Logical AddressDiagnostic Code 05-1786 - DIAGNOSTICSNAVIGATION SYSTEM 1976 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) SYSTEM CHECK M

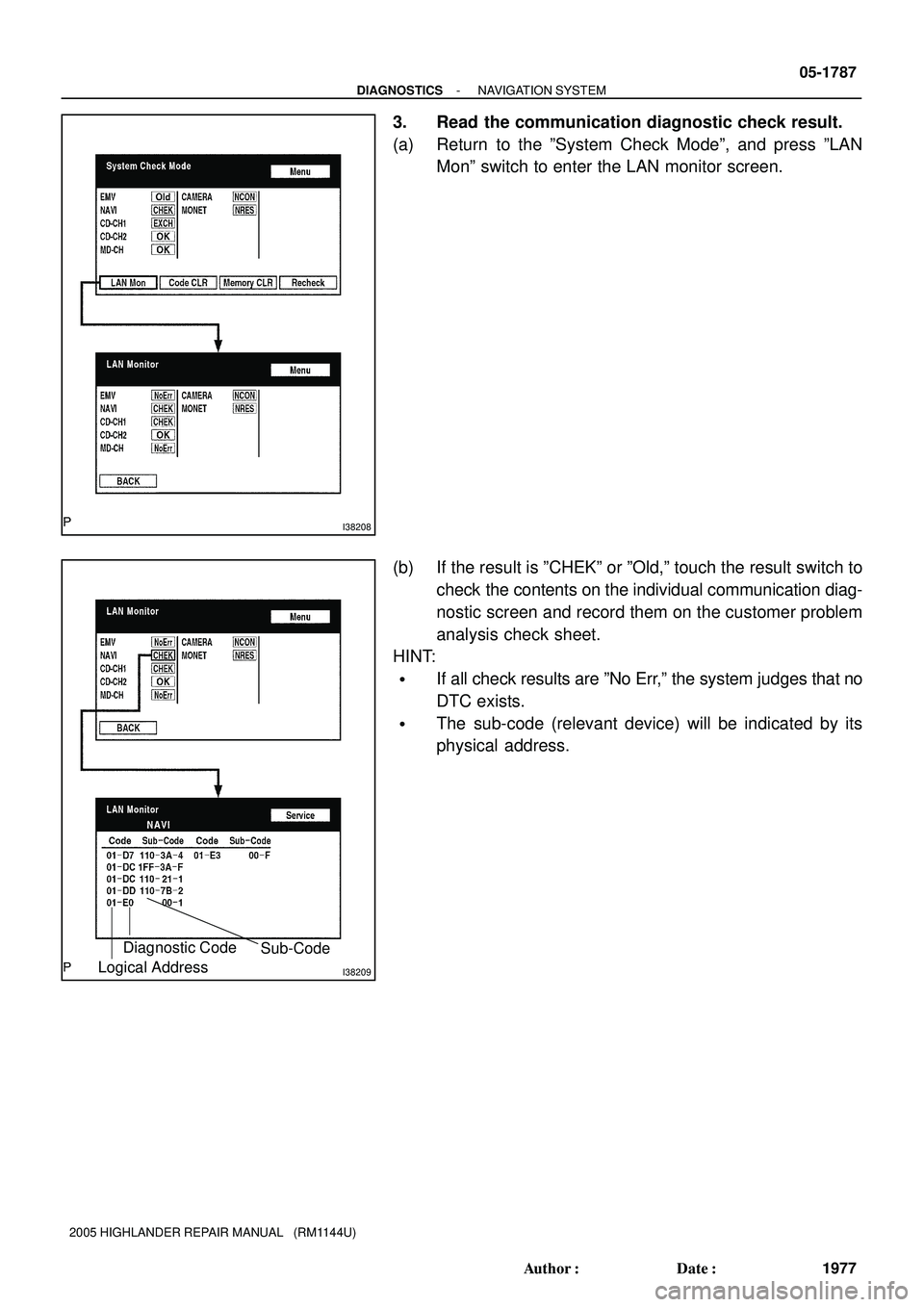

Page 2046 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I38208 I38209 Sub-Code Diagnostic Code Logical Address - DIAGNOSTICSNAVIGATION SYSTEM 05-1787 1977 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 3. Read the communication diagnostic check

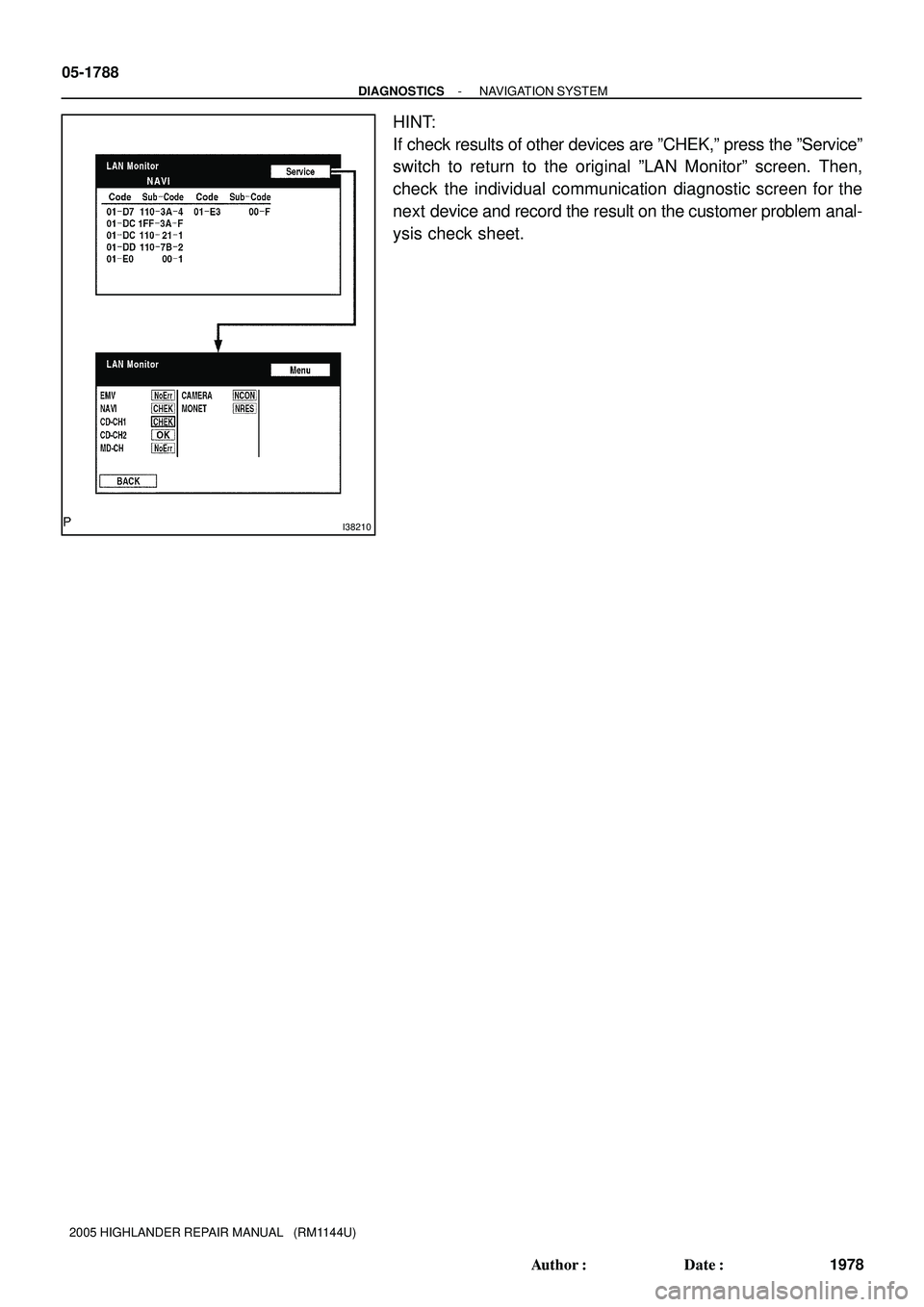

Page 2047 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I38210 05-1788 - DIAGNOSTICSNAVIGATION SYSTEM 1978 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) HINT: If check results of other devices are ºCHEK,º press the ºServiceº switch to retur

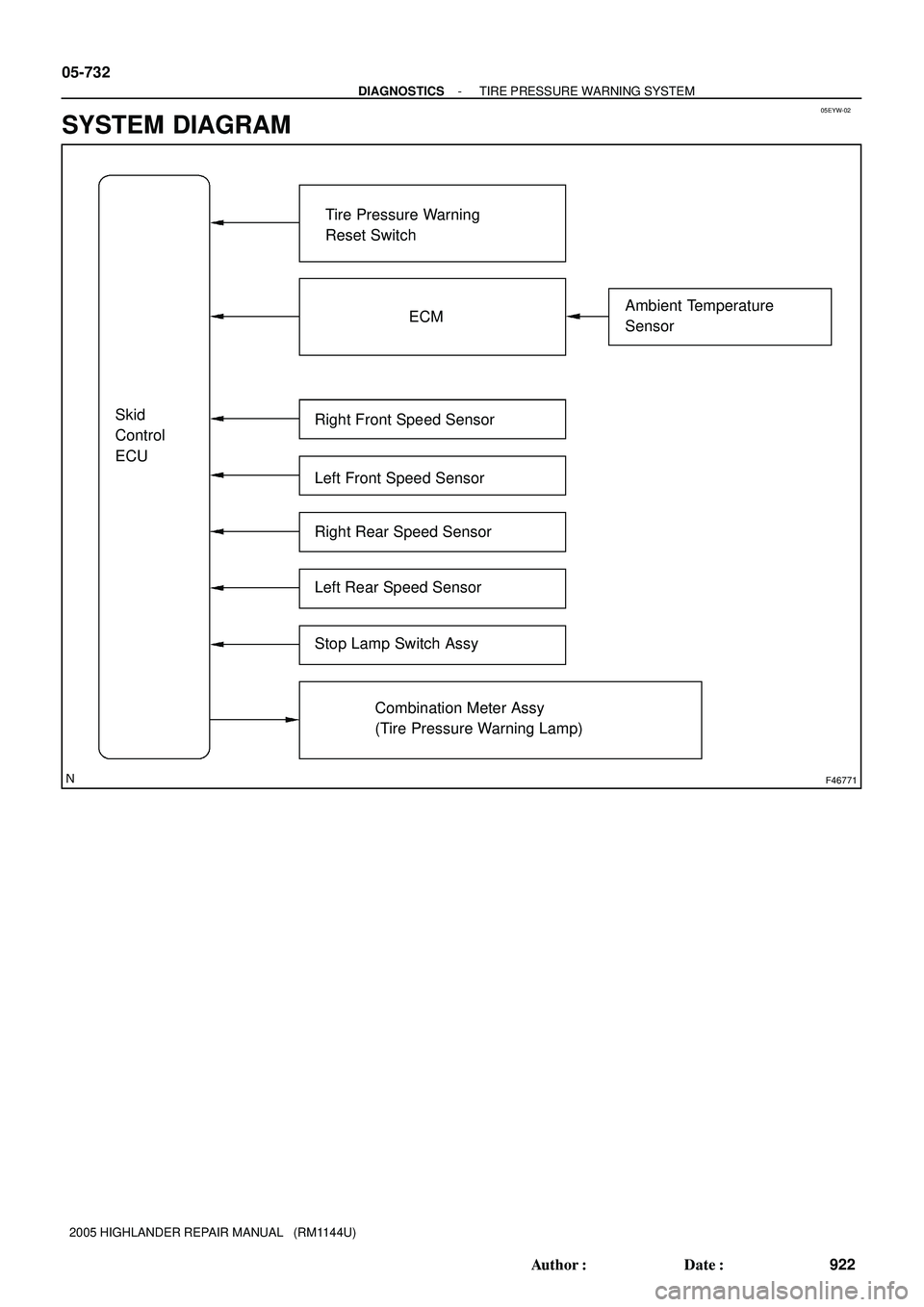

Page 2048 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05EYW-02 F46771 Skid Control ECUTire Pressure Warning Reset Switch ECM Right Front Speed Sensor Stop Lamp Switch Assy Combination Meter Assy (Tire Pressure Warning Lamp)Ambient Temperature Sensor Le
