TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 2
ECT and A/T Indicator for 2AZ-FE
BMPX-
A
MPX1
W
2IF3R
SNOW MPX1
A 16
10
GR
ODMS9
MPX2
L
GR W- B
W- BW- B
MPX2
V GR Y
E 4
29 BBR
6
IB 13 3F6
83H3
4 A17
2B A IB2 8
IB2 1
I

Page 410 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 3
SB
Y
13E 12 3J SBG
Y21 A 9B

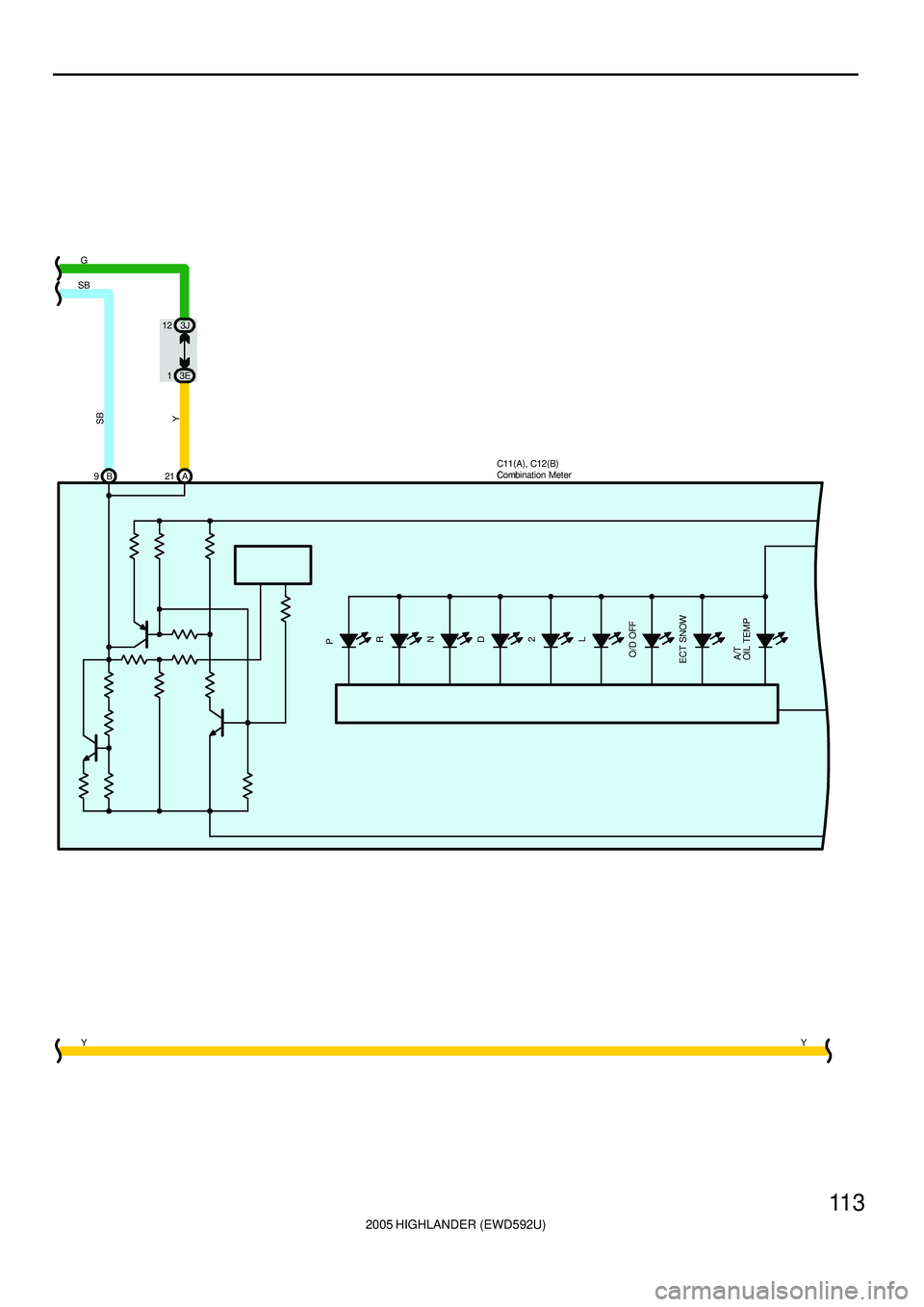

A/T
OI L TEM PP
ECT SNOWO/D OFFL 2 D N R
Y C11(
A)
, C12(
B)
Combination Meter

Page 411 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 4

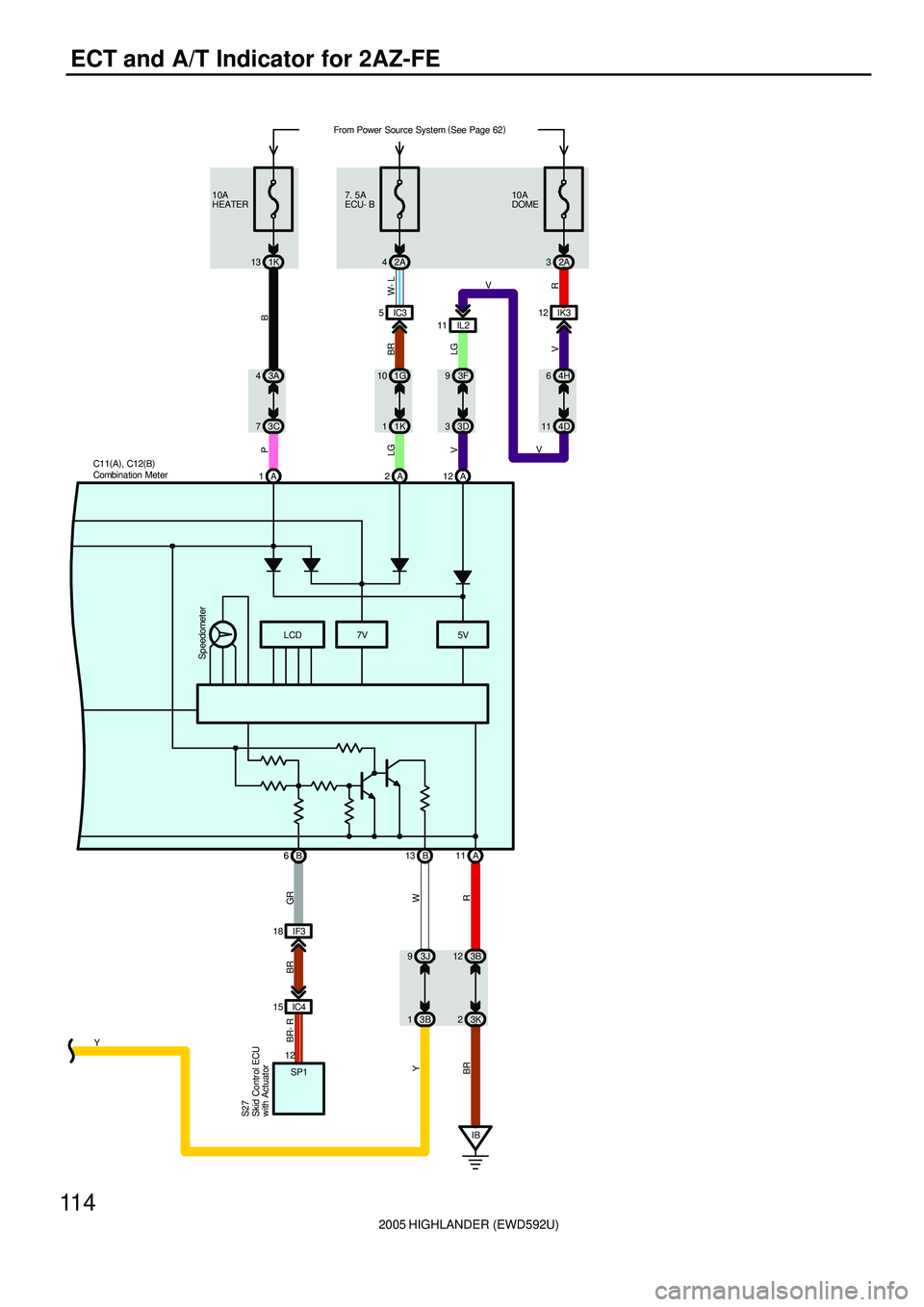

ECT and A/T Indicator for 2AZ-FE
Y
BR
10A
HEATER
1K 13 4 2A7. 5A
ECU- B
IC3 5
1G 10
1K 1 3A 4
3C 7
B P
LG W- LBR
3F 9
3D 3
VLG
4H 6
4D 11 10A
DOME
2A 3
R VV
V12 IK3
IL2

Page 412 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 5
Previous automatic transaxle have selected each gear shift using mechanically controlled throttle hydraulic pressure,
governor hydraulic pressure and lock-up hydrau

2005 HIGHLANDER (EWD592U)
11 5
Previous automatic transaxle have selected each gear shift using mechanically controlled throttle hydraulic pressure,
governor hydraulic pressure and lock-up hydraulic pressure. The electronically controlled transmission, however, electrically
controls the line pressure, throttle pressure, lock-up pressure and accumulator pressure etc. through the solenoid valve. The
electronically controlled transmission is a system which precisely controls gear shift timing and lock-up timing in response to
the vehicle's driving conditions and the engine condition detected by various sensors. It makes smooth driving possible by
shift selection for each gear which is the most appropriate to the driving conditions at that time, and by preventing downing,
squat and gear shift shock when starting off.
1. Gear Shift Operation
During driving the engine warm up condition signal is input from engine coolant temp. sensor to TERMINAL THW of the
engine control module, and the vehicle speed signal is input from the ABS speed sensor to skid control ECU, and are sent to
the engine control module through communication control. At the same time, the throttle valve opening signal is sent from
the throttle position sensor to the TERMINALS VTA1 and VTA2 of the engine control module, as the throttle angle signal.
2. Lock-Up Operation
When the engine control module decides based on each signal that the lock-up condition has been met, the current flows
through TERMINAL DSL of the engine control module to TERMINAL 3 of the electronically controlled transmission solenoid
to GROUND.
3. Stop Light SW Circuit
If the brake pedal is depressed (Stop light SW on) when driving in lock-up condition, a signal is input to TERMINAL STP of
the engine control module. The engine control module operates and cuts the current to the solenoid to release lock-up.
4. Overdrive Circuit
*O/D main SW on
When the O/D main SW is turned on, a signal is input to TERMINAL ODMS of the engine control module and engine
control module operation causes gear shift when the conditions for overdrive are met.
*O/D main SW off
When the O/D main SW is turned off, a signal is input into TERMINAL ODMS of the engine control module, and turns on
the O/D off indicator light. This activates the ECU, and the transmission system is controlled not to shift to overdrive.
E4 Electronically Controlled Transmission Pattern Select SW
3-4 : Closed with the select SW at SNOW position
E5 (A), E6 (B), E7 (E), E8 (D), E9 (C) Engine Control Module
BATT-E1 : Always approx. 12 volts
MREL-E1 : Approx. 12 volts with the ignition SW ON position
P1 A/T Indicator SW
2-6 : Closed with the shift lever in P position
2-1 : Closed with the shift lever in R position
2-9 : Closed with the shift lever in N position
2-7 : Closed with the shift lever in D position
2-3 : Closed with the shift lever in 2 position
2-8 : Closed with the shift lever in L position
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
A10A42E6B42S1543
A11B42E7E42S2741 (2AZ-FE)
A1742E8D42S28A43
B9A42E9C42S29B43
B10B42E1040 (2AZ-FE)S30A43
C640 (2AZ-FE)G543S31B43
C11A42J241 (2AZ-FE)T341 (2AZ-FE)
C12B42J643T1341 (2AZ-FE)
E240 (2AZ-FE)J743T1643
E442P141 (2AZ-FE)
E5A42P544
System Outline
Service Hints

Page 413 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 6
ECT and A/T Indicator for 2AZ-FE

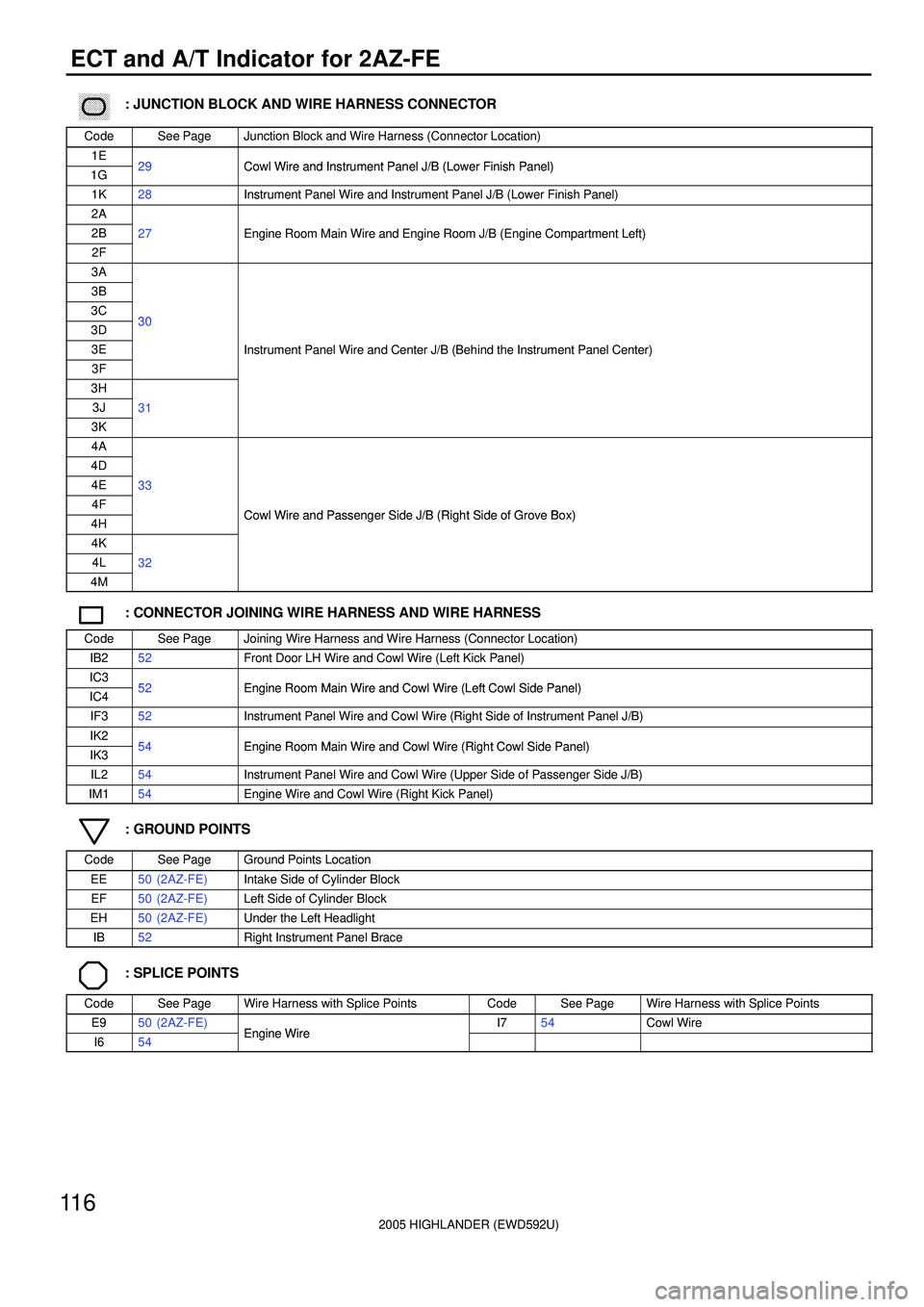

�� : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1E29Cowl Wire and

Page 414 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
11 7

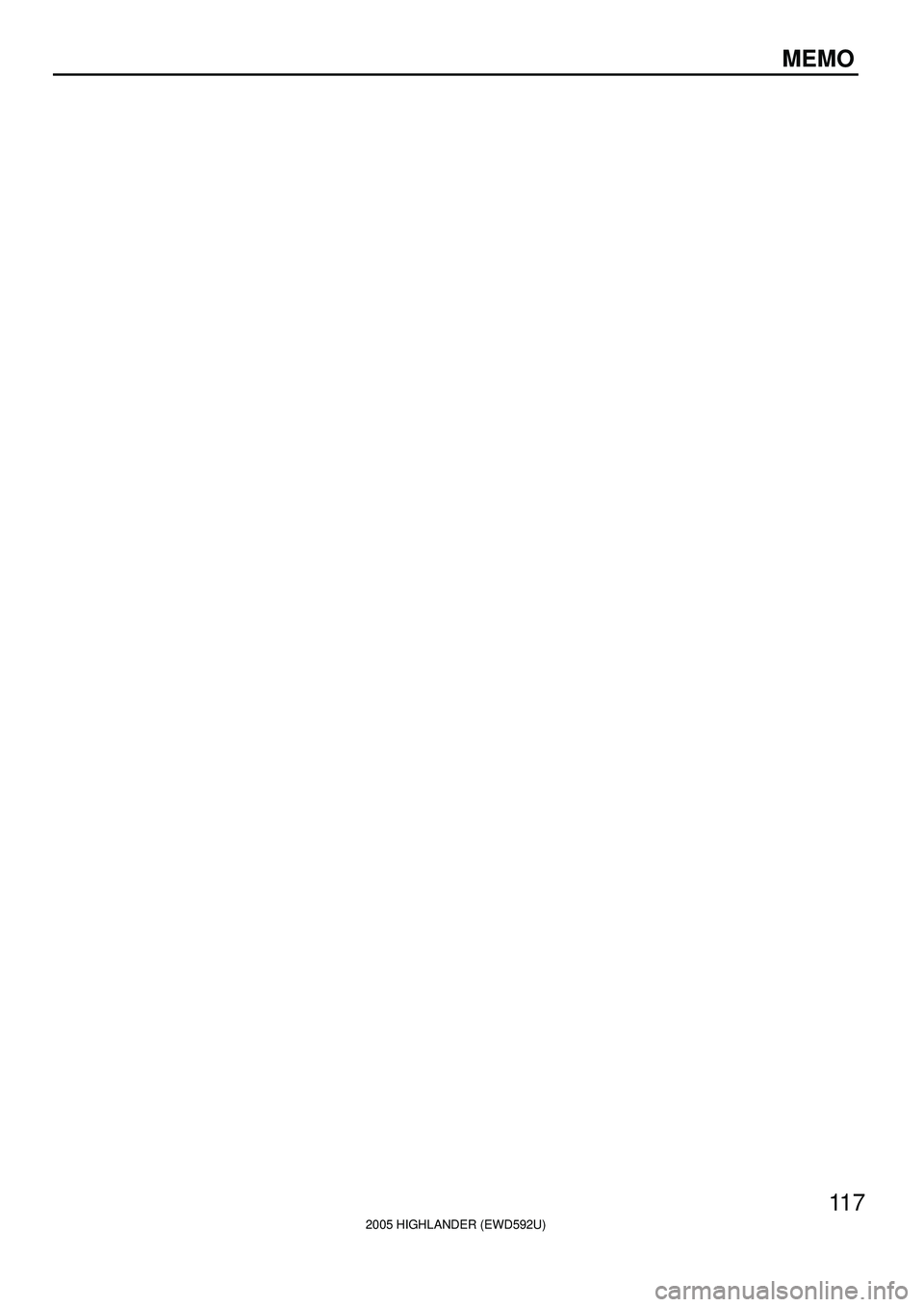

MEMO

Page 415 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
247
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

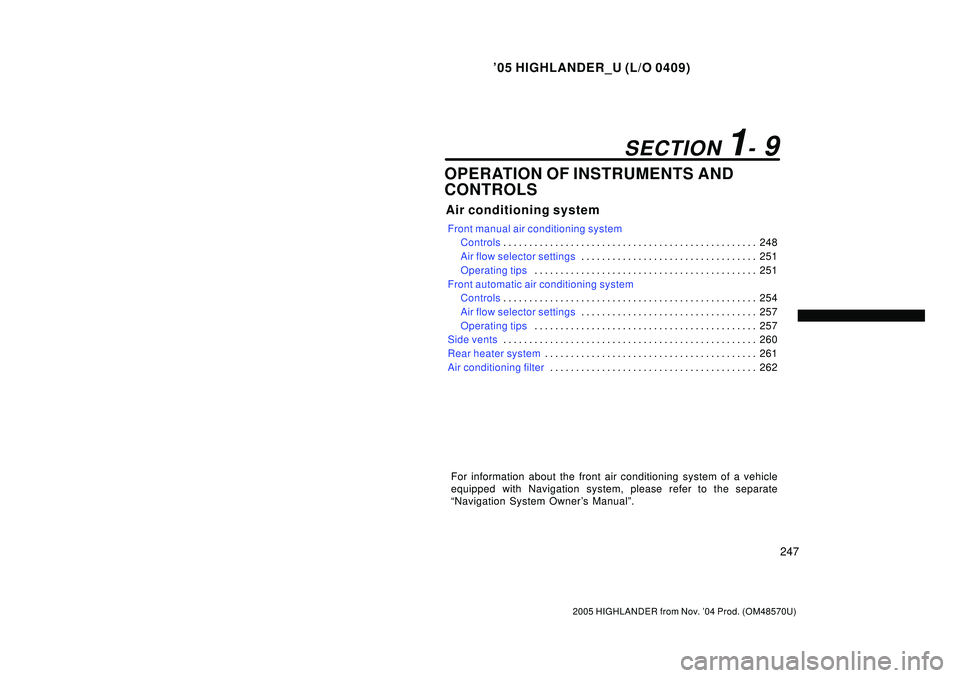

OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front manual air conditioning system
Controls248 . . . . .

Page 416 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
248
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

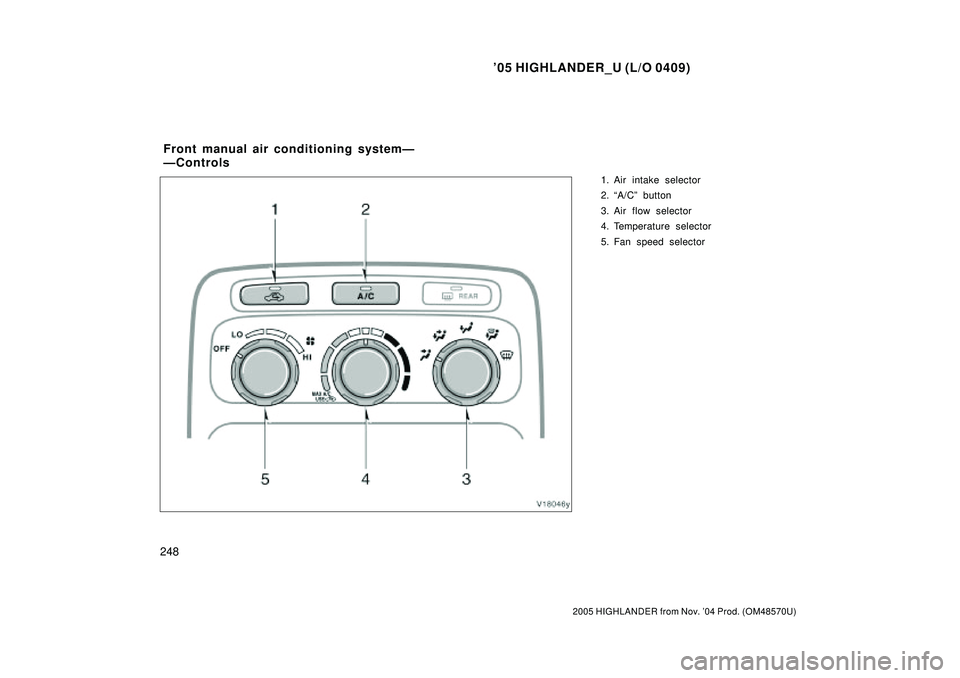

1. Air intake selector
2. A/Cº button
3. Air flow selector
4. Temperature selector
5. Fan speed selector
Front manual a
