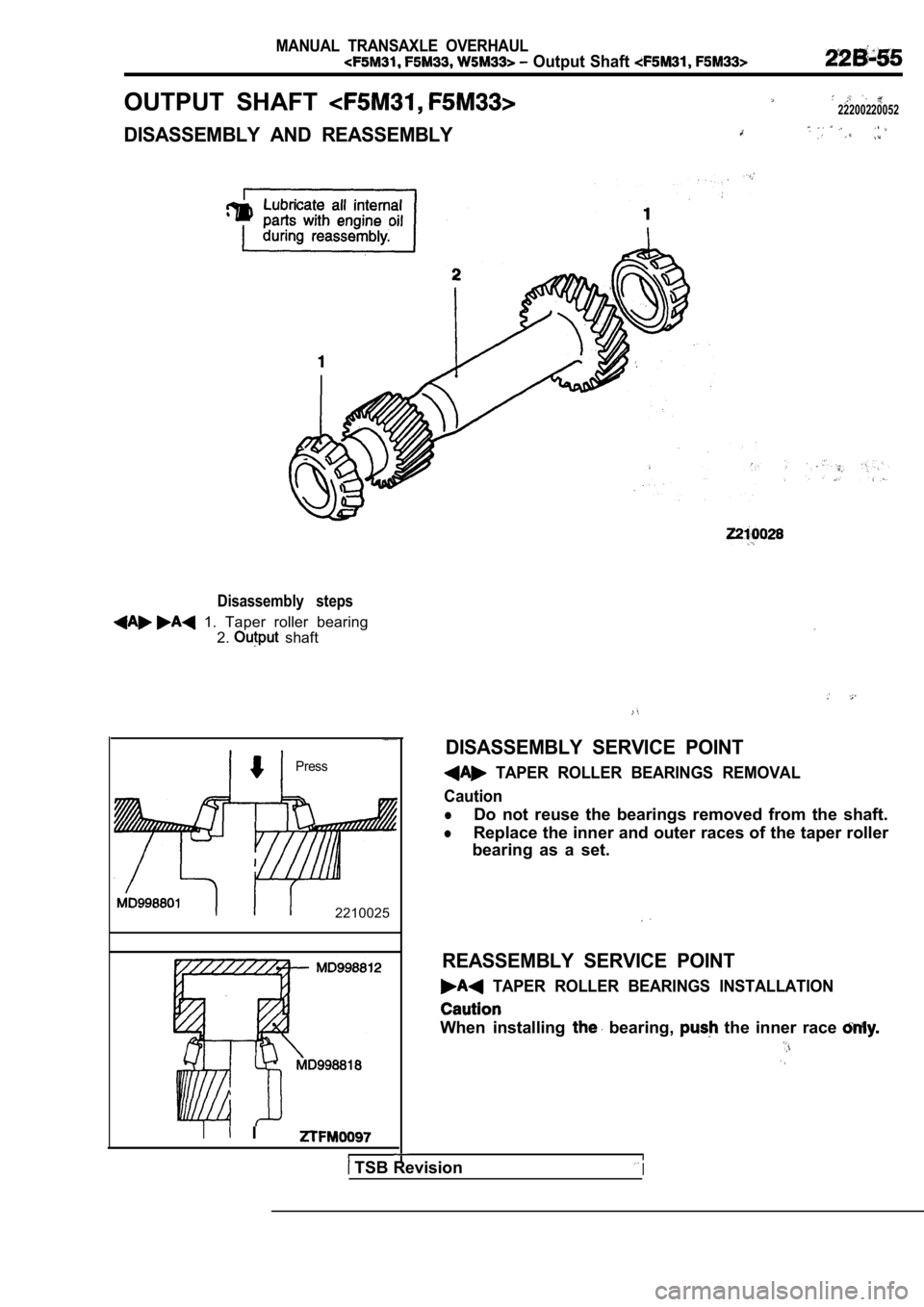

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL Output Shaft OUTPUT SHAFT 22200220052 DISASSEMBLY AND REASSEMBLY Disassembly steps 1. Taper roller bearing2. shaft Press 2210025 I I DISASSEMBLY SERVICE P

Page 946 of 2103

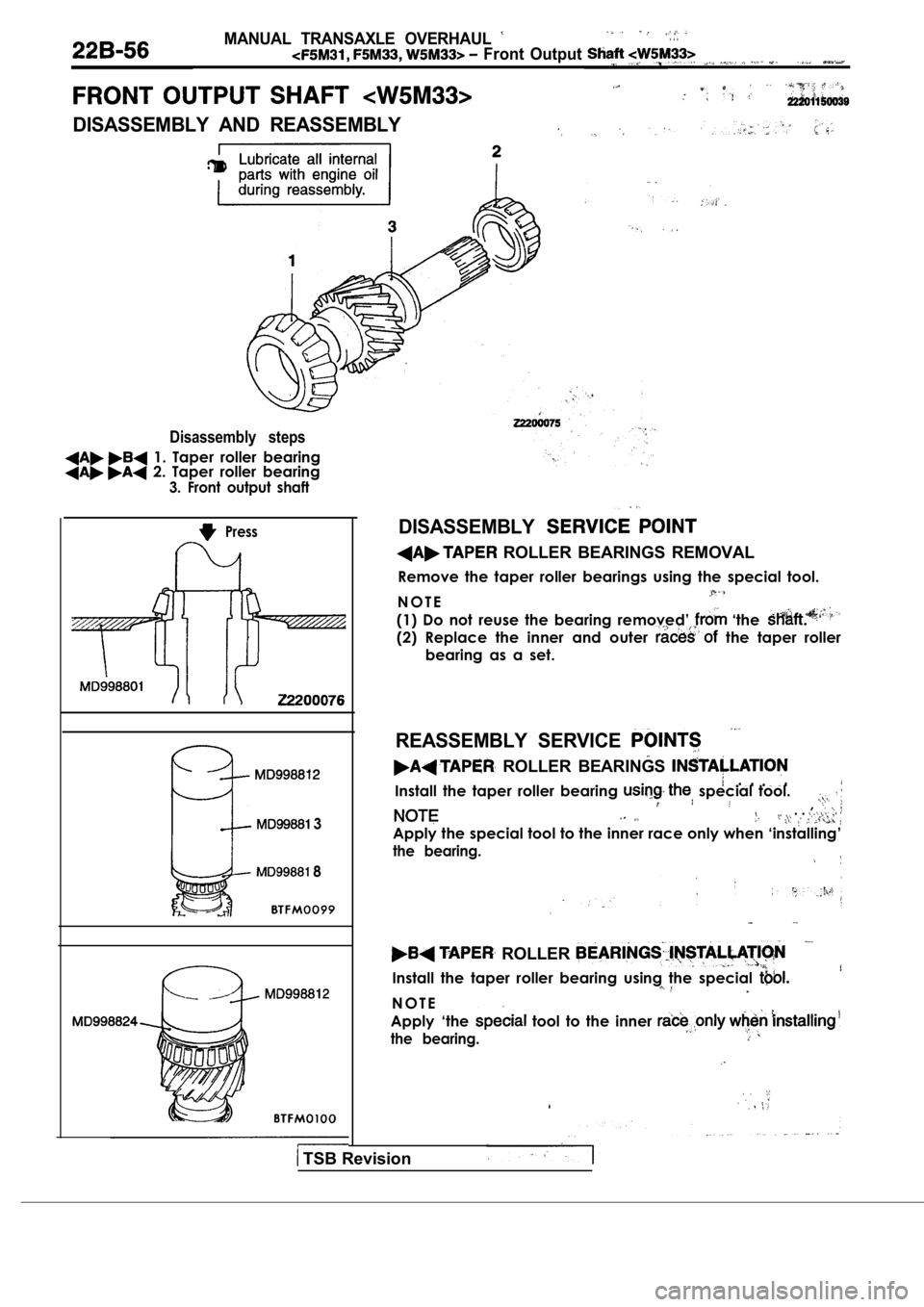

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL . . . Front Output ,__ DISASSEMBLY AND REASSEMBLY Disassembly steps 1. Taper roller bearing 2. Taper roller bearing 3. Front output shaft Press 3 8

Page 947 of 2103

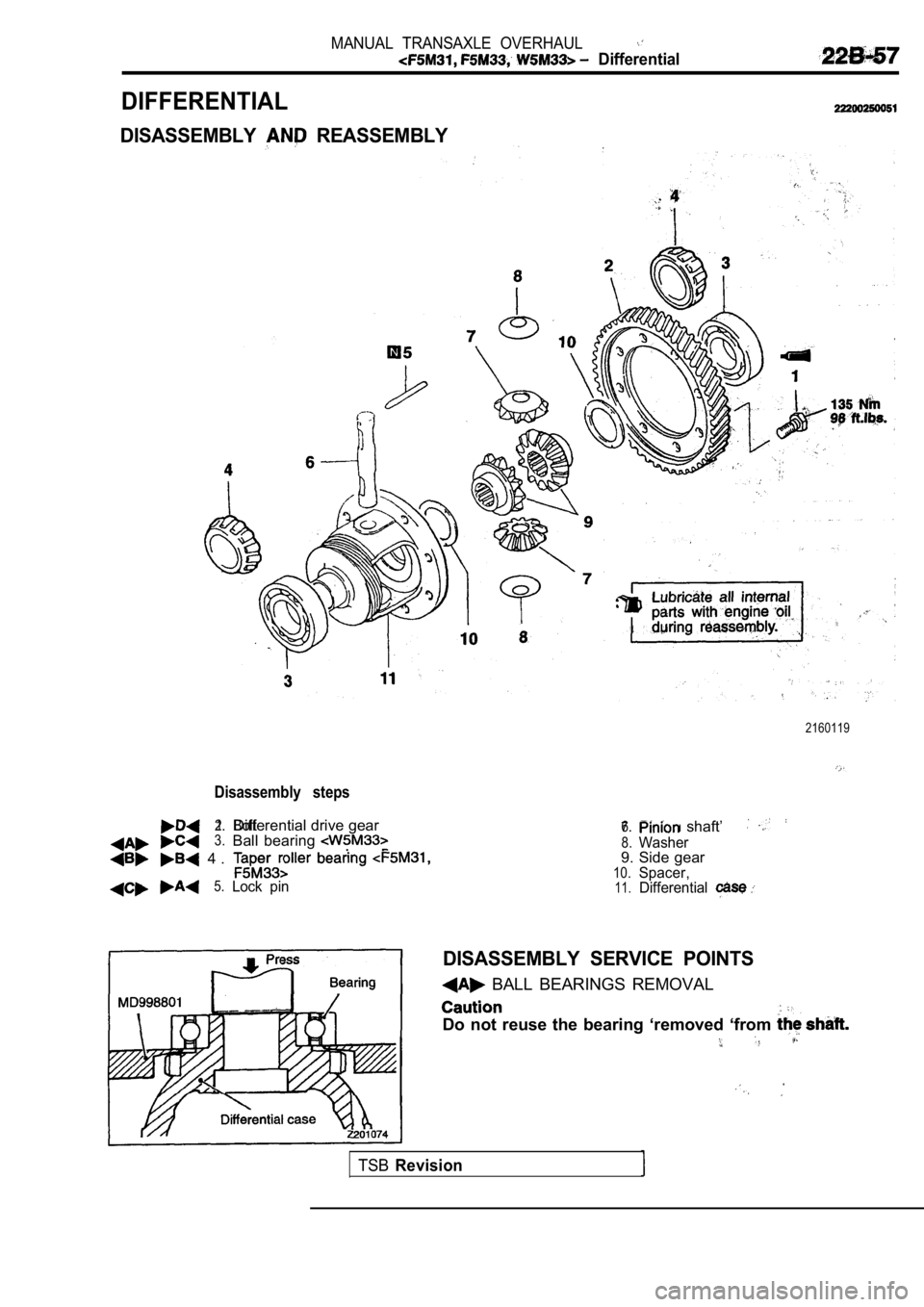

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL Differential DIFFERENTIAL DISASSEMBLY REASSEMBLY 2160119 Disassembly steps 1.Bolt2.Differential drive gear3.Ball bearing 4 . 5.Lock pin 6.Pinion shaft’7. 8.Was

Page 948 of 2103

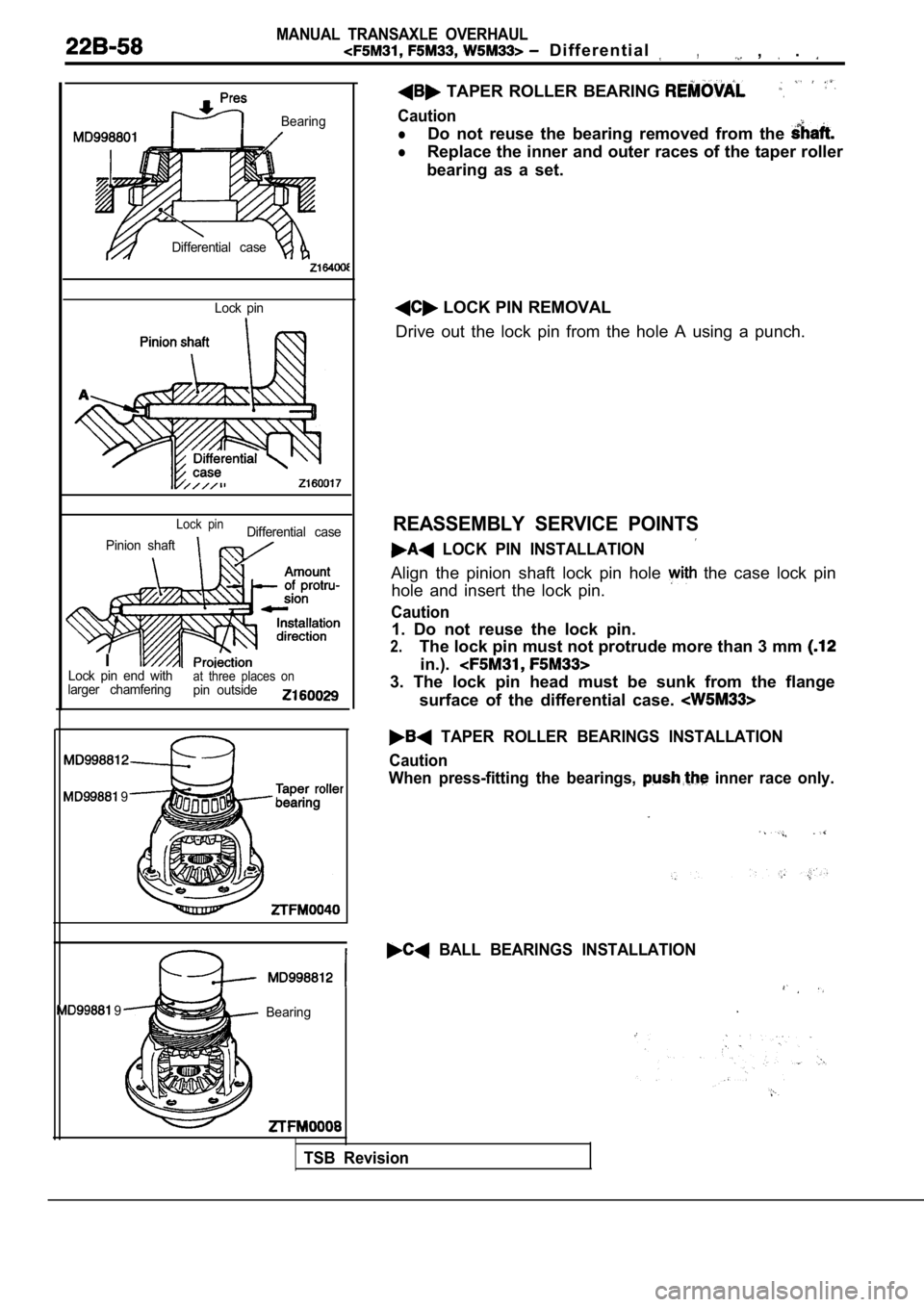

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL D i f f e r e n t i a l , , . Bearing Differential case Lock pin Lock pinDifferential case Pinion shaft ILock pin end with larger chamferingat three place

Page 949 of 2103

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL Differential 160030I JNSTALLATION , (1) Apply the specified sealant to the bolt threads. Specified sealant: Stud Locking or equivalent (2) Tighten to

Page 950 of 2103

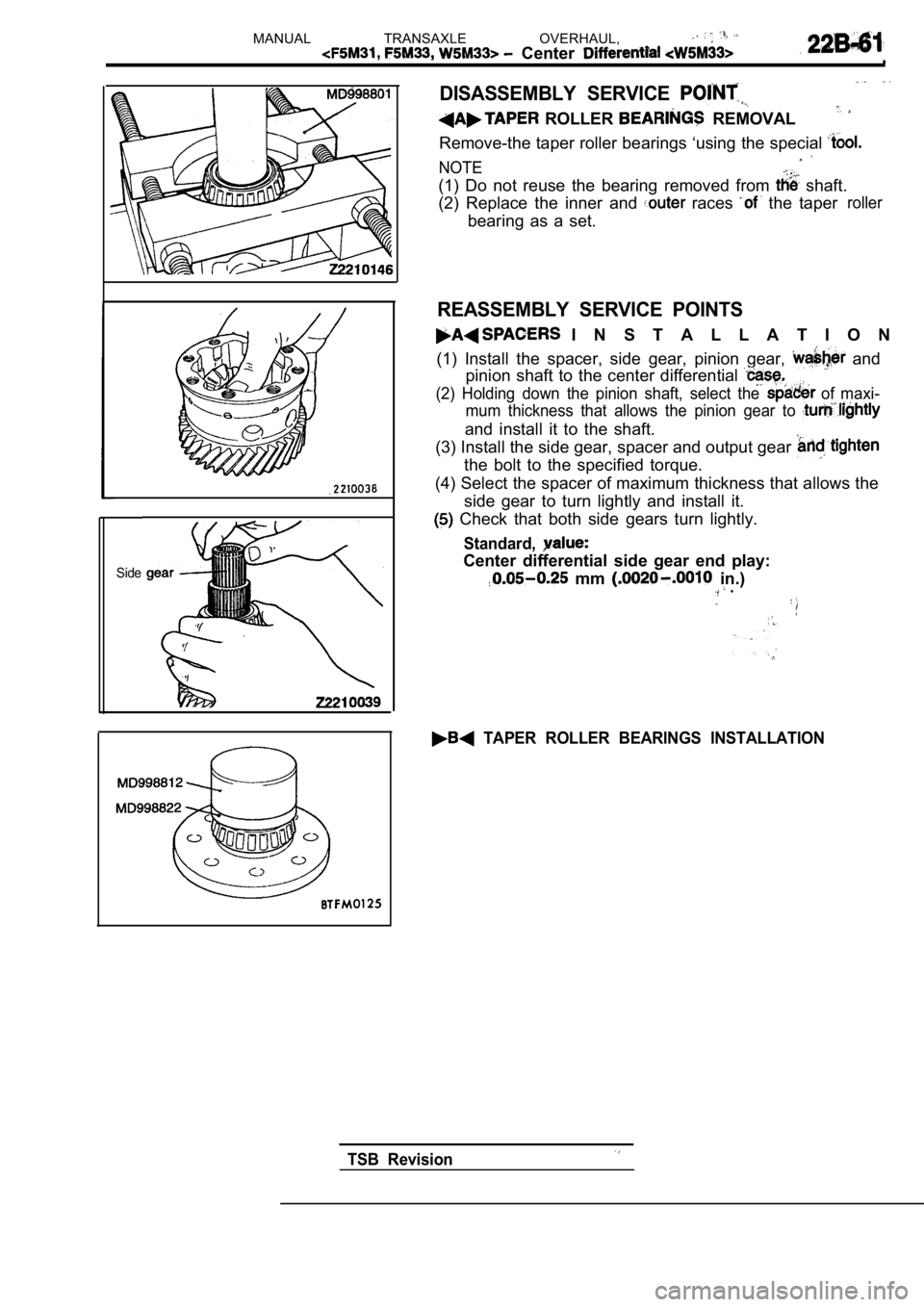

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAULCenter Differential , CENTER DIFFERENTIAL DISASSEMBLYAND REASSEMBLY , 22250015 Disassembly steps 1. Taper roller bearing2.Bolt 3. Taper roller bearing4.Output

Page 951 of 2103

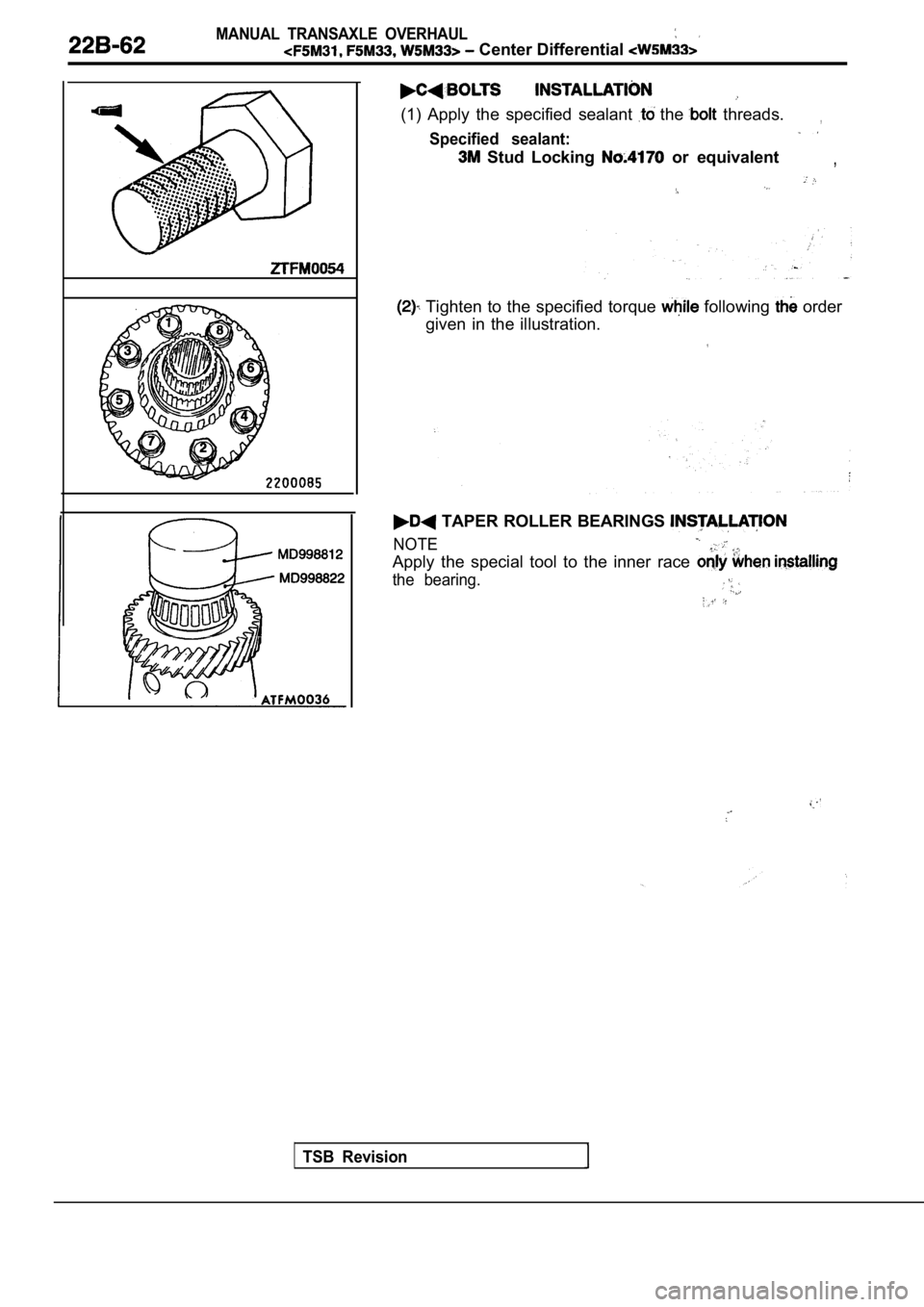

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL, Center Side DISASSEMBLY SERVICE ROLLER REMOVAL Remove-the taper roller bearings ‘using the special NOTE (1) Do not reuse the bearing removed from sha

Page 952 of 2103

MITSUBISHI SPYDER 1990 Service Repair Manual MANUAL TRANSAXLE OVERHAUL Center Differential TSB Revision (1) Apply the specified sealant the threads., Specified sealant: Stud Locking or equivalent, Tighten to the specified
