Page 2185 of 2267

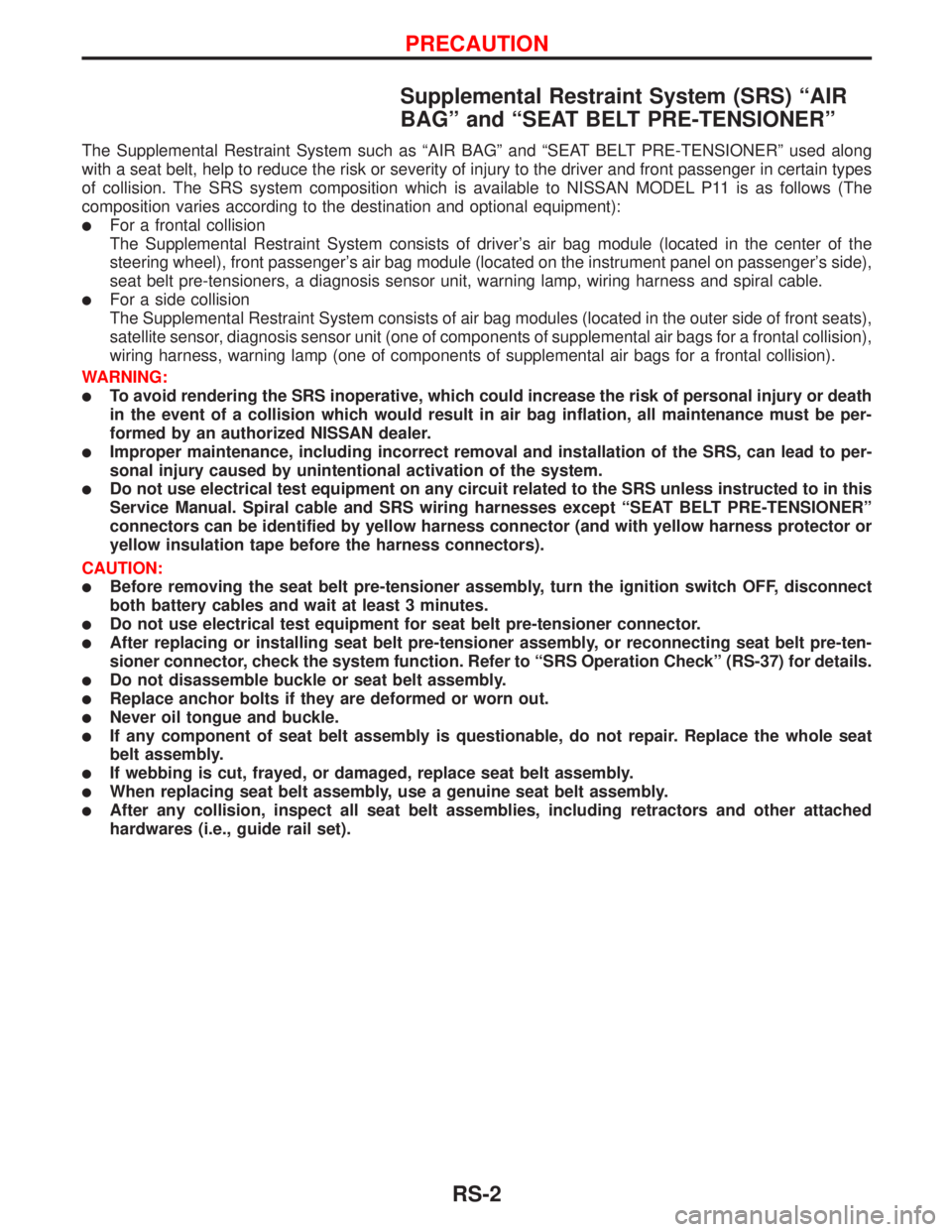

NISSAN PRIMERA 1999 Electronic Repair Manual Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, help

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, help to reduce the risk or severity of injury to the driver and front passenger in certain types
of collision. The SRS system composition which is available to NISSAN MODEL P11 is as follows (The
composition varies according to the destination and optional equipment):
lFor a frontal collision
The Supplemental Restraint System consists of driver's air bag module (located in the center of the
steering wheel), front passenger's air bag module (located on the instrument panel on passenger's side),
seat belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
lFor a side collision
The Supplemental Restraint System consists of air bag modules (located in the outer side of front seats),
satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal collision),
wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision).
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and SRS wiring harnesses except ªSEAT BELT PRE-TENSIONERº
connectors can be identified by yellow harness connector (and with yellow harness protector or
yellow insulation tape before the harness connectors).
CAUTION:
lBefore removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect
both battery cables and wait at least 3 minutes.
lDo not use electrical test equipment for seat belt pre-tensioner connector.
lAfter replacing or installing seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner connector, check the system function. Refer to ªSRS Operation Checkº (RS-37) for details.
lDo not disassemble buckle or seat belt assembly.
lReplace anchor bolts if they are deformed or worn out.
lNever oil tongue and buckle.
lIf any component of seat belt assembly is questionable, do not repair. Replace the whole seat
belt assembly.
lIf webbing is cut, frayed, or damaged, replace seat belt assembly.
lWhen replacing seat belt assembly, use a genuine seat belt assembly.
lAfter any collision, inspect all seat belt assemblies, including retractors and other attached
hardwares (i.e., guide rail set).
PRECAUTION
RS-2

Page 2186 of 2267

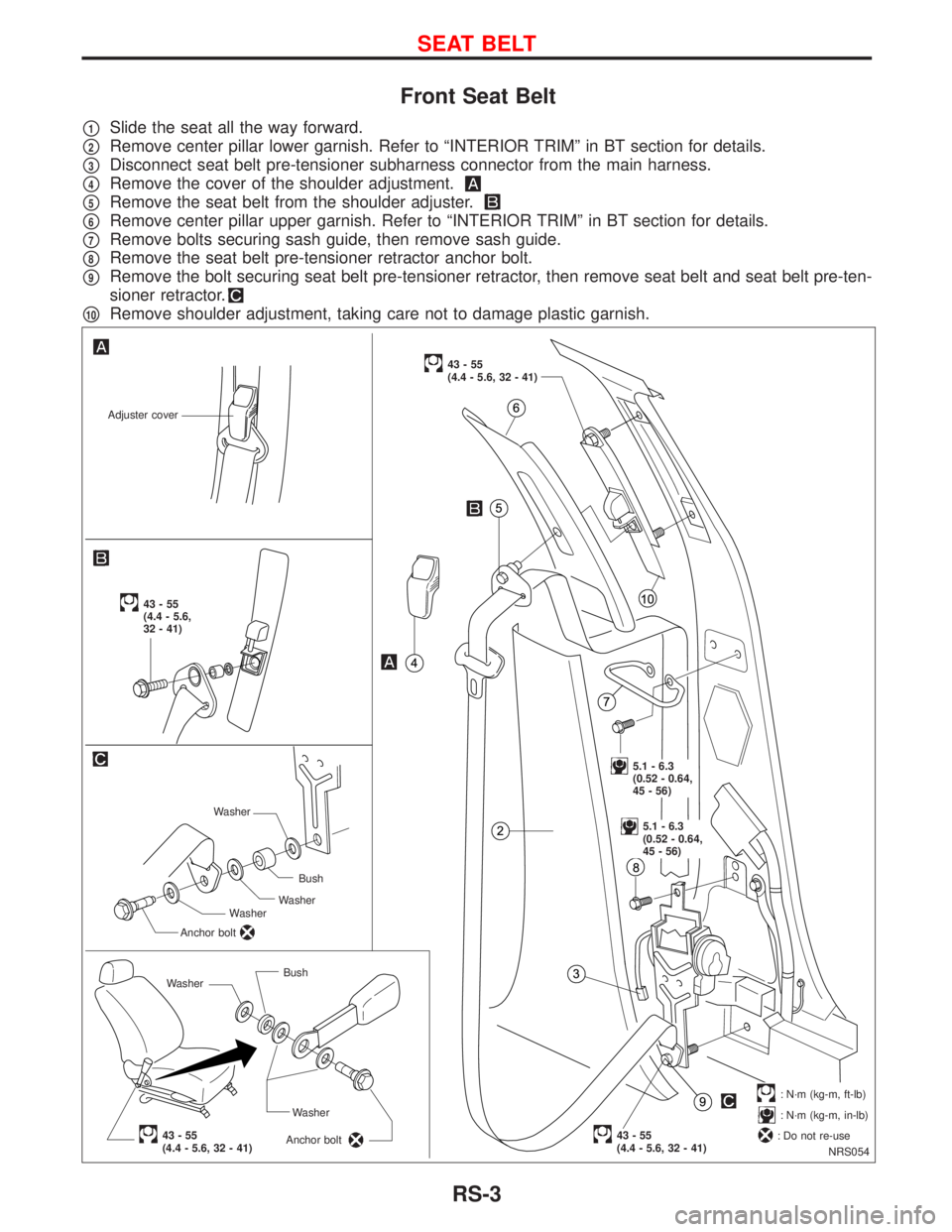

NISSAN PRIMERA 1999 Electronic Repair Manual Front Seat Belt
p1Slide the seat all the way forward.
p2Remove center pillar lower garnish. Refer to ªINTERIOR TRIMº in BT section for details.
p3Disconnect seat belt pre-tensioner subharness connec

Page 2187 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Rear Seat Belt (4-door models)
MODELS WITH 2-POINT CENTER SEAT BELT
p1Remove rear seat cushion. Refer to ªSEATº in BT-section for details.
p2Remove each anchor bolt.
p3Remove both sides of the back

Page 2188 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual MODELS WITH 3-POINT CENTER SEAT BELT:
For outboard seat belts refer to ªmodels with 2 point center seat beltº.
p1Remove rear seat cushion. Refer to ªSEATº in BT section for details.
p2Remove ancho

Page 2189 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Rear Seat Belt (Wagon and 5-door models)
MODELS WITH 2-POINT CENTER SEAT BELT
p1Remove rear seat cushion. Refer to ªSEATº in BT-section for details.
p2Remove each anchor bolt.
p3Fold down rear seat

Page 2190 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NRS057
.Child seat anchorage
43-55
(4.4 - 5.6, 32 - 41)
Clip
.Rear seat back
43-55
(4.4 - 5.6,
32 - 41) Suitable
tool
Seat belt
retractor
Clip
Seat belt
retractor
Pawl Pawl
.20.6 - 26.5
(2.1 - 2.7,
16

Page 2191 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Precautions for SRS ªAIR BAGº and ªSEAT
BELT PRE-TENSIONERº Service
lDo not use electrical test equipment to check the SRS unless instructed to do in this Service Manual.
lBefore servicing the SRS

Page 2192 of 2267

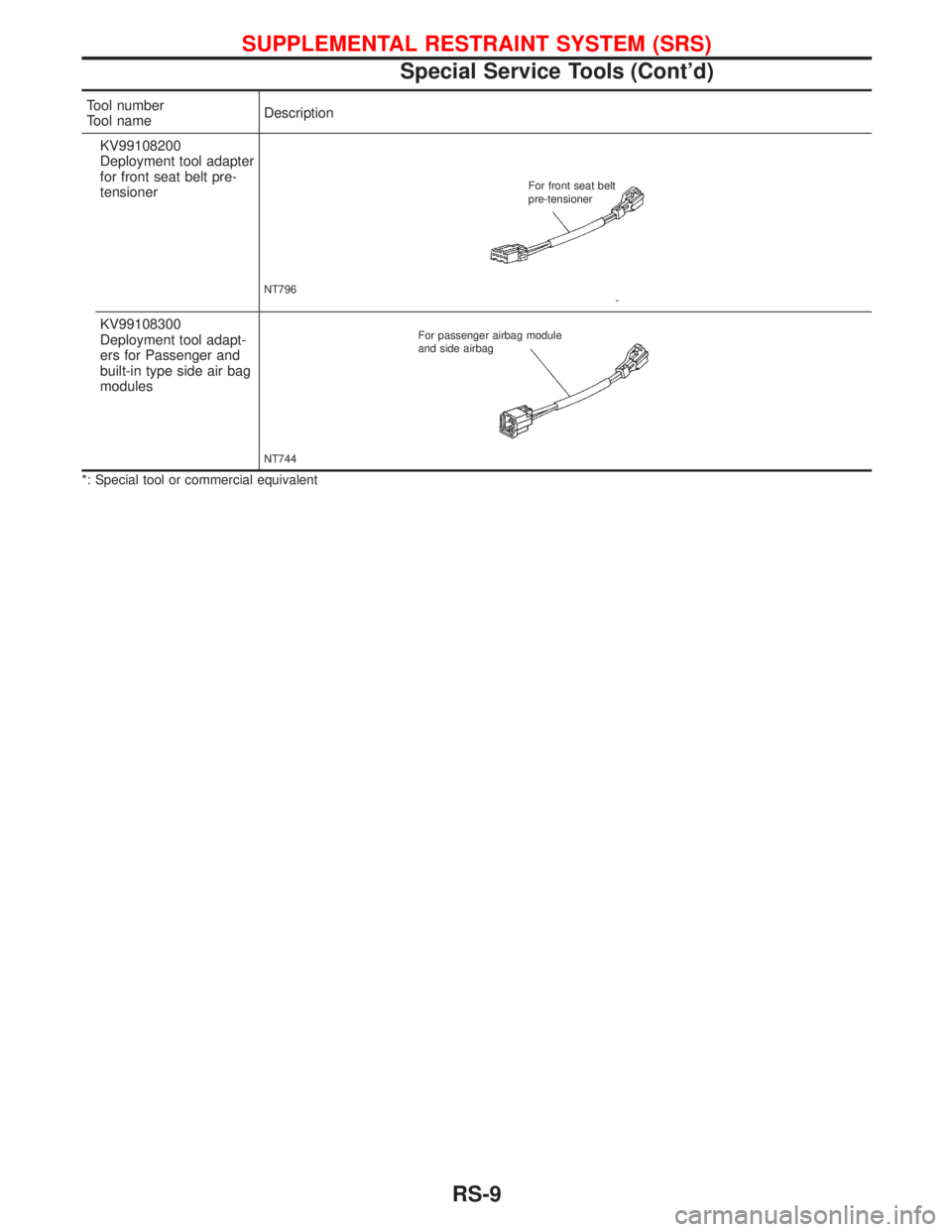

NISSAN PRIMERA 1999 Electronic Repair Manual Tool number
Tool nameDescription
KV99108200
Deployment tool adapter
for front seat belt pre-
tensioner
NT796For front seat belt
- pre-tensioner
KV99108300
Deployment tool adapt-
ers for Passenger and

Load next 8 pages
