Page 249 of 2267

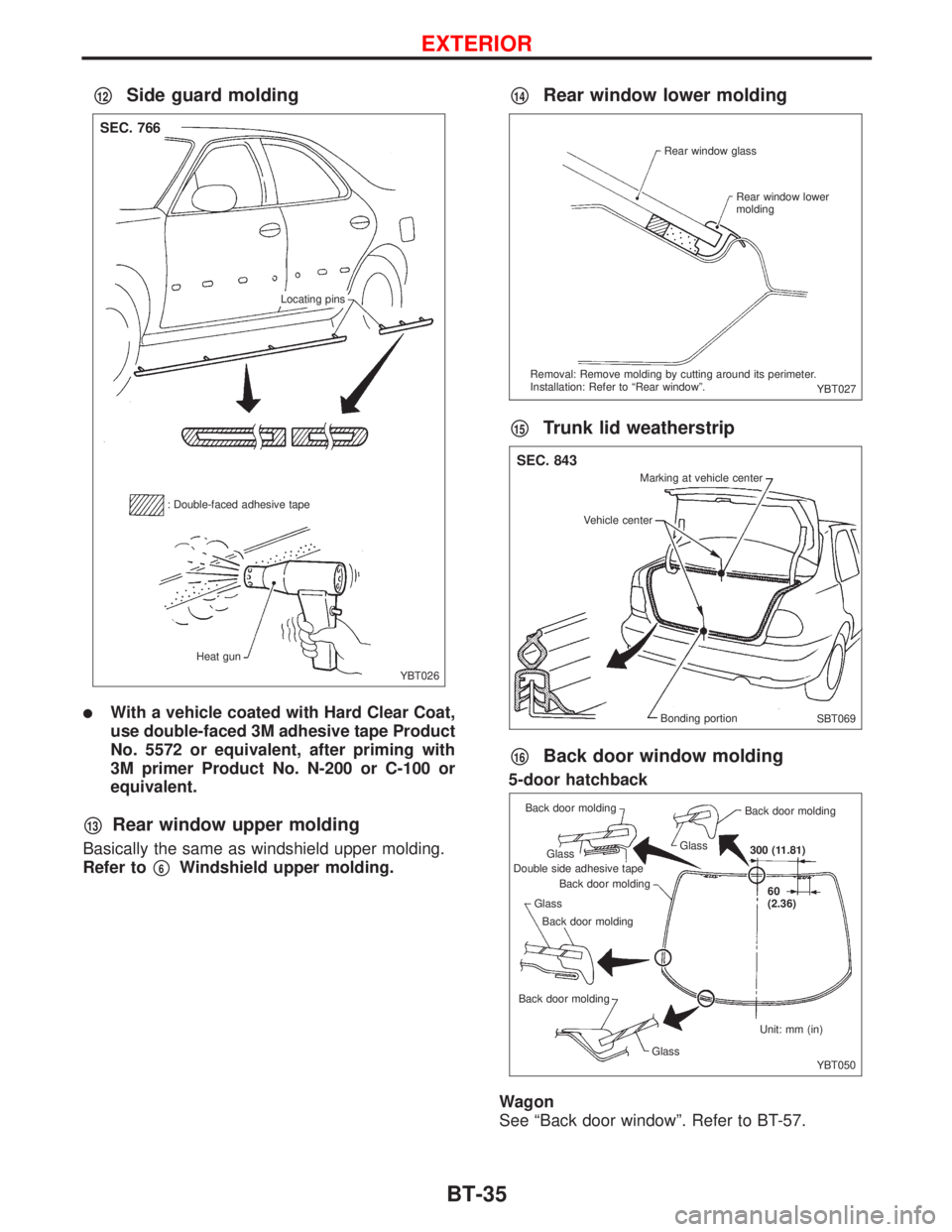

NISSAN PRIMERA 1999 Electronic Repair Manual p12Side guard molding lWith a vehicle coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 5572 or equivalent, after priming with 3M primer Product No. N-200 or C-100 or equivale

Page 250 of 2267

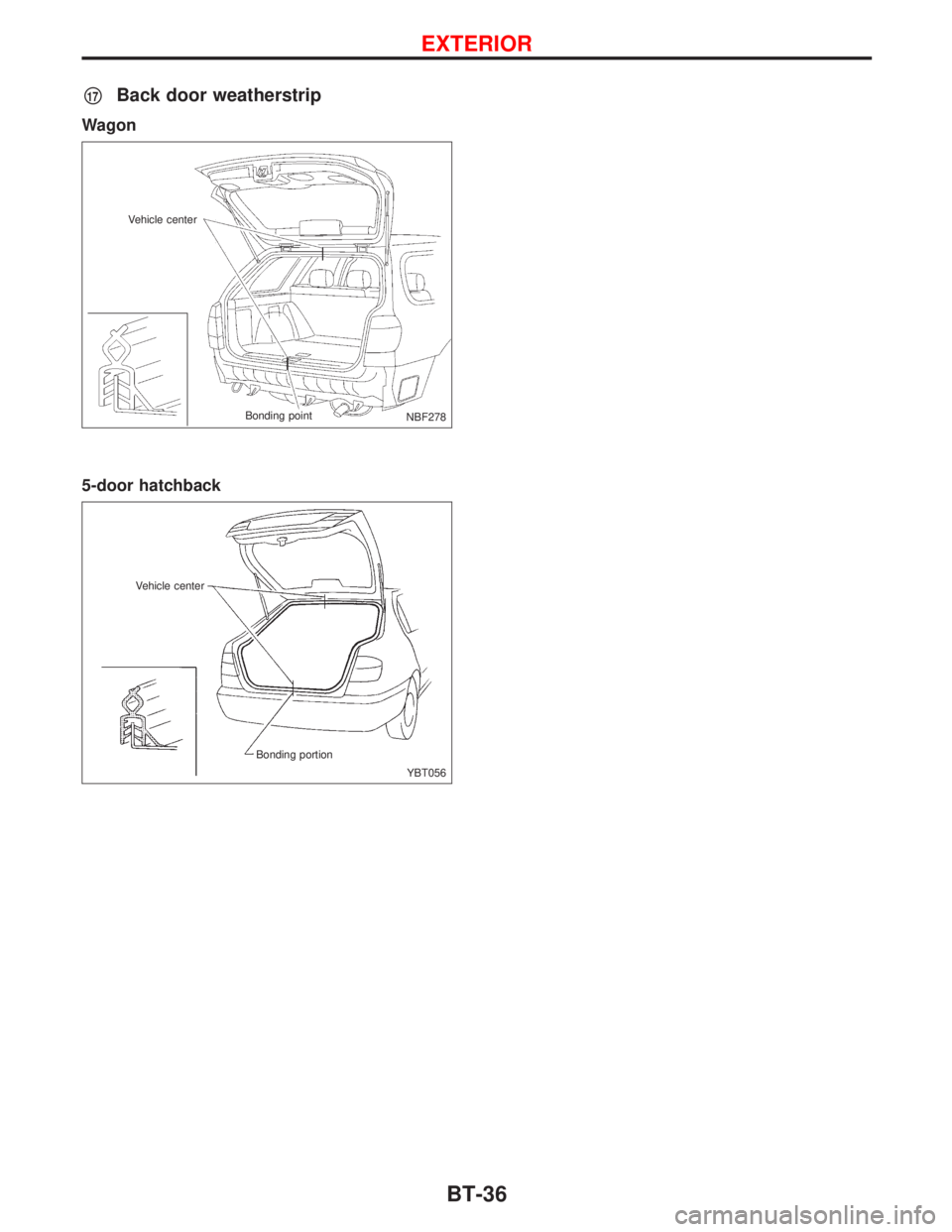

NISSAN PRIMERA 1999 Electronic Repair Manual p17Back door weatherstrip Wagon 5-door hatchback NBF278 Vehicle center Bonding point YBT056 Vehicle center Bonding portion EXTERIOR BT-36

Page 251 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual p18Rear combination lamp lRear combination lamps are installed with nuts and butyl sealant. lWhen removing inside rear combination lamp (installed on back door), first remove ªBack door finisherº. R

Page 252 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual p20Front hood grille p21Roof rail NBT047 Hook HookHook NBF280 Roof rail 5.1 - 6.4 N´m (0.52 - 0.65 kg-m, 45.1 - 56.6 in-lb) Clip Clip HookPawl Hook Front CenterRear EXTERIOR BT-38

Page 253 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual p22Back door finisher NBF279 Nutx8 EXTERIOR BT-39

Page 254 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual lWhen removing or installing seats with side air bag module, be sure to disconnect or connect side air bag sub harness connector. lWhen removing or installing the seat trim, handle it carefully to kee

Page 255 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Power Seat NBF266 18-24 (1.9 - 2.4, 14 - 17) 18-24 (1.9 - 2.4, 14 - 17) 18-24 (1.9 - 2.4, 14 - 17) : N´m (kg-m, ft-lb) 21-26 (2.1 - 2.7, 15.5 - 19.2) Side airbag sub harness connector SEAT Front Seat

Page 256 of 2267

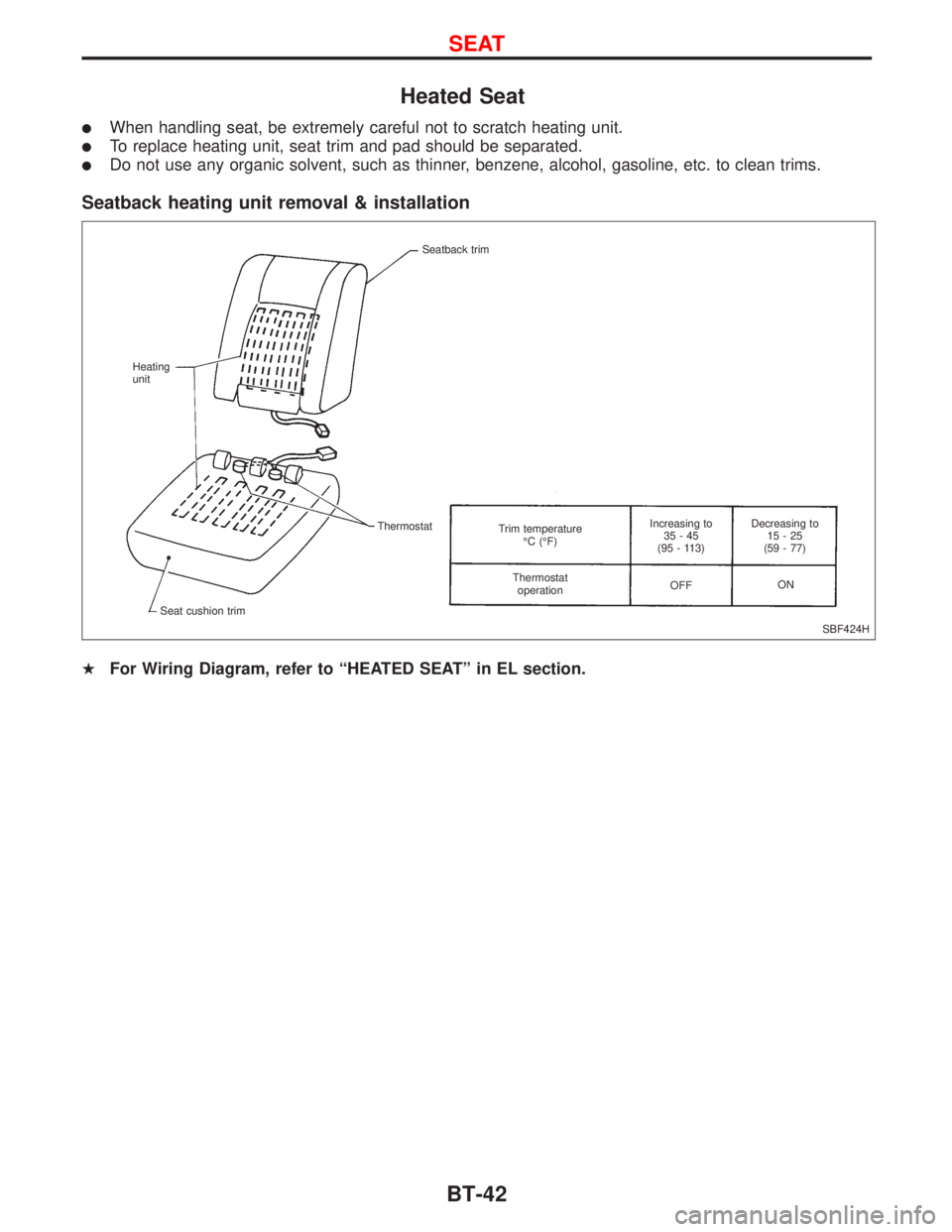

NISSAN PRIMERA 1999 Electronic Repair Manual Heated Seat lWhen handling seat, be extremely careful not to scratch heating unit. lTo replace heating unit, seat trim and pad should be separated. lDo not use any organic solvent, such as thinner, be
