Page 393 of 2267

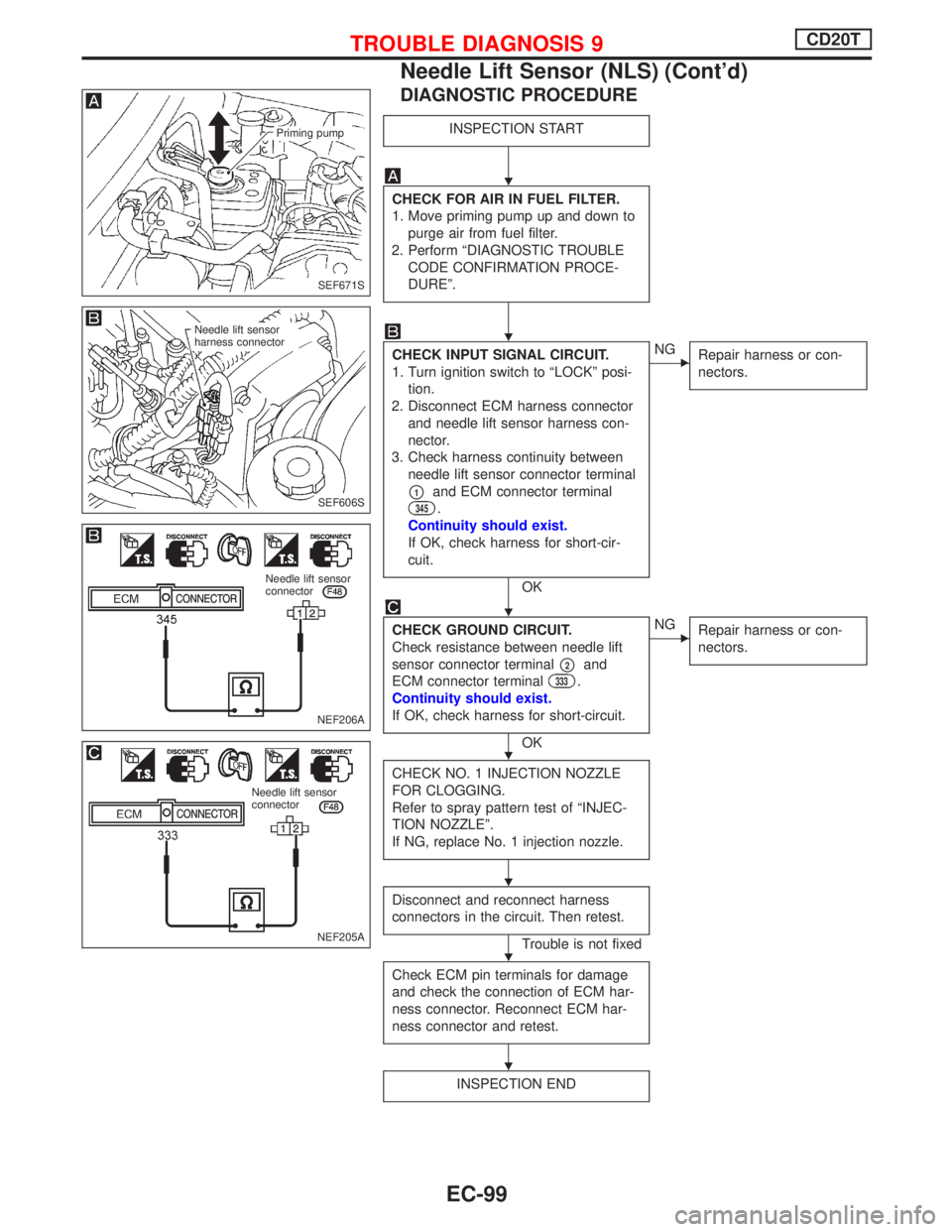

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE INSPECTION START CHECK FOR AIR IN FUEL FILTER. 1. Move priming pump up and down to purge air from fuel filter. 2. Perform ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº. CHE

Page 394 of 2267

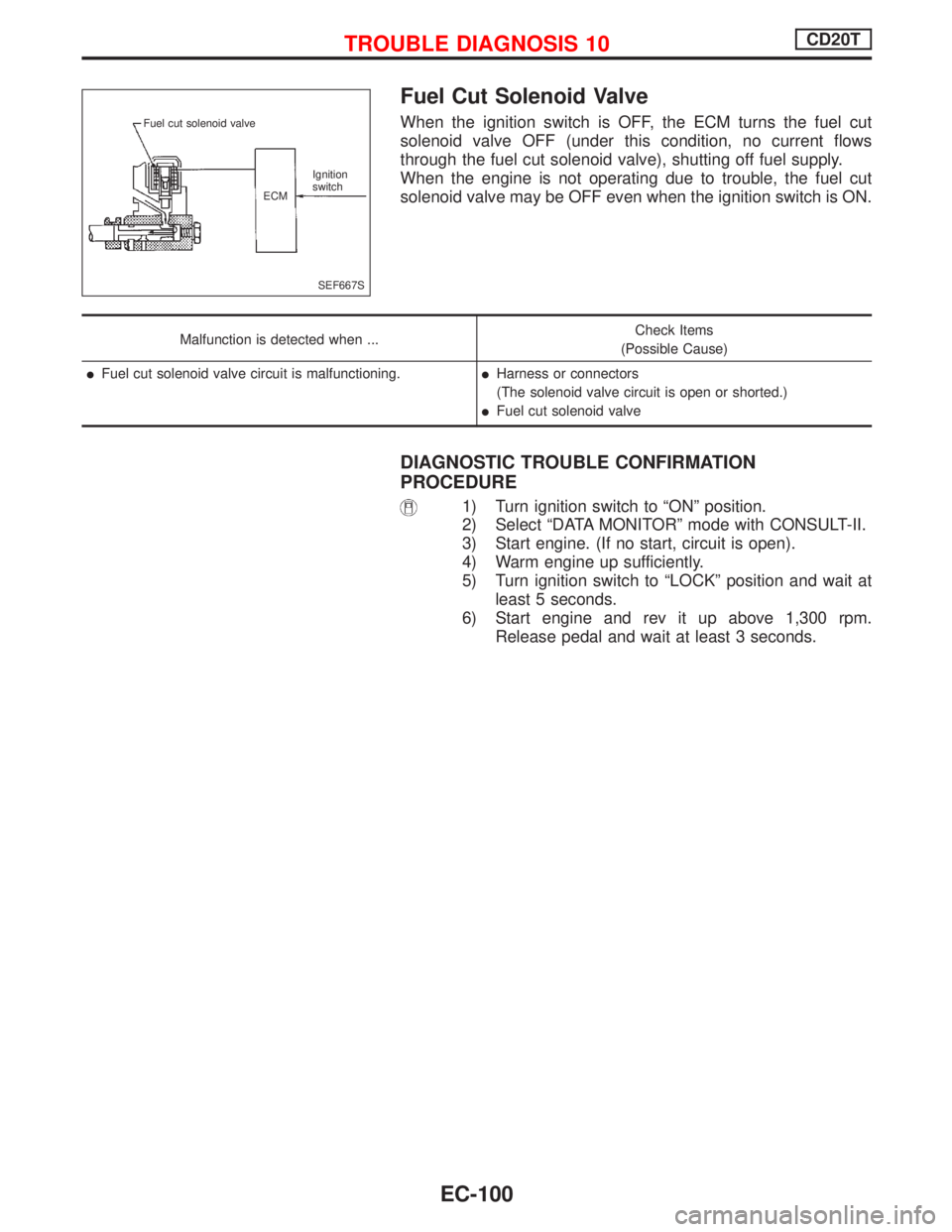

NISSAN PRIMERA 1999 Electronic Repair Manual Fuel Cut Solenoid Valve When the ignition switch is OFF, the ECM turns the fuel cut solenoid valve OFF (under this condition, no current flows through the fuel cut solenoid valve), shutting off fuel s

Page 395 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEC807 BATTERY Refer to EL-POWER. : Detectable line for DTC : Non-detectable line for DTC INJECTION PUMP (FUEL CUT SOLE- NOID VALVE) ENGINE CONTROL MODULE RELAY ECM TROUBLE DIAGNOSIS 10CD20T Fuel Cut

Page 396 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE INSPECTION START CHECK MAIN POWER SUPPLY. Check power supply. Refer to EC-CD-59. CHECK OUTPUT SIGNAL CIRCUIT. 1. Turn ignition switch to ªONº position. 2. Select ªFUEL CUT SOL/

Page 397 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual COMPONENT INSPECTION Fuel cut solenoid valve 1. Remove fuel cut solenoid valve. 2. Check for lifting shaft when applying 12V direct current to terminals. If NG, replace fuel cut solenoid valve. SEF859

Page 398 of 2267

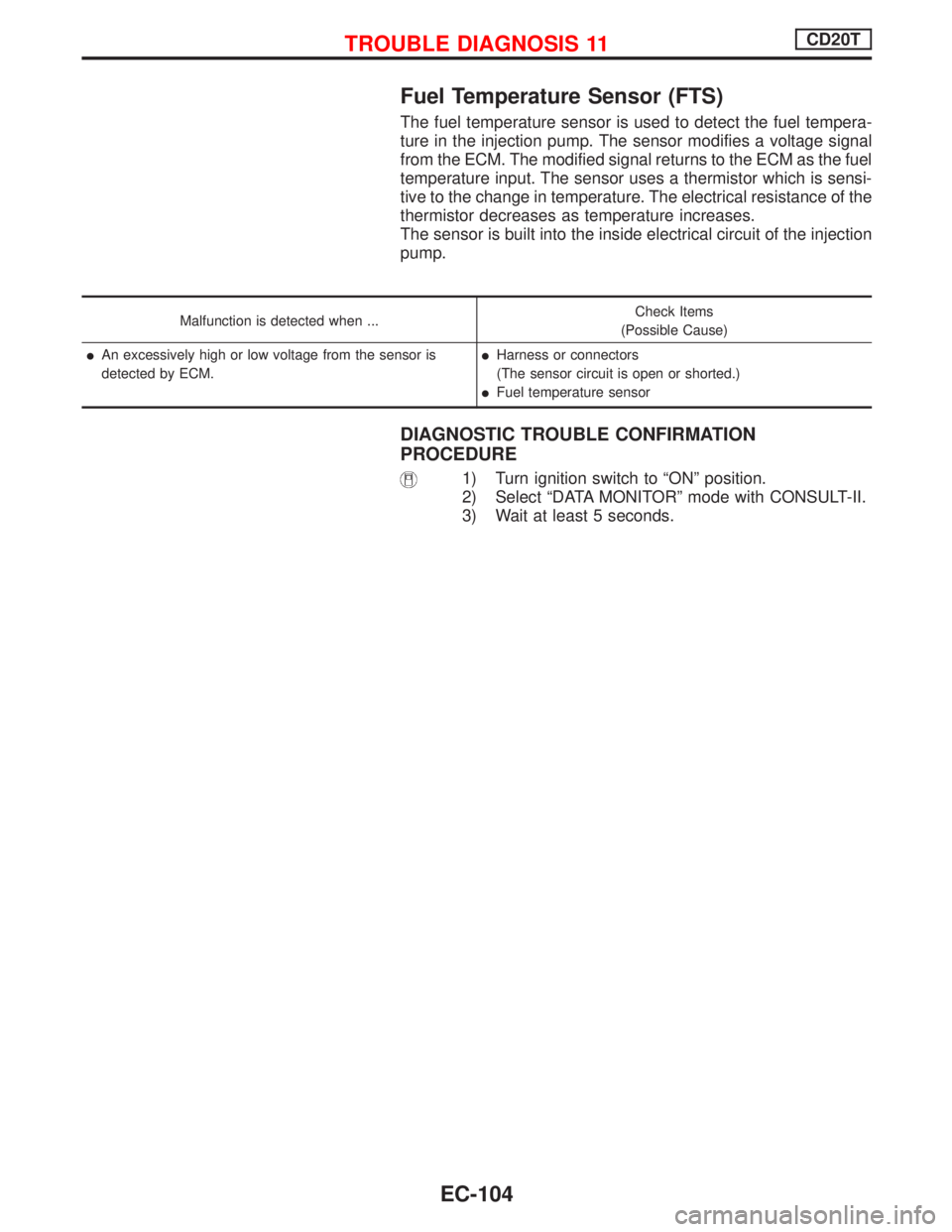

NISSAN PRIMERA 1999 Electronic Repair Manual Fuel Temperature Sensor (FTS) The fuel temperature sensor is used to detect the fuel tempera- ture in the injection pump. The sensor modifies a voltage signal from the ECM. The modified signal returns

Page 399 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEC808 INJECTION PUMP (FUEL TEMPERATURE SENSOR) : Detectable line for DTC : Non-detectable line for DTC ECM TROUBLE DIAGNOSIS 11CD20T Fuel Temperature Sensor (FTS) (Contd) EC-105

Page 400 of 2267

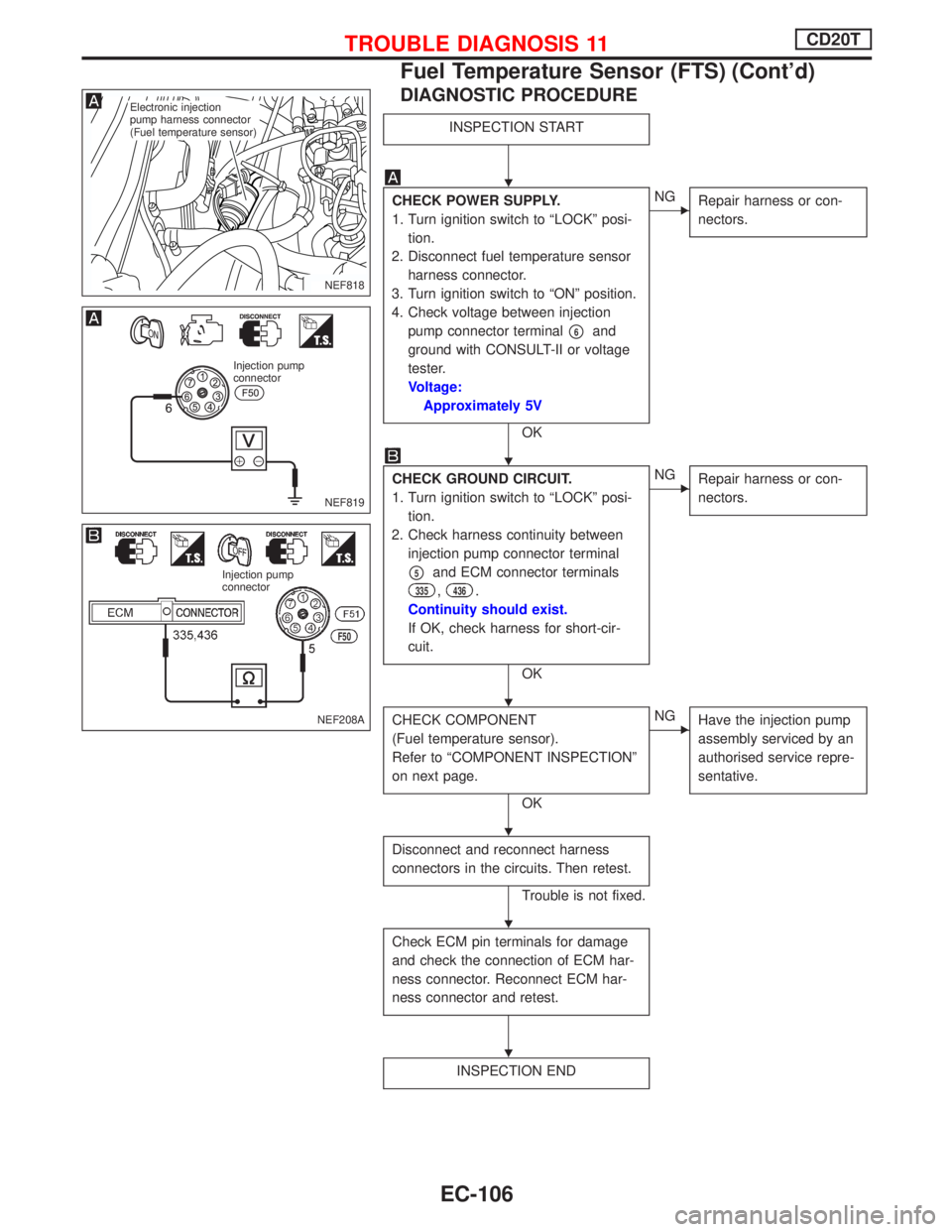

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE INSPECTION START CHECK POWER SUPPLY. 1. Turn ignition switch to ªLOCKº posi- tion. 2. Disconnect fuel temperature sensor harness connector. 3. Turn ignition switch to ªONº pos
