Page 1329 of 2267

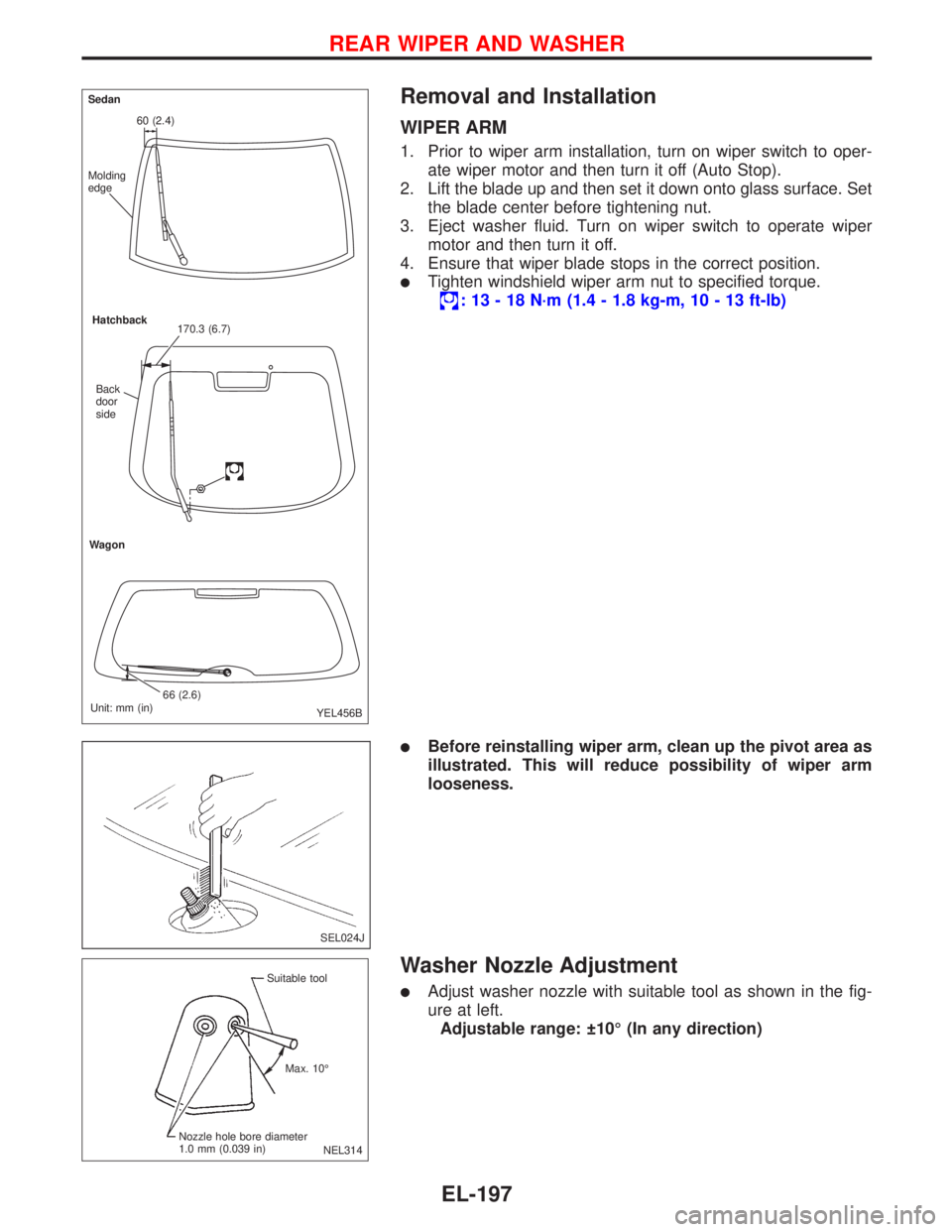

Removal and Installation
WIPER ARM
1. Prior to wiper arm installation, turn on wiper switch to oper-
ate wiper motor and then turn it off (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set
the blade center before tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper
motor and then turn it off.
4. Ensure that wiper blade stops in the correct position.
Tighten windshield wiper arm nut to specified torque.
:13-18N·m (1.4 - 1.8 kg-m, 10 - 13 ft-lb)
Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm
looseness.
Washer Nozzle Adjustment
Adjust washer nozzle with suitable tool as shown in the fig-
ure at left.
Adjustable range: ±10°(In any direction)
Wagon60 (2.4)
170.3 (6.7)
Unit: mm (in) Sedan
Molding
edge
Hatchback
Back
door
side
66 (2.6)
YEL456B
SEL024J
NEL314 Suitable tool
Max. 10°
Nozzle hole bore diameter
1.0 mm (0.039 in)
REAR WIPER AND WASHER
EL-197
Page 1330 of 2267
Unit: mm (in)
*1 150 (5.91) *3 135 (5.31)
*2 290 (11.42) *4 170 (6.69)
Circle diameters are approx. 80 mm (3.15 in)
NEL315 Black printed edge
All these diameters of these circles
are less than 80 (3.15)*3 *4
*1*2
Unit: mm (in)
REAR WIPER AND WASHER

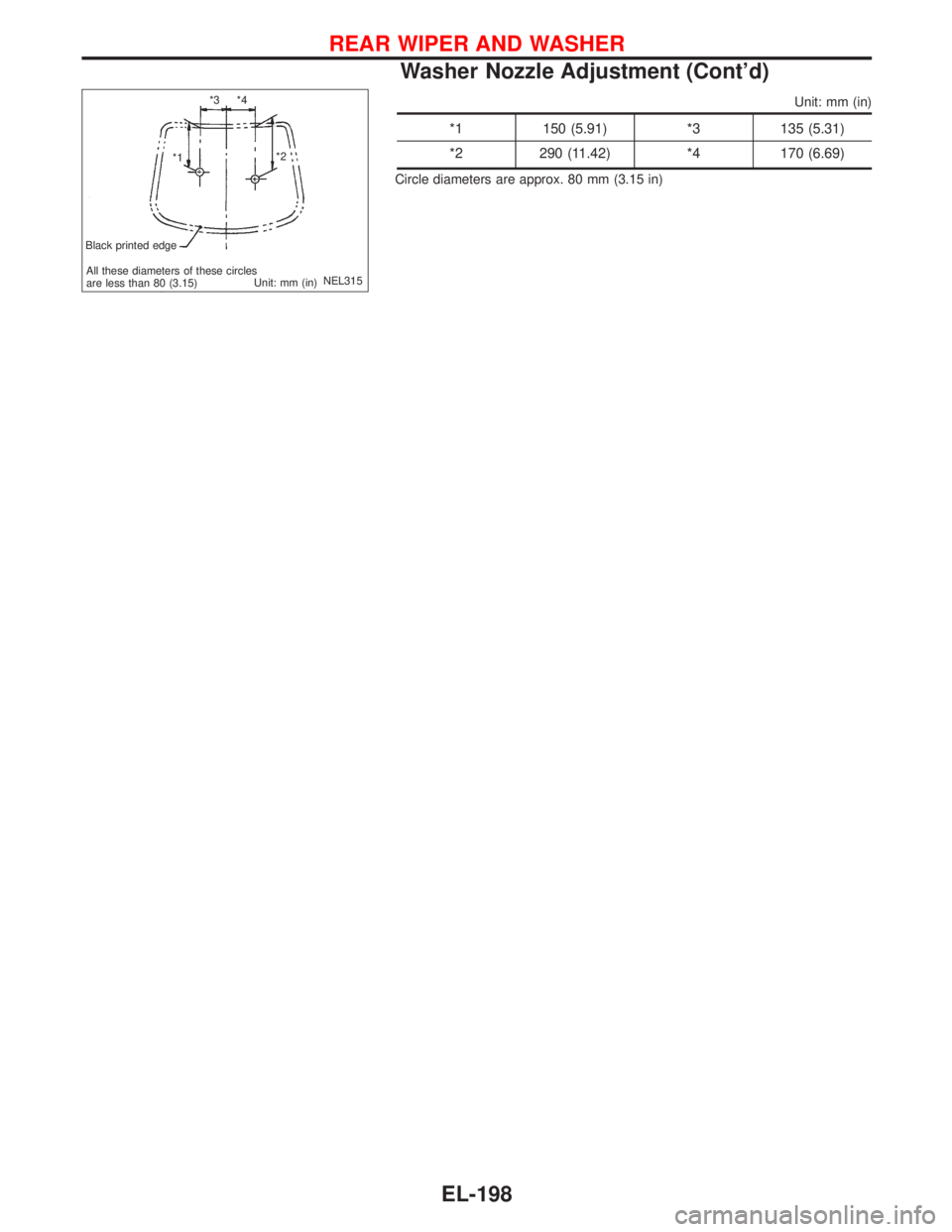

Washer Nozzle Adjustment (Cont’d)
EL-198
Page 1331 of 2267

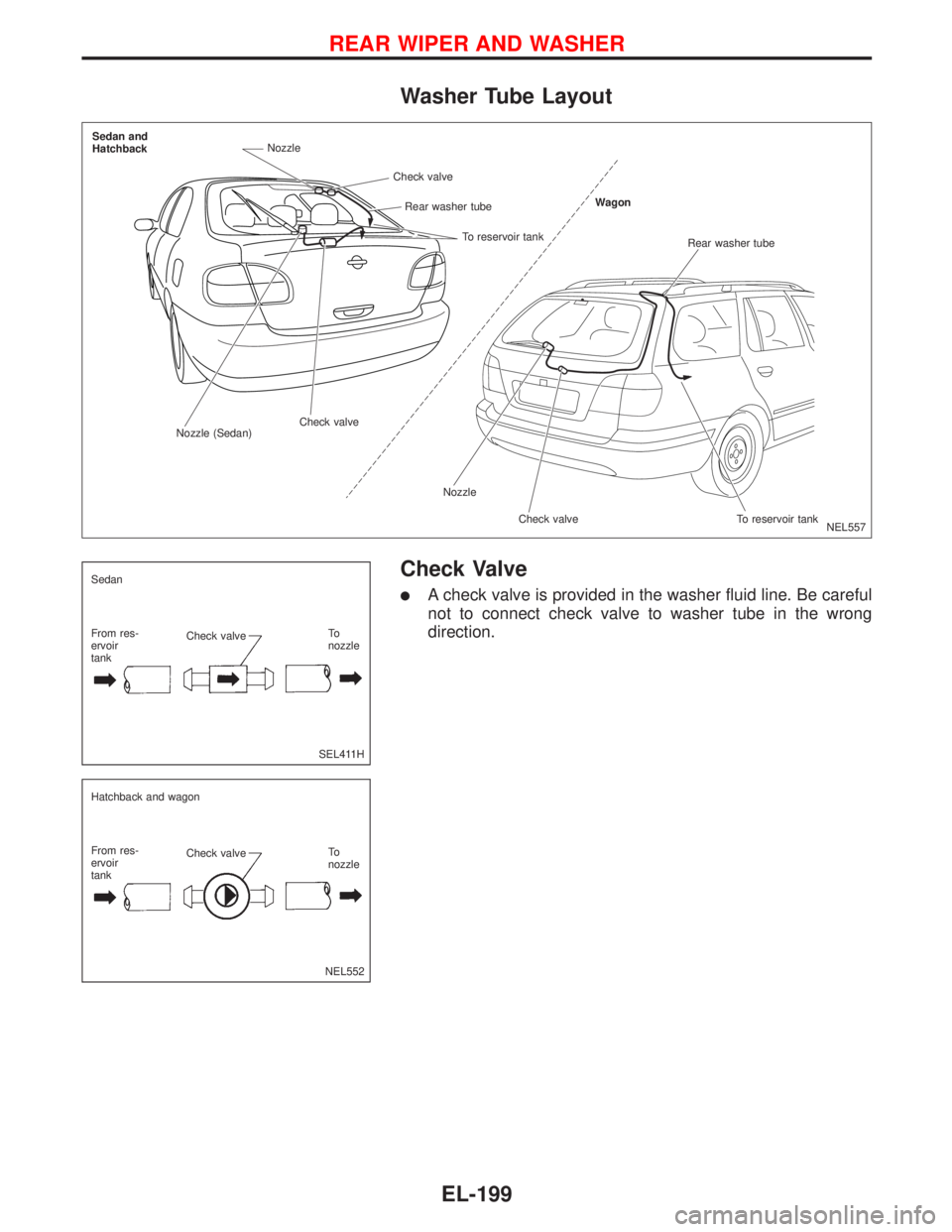

Washer Tube Layout
Check Valve
A check valve is provided in the washer fluid line. Be careful
not to connect check valve to washer tube in the wrong
direction.
NEL557 Nozzle
Check valve
Rear washer tube Sedan and
Hatchback
To reservoir tank
Check valve
Nozzle (Sedan)Wagon
Rear washer tube
To reservoir tank
Check valve Nozzle
SEL411H From res-
ervoir
tankCheck valveTo
nozzle Sedan
NEL552 From res-
ervoir
tankCheck valveTo
nozzle Hatchback and wagon
REAR WIPER AND WASHER
EL-199
Page 1332 of 2267
Wiring Diagram—HLC—
YEL319B
B
G
12
LG/Bd13GE104
2
E128
3
B R/B
B
A
5 LG/B4 G2 P/L
E126
P/L
P/L
3
OR/B1
R/B
E37E11
L
EL-HLC-01
E126
E104
E38
XH HD
HD 10A 30A
XH
HD
1 2 OR/B
BE38
M
B
B
12
E1281
36
24
5 3
241
5
BATTERYIGNITION SWITCH
ON or START
FUSE
BLOCK
(J/B)Refer to EL-POWER.: With XENON headlamp or day-
time light system
: Except
HEADLAMP
WASHER TIMERNext page
HEADLAMP
WASHER
MOTORHEADLAMP
WASHER
SWITCH
OFFON
REFER TO THE FOLLOWING
FUSE BLOCK - Junction Box (J/B)
HEADLAMP WASHER
EL-200
Page 1333 of 2267
YEL179C
: With gasoline engine
: With diesel engine
: With XENON headlamp or
daytime light system
: Except
: With daytime light system and
without XENON headlamp
: With daytime light system
and XENON headlamp
: With XENON headlamp and
without daytime light system.BATTERY
Refer to EL-POWER.
OFF1ST2ND
OFF1ST2ND
COMBINATION
SWITCH
(LIGHTING SWITCH)
LOW
HIGH
Preceding
page
DIODE HEADLAMP
RELAY RHHEADLAMP
RELAY RHHEADLAMP
RELAY RH
Preceding
page
To Headlamp RH
(Refer to EL-H/LAMP and
EL-DTRL)PASS
HEADLAMP WASHER
Wiring Diagram—HLC—(Cont’d)
EL-201
Page 1334 of 2267
Washer Tube Layout
Check Valve
A check valve is provided in the washer fluid line. Be careful
not to connect check valve to washer tube in the wrong
direction.
NEL555 To reservoir tankWasher nozzle
Check valve
NEL554 From res-
ervoir
tankCheck valve
To
nozzle
To
nozzle
HEADLAMP WASHER
EL-202
Page 1335 of 2267
Wiring Diagram—HORN—
Type-1
YEL180C
BATTERY
Refer to EL-POWER.: With gasoline engine
: With diesel engine
: With steering wheel switch
: Without steering wheel switch
HORN
RELAY
HORN
LOWHORN
HIGH
OFFON HORN
SWITCHHORN
SWITCH
REFER TO THE FOLLOWING
FUSE BLOCK - Junction Box (J/B)
FUSE BLOCK - Junction Box (J/B)
*: This connector is not shown in“HARNESS LAYOUT”of EL section.OFFONFUSE
BLOCK
(J/B)
SPIRAL
CABLE
HORN, CIGARETTE LIGHTER AND CLOCK
EL-203
Page 1336 of 2267
YEL181C
IGNITION SWITCH
ACC or ONBATTERYIGNITION SWITCH
ON or START
FUSE
BLOCK
(J/B)BATTERY
Refer to EL-POWER.
POWER
FUSE
15A: With gasoline engine
: With diesel engine
: With XENON headlamp,
gasoline engine
: Except
CLOCKCOMBINATION
METER
(CLOCK)
CIGARETTE
LIGHTER
SOCKET
POWER
SOCKET
REFER TO THE FOLLOWING
FUSE BLOCK - Junction Box (J/B) ACCESSORY
RELAY IGNITION
SWITCH OFF
ONST
ACC
ACC
HORN, CIGARETTE LIGHTER AND CLOCK
Wiring Diagram—HORN—(Cont’d)
EL-204
