Page 257 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual lWhen removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage. Rear Seat NBF285 Rear seat back striker (RH) Rear seat back hinge (center)& hook Rear seat back hinge

Page 258 of 2267

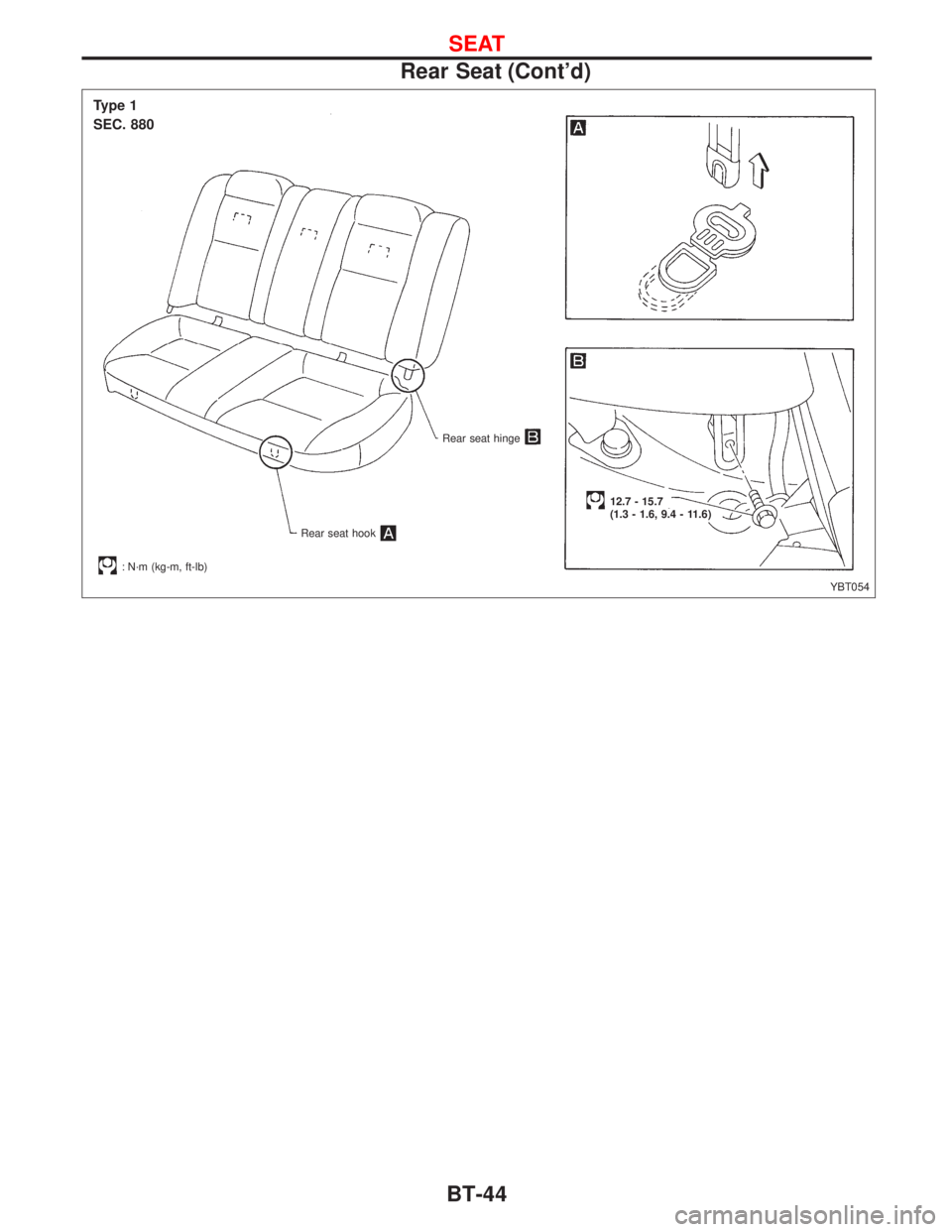

NISSAN PRIMERA 1999 Electronic Repair Manual YBT054 Type 1 SEC. 880 Rear seat hinge Rear seat hook : N´m (kg-m, ft-lb) 12.7 - 15.7 (1.3 - 1.6, 9.4 - 11.6) SEAT Rear Seat (Contd) BT-44

Page 259 of 2267

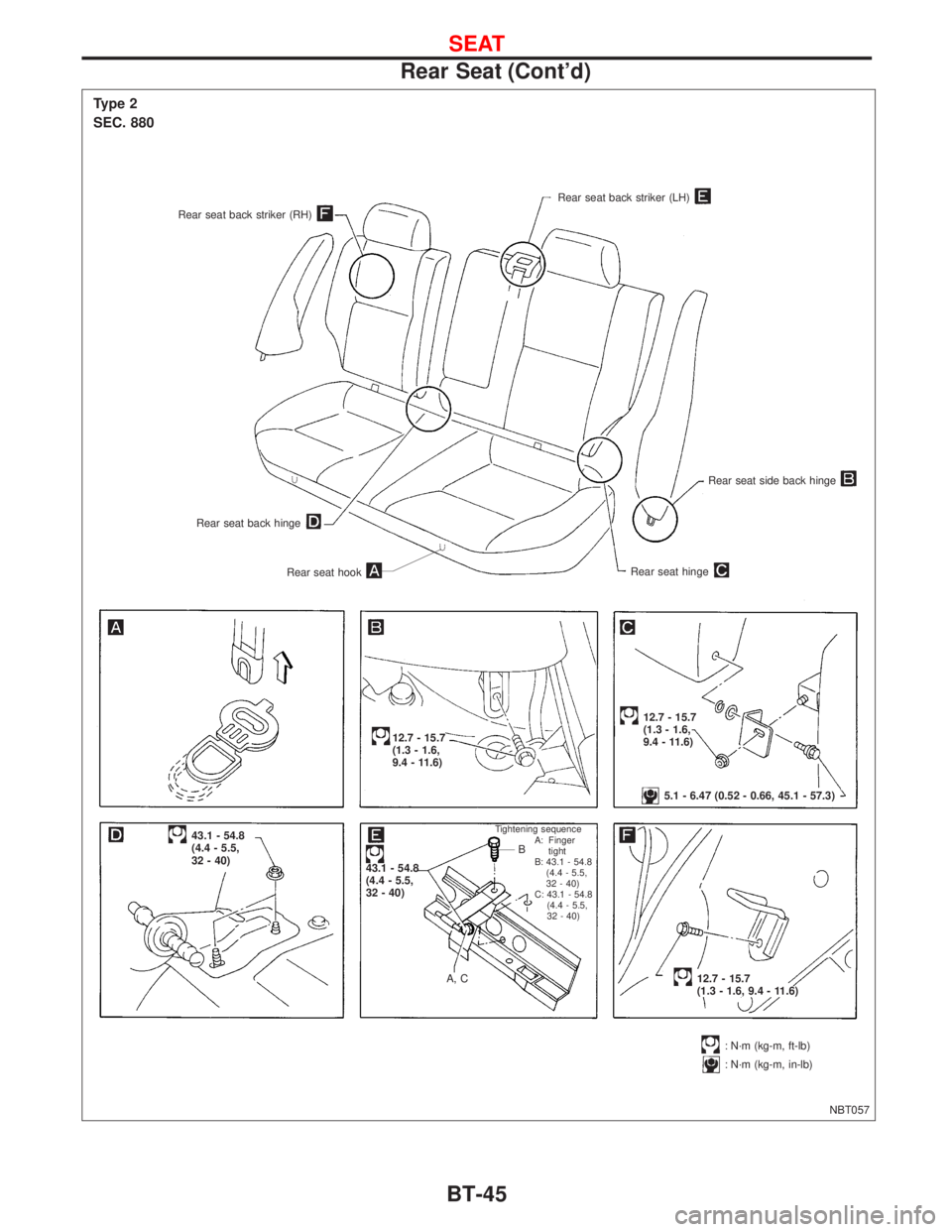

NISSAN PRIMERA 1999 Electronic Repair Manual NBT057 Type 2 SEC. 880 Rear seat back striker (RH) Rear seat back striker (LH) Rear seat side back hinge Rear seat hingeRear seat hook Rear seat back hinge 12.7 - 15.7 (1.3 - 1.6, 9.4 - 11.6) 12.7 - 1

Page 260 of 2267

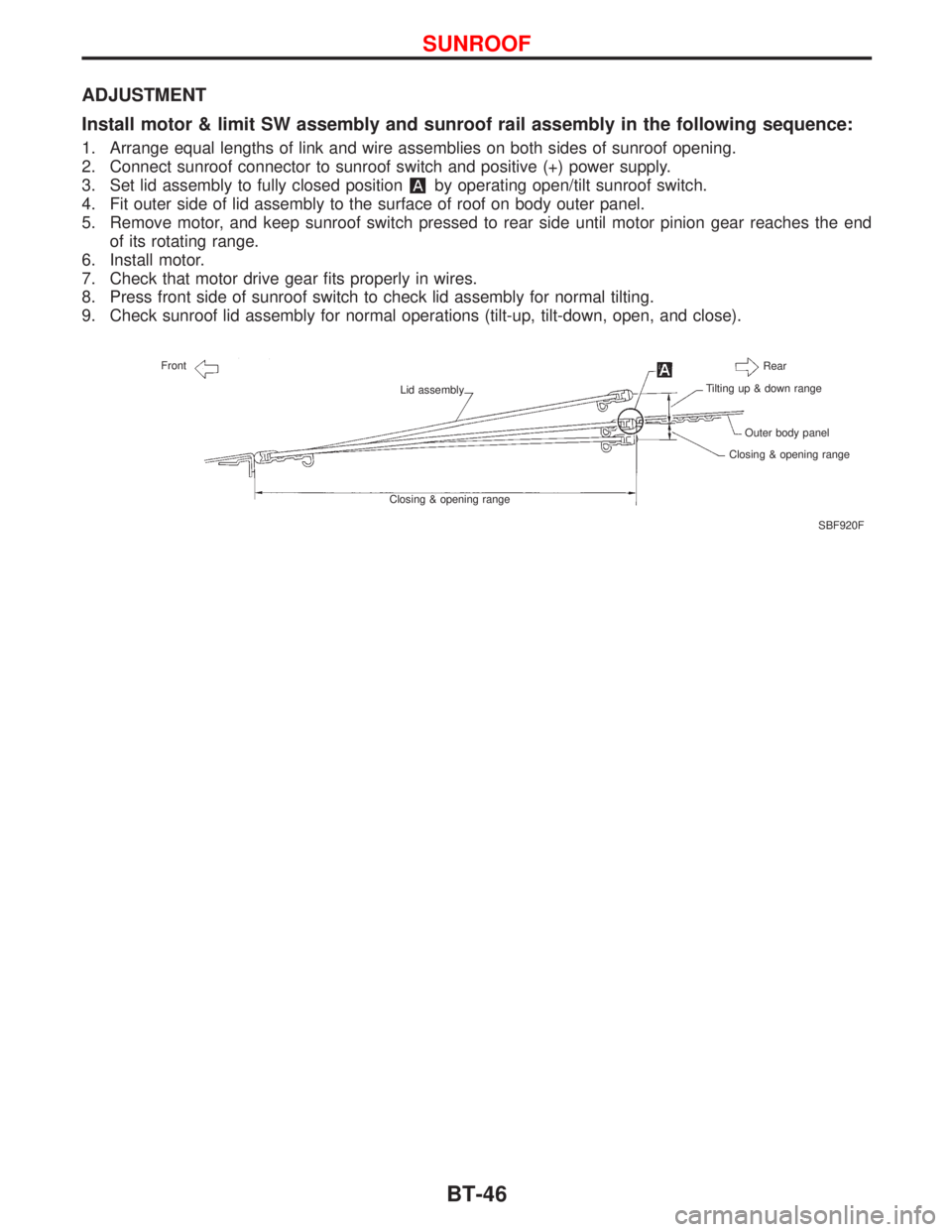

NISSAN PRIMERA 1999 Electronic Repair Manual ADJUSTMENT Install motor & limit SW assembly and sunroof rail assembly in the following sequence: 1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening. 2. Connect sunr

Page 261 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual REMOVAL lAfter any adjustment, check sunroof operation and lid alignment. lHandle finisher plate and glass lid with care so not to cause damage. lIt is desirable for easy installation to mark each poi

Page 262 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual HFor Wiring Diagram, refer to ªELECTRIC SUNROOFº in EL section. NBT049 SEC. 736 Rear drain assemblyRear drain screw Link and wire assembly Guide stopper Wind deflector mounting nuts Drain hose Sunro

Page 263 of 2267

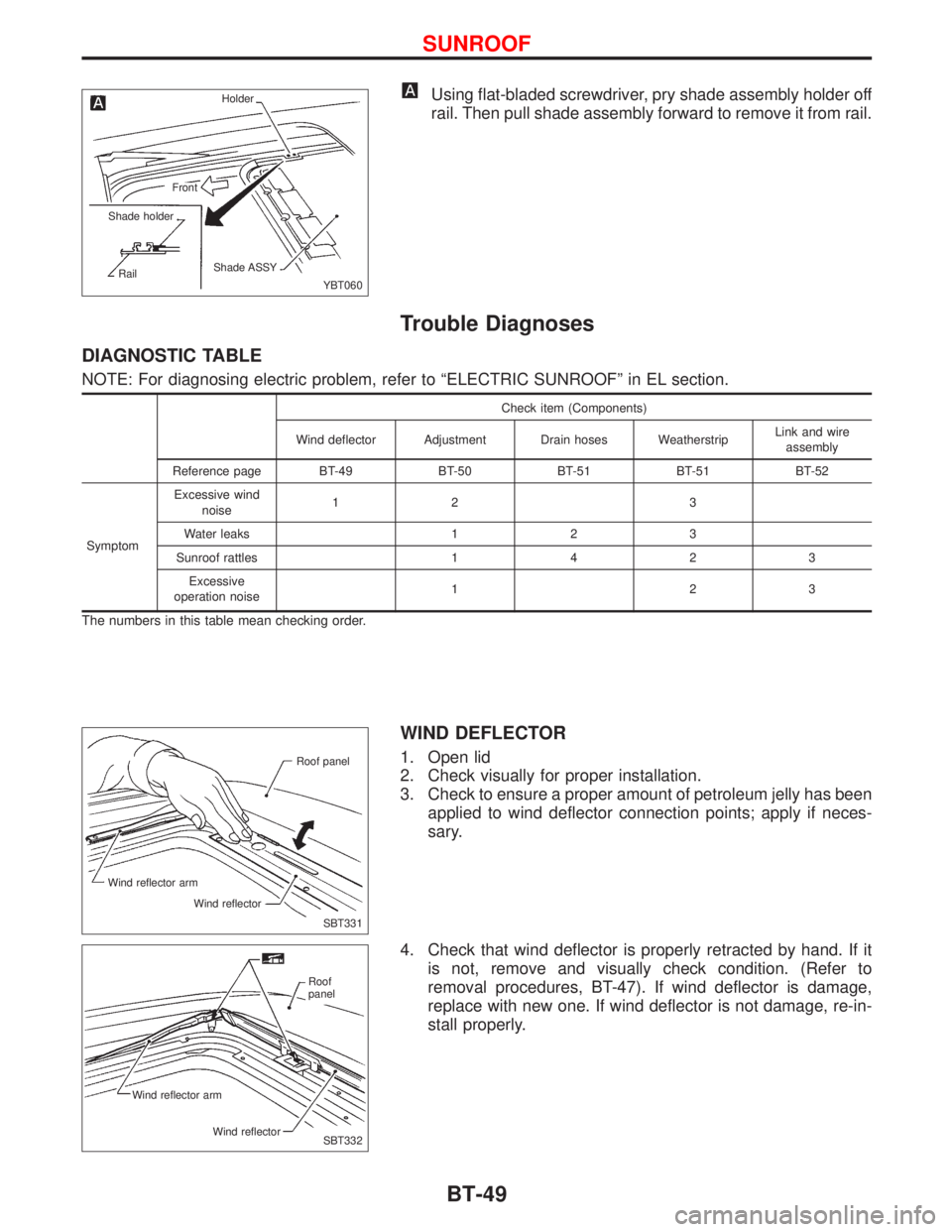

NISSAN PRIMERA 1999 Electronic Repair Manual Using flat-bladed screwdriver, pry shade assembly holder off rail. Then pull shade assembly forward to remove it from rail. Trouble Diagnoses DIAGNOSTIC TABLE NOTE: For diagnosing electric problem, re

Page 264 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ADJUSTMENT If any gap or height differences between lid and roof is found, check lid and adjust as follows: Gap Adjustment 1. Remove shade assembly. (Refer to removal procedures BT-47, for details). 2
