lBack door adjustment: Adjust at hinge-body portion for proper back door fit.
lBack door lock system adjustment: Adjust lock & striker so that they are in the center. After adjustment,
check back door lock operation.
WARNING:
lBe careful not to scratch back door stay when installing back door. A scratched stay may cause
gas leakage.
lThe contents of the back door stay are under pressure. Do not take apart, puncture, apply heat
or allow fire near it.
lFuel filler lid opener cable: Do not attempt to bend cable using excessive force.
lAfter installation, make sure that back door and fuel filler lid open smoothly.
REMOVAL Ð Rear bumper assembly
p1Remove clipsC203securing left and right chipping protector.
p2Remove screws securing bumper fascia to left and right rear fenders.
p3Remove clipsC205(small) securing bumper fascia to rear panel.
p4Remove clipsC205(large) securing bumper fascia to rear panel upper.
p5Extract bumper fascia assembly.
NBF270 Opener handle
Opener
cableLock nut
.Fuel filler lid opener & control
.20.6 - 26.5
(2.10 - 2.70,
15.2 - 19.5)
12.7 - 15.7
(1.30 - 1.60,
9.4 - 11.6)12.7 - 15.7
(1.30 - 1.60,
9.4 - 11.6)
12.7 - 15.7
(1.30 - 1.60,
9.4 - 11.6)
.12.7 - 15.7
(1.30 - 1.60,
9.4 - 11.6)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
2.9 - 3.8 N´m
(0.30 - 0.39 kg-m,
25.7 - 33.6 in-lb)..5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)Key cylinder
Actuator
BODY END
Body Rear End and Opener (Cont'd)
BT-11
Page 226 of 2267
NBF271 Back door lock adjustment
Back door hinge adjustment
Back door stay installation
Opener
handle
Fuel filler lid control
Back door striker adjustment
*: Bumper assembly mounting clips and screws. Bumper fascia
assemblyRear fender cover
Back door lock control
BODY END
Body Rear End and Opener (Cont'd)
BT-12
Page 227 of 2267
Front Door
lFor removal of door trim, refer to ªDoor Trimº in ªINTERIOR TRIMº for details, BT-24.
lAfter adjusting door or door lock, check door lock operation.
NBT038

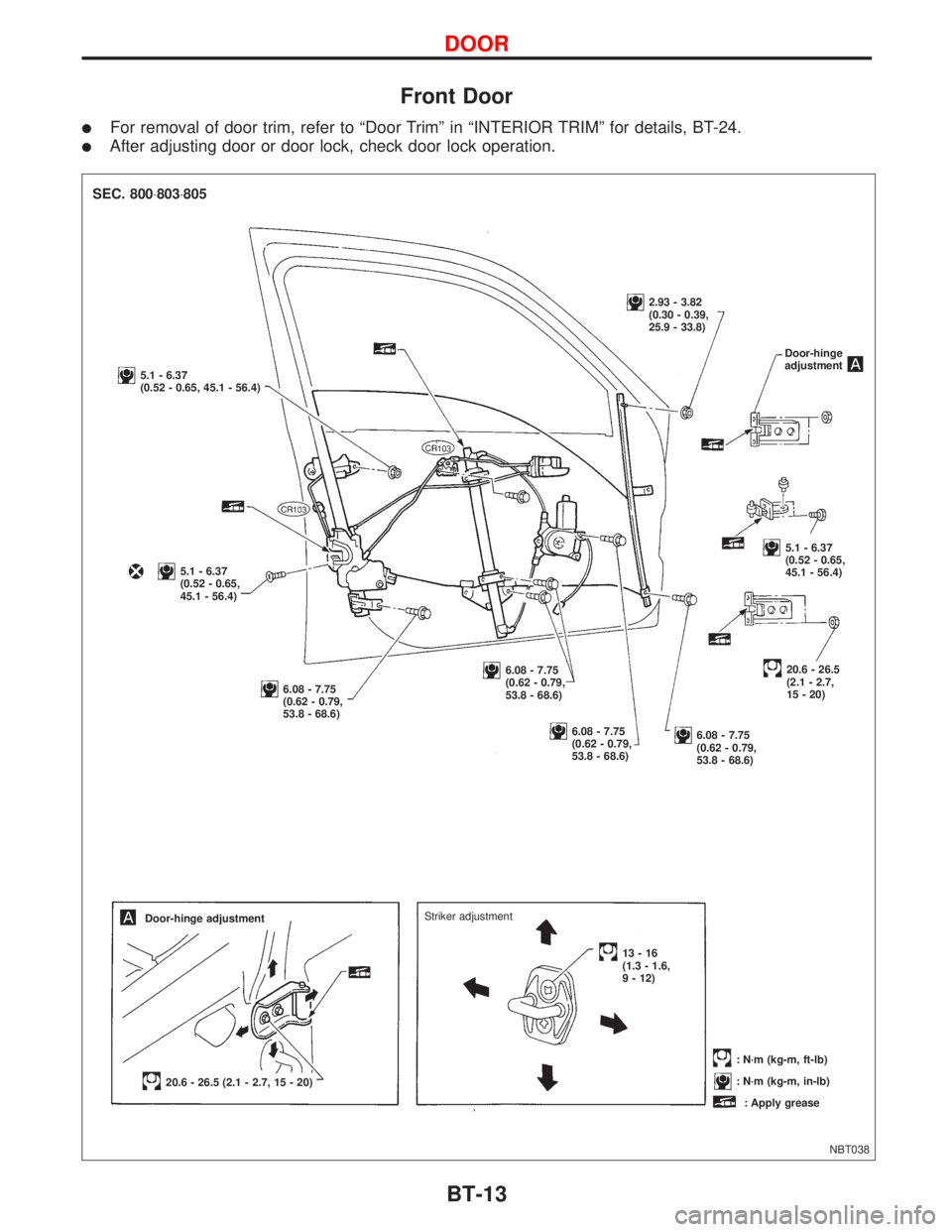

SEC. 800×803×805
5.1 - 6.37
(0.52 - 0.65, 45.1 - 56.4)
5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
20.6 - 26.5
(2.1 - 2.7,
15 - 20)
5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)
2.93 - 3.82
(0.30 - 0.39,
25.9 - 33.8)
Door-hinge adjustment
20.6 - 26.5 (2.1 - 2.7, 15 - 20)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Apply grease Striker adjustment
13-16
(1.3 - 1.6,
9 - 12)Door-hinge
adjustment
DOOR
BT-13
Page 228 of 2267
Rear Door
NBT039

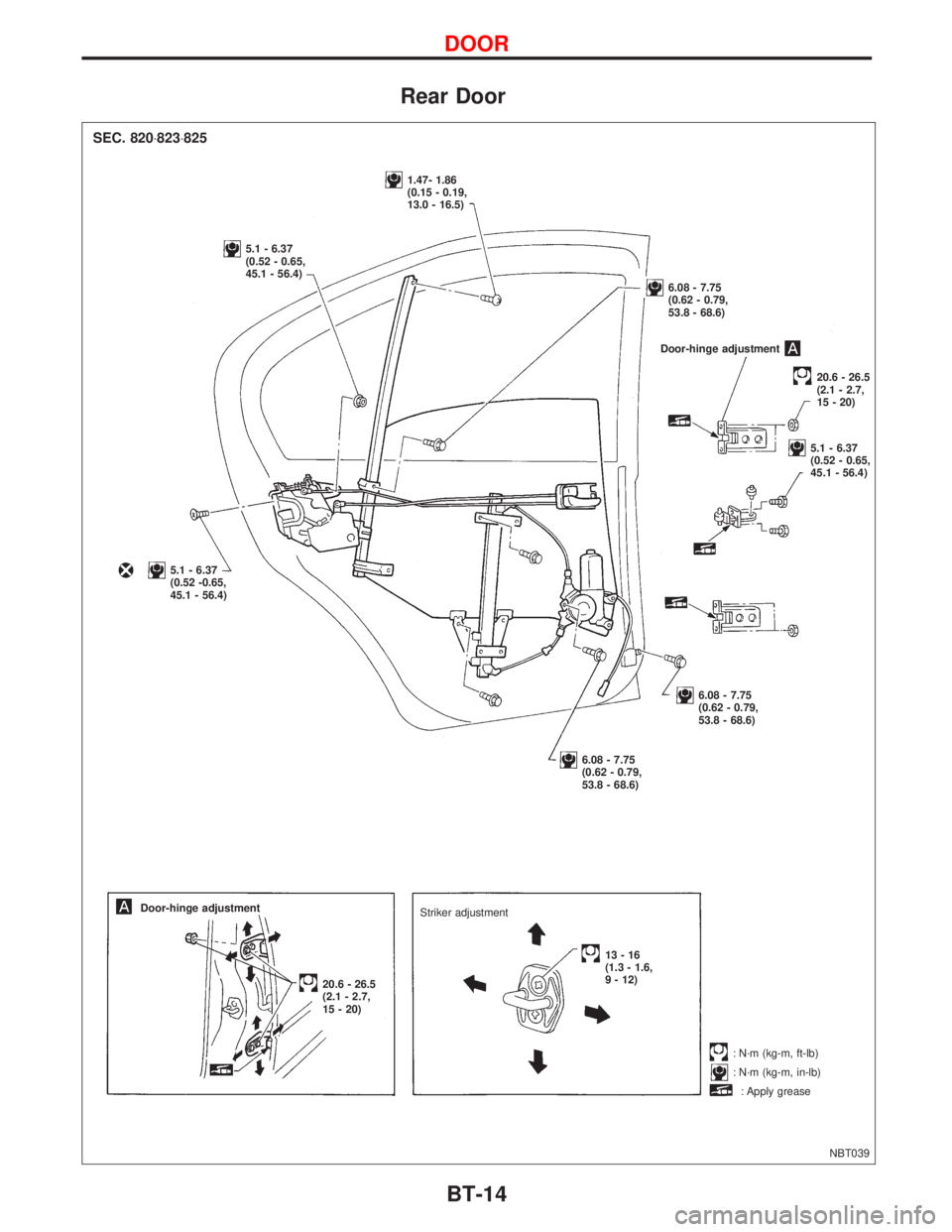

SEC. 820×823×825
1.47- 1.86
(0.15 - 0.19,
13.0 - 16.5)
5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)
5.1 - 6.37
(0.52 -0.65,
45.1 - 56.4)
Door-hinge adjustment
20.6 - 26.5
(2.1 - 2.7,
15 - 20)Striker adjustment
13-16
(1.3 - 1.6,
9 - 12)
20.6 - 26.5
(2.1 - 2.7,
15 - 20)
5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4) Door-hinge adjustment
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Apply grease
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)
DOOR
BT-14
Page 229 of 2267

CAUTION:
lDisconnect both battery cables in advance.
lDisconnect air bag system line in advance.
lNever tamper with or force air bag lid open, as this may adversely affect air bag performance.
lBe careful not to scratch pad and other parts.
REMOVAL Ð Instrument panel assembly
Instrument panel assemblyCombination meterAudio & A/C controlConsole box
Remove air bag module (driver's) and steering wheel.
Refer to ªSUPPLEMENTAL RESTRAINT SYSTEMº in RS section for details.
p1Steering column cover and combination switchlRemove screws.
p2Instrument lower panel on driver sidelRemove screws.
p3Cluster lid AlRemove screws.
p4Combination meterlRemove screws and disconnect harness connectors.
p5Audio
p6Center ventilatorlRemove screws.lPull out with a miniature flat-bladed screwdriver.
p7A/C or heated controllRemove screws.
p8Audio bracket
p9Glove box assemblylRemove glove box pin.lThen disconnect passenger air bag module connector.
p10Passenger air bag modulelRefer to ªSUPPLEMENTAL RESTRAINT SYSTEMº in RS section for
details.
p11Lower coverlRemove clip
p12AT finisher or MT shift lever boot
p13Rear console boxlRemove console mask and screws.
p14Front console boxlRemove screws and bolts.
p15Front defroster grilllDisconnect harness connector.
p16Front pillar garnishlRefer to ªSide and Floor Trimº in ªINTERIOR TRIMº for details, BT-18.
p17Instrument panel and padslRemove nuts and bolts.lRemove door mirror switch and disconnect the connector.
INSTRUMENT PANEL
BT-15
Page 230 of 2267
NBT040
SEC. 248×251×272×487×680×685×969
2.8 - 4.8 (0.29 - 0.49, 24.8 - 42.5)
14.7 - 24.5
(1.50 - 2.5,
10.8 - 18.1)
Metal clip
Metal clip
Metal clip
Metal clip
Metal clip
: N´m (kg-m, in-lb)
: N´m (kg-m, ft-lb)
H: Instrument panel assembly mounting bolts & nuts. HH
HH H
H
INSTRUMENT PANEL
BT-16
Page 231 of 2267
NBT041 Metal clip
Metal
clip
.Cloth
Bracket
Metal clipMetal
clip
Bolt
.PullHook
INSTRUMENT PANEL
BT-17
Page 232 of 2267
Side and Floor Trim
CAUTION:
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim
4-door sedan
p1Remove front and rear seats. Refer to ªSEATº for details, BT-40.
p2Remove front and rear kicking plates.
p3Remove dash side lower finishers.
p4Remove front and rear body side welts.
p5Remove front pillar garnishes.
p6Remove center pillar lower garnishes.
p7Remove front seat belt shoulder adjustment anchor bolt covers and anchor bolts (Refer to ªSEAT BELTSº
in RS section for anchor bolt details).
p8Remove center pillar upper garnishes.
p9Remove rear pillar garnishes.
p10High-mount stop lamp.
p11Remove rear parcel shelf finisher.
p12Remove welt.
p13Remove seatback finisher.
YBT011 X: Metal clipsMetal clip
Metal clip
Metal clip
Metal
clip
Metal clip
Metal clip
SEC. 678×749×769×799
INTERIOR TRIM
