Page 2177 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1. Remove brake caliper assembly.
2. Remove brake rotor.
3. Remove wheel bearing lock nut.
4. Remove wheel hub bearing from spindle.
Brake hose does not need to be disconnected from brake
caliper.
Sus

Page 2178 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual p1Washer
p2Bushing
p3Shock absorber mounting
bracket
p4Bound bumper cover
p5Bound bumper
p6Coil spring
p7Shock absorber
p8Torsion beam
p9Lateral link
p10Control rod
p11ABS sensor
NRA018
SEC. 431
When

Page 2179 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Removal and Installation
CAUTION:
lBefore removing the rear suspension assembly, discon-
nect the ABS wheel sensor and headlamp leveling sen-
sor from the assembly. Failure to do so may result in
dama

Page 2180 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Coil Spring and Shock Absorber
REMOVAL
Remove shock absorber upper and lower fixing nuts.
Do not remove piston rod lock nut on vehicle.
DISASSEMBLY
1. Set shock absorber in vise with attachment, thenl

Page 2181 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ASSEMBLY
lLocate upper spring seat as shown.
lWhen installing coil spring, be careful not to reverse top and
bottom direction. (Top end is flat.)
lWhen installing coil spring on shock absorber, it mus

Page 2182 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2. Temporarily install lateral link and control rod on torsion
beam.
lWhen installing, place lateral link with the arrow topside.
3. Place lateral link and control rod horizontally against torsion
bea

Page 2183 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual General Specifications
Suspension type Multi-link beam suspension
Shock absorber type Double-acting hydraulic
Stabilizer Standard equipment
Inspection and Adjustment
WHEEL ALIGNMENT (Unladen*)
Camber

Page 2184 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual RESTRAINT SYSTEM

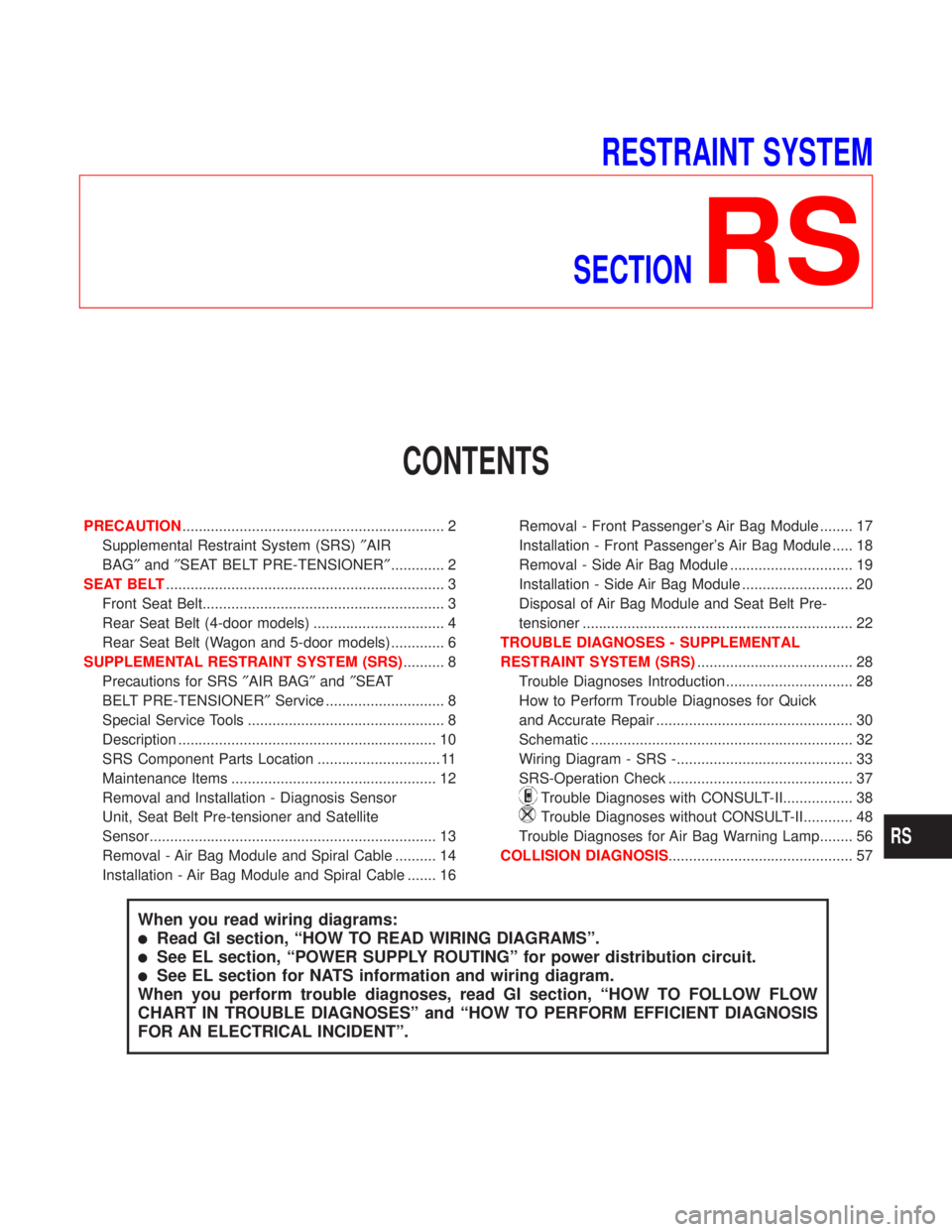

SECTION
RS
CONTENTS
PRECAUTION................................................................ 2
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²..........

RESTRAINT SYSTEM
SECTION
RS
CONTENTS
PRECAUTION................................................................ 2
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²............. 2
SEAT BELT.................................................................... 3
Front Seat Belt........................................................... 3
Rear Seat Belt (4-door models) ................................ 4
Rear Seat Belt (Wagon and 5-door models)............. 6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS).......... 8
Precautions for SRS²AIR BAG²and²SEAT
BELT PRE-TENSIONER²Service ............................. 8
Special Service Tools ................................................ 8
Description ............................................................... 10
SRS Component Parts Location .............................. 11
Maintenance Items .................................................. 12
Removal and Installation - Diagnosis Sensor
Unit, Seat Belt Pre-tensioner and Satellite
Sensor...................................................................... 13
Removal - Air Bag Module and Spiral Cable .......... 14
Installation - Air Bag Module and Spiral Cable ....... 16Removal - Front Passenger's Air Bag Module ........ 17
Installation - Front Passenger's Air Bag Module ..... 18
Removal - Side Air Bag Module .............................. 19
Installation - Side Air Bag Module ........................... 20
Disposal of Air Bag Module and Seat Belt Pre-
tensioner .................................................................. 22
TROUBLE DIAGNOSES - SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)...................................... 28
Trouble Diagnoses Introduction............................... 28
How to Perform Trouble Diagnoses for Quick
and Accurate Repair ................................................ 30
Schematic ................................................................ 32
Wiring Diagram - SRS -........................................... 33
SRS-Operation Check ............................................. 37
Trouble Diagnoses with CONSULT-II................. 38
Trouble Diagnoses without CONSULT-II............ 48
Trouble Diagnoses for Air Bag Warning Lamp........ 56
COLLISION DIAGNOSIS............................................. 57
When you read wiring diagrams:
lRead GI section, ªHOW TO READ WIRING DIAGRAMSº.
lSee EL section, ªPOWER SUPPLY ROUTINGº for power distribution circuit.
lSee EL section for NATS information and wiring diagram.
When you perform trouble diagnoses, read GI section, ªHOW TO FOLLOW FLOW
CHART IN TROUBLE DIAGNOSESº and ªHOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENTº.
RS
