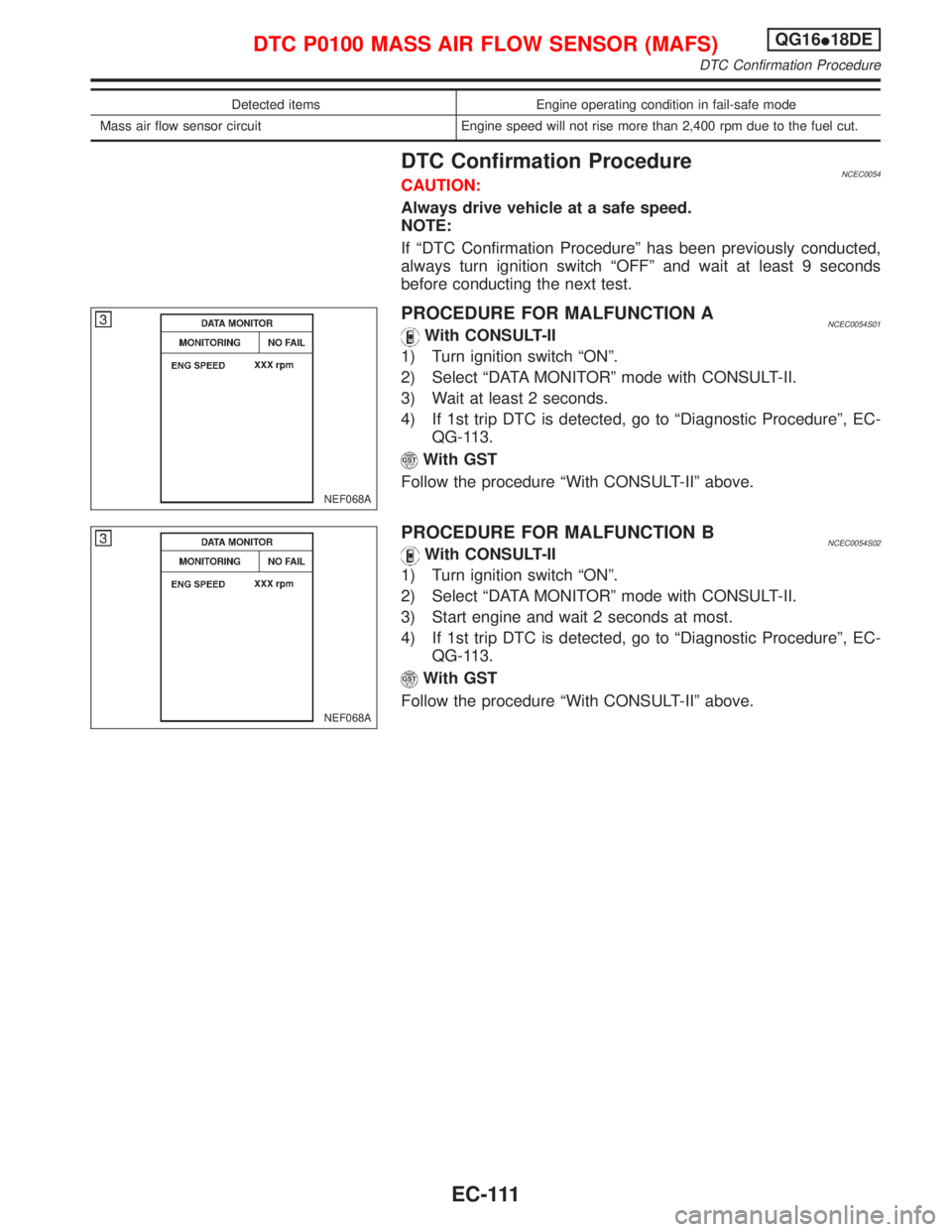

NISSAN PRIMERA 1999 Electronic Repair Manual Detected items Engine operating condition in fail-safe mode Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut. DTC Confirmation ProcedureNCEC0054CAUTION:

Page 554 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0056 YEC063A DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG16I18DE Wiring Diagram EC-112

Page 555 of 2267

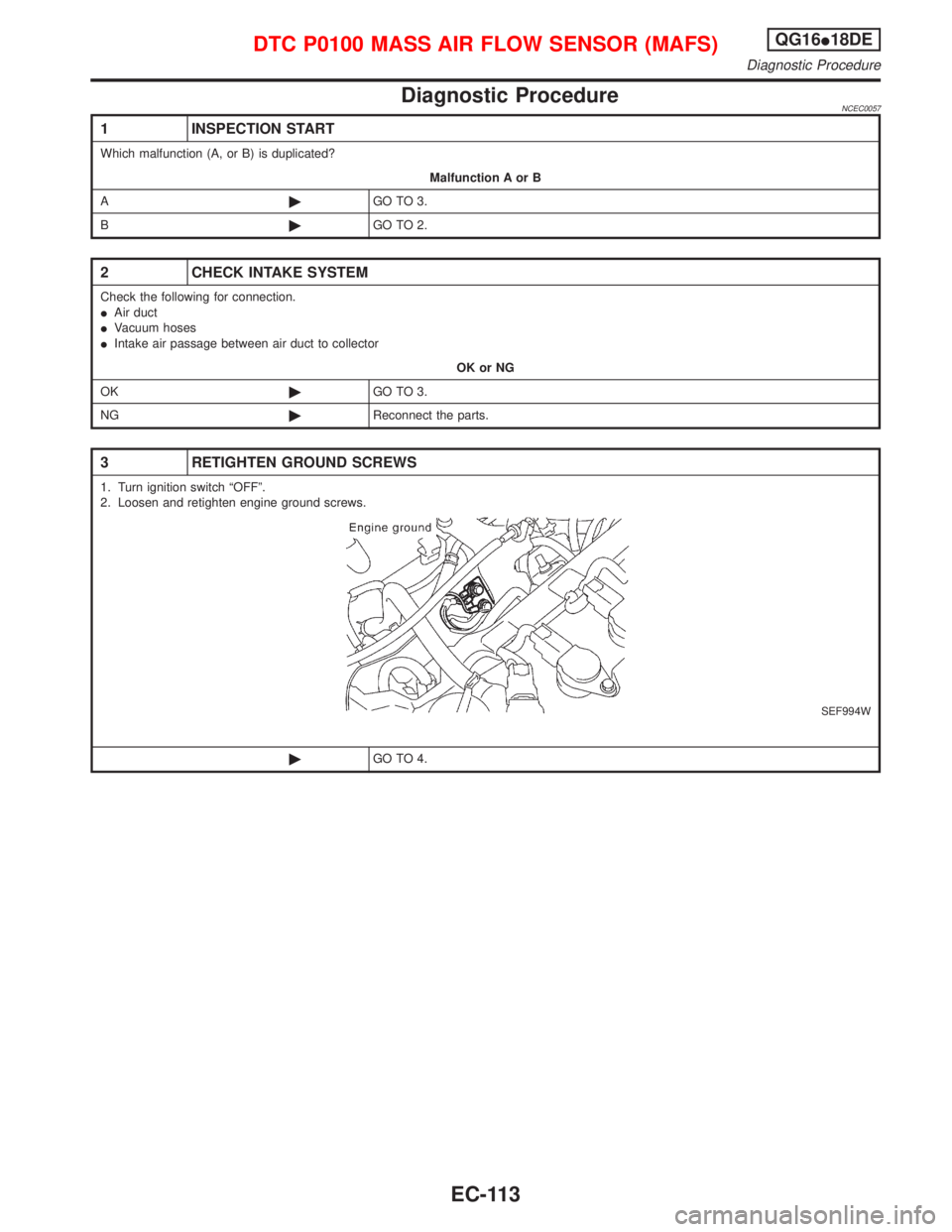

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCEC0057 1 INSPECTION START Which malfunction (A, or B) is duplicated? Malfunction A or B A©GO TO 3. B©GO TO 2. 2 CHECK INTAKE SYSTEM Check the following for connection. IAir duc

Page 556 of 2267

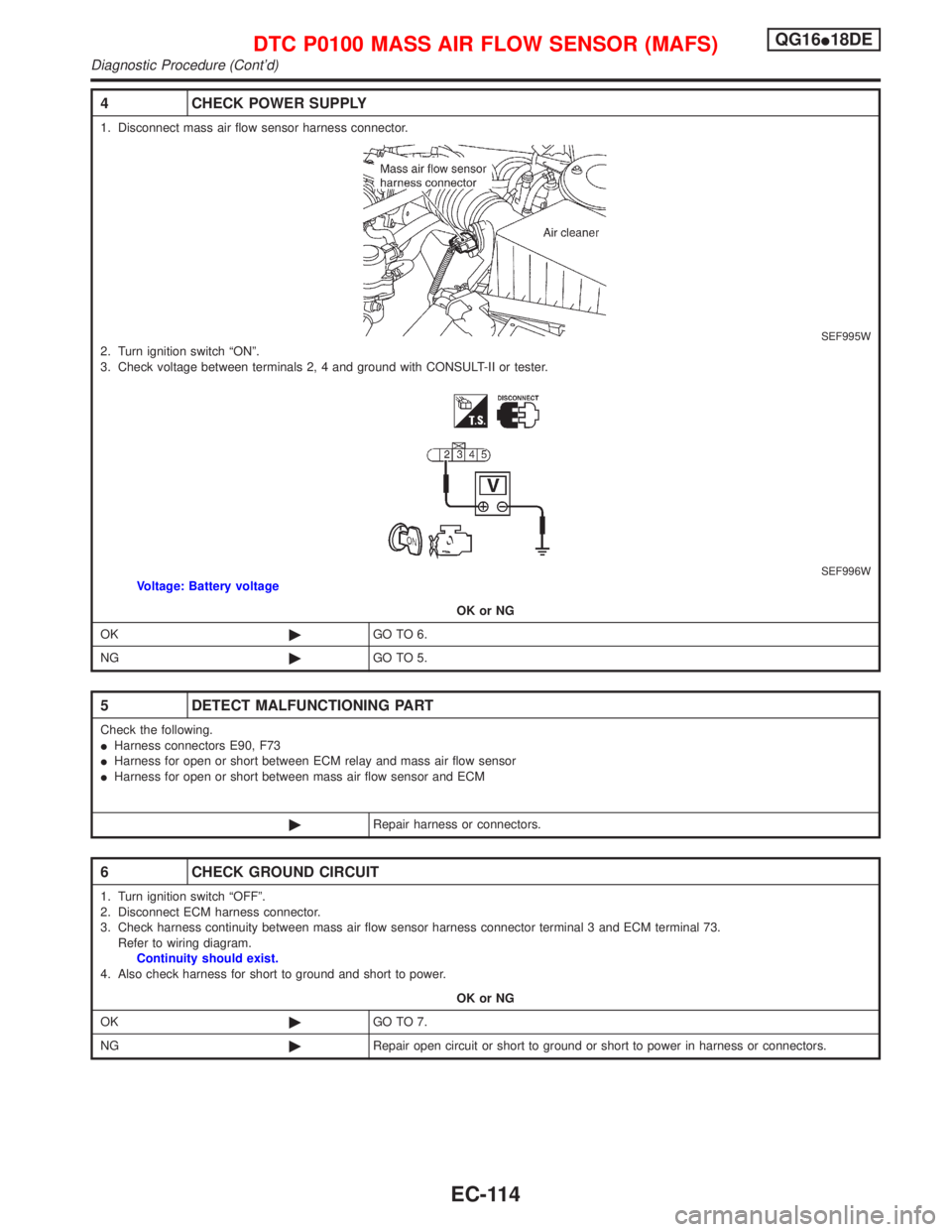

NISSAN PRIMERA 1999 Electronic Repair Manual 4 CHECK POWER SUPPLY 1. Disconnect mass air flow sensor harness connector. SEF995W2. Turn ignition switch ªONº. 3. Check voltage between terminals 2, 4 and ground with CONSULT-II or tester. SEF996WV

Page 557 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 7 CHECK INPUT SIGNAL CIRCUIT 1. Check harness continuity between mass air flow sensor harness connector terminal 5 and ECM terminal 61. Refer to wiring diagram. Continuity should exist. 2. Also check

Page 558 of 2267

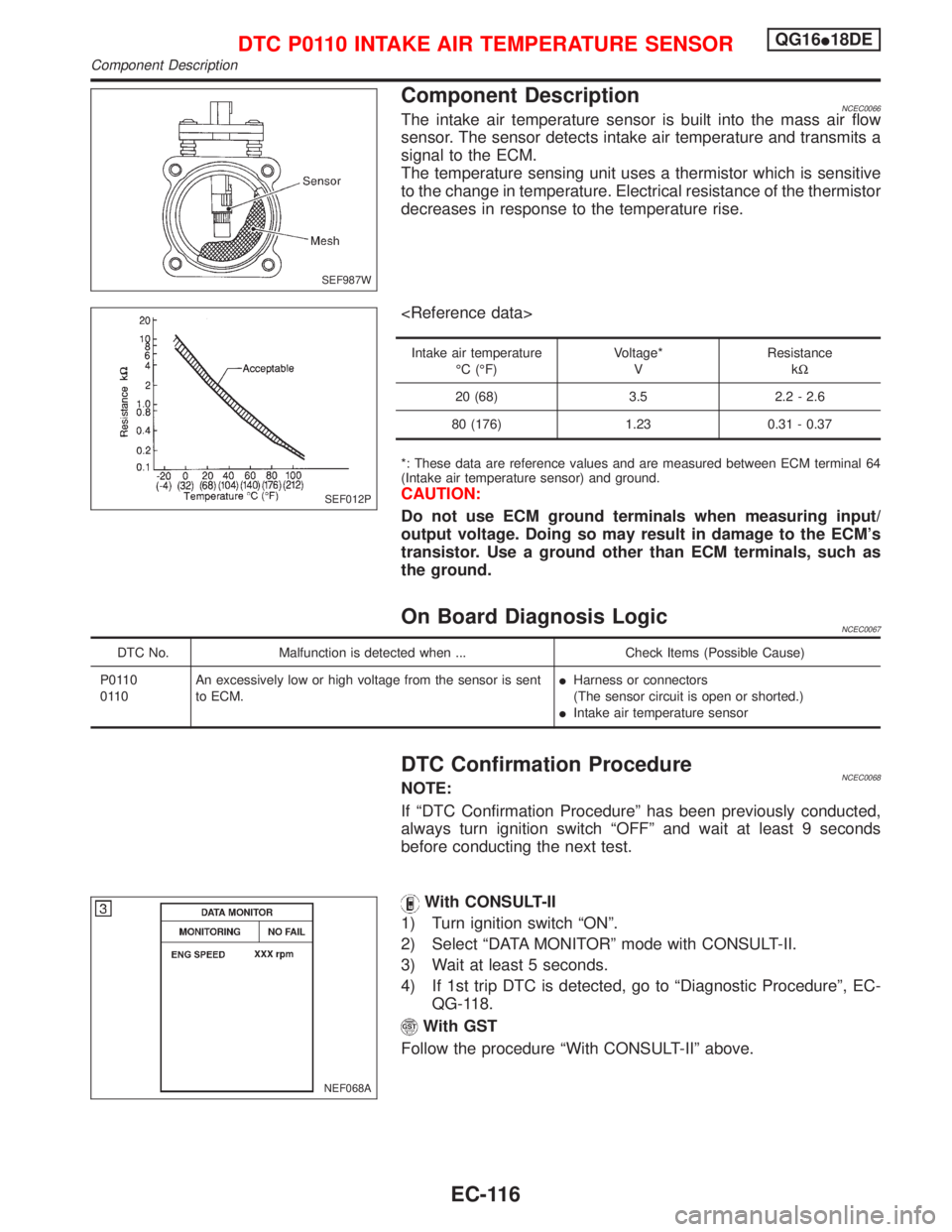

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0066The intake air temperature sensor is built into the mass air flow sensor. The sensor detects intake air temperature and transmits a signal to the ECM. The temperature sens

Page 559 of 2267

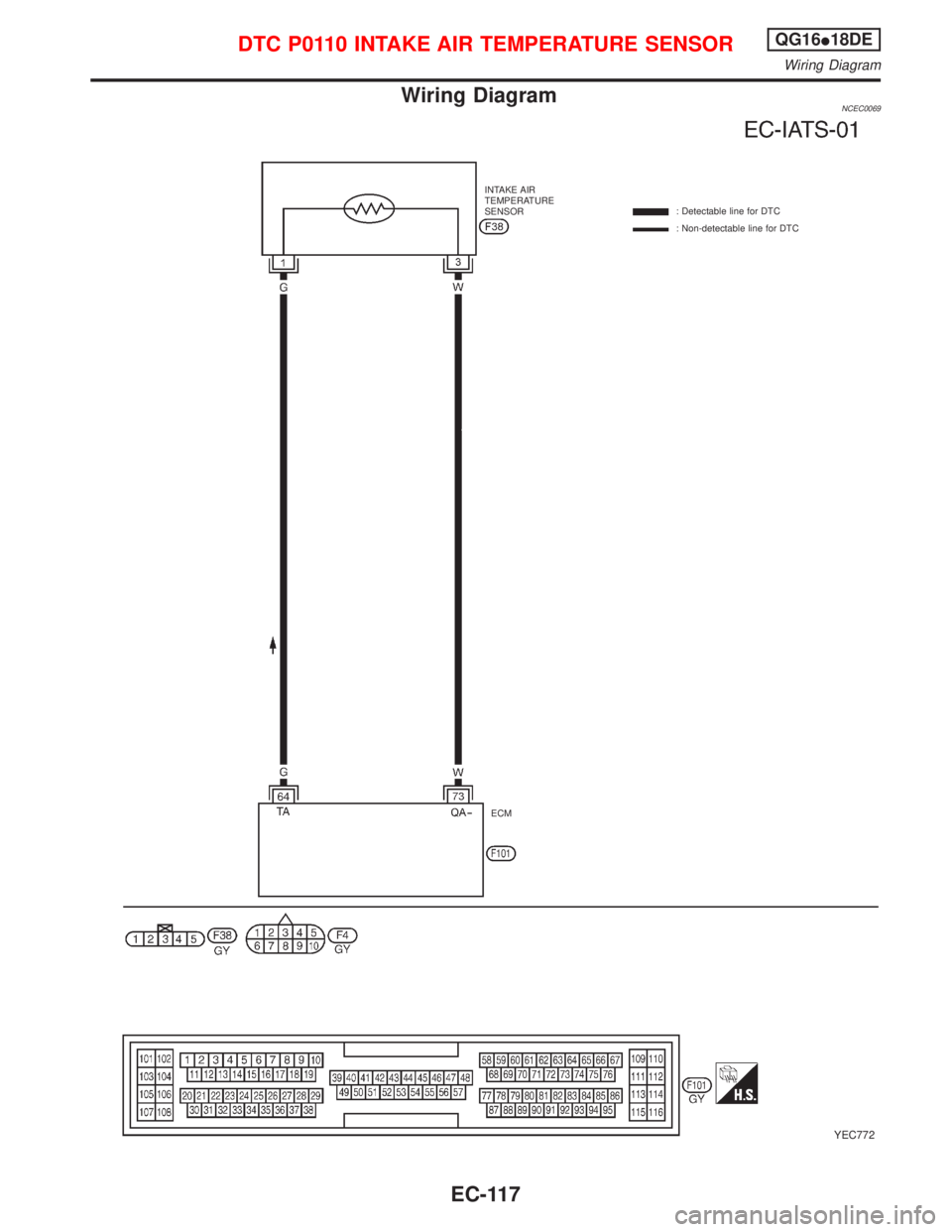

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0069 YEC772 INTAKE AIR TEMPERATURE SENSOR: Detectable line for DTC : Non-detectable line for DTC ECM DTC P0110 INTAKE AIR TEMPERATURE SENSORQG16I18DE Wiring Diagram EC-117

Page 560 of 2267

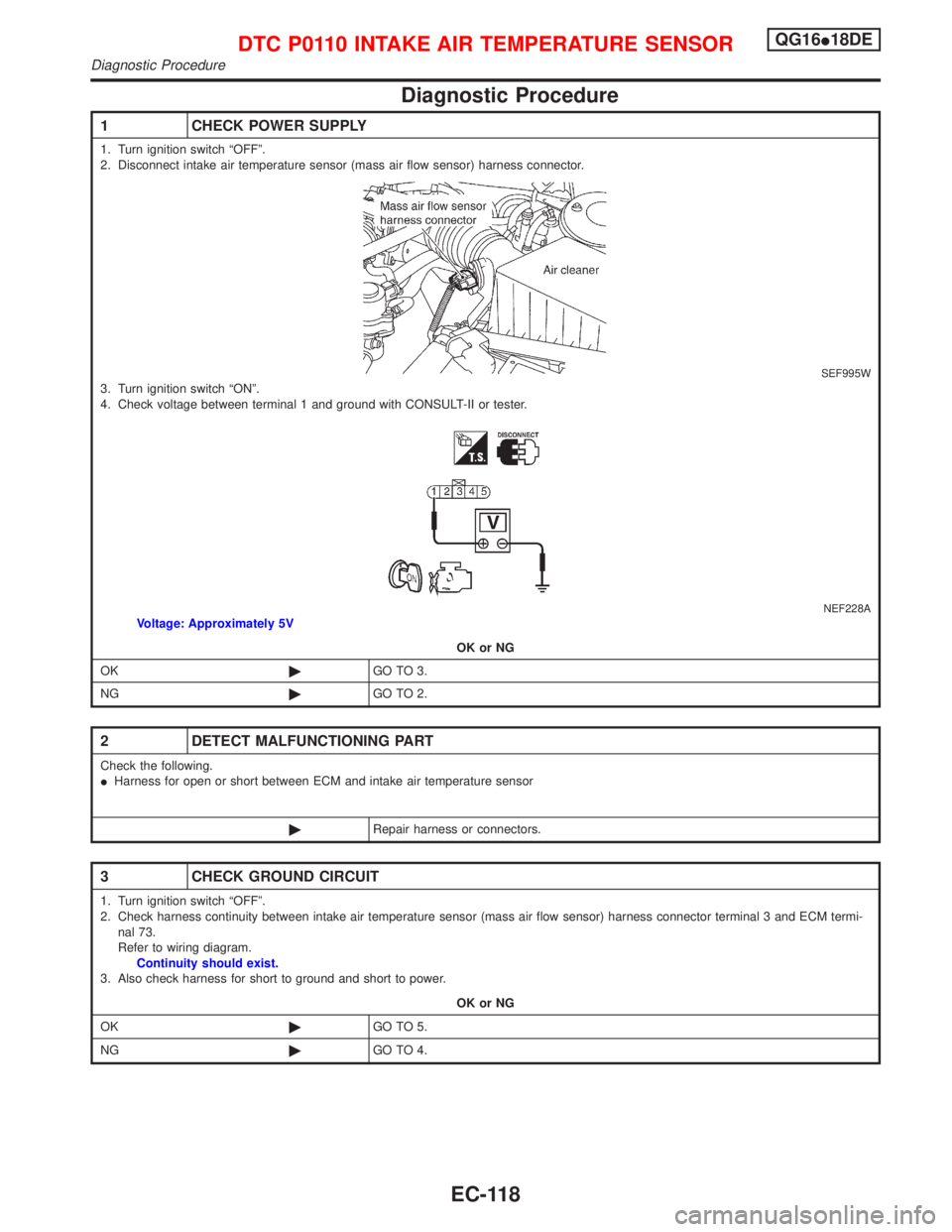

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic Procedure 1 CHECK POWER SUPPLY 1. Turn ignition switch ªOFFº. 2. Disconnect intake air temperature sensor (mass air flow sensor) harness connector. SEF995W3. Turn ignition switch ªONº.
