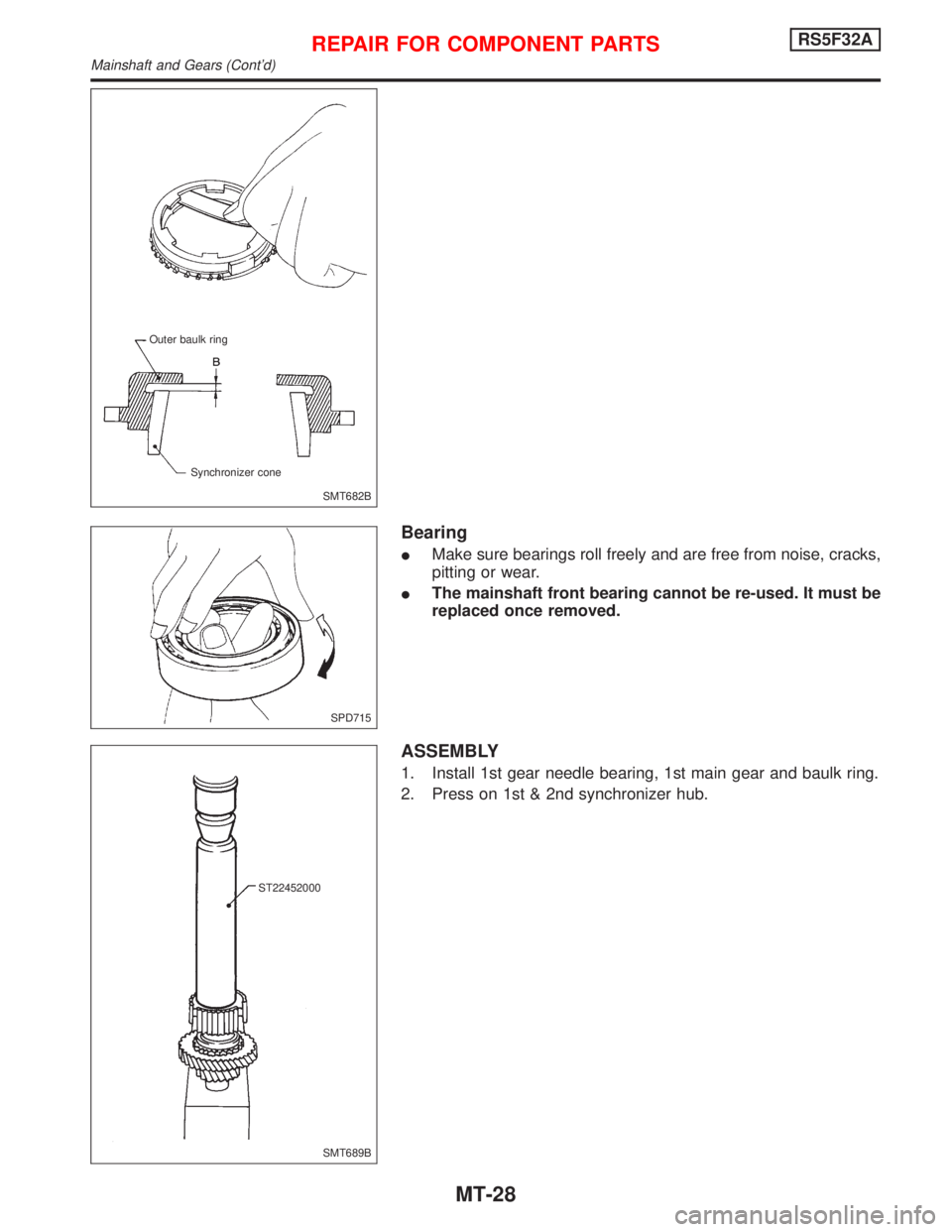

Bearing
IMake sure bearings roll freely and are free from noise, cracks,
pitting or wear.
IThe mainshaft front bearing cannot be re-used. It must be
replaced once removed.
ASSEMBLY
1. Install 1st gear needle bearing, 1st main gear and baulk ring.
2. Press on 1st & 2nd synchronizer hub.
SMT682B Outer baulk ring
Synchronizer cone
SPD715
SMT689B ST22452000
REPAIR FOR COMPONENT PARTSRS5F32A
Mainshaft and Gears (Cont'd)
MT-28
Page 2106 of 2267

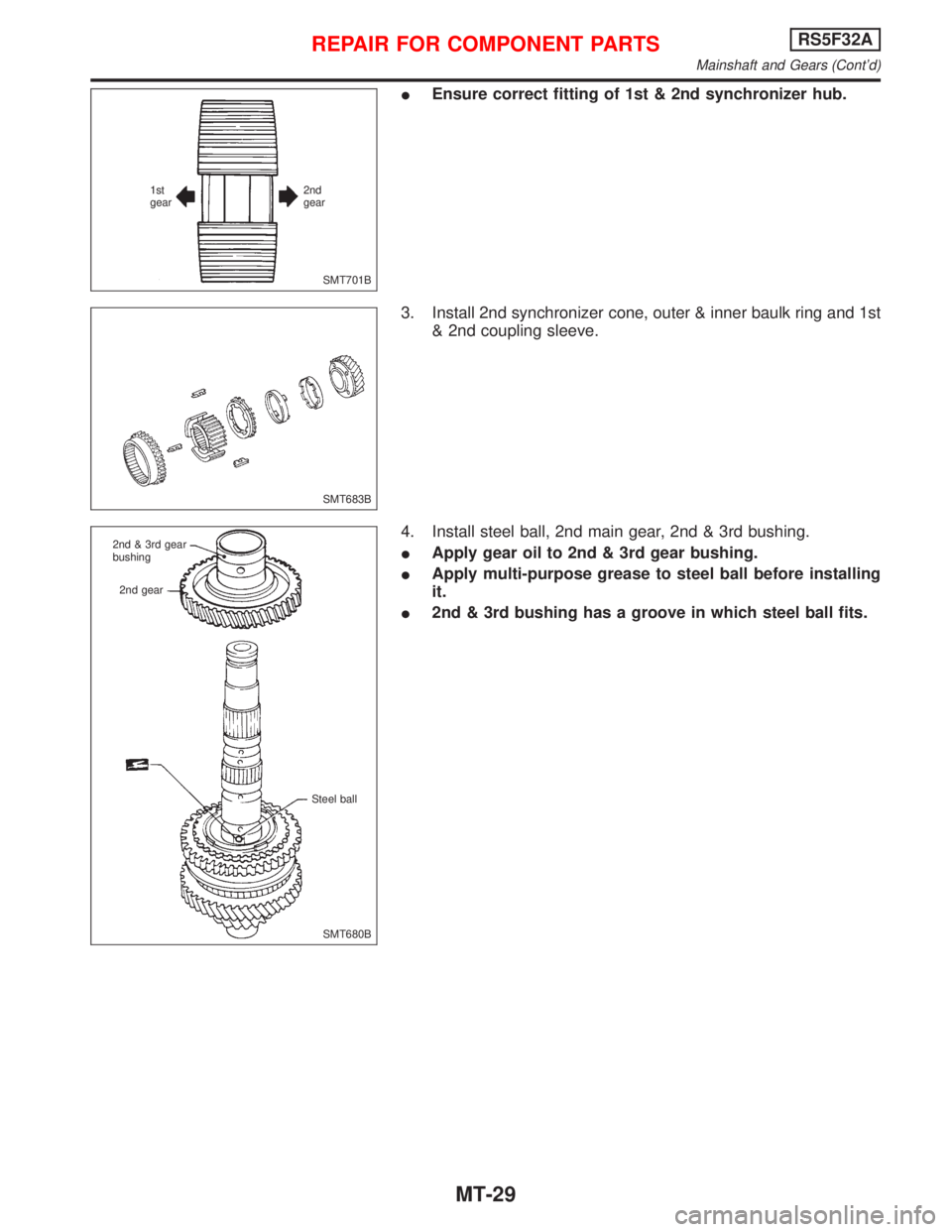

IEnsure correct fitting of 1st & 2nd synchronizer hub.
3. Install 2nd synchronizer cone, outer & inner baulk ring and 1st
& 2nd coupling sleeve.
4. Install steel ball, 2nd main gear, 2nd & 3rd bushing.
IApply gear oil to 2nd & 3rd gear bushing.
IApply multi-purpose grease to steel ball before installing
it.
I2nd & 3rd bushing has a groove in which steel ball fits.
SMT701B 2nd
gear 1st
gear
SMT683B
SMT680B 2nd & 3rd gear
bushing
2nd gear
Steel ball
REPAIR FOR COMPONENT PARTSRS5F32A
Mainshaft and Gears (Cont'd)
MT-29
Page 2107 of 2267

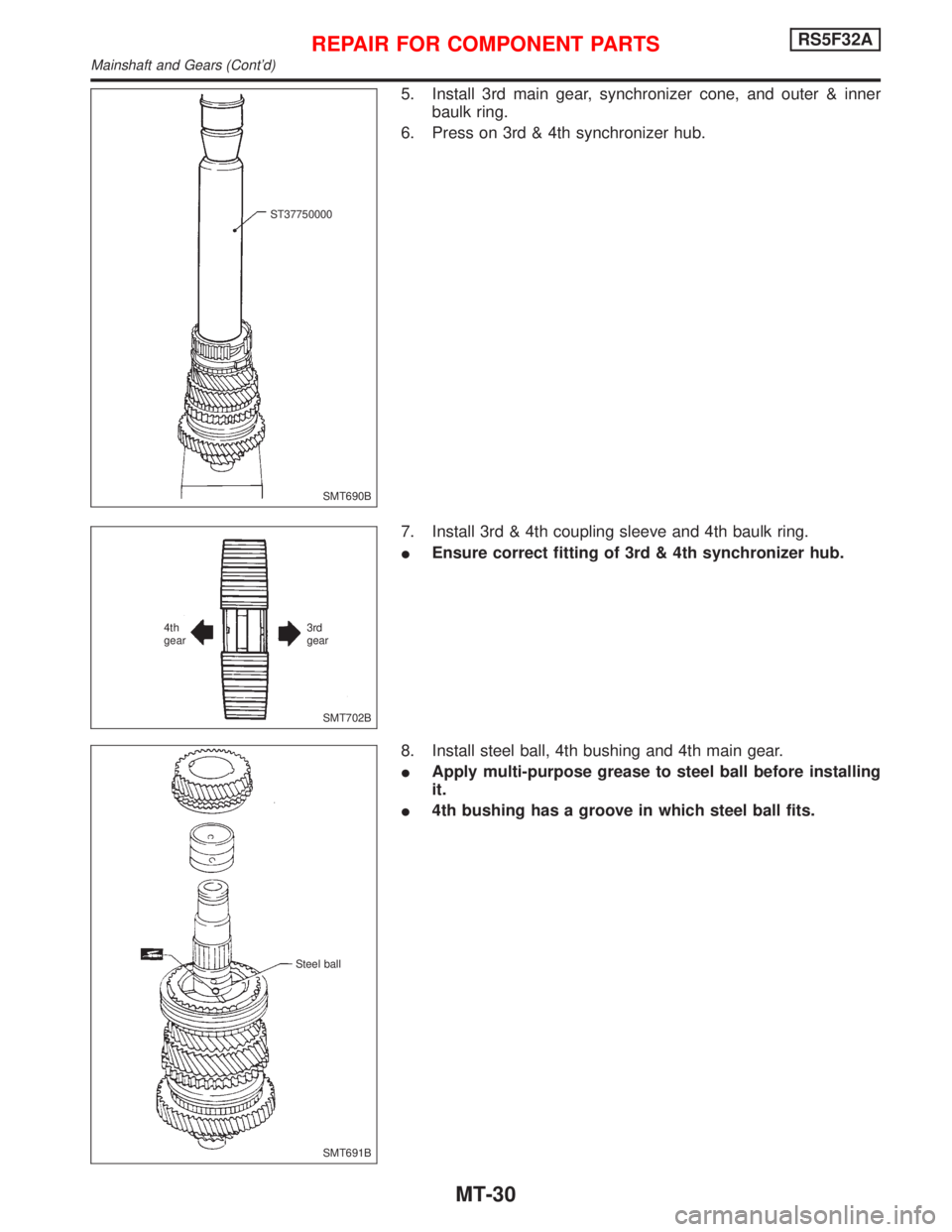

5. Install 3rd main gear, synchronizer cone, and outer & inner
baulk ring.
6. Press on 3rd & 4th synchronizer hub.
7. Install 3rd & 4th coupling sleeve and 4th baulk ring.
IEnsure correct fitting of 3rd & 4th synchronizer hub.
8. Install steel ball, 4th bushing and 4th main gear.
IApply multi-purpose grease to steel ball before installing
it.
I4th bushing has a groove in which steel ball fits.
SMT690B ST37750000
SMT702B 3rd
gear 4th
gear
SMT691B Steel ball
REPAIR FOR COMPONENT PARTSRS5F32A
Mainshaft and Gears (Cont'd)
MT-30
Page 2108 of 2267

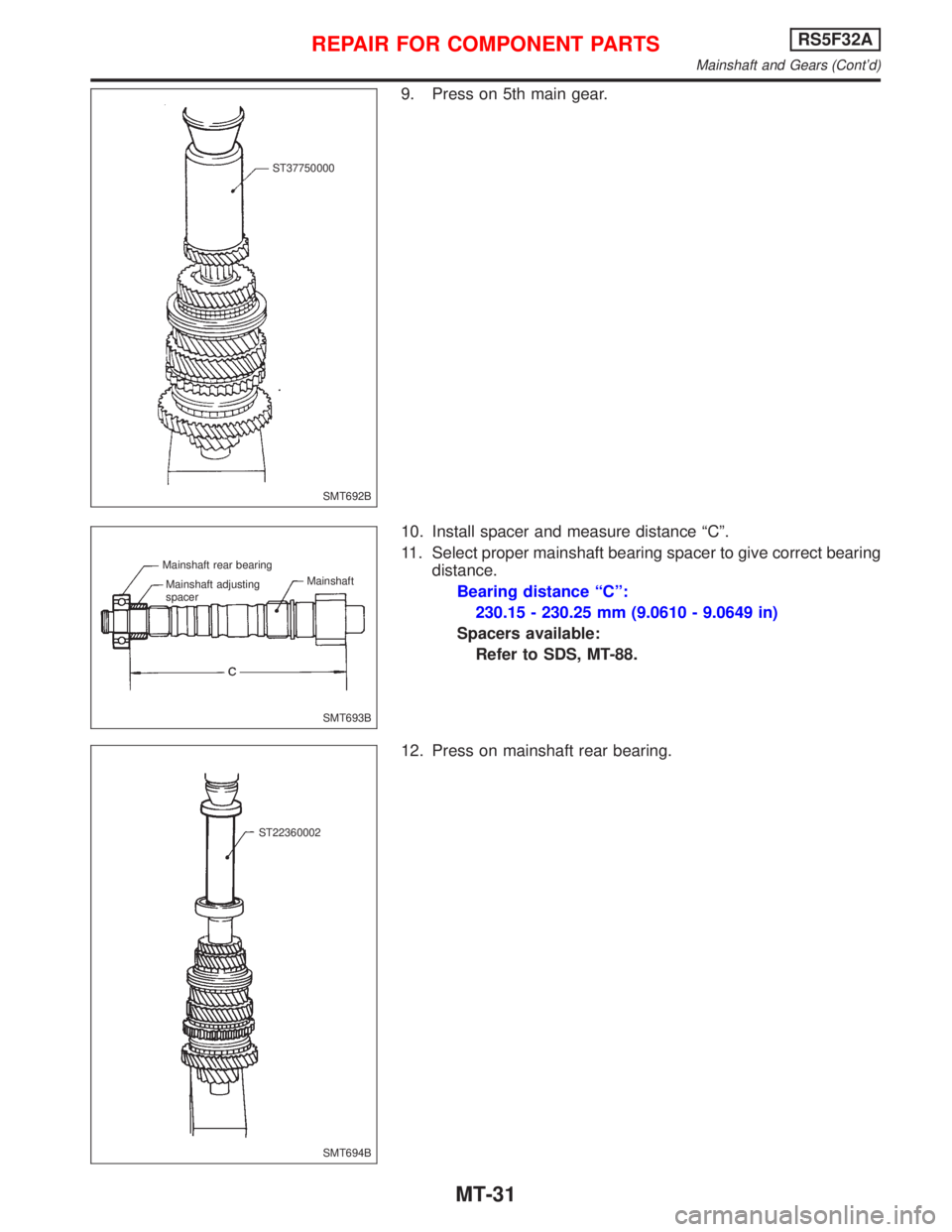

9. Press on 5th main gear.
10. Install spacer and measure distance ªCº.
11. Select proper mainshaft bearing spacer to give correct bearing
distance.
Bearing distance ªCº:
230.15 - 230.25 mm (9.0610 - 9.0649 in)
Spacers available:
Refer to SDS, MT-88.
12. Press on mainshaft rear bearing.
SMT692B ST37750000
SMT693B Mainshaft rear bearing
Mainshaft
Mainshaft adjusting
spacer
SMT694B ST22360002
REPAIR FOR COMPONENT PARTSRS5F32A
Mainshaft and Gears (Cont'd)
MT-31
Page 2109 of 2267

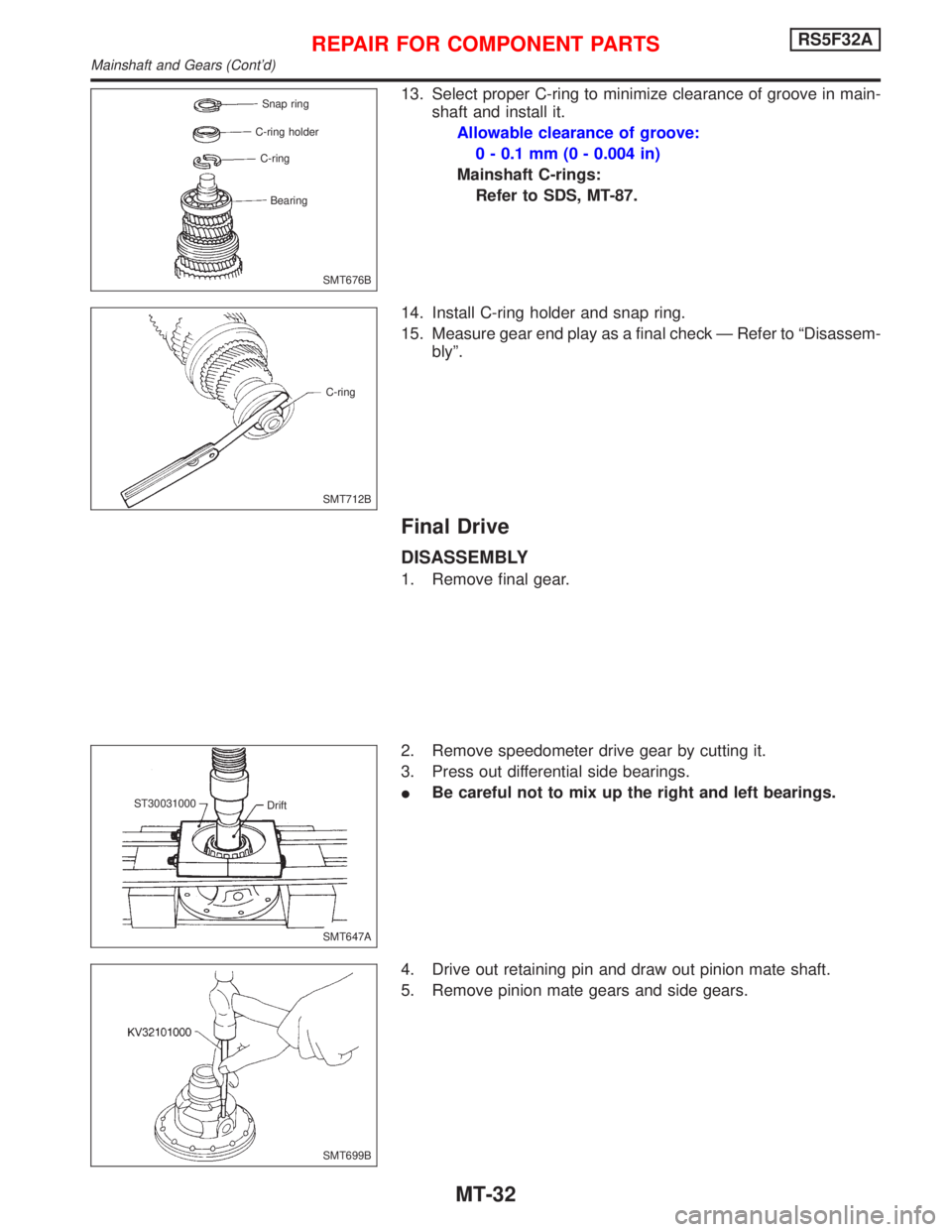

13. Select proper C-ring to minimize clearance of groove in main-
shaft and install it.
Allowable clearance of groove:
0 - 0.1 mm (0 - 0.004 in)
Mainshaft C-rings:
Refer to SDS, MT-87.
14. Install C-ring holder and snap ring.
15. Measure gear end play as a final check Ð Refer to ªDisassem-
blyº.
Final Drive
DISASSEMBLY
1. Remove final gear.
2. Remove speedometer drive gear by cutting it.
3. Press out differential side bearings.
IBe careful not to mix up the right and left bearings.
4. Drive out retaining pin and draw out pinion mate shaft.
5. Remove pinion mate gears and side gears.
SMT676B Snap ring
C-ring holder
C-ring
Bearing
SMT712BC-ring
SMT647A Drift ST30031000
SMT699B
REPAIR FOR COMPONENT PARTSRS5F32A
Mainshaft and Gears (Cont'd)
MT-32
Page 2110 of 2267

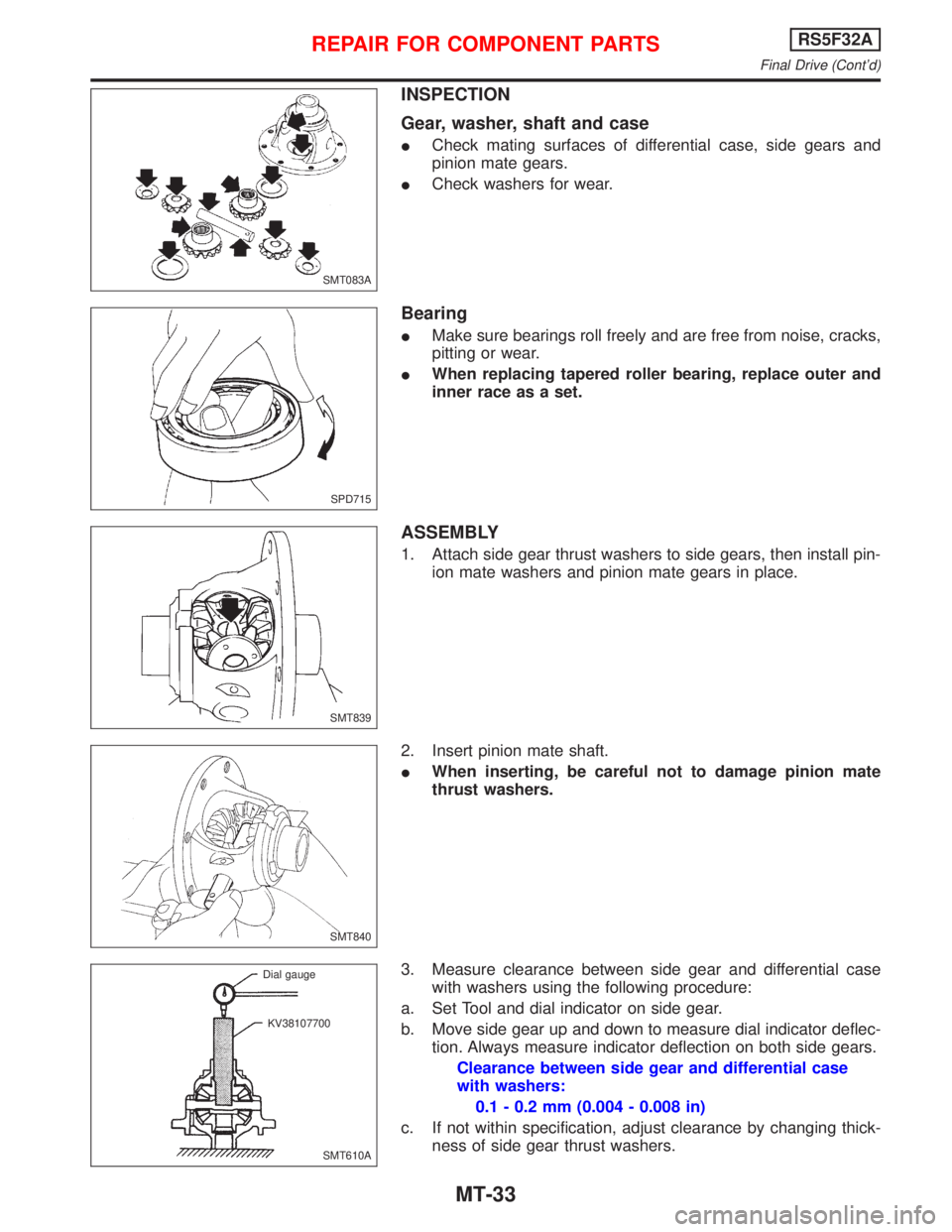

INSPECTION
Gear, washer, shaft and case
ICheck mating surfaces of differential case, side gears and
pinion mate gears.
ICheck washers for wear.
Bearing
IMake sure bearings roll freely and are free from noise, cracks,
pitting or wear.
IWhen replacing tapered roller bearing, replace outer and
inner race as a set.
ASSEMBLY
1. Attach side gear thrust washers to side gears, then install pin-
ion mate washers and pinion mate gears in place.
2. Insert pinion mate shaft.
IWhen inserting, be careful not to damage pinion mate
thrust washers.
3. Measure clearance between side gear and differential case
with washers using the following procedure:
a. Set Tool and dial indicator on side gear.
b. Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.
Clearance between side gear and differential case
with washers:
0.1 - 0.2 mm (0.004 - 0.008 in)
c. If not within specification, adjust clearance by changing thick-
ness of side gear thrust washers.
SMT083A
SPD715
SMT839
SMT840
SMT610A Dial gauge
KV38107700
REPAIR FOR COMPONENT PARTSRS5F32A
Final Drive (Cont'd)
MT-33
Page 2111 of 2267

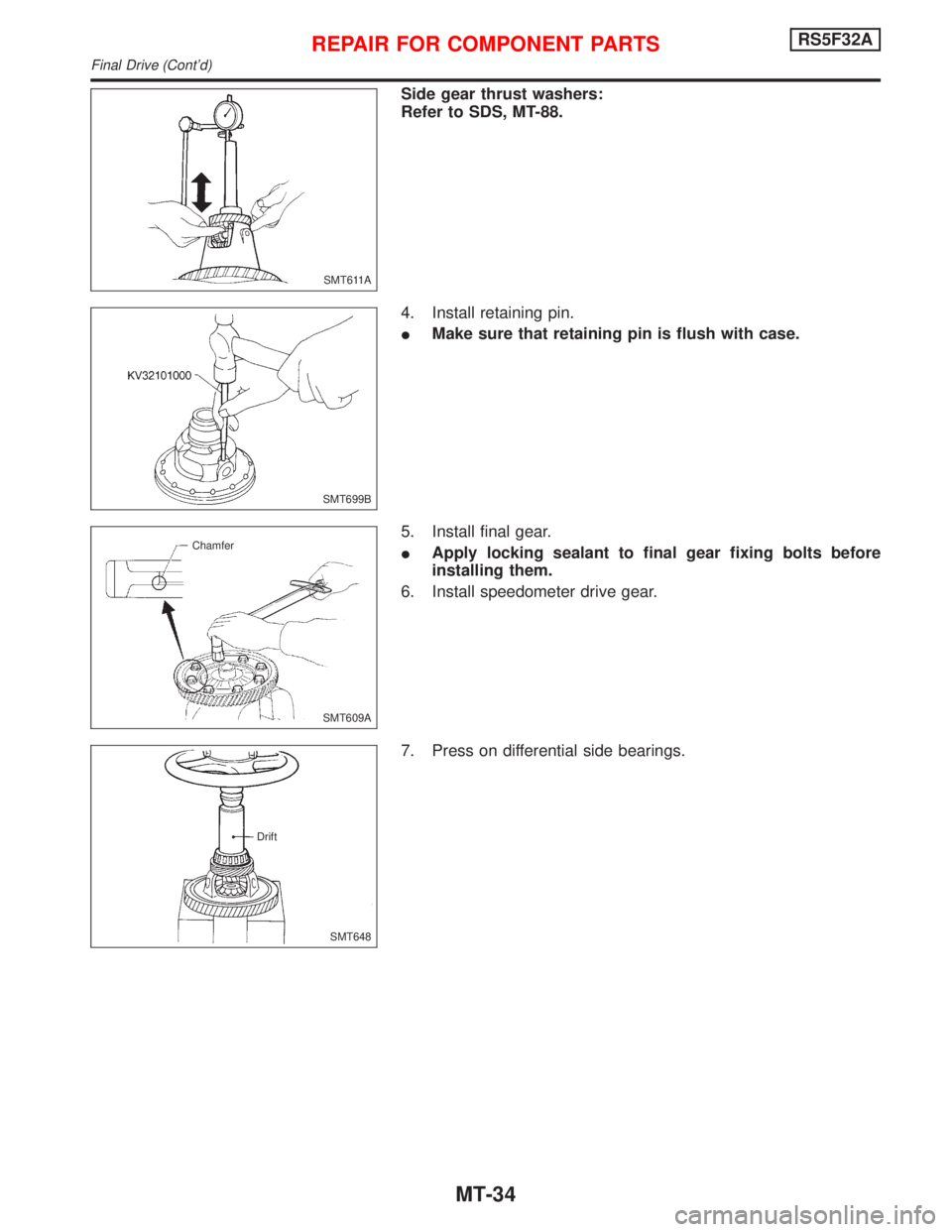

Side gear thrust washers:
Refer to SDS, MT-88.
4. Install retaining pin.
IMake sure that retaining pin is flush with case.
5. Install final gear.
IApply locking sealant to final gear fixing bolts before
installing them.
6. Install speedometer drive gear.
7. Press on differential side bearings.
SMT611A
SMT699B
SMT609A Chamfer
SMT648 Drift
REPAIR FOR COMPONENT PARTSRS5F32A
Final Drive (Cont'd)
MT-34
Page 2112 of 2267
Shift Control Components
INSPECTION
ICheck contact surface and sliding surface for wear, scratches,
projections or other damage.
SMT703B Striking rod
Control bracket
Shift fork and
shifter cap
SMT727B
REPAIR FOR COMPONENT PARTSRS5F32A
Shift Control Components
MT-35
