Page 577 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0100 YEC065A DTC P0130 HEATED OXYGEN SENSOR 1 (FRONT) (CIRCUIT)QG16I18DE Wiring Diagram EC-135

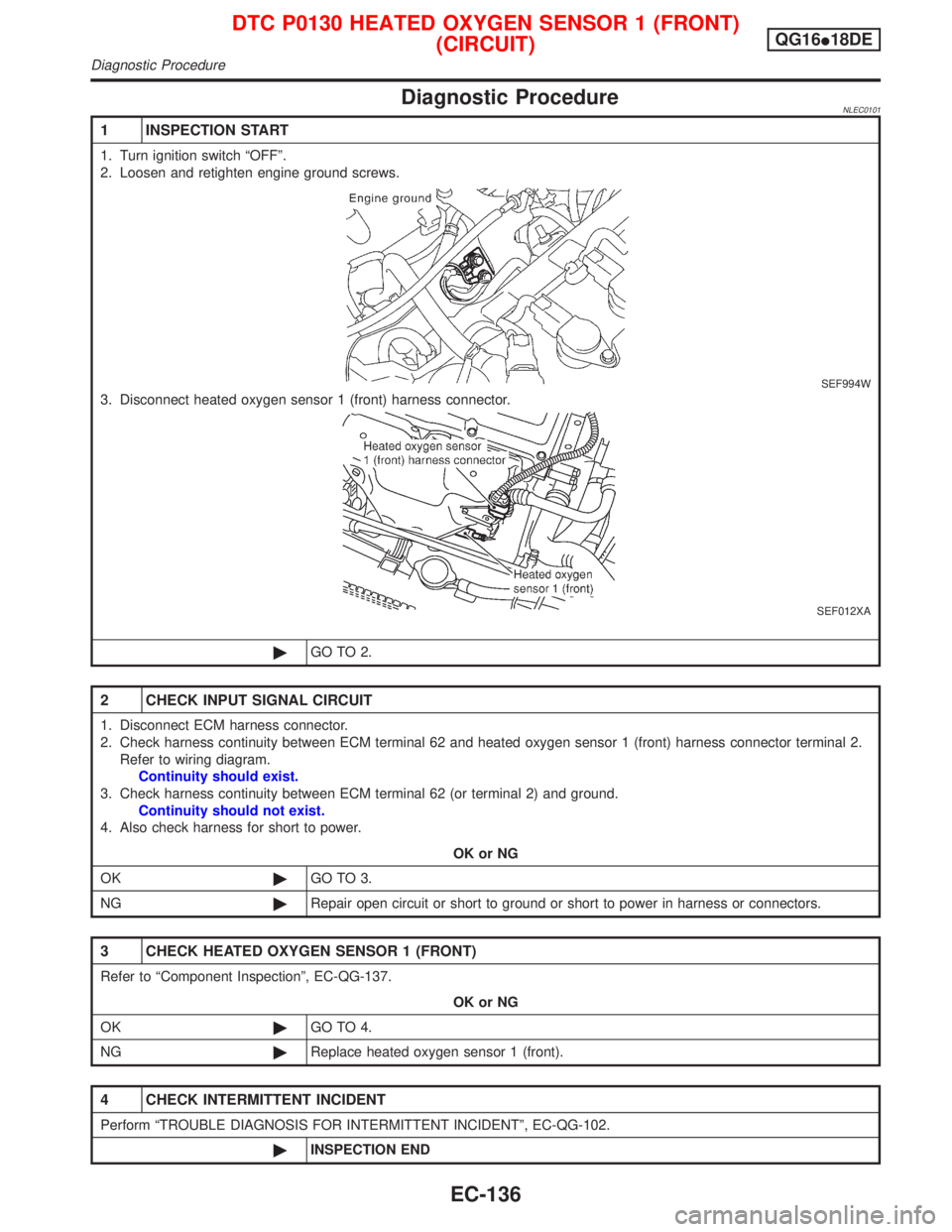

Page 578 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNLEC0101 1 INSPECTION START 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF994W 3. Disconnect heated oxygen sensor 1 (front) harness connector. S

Page 579 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNLEC0102HEATED OXYGEN SENSOR 1 (FRONT)NLEC0102S01With CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2) Select ªMANU TRIGº in ªDATA MONITORº mode, a

Page 580 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual IThe voltage never exceeds 1.0V. CAUTION: IDiscard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new on

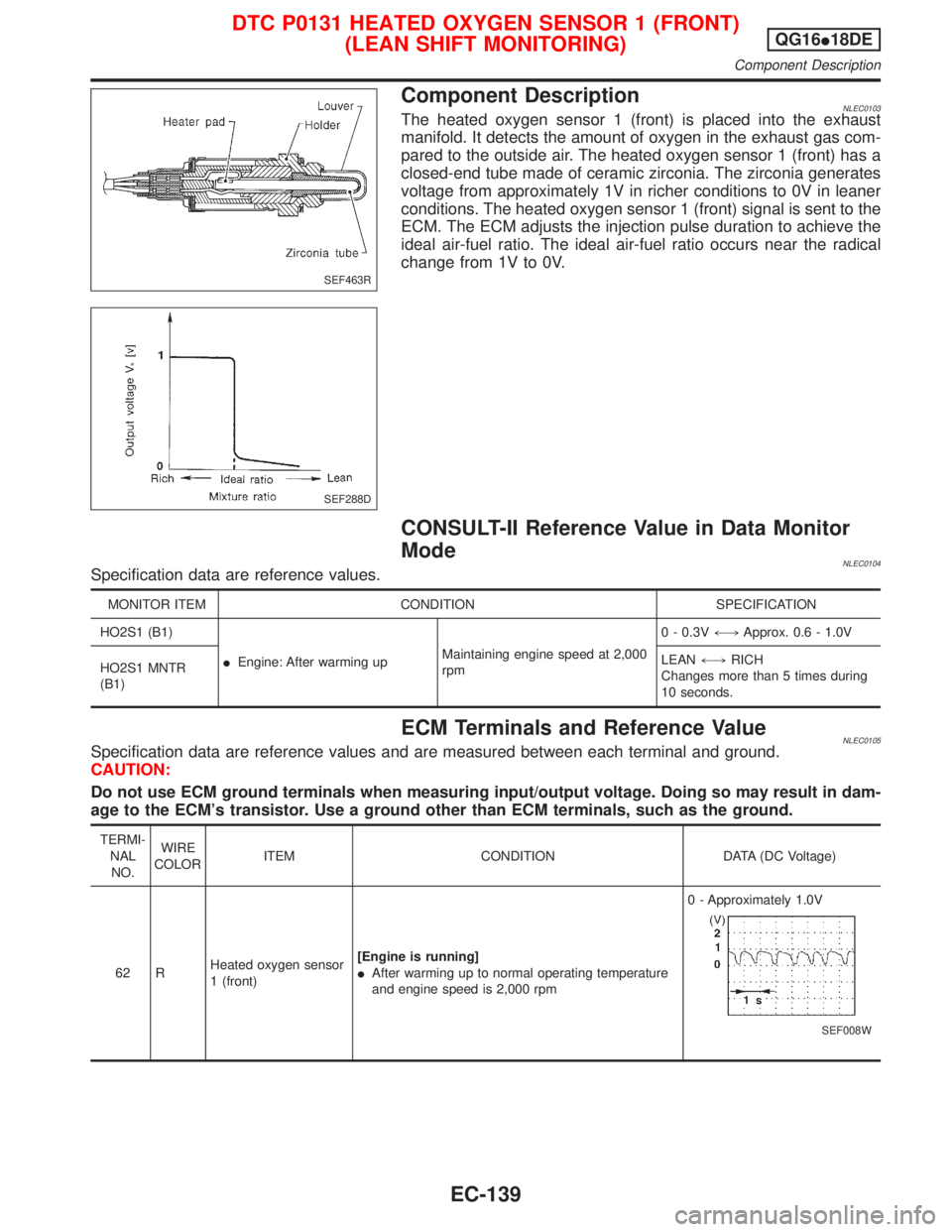

Page 581 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNLEC0103The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas com- pared to the outside air. The heated oxygen

Page 582 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual On Board Diagnosis LogicNLEC0106To judge the malfunction, the output from the heated oxygen sen- sor 1 (front) is monitored to determine whether the ªrichº output is sufficiently high and whether th

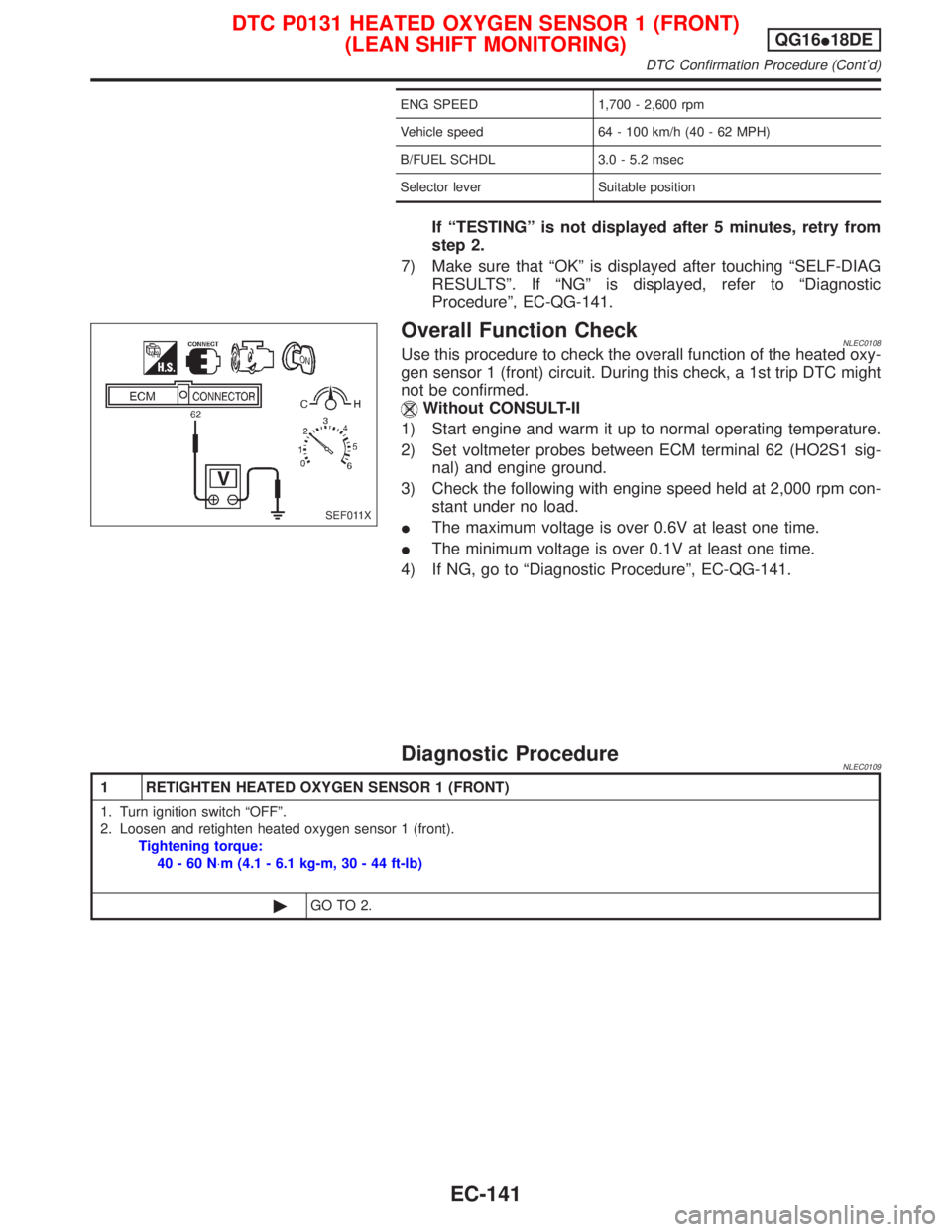

Page 583 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ENG SPEED 1,700 - 2,600 rpm Vehicle speed 64 - 100 km/h (40 - 62 MPH) B/FUEL SCHDL 3.0 - 5.2 msec Selector lever Suitable position If ªTESTINGº is not displayed after 5 minutes, retry from step 2. 7

Page 584 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2 CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select ªSELF-LEARNING CONTº in ªWORK SUPPORTº mode with CONSULT-II. 3. Clear the s
