Page 1033 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNCEC0212KNOCK SENSORNCEC0212S01IUse an ohmmeter which can measure more than 10 MW. 1. Disconnect knock sensor harness connector. 2. Check resistance between terminal 2 and ground.

Page 1034 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0577The crankshaft position sensor (OBD) is located on the transmis- sion housing facing the gear teeth (cogs) of the flywheel or drive plate. It detects the fluctuation of th

Page 1035 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DTC Confirmation ProcedureNCEC0580NOTE: If ªDTC Confirmation Procedureº has been previously conducted, always turn ignition switch ªOFFº and wait at least 9 seconds before conducting the next test

Page 1036 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0581 YEC839 : Detectable line for DTC : Non-detectable line for DTC : Hyper CVT models ECMTCM (TRANSMISSION CONTROL MODULE) CRANKSHAFT POSITION SENSOR (OBD) DTC P0335 CRANKSHAFT POSI

Page 1037 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCEC0582 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. ©GO TO 2. 2 CHECK INPUT SIGNAL CIRCUIT 1. Disconnect crankshaft p

Page 1038 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNCEC0583CRANKSHAFT POSITION SENSOR (OBD)NCEC0583S011. Disconnect crankshaft position sensor (OBD) harness connec- tor. 2. Loosen the fixing bolt of the sensor. 3. Remove the sensor

Page 1039 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0220The camshaft position sensor is a basic component of the engine control system. It monitors engine speed and piston position. These input signals to the engine control sys

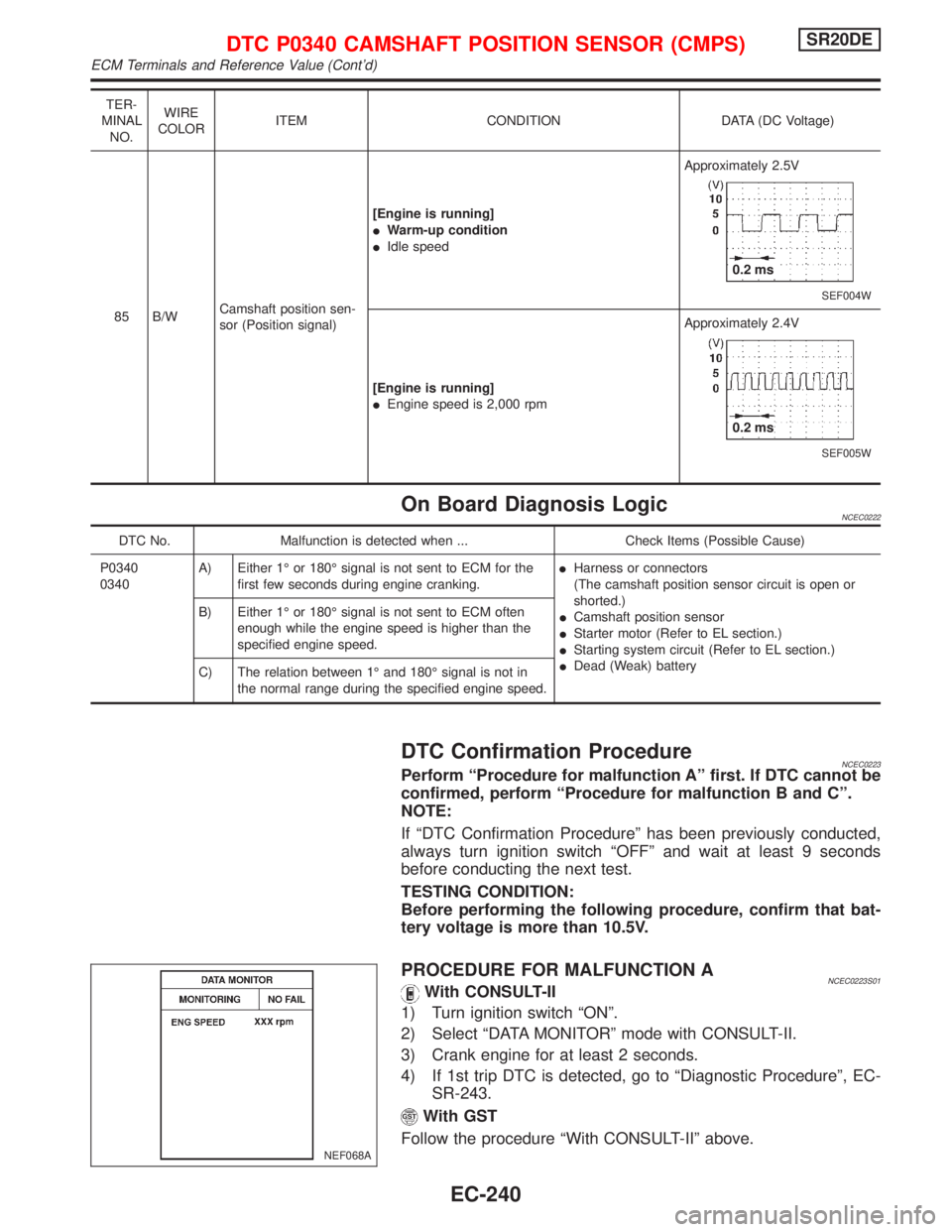

Page 1040 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual TER- MINAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 85 B/WCamshaft position sen- sor (Position signal)[Engine is running] IWarm-up condition IIdle speedApproximately 2.5V 0.2 ms SEF004W [Engine i
