Page 1305 of 2267
MODELS AFTER VIN - P11U0548750
YEL875C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-173
Page 1306 of 2267
YEL876C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-174
Page 1307 of 2267
YEL877C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-175
Page 1308 of 2267
YEL878C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-176
Page 1309 of 2267
YEL879C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-177
Page 1310 of 2267
YEL880C
WARNING LAMPS
Wiring Diagram—WARN—(Cont’d)
EL-178
Page 1311 of 2267

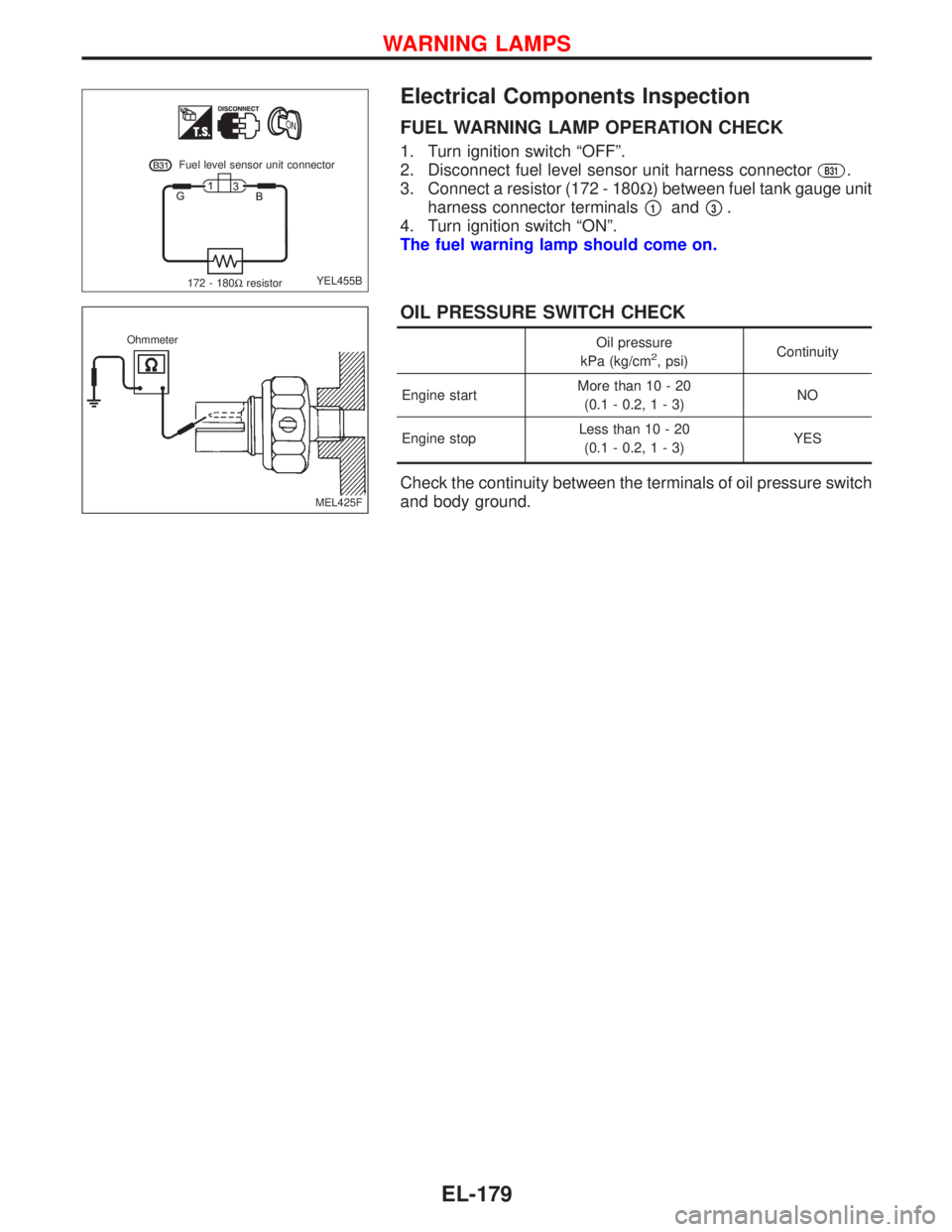

Electrical Components Inspection
FUEL WARNING LAMP OPERATION CHECK
1. Turn ignition switch“OFF”.
2. Disconnect fuel level sensor unit harness connector
B31.
3. Connect a resistor (172 - 180Ω) between fuel tank gauge unit
harness connector terminals
1and3.
4. Turn ignition switch“ON”.
The fuel warning lamp should come on.
OIL PRESSURE SWITCH CHECK
Oil pressure
kPa (kg/cm2, psi)Continuity
Engine startMore than 10 - 20
(0.1-0.2,1-3)NO
Engine stopLess than 10 - 20
(0.1-0.2,1-3)YES
Check the continuity between the terminals of oil pressure switch
and body ground.
YEL455B Fuel level sensor unit connector
172 - 180Ωresistor
MEL425F Ohmmeter
WARNING LAMPS
EL-179
Page 1312 of 2267
System Description
The warning chime is combined with the time control unit.
The light warning chime will not sound, when ignition switch in the ON or START position. (When power
supply exists at time control unit terminal
1.)
LIGHT WARNING CHIME
With ignition switch in the OFF position, driver’s door open, and lighting switch in 1ST or 2ND position,
warning chime will sound. A battery positive voltage is supplied
from lighting switch terminal12or daytime light control unit terminal6
to time control unit terminal10.
Ground is supplied
through driver side door switch
to time control unit terminal6.
WARNING CHIME
EL-180
