1999 NISSAN PRIMERA Electronic Repair Manual

Page 265 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual DRAIN HOSES
1. Remove headlining to access drain hose connections. (Refer
to ªREMOVAL Ð Headliningº in ªINTERIOR TRIMº, BT-25,
BT-26, BT-27 for detail).
2. Check visually for proper connections,

Page 266 of 2267

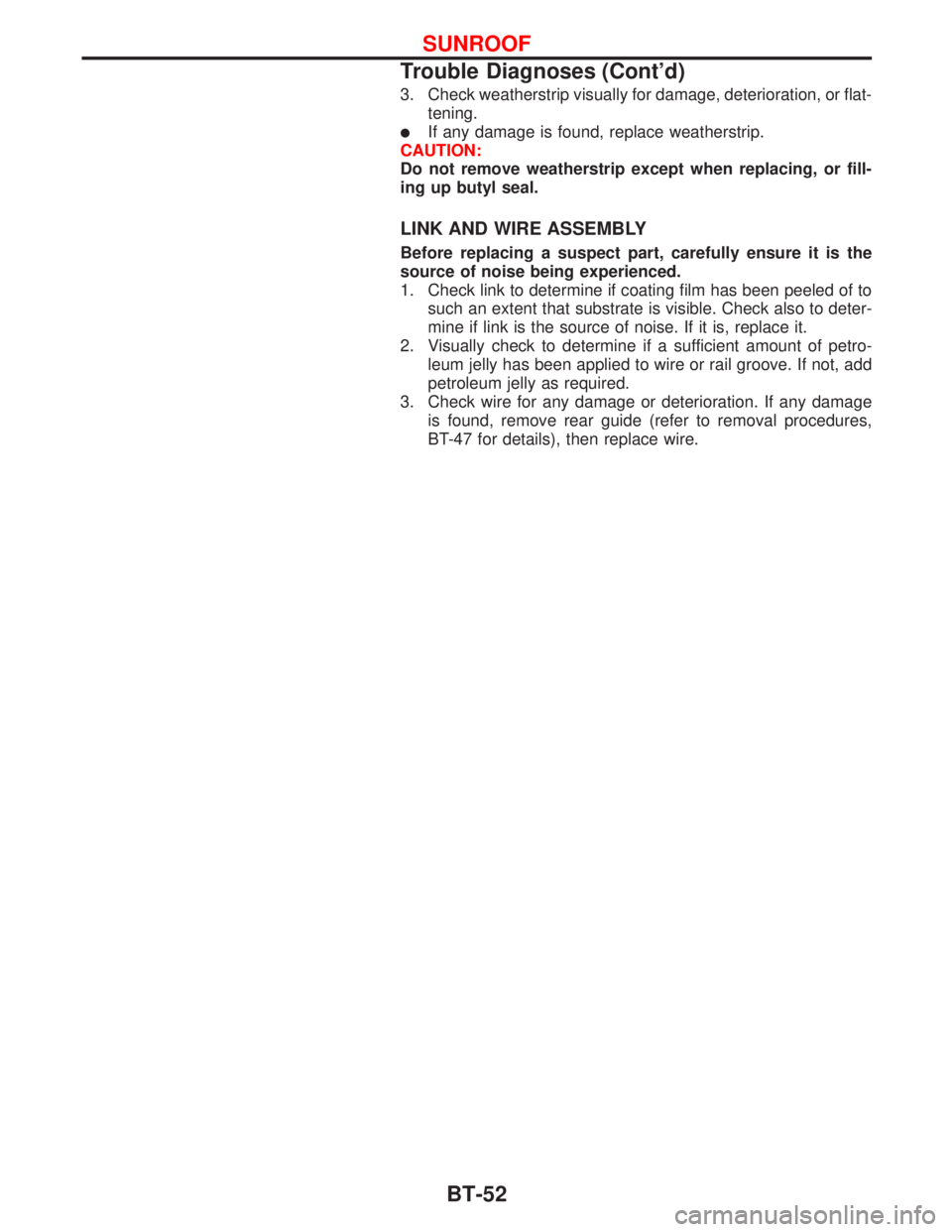

NISSAN PRIMERA 1999  Electronic Repair Manual 3. Check weatherstrip visually for damage, deterioration, or flat-
tening.
lIf any damage is found, replace weatherstrip.
CAUTION:
Do not remove weatherstrip except when replacing, or fill-
ing up but

Page 267 of 2267

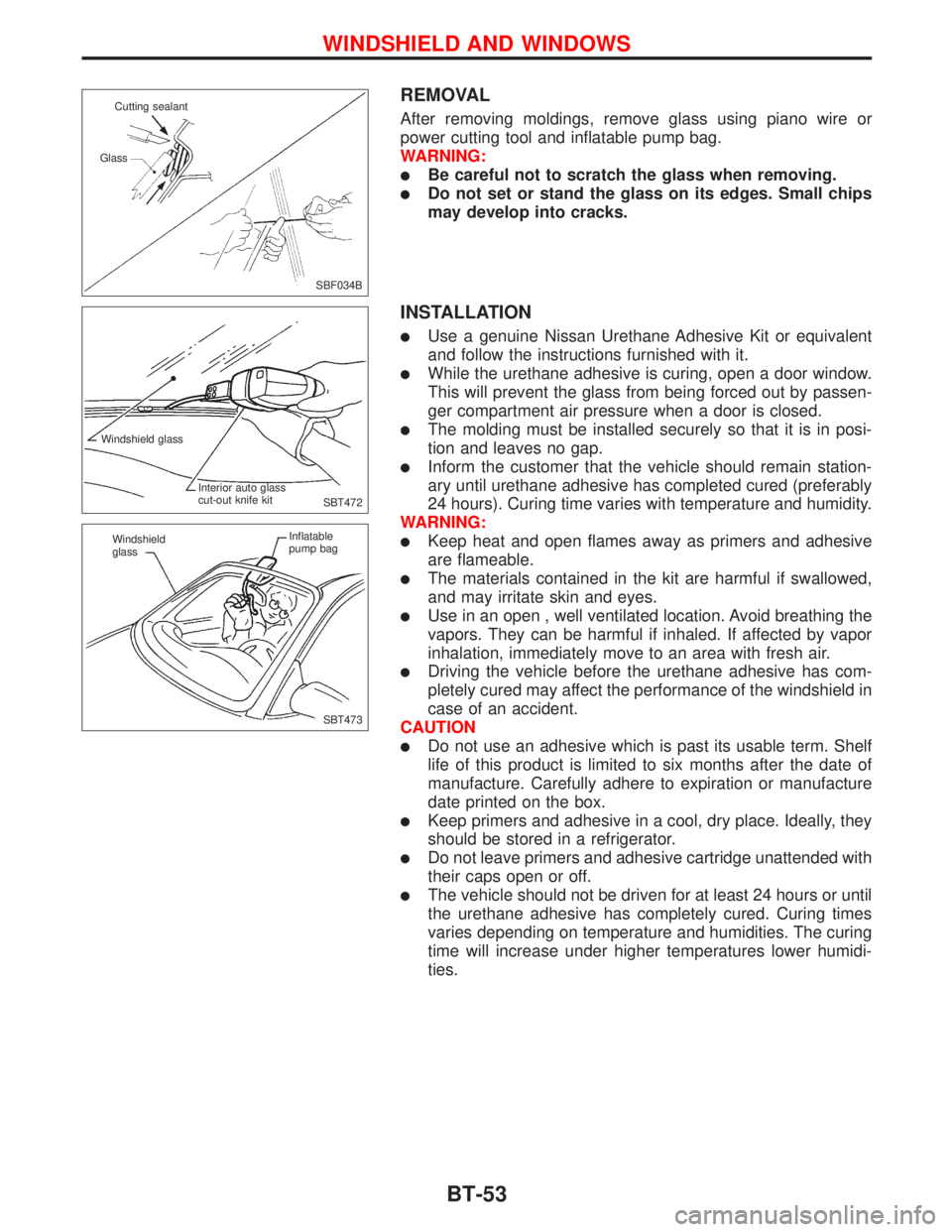

NISSAN PRIMERA 1999  Electronic Repair Manual REMOVAL
After removing moldings, remove glass using piano wire or
power cutting tool and inflatable pump bag.
WARNING:
lBe careful not to scratch the glass when removing.
lDo not set or stand the glas

Page 268 of 2267

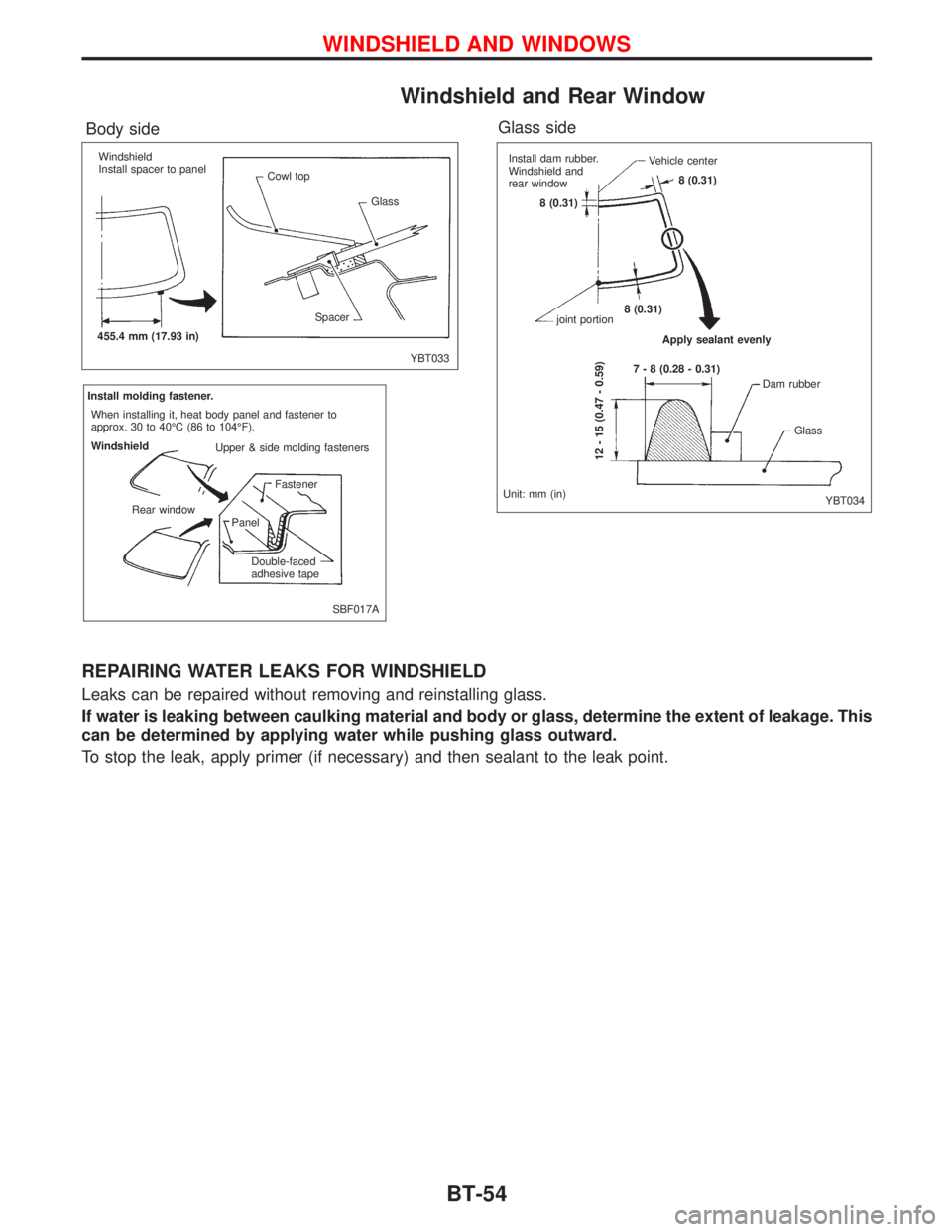

NISSAN PRIMERA 1999  Electronic Repair Manual Windshield and Rear Window
REPAIRING WATER LEAKS FOR WINDSHIELD
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between caulking material and body or glass, determin

Page 269 of 2267

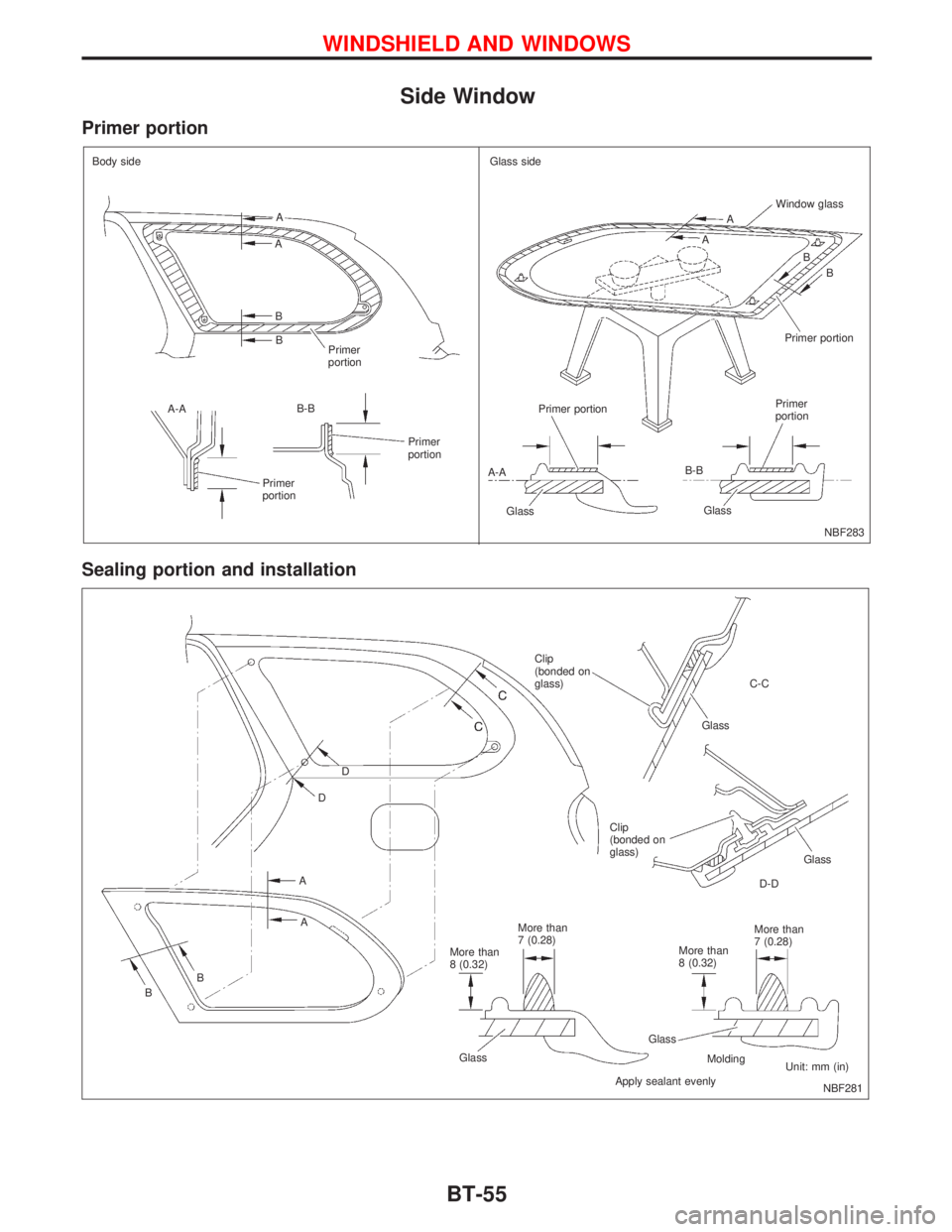

NISSAN PRIMERA 1999  Electronic Repair Manual Side Window
Primer portion
Sealing portion and installation
NBF283 Body side
.A
A
B
B
Primer
portion
A-AB-B
Primer
portion
Primer
portionGlass side
A
AWindow glass
B
Primer portion
Primer portion
A-A

Page 270 of 2267

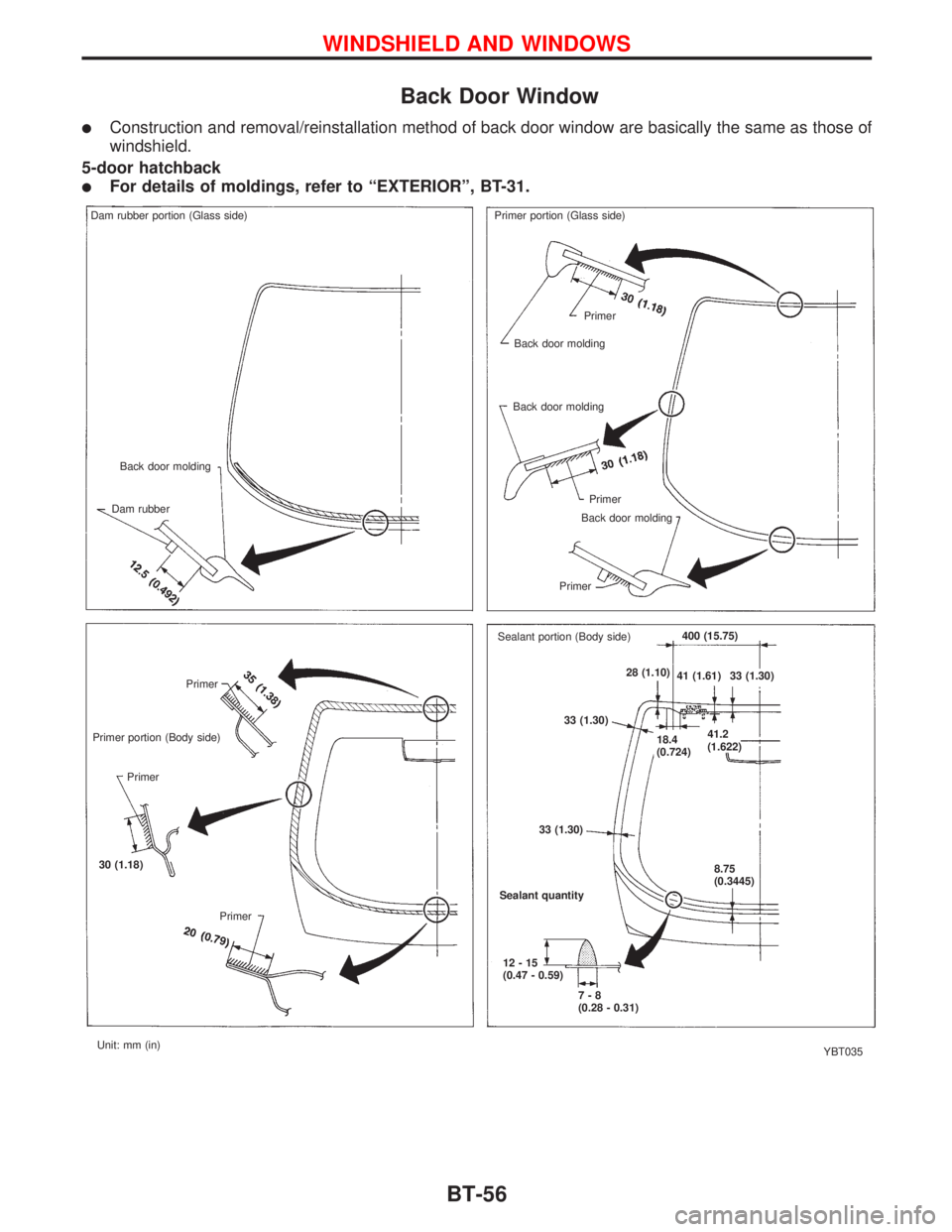

NISSAN PRIMERA 1999  Electronic Repair Manual Back Door Window
lConstruction and removal/reinstallation method of back door window are basically the same as those of
windshield.
5-door hatchback
lFor details of moldings, refer to ªEXTERIORº, BT

Page 271 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual Wagon
NBT055
Glass
Pin
.A-AGlass side
16 (0.6)
Primer portion
Glass
B-BBody side
17 (0.7)
Primer
portion
C-C
Unit: mm (in) Glass Sealant7 (0.28)
12 (0.47) 4.5 (0.2)
2 (0.1)
Back door moldingBack door

Page 272 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual Door Mirror
CAUTION:
Be careful not to scratch door rearview mirror body.
HFor Wiring Diagram, refer to ªPOWER DOOR MIRRORº in EL section.
REMOVAL Ð Door mirror
p1Remove door trim. Refer to ªDoor
