Page 1729 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual VA LV E Unit: mm (in) SEM188 Valve head diameter ªDº Intake 34.0 - 34.2 (1.339 - 1.346) Exhaust 30.0 - 30.2 (1.181 - 1.189) Valve length ªLº Intake 98.17 - 98.63 (3.8650 - 3.8831) Exhaust 99.09 -

Page 1730 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Valve seat SR20DE engine Unit: mm (in) NEM212 Standard Service Cylinder head seat recess diameter (D)In. 35.000 - 35.016 (1.3780 - 1.3786) 35.500 - 35.516 (1.3976 - 1.3983) Ex. 31.000 - 31.016 (1.2205

Page 1731 of 2267

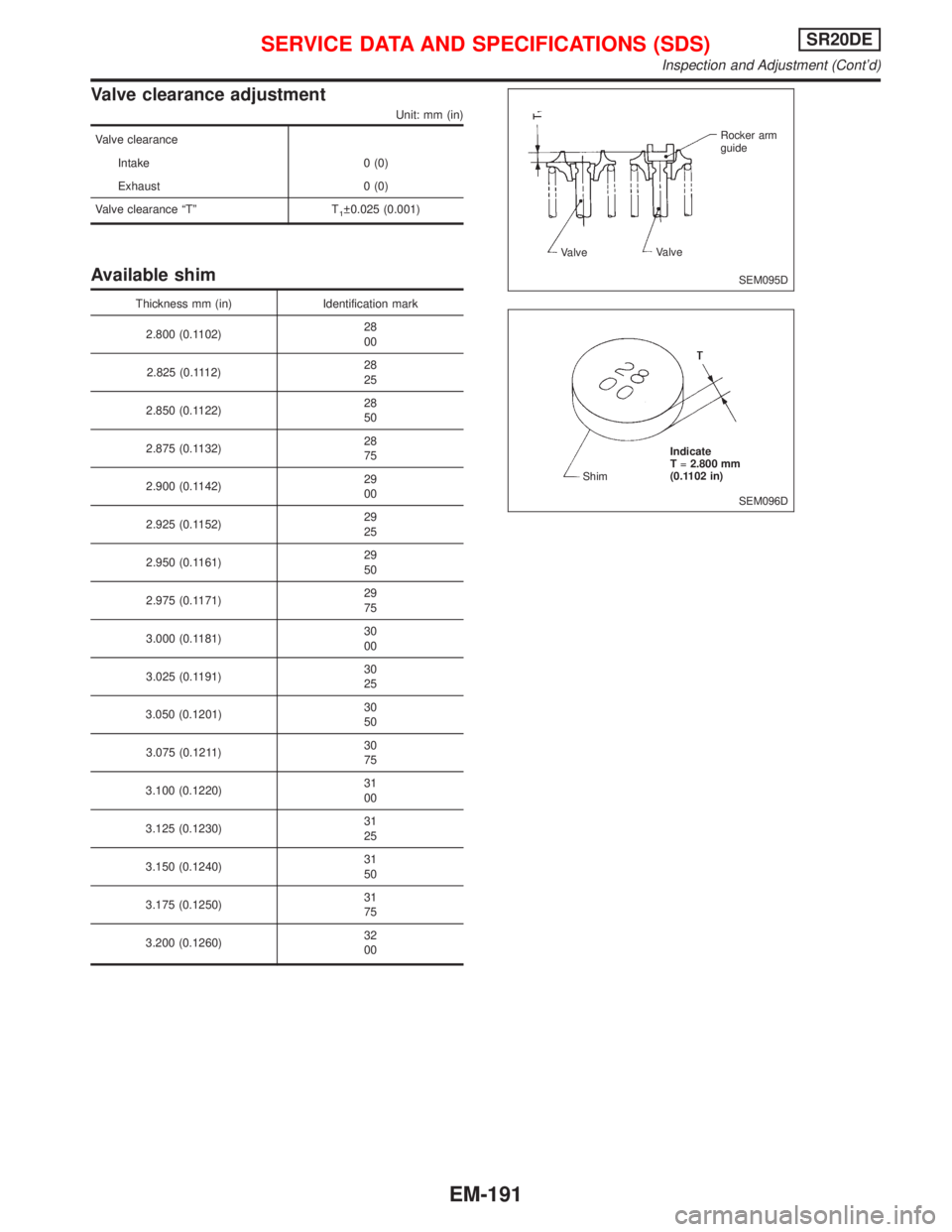

NISSAN PRIMERA 1999 Electronic Repair Manual Valve clearance adjustment Unit: mm (in) Valve clearance Intake 0 (0) Exhaust 0 (0) Valve clearance ªTº T 1 0.025 (0.001) Available shim Thickness mm (in) Identification mark 2.800 (0.1102)28 00 2.

Page 1732 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CAMSHAFT AND CAMSHAFT BEARING Unit: mm (in) Standard Limit Camshaft journal to bearing clearance0.030 - 0.071 (0.0012 - 0.0028)0.15 (0.0059) Inner diameter of camshaft bearing28.000 - 28.021 (1.1024 -

Page 1733 of 2267

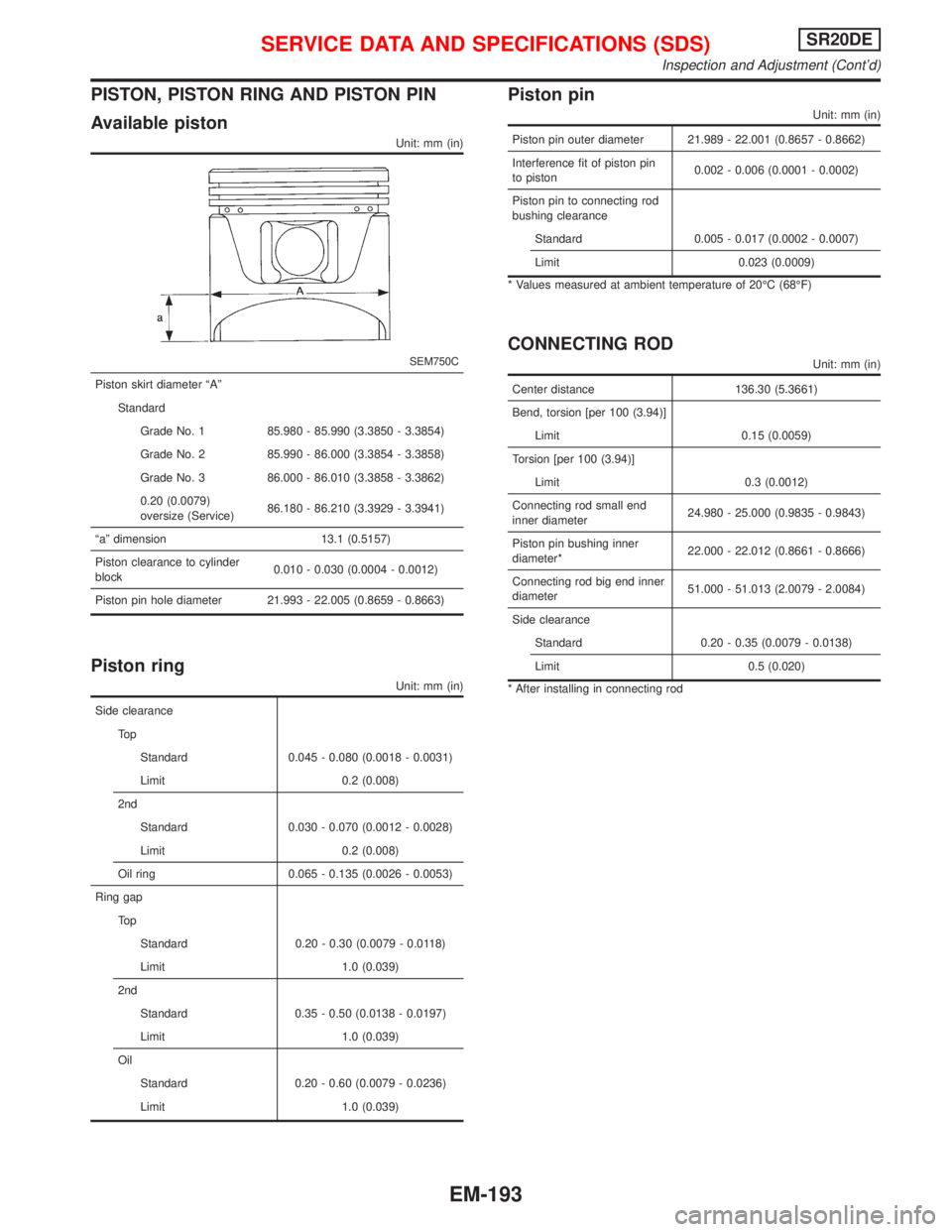

NISSAN PRIMERA 1999 Electronic Repair Manual PISTON, PISTON RING AND PISTON PIN Available piston Unit: mm (in) SEM750C Piston skirt diameter ªAº Standard Grade No. 1 85.980 - 85.990 (3.3850 - 3.3854) Grade No. 2 85.990 - 86.000 (3.3854 - 3.385

Page 1734 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CRANKSHAFT Unit: mm (in) Main journal dia. ªDmº Grade No. 0 54.974 - 54.980 (2.1643 - 2.1646) Grade No. 1 54.968 - 54.974 (2.1641 - 2.1643) Grade No. 2 54.962 - 54.968 (2.1639 - 2.1641) Grade No. 3

Page 1735 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual AVAILABLE CONNECTING ROD BEARING Connecting rod bearing Standard size Unit: mm (in) Grade numberThickness ªTº Width ªWºIdentification color (mark) 01.500 - 1.503 (0.0591 - 0.0592) 16.9 - 17.1 (0.6

Page 1736 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual General Specifications Cylinder arrangement In-line 4 Displacement cm 3(cu in) 1,974 (120.45) Bore and stroke mm (in) 84.5´88.0 (3.329´3.465) Valve arrangement OHC Firing order 1-3-4-2 Number of pis
