Page 1385 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEL904C POWER DOOR LOCK Wiring Diagram—D/LOCK—(Cont’d) EL-253

Page 1386 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEL905C POWER DOOR LOCK Wiring Diagram—D/LOCK—(Cont’d) EL-254

Page 1387 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEL906C POWER DOOR LOCK Wiring Diagram—D/LOCK—(Cont’d) EL-255

Page 1388 of 2267

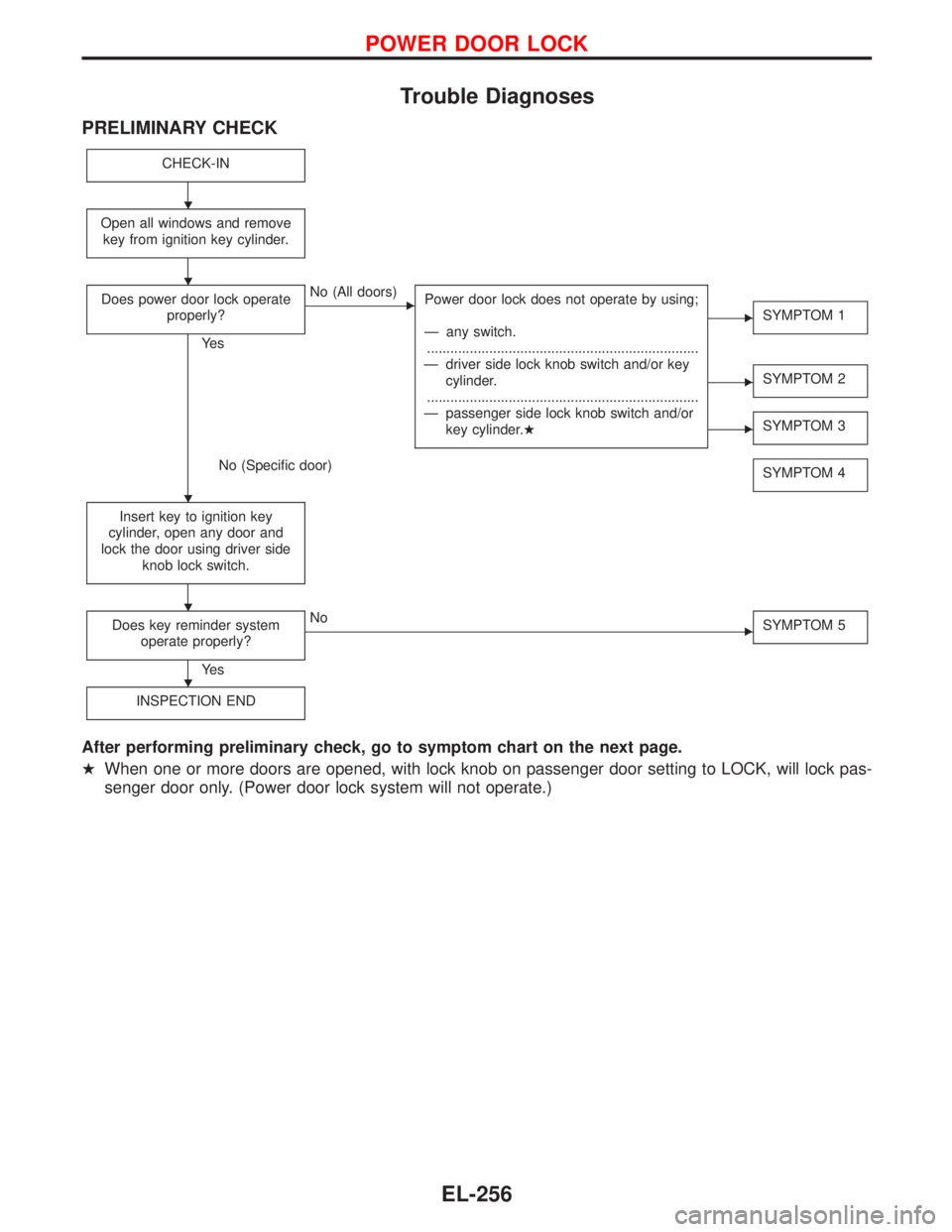

NISSAN PRIMERA 1999 Electronic Repair Manual Trouble Diagnoses PRELIMINARY CHECK CHECK-IN Open all windows and remove key from ignition key cylinder. Does power door lock operate properly? Ye s No (All doors) Power door lock does not operate by

Page 1389 of 2267

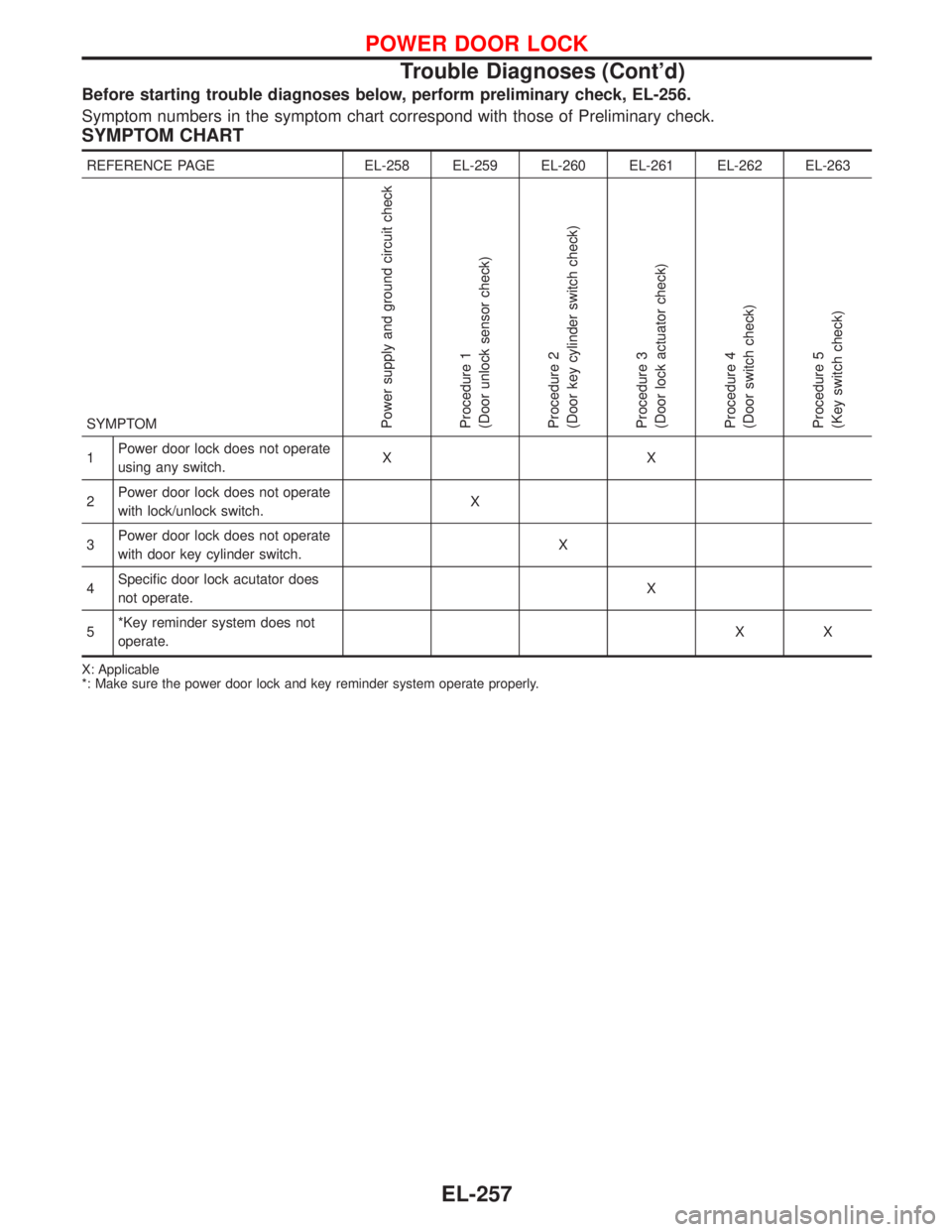

NISSAN PRIMERA 1999 Electronic Repair Manual Before starting trouble diagnoses below, perform preliminary check, EL-256. Symptom numbers in the symptom chart correspond with those of Preliminary check. SYMPTOM CHART REFERENCE PAGE EL-258 EL-259

Page 1390 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual POWER SUPPLY AND GROUND CIRCUIT CHECK Main power supply circuit check Terminals Ignition switch position LOCK ACC ON 9GroundBattery voltageBattery voltageBattery voltage Ground circuit check Termin

Page 1391 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 1 (Door unlock sensor check) CHECK DOOR UNLOCK SENSOR INPUT SIGNAL. Check voltage between time control unit connector terminals 35or36 and ground. NG OK Door unlock sensor is O

Page 1392 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 2 (Door key cylinder switch check) CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK SIG- NAL). Check voltage between time control unit connector terminal 29and ground. NG OK Do
