Page 1097 of 2267

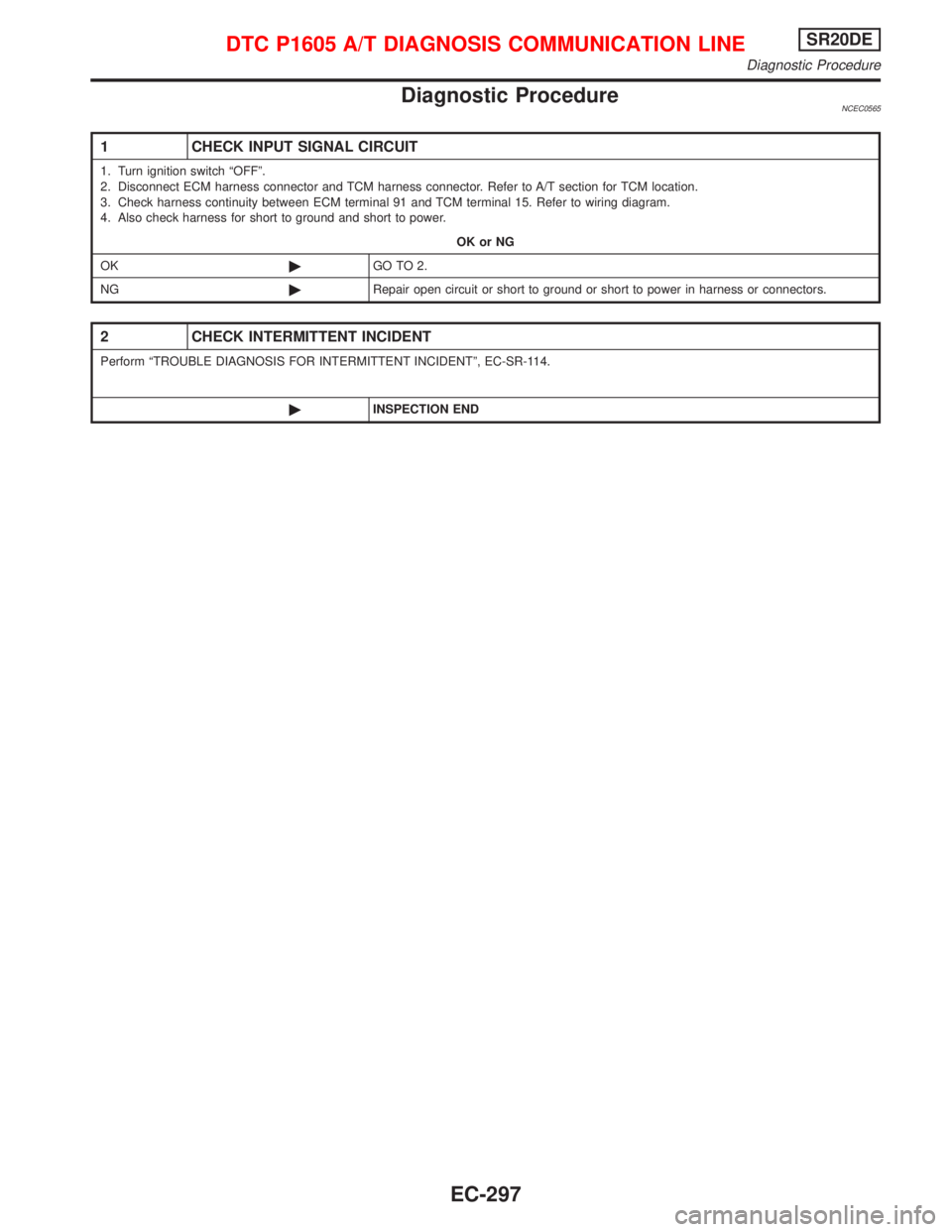

Diagnostic ProcedureNCEC0565
1 CHECK INPUT SIGNAL CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector and TCM harness connector. Refer to A/T section for TCM location.
3. Check harness continuity between ECM terminal 91 and TCM terminal 15. Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 2.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
2 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
DTC P1605 A/T DIAGNOSIS COMMUNICATION LINESR20DE
Diagnostic Procedure
EC-297
Page 1098 of 2267

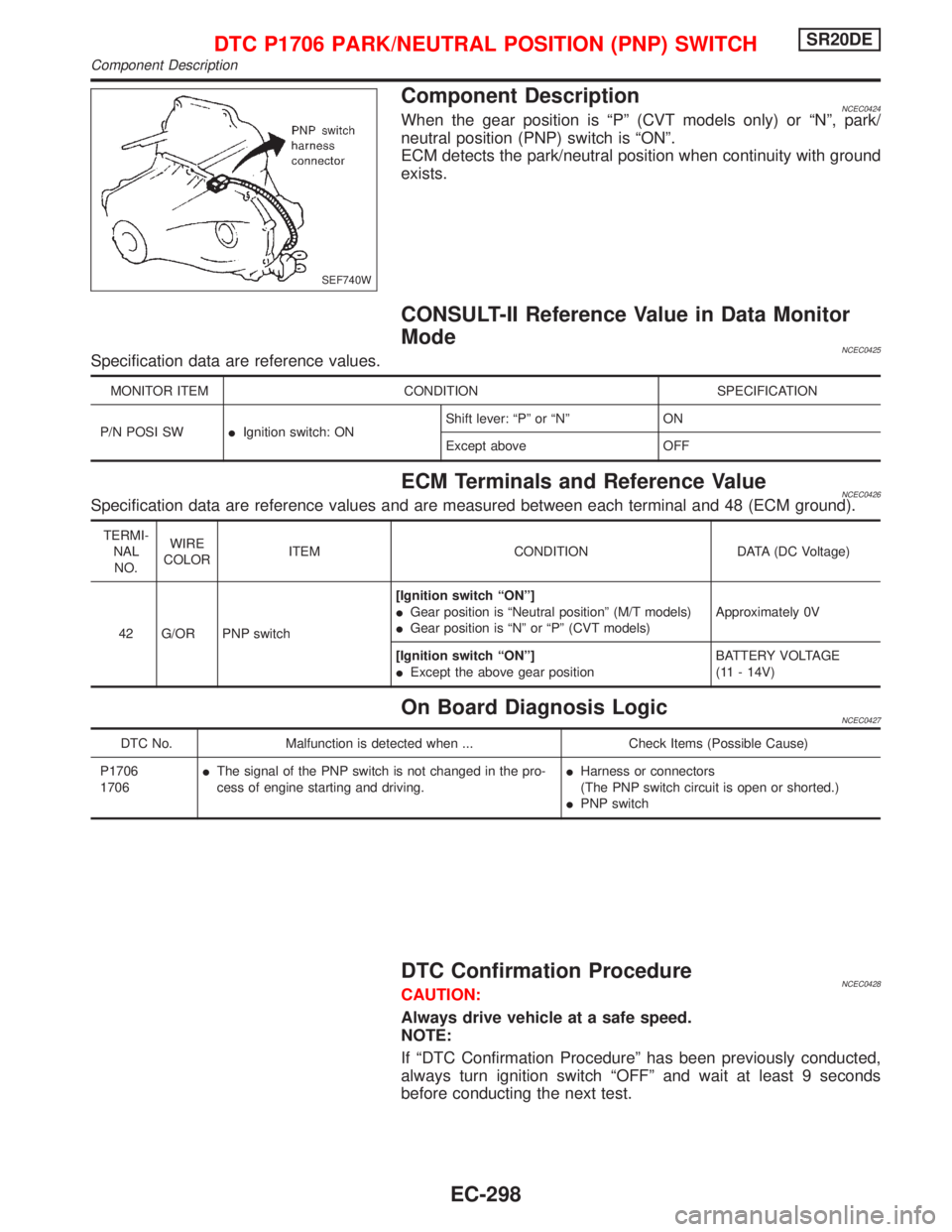

Component DescriptionNCEC0424When the gear position is ªPº (CVT models only) or ªNº, park/
neutral position (PNP) switch is ªONº.
ECM detects the park/neutral position when continuity with ground
exists.
CONSULT-II Reference Value in Data Monitor
Mode
NCEC0425Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SWIIgnition switch: ONShift lever: ªPº or ªNº ON
Except above OFF
ECM Terminals and Reference ValueNCEC0426Specification data are reference values and are measured between each terminal and 48 (ECM ground).
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
42 G/OR PNP switch[Ignition switch ªONº]
IGear position is ªNeutral positionº (M/T models)
IGear position is ªNº or ªPº (CVT models)Approximately 0V
[Ignition switch ªONº]
IExcept the above gear positionBATTERY VOLTAGE
(11 - 14V)
On Board Diagnosis LogicNCEC0427
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P1706
1706IThe signal of the PNP switch is not changed in the pro-
cess of engine starting and driving.IHarness or connectors
(The PNP switch circuit is open or shorted.)
IPNP switch
DTC Confirmation ProcedureNCEC0428CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 9 seconds
before conducting the next test.
SEF740W
DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHSR20DE
Component Description
EC-298
Page 1099 of 2267

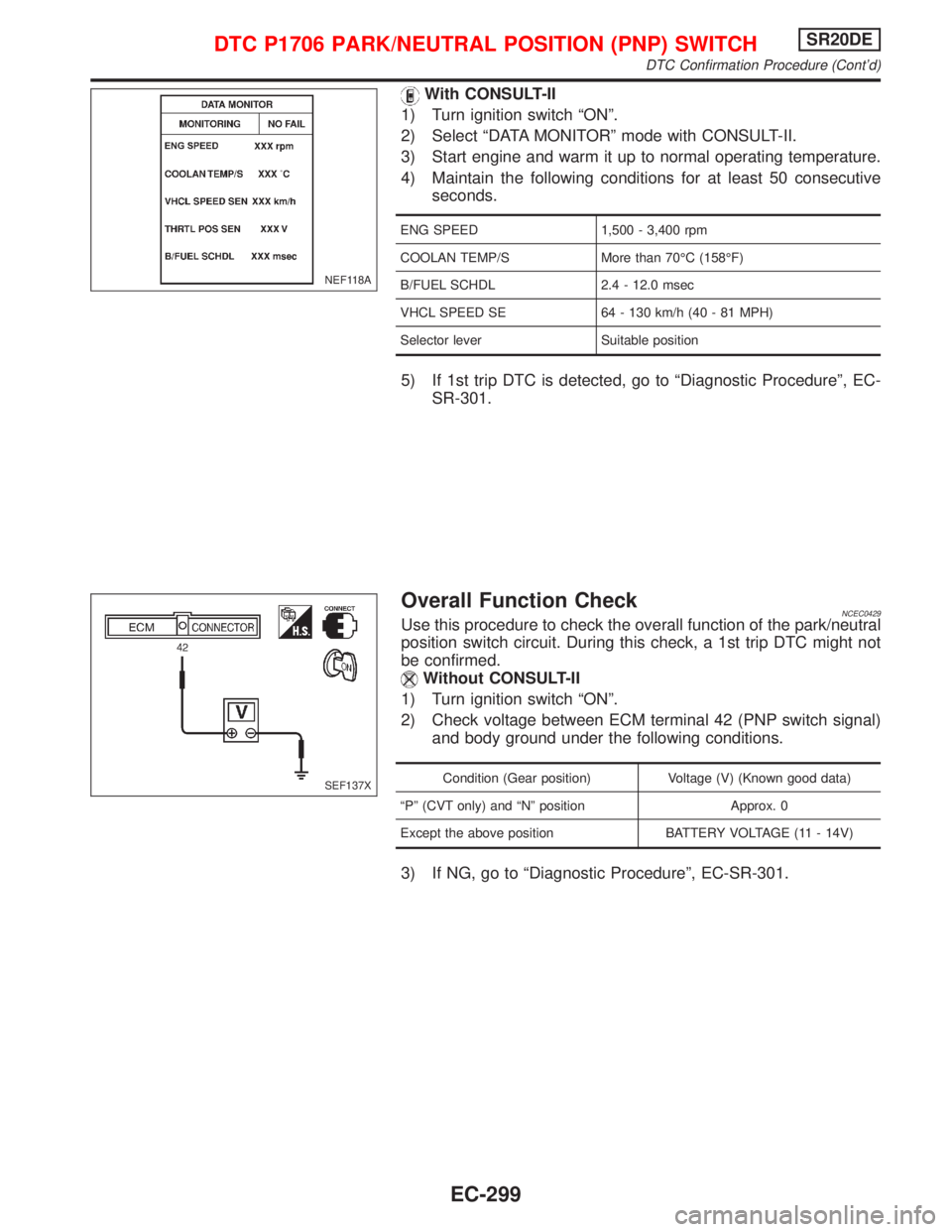

With CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and warm it up to normal operating temperature.
4) Maintain the following conditions for at least 50 consecutive
seconds.
ENG SPEED 1,500 - 3,400 rpm
COOLAN TEMP/S More than 70ÉC (158ÉF)
B/FUEL SCHDL 2.4 - 12.0 msec
VHCL SPEED SE 64 - 130 km/h (40 - 81 MPH)
Selector lever Suitable position
5) If 1st trip DTC is detected, go to ªDiagnostic Procedureº, EC-
SR-301.
Overall Function CheckNCEC0429Use this procedure to check the overall function of the park/neutral
position switch circuit. During this check, a 1st trip DTC might not
be confirmed.
Without CONSULT-II
1) Turn ignition switch ªONº.
2) Check voltage between ECM terminal 42 (PNP switch signal)
and body ground under the following conditions.
Condition (Gear position) Voltage (V) (Known good data)
ªPº (CVT only) and ªNº position Approx. 0
Except the above position BATTERY VOLTAGE (11 - 14V)
3) If NG, go to ªDiagnostic Procedureº, EC-SR-301.
NEF118A
SEF137X
DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHSR20DE
DTC Confirmation Procedure (Cont'd)
EC-299
Page 1100 of 2267

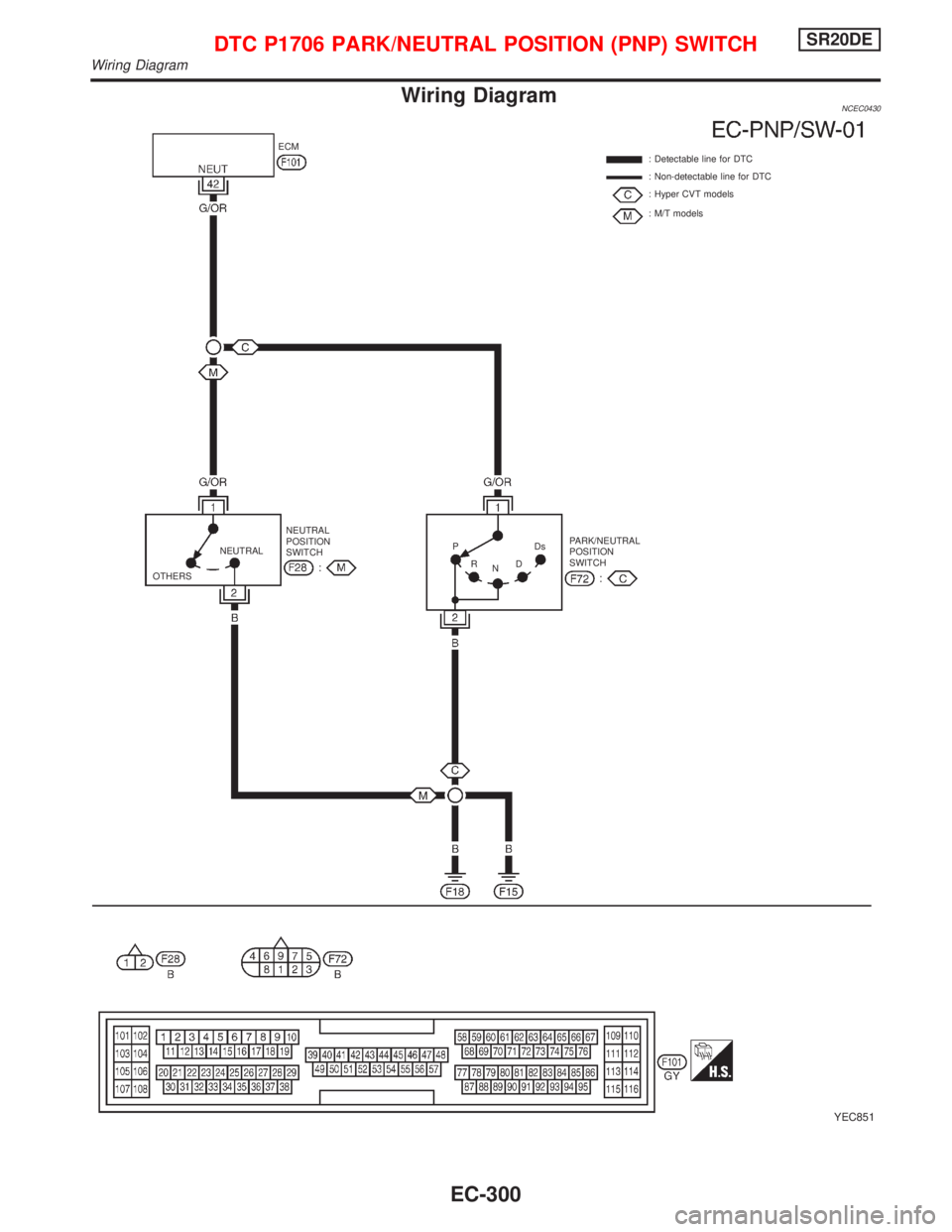

Wiring DiagramNCEC0430
YEC851
: Detectable line for DTC
: Non-detectable line for DTC
: Hyper CVT models
: M/T models ECM
PARK/NEUTRAL
POSITION
SWITCH NEUTRAL
POSITION
SWITCH NEUTRAL
OTHERSP
R
NDDs
DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHSR20DE
Wiring Diagram
EC-300
Page 1101 of 2267

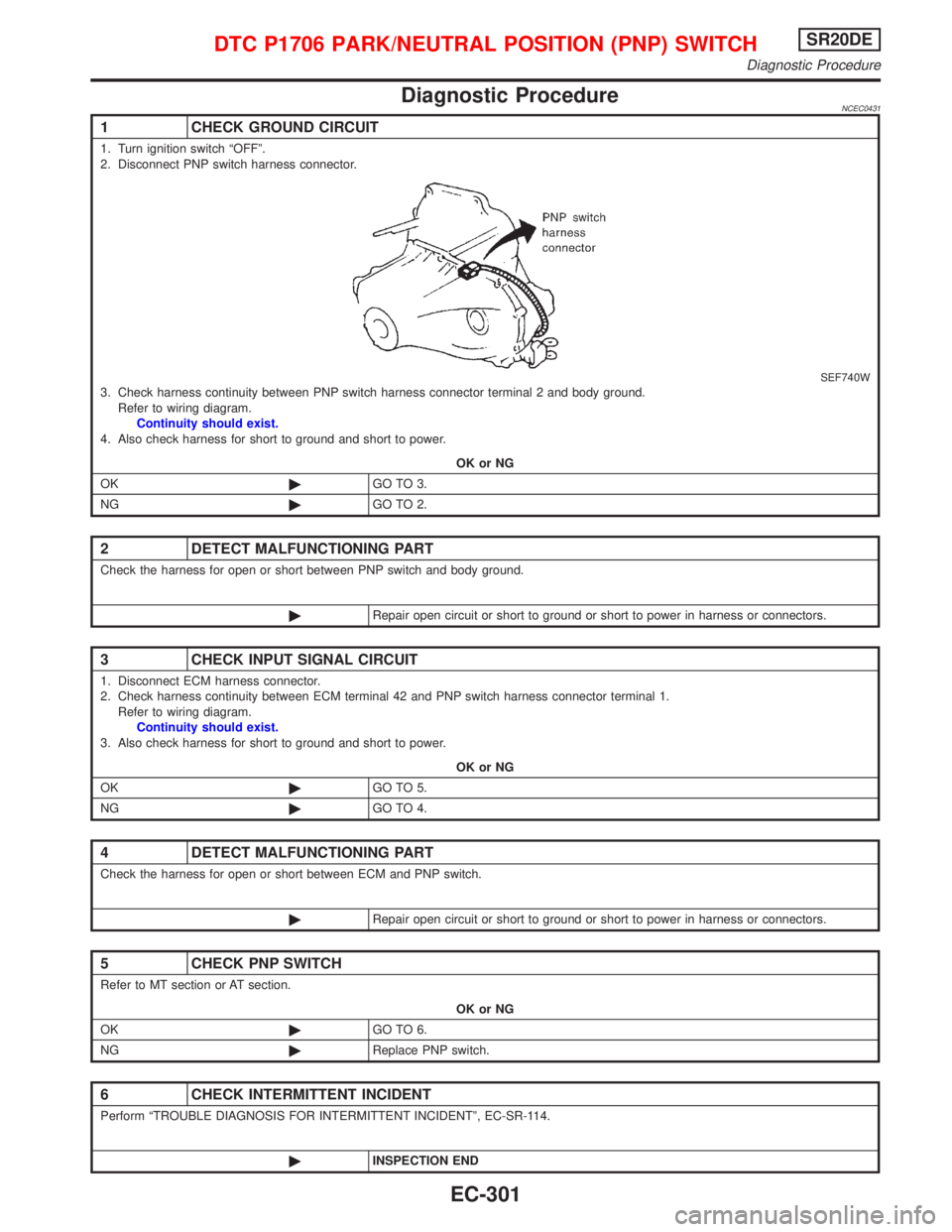

Diagnostic ProcedureNCEC0431
1 CHECK GROUND CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect PNP switch harness connector.
SEF740W3. Check harness continuity between PNP switch harness connector terminal 2 and body ground.
Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the harness for open or short between PNP switch and body ground.
©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 42 and PNP switch harness connector terminal 1.
Refer to wiring diagram.
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 5.
NG©GO TO 4.
4 DETECT MALFUNCTIONING PART
Check the harness for open or short between ECM and PNP switch.
©Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK PNP SWITCH
Refer to MT section or AT section.
OK or NG
OK©GO TO 6.
NG©Replace PNP switch.
6 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHSR20DE
Diagnostic Procedure
EC-301
Page 1102 of 2267

Component DescriptionNCEC0435The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and
allows fuel to flow through the injector into the intake manifold. The
amount of fuel injected depends upon the injection pulse duration.
Pulse duration is the length of time the injector remains open. The
ECM controls the injection pulse duration based on engine fuel
needs.
CONSULT-II Reference Value in Data Monitor
Mode
NCEC0436
MONITOR ITEM CONDITION SPECIFICATION
INJ PULSE -B1IEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 2.4 - 3.2 msec
2,000 rpm 1.9 - 2.8 msec
B/FUEL SCHDLIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 2.4 - 3.2 msec
2,000 rpm 1.4 - 2.8 msec
ECM Terminals and Reference ValueNCEC0437Specification data are reference values and are measured between each terminal and 48 (ECM ground).
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101
103
105
107R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
IWarm-up condition
IIdle speedBATTERY VOLTAGE
(11 - 14V)
SEF011W
[Engine is running]
IWarm-up condition
IEngine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
SEF012W
SEF138X
INJECTORSR20DE
Component Description
EC-302
Page 1103 of 2267

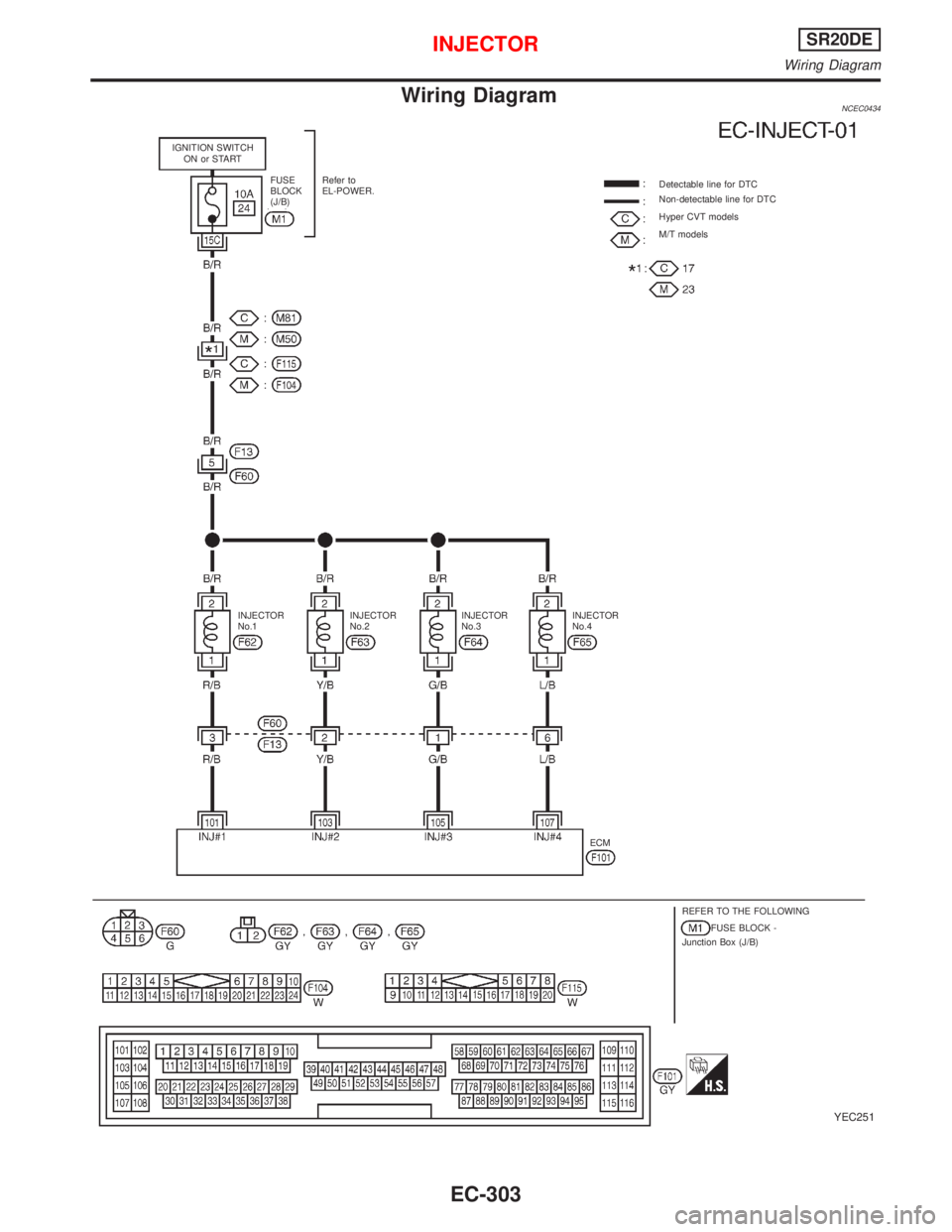

Wiring DiagramNCEC0434
YEC251
IGNITION SWITCH
ON or START
Refer to
EL-POWER.Detectable line for DTC
Non-detectable line for DTC
Hyper CVT models
M/T models FUSE
BLOCK
(J/B)
INJECTOR
No.4
ECM
REFER TO THE FOLLOWING
FUSE BLOCK -
Junction Box (J/B) INJECTOR
No.1INJECTOR
No.2INJECTOR
No.3
INJECTORSR20DE
Wiring Diagram
EC-303
Page 1104 of 2267

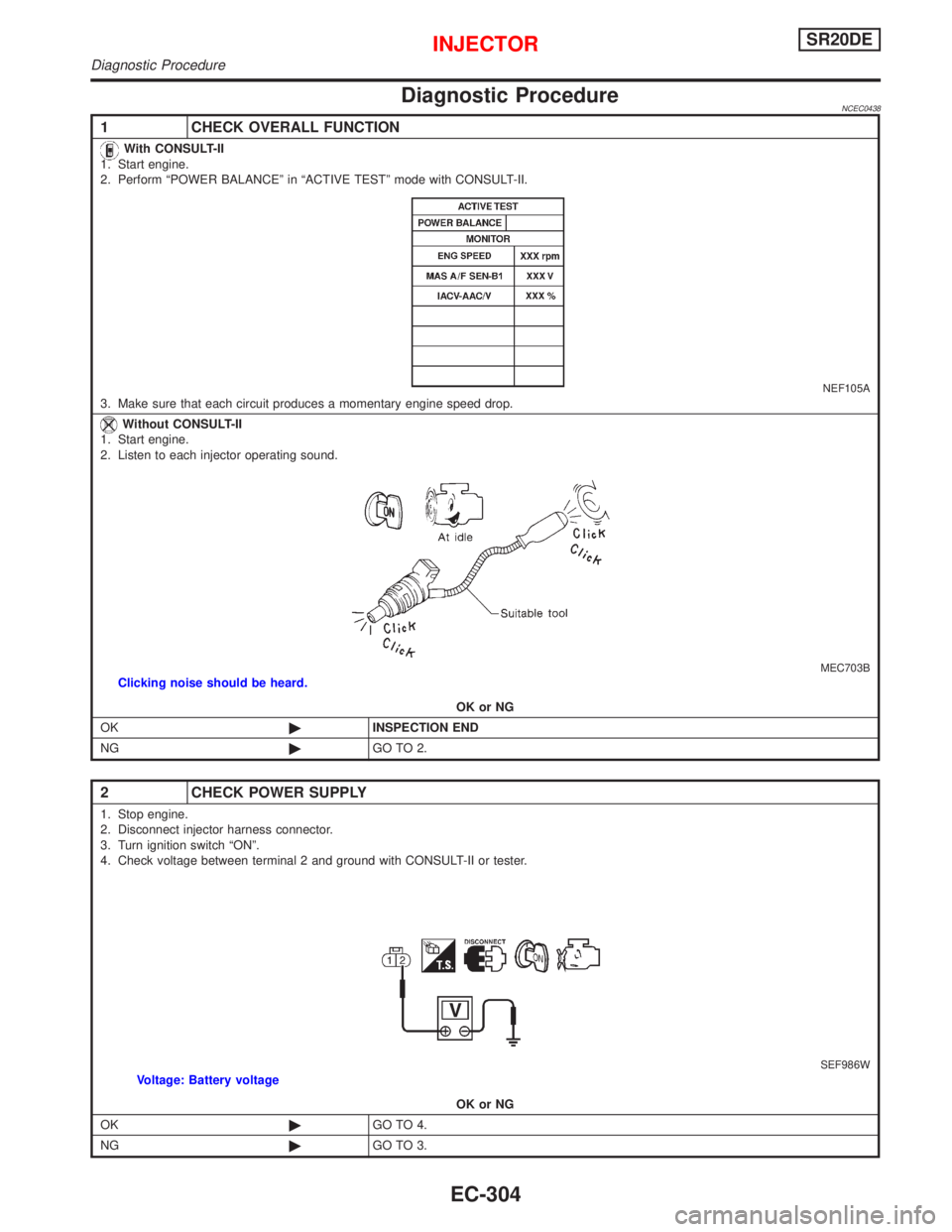

Diagnostic ProcedureNCEC0438
1 CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform ªPOWER BALANCEº in ªACTIVE TESTº mode with CONSULT-II.
NEF105A3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
MEC703BClicking noise should be heard.
OK or NG
OK©INSPECTION END
NG©GO TO 2.
2 CHECK POWER SUPPLY
1. Stop engine.
2. Disconnect injector harness connector.
3. Turn ignition switch ªONº.
4. Check voltage between terminal 2 and ground with CONSULT-II or tester.
SEF986WVoltage: Battery voltage
OK or NG
OK©GO TO 4.
NG©GO TO 3.
INJECTORSR20DE
Diagnostic Procedure
EC-304
