Page 833 of 2267

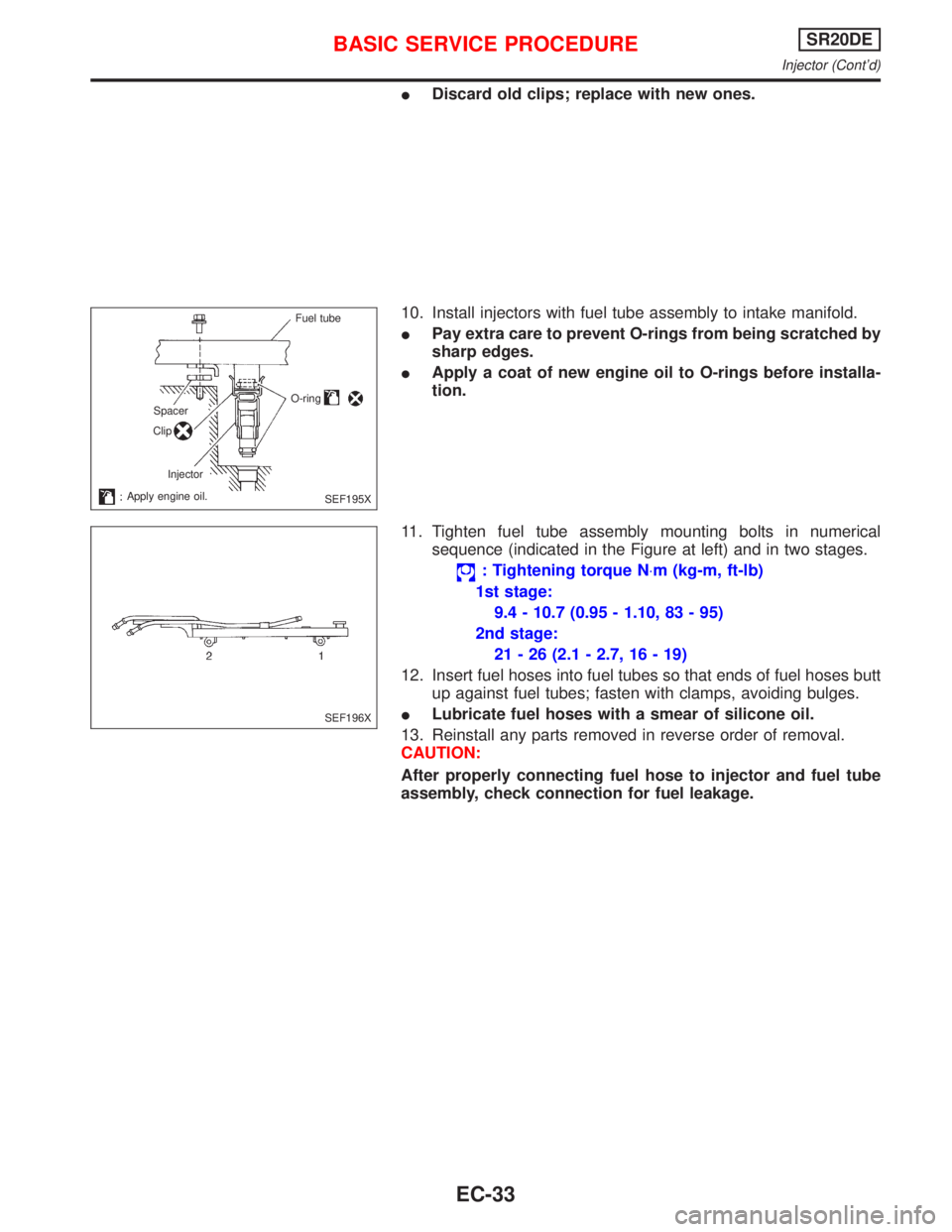

NISSAN PRIMERA 1999 Electronic Repair Manual IDiscard old clips; replace with new ones. 10. Install injectors with fuel tube assembly to intake manifold. IPay extra care to prevent O-rings from being scratched by sharp edges. IApply a coat of ne

Page 834 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Idle Speed/Ignition Timing/Idle Mixture Ratio Adjustment NCEC0028PREPARATIONNCEC0028S01IMake sure that the following parts are in good order. a)Battery b)Ignition system c)Engine oil and coolant level

Page 835 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Overall Inspection SequenceNCEC0028S0101 *: Refer to EC-SR-46. SEF104X INSPECTION Perform diagnostic test mode II (Self-diagnostic results).Repair or replace. NG Check ignition timing and idle speed.

Page 836 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual INSPECTION PROCEDURENCEC0028S02 1 INSPECTION START 1. Visually check the following: IAir cleaner clogging IHoses and duct for leaks IElectrical connectors IGasket (intake manifold, cylinder head, exha

Page 837 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2 CHECK IGNITION TIMING With CONSULT-II 1. Run engine at about 2,000 rpm for about 2 minutes under no-load. 2. Rev engine two or three times under no-load, then run engine at idle speed for about 1 mi

Page 838 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 3 CHECK IGNITION TIMING Without CONSULT-II 1. Run engine at about 2,000 rpm for about 2 minutes under no-load. 2. Rev engine two or three times under no-load, then run engine at idle speed for about 1

Page 839 of 2267

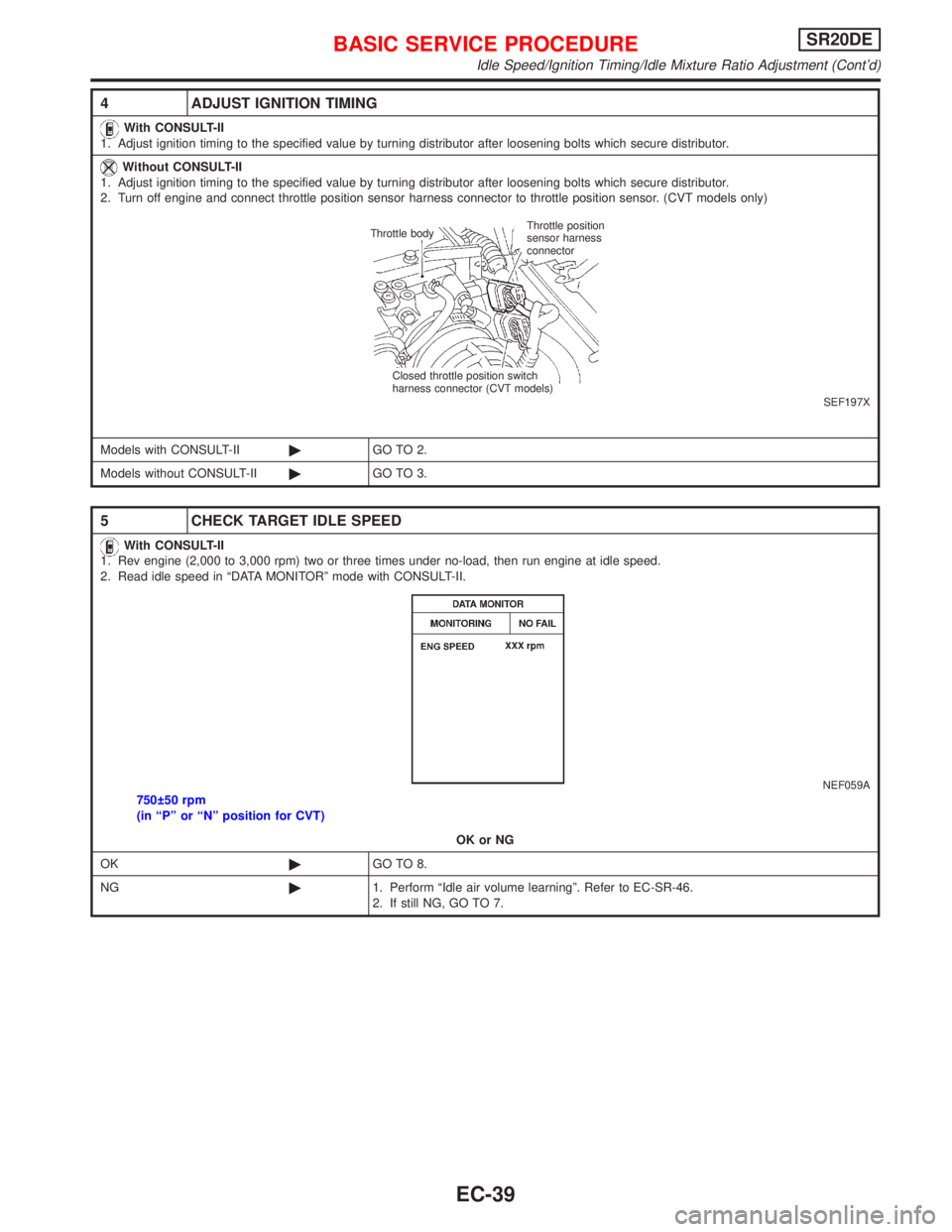

NISSAN PRIMERA 1999 Electronic Repair Manual 4 ADJUST IGNITION TIMING With CONSULT-II 1. Adjust ignition timing to the specified value by turning distributor after loosening bolts which secure distributor. Without CONSULT-II 1. Adjust ignition t

Page 840 of 2267

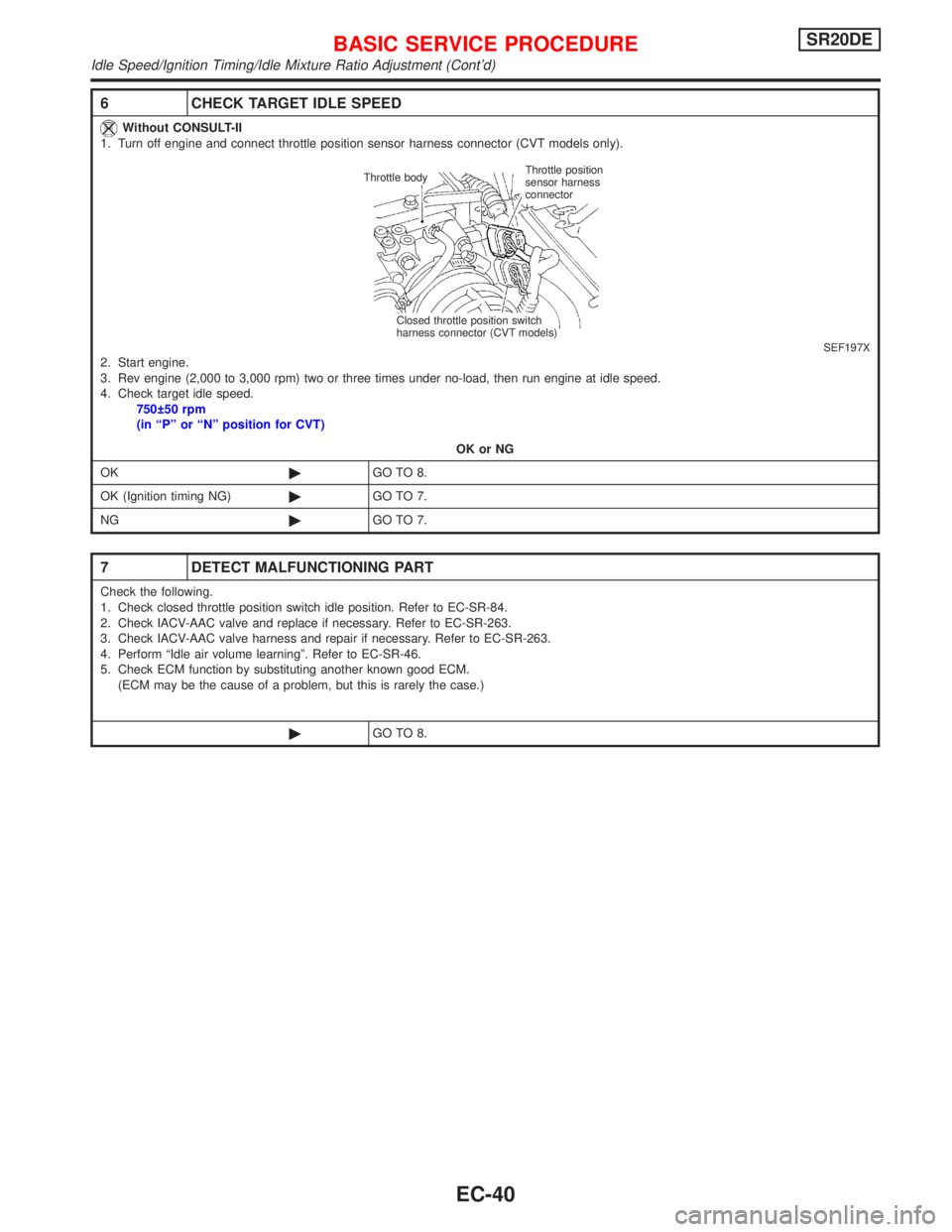

NISSAN PRIMERA 1999 Electronic Repair Manual 6 CHECK TARGET IDLE SPEED Without CONSULT-II 1. Turn off engine and connect throttle position sensor harness connector (CVT models only). SEF197X2. Start engine. 3. Rev engine (2,000 to 3,000 rpm) two
