TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
66*
75W
WCamshaft position sen-
sor (PHASE)[Engine is running]
IWarm-up condition
IIdle speed2.0 - 3.0V
SEF977W
[Engine is running]
IEngine speed is 2,000 rpm2.0 - 3.0V
SEF978W
67 W/LPower supply for ECM
(Back-up)[Ignition switch ªOFFº]BATTERY VOLTAGE
(11 - 14V)
70 BR/YEngine coolant tem-
perature sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with
engine coolant temperature
72* PUEGR temperature sen-
sor[Engine is running]
IWarm-up condition
IIdle speedLess than 4.5V
[Engine is running]
IWarm-up condition
IEGR system is operating0 - 1.0V
73 WMass air flow sensor
ground[Engine is running]
IWarm-up condition
IIdle speedApproximately 0V
74 R/LRefrigerant pressure
sensor[Engine is running]
IAir conditioner switch is ªONº
(Compressor operates)More than 1.5V
[Engine is running]
IAir conditioner switch is turned from ªONº to
ªOFFºVoltage is decreasing gradually
81 W Knock sensor[Engine is running]
IIdle speed1.0 - 4.0V
*: If so equipped
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-95
Page 538 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
85 WCrankshaft position sen-
sor (POS)[Engine is running]
IWarm-up condition
IIdle speed3.0 - 4.0V
SEF979W
[Engine is running]
IEngine speed is NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
85 WCrankshaft position sen-
sor (POS)[Engine is running]
IWarm-up condition
IIdle speed3.0 - 4.0V
SEF979W
[Engine is running]
IEngine speed is](/manual-img/5/57377/w960_57377-537.png)
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
85 WCrankshaft position sen-
sor (POS)[Engine is running]
IWarm-up condition
IIdle speed3.0 - 4.0V
SEF979W
[Engine is running]
IEngine speed is 2,000 rpm3.0 - 4.0V
SEF980W
86 OR/WVehicle speed sensor or
ABS actuator and elec-
tric unit (control unit)[Engine is running]
ILift up the vehicle
IIn 2nd gear position
IVehicle speed is 40 km/h (25 MPH)2.0 - 3.0V
SEF976W
92 Y Throttle position sensor[Engine is running]
IAccelerator pedal released0.35 - 0.65V
[Ignition switch ªONº]
IAccelerator pedal fully depressed3.7 - 4.5V
93 G/R Data link connector[Engine is running]
IIdle speed (CONSULT-II or GST is discon-
nected)Approximately 0V
101
103
105
107R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
IWarm-up condition
IIdle speedBATTERY VOLTAGE
(11 - 14V)
SEF011W
[Engine is running]
IWarm-up condition
IEngine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
SEF012W
106
108B/Y ECM ground[Engine is running]
IIdle speedEngine ground
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-96
Page 539 of 2267
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 0
11 2R
RPower supply for ECM[Ignition switch ªONº]BATTERY VOLTAGE
(11 - 14V)
111 G Sensors' power supply[Ignition switch ªONº]Approximately 5V
114 G/W Adjust switch[Engine is running]
IIdle speed0V
115 BR/W Data link connector[Engine is running]
IIdle speed (CONSULT-II or GST is discon-
nected)0 - 10V
11 6Refer to
EL sec-
tionImmobilizer[Engine is running]
IIdle speed (GST is disconnected)BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-97
Page 540 of 2267

DescriptionNLEC1748The specification (SP) value indicates the tolerance of the value that is displayed in ªDATA MONITOR (SPEC)º
mode of CONSULT-II during normal operation of the Engine Control System. When the value in ªDATA MONI-
TOR (SPEC)º mode is within the SP value, the Engine Control System is confirmed OK. When the value in
ªDATA MONITOR (SPEC)º mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
IB/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
IA/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
IMAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNLEC1749IVehicle driven distance: More than 5,000 km (3,107 miles)
IBarometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2, 14.25 - 15.12 psi)
IAtmospheric temperature: 20 - 30ÉC (68 - 86ÉF)
IEngine coolant temperature: 75 - 95ÉC (167 - 203ÉF)
ITransmission: Warmed-up*1
IElectrical load: Not applied*2
IEngine speed: Idle
*1: For after the engine is warmed up to normal operating temperature, drive vehicle until ªFLUID TEMP SEº
(CVT fluid temperature sensor signal) indicates less than 0.9V.
*2: Rear window defogger switch, air conditioner switch, lighting switch are ªOFFº. Cooling fans are not oper-
ating. Steering wheel is straight ahead.
SEF601Z
Inspection ProcedureNLEC1750NOTE:
Perform ªDATA MONITOR (SPEC)º mode in maximum scale dis-
play.
1. Perform ªBasic Inspectionº, EC-QG-72.
2. Confirm that the testing conditions indicated above are met.
3. Select ªB/FUEL SCHDLº, ªA/F ALPHA-B1º and ªMAS A/F
SE-B1º in ªDATA MONITOR (SPEC)º mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to ªDiagnostic Procedureº, EC-QG-99.
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUEQG16I18DE
Description
EC-98
Page 541 of 2267
Diagnostic ProcedureNLEC1751
SEF613ZA
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUEQG16I18DE
Diagnostic Procedure
EC-99
Page 542 of 2267
SEF768Z

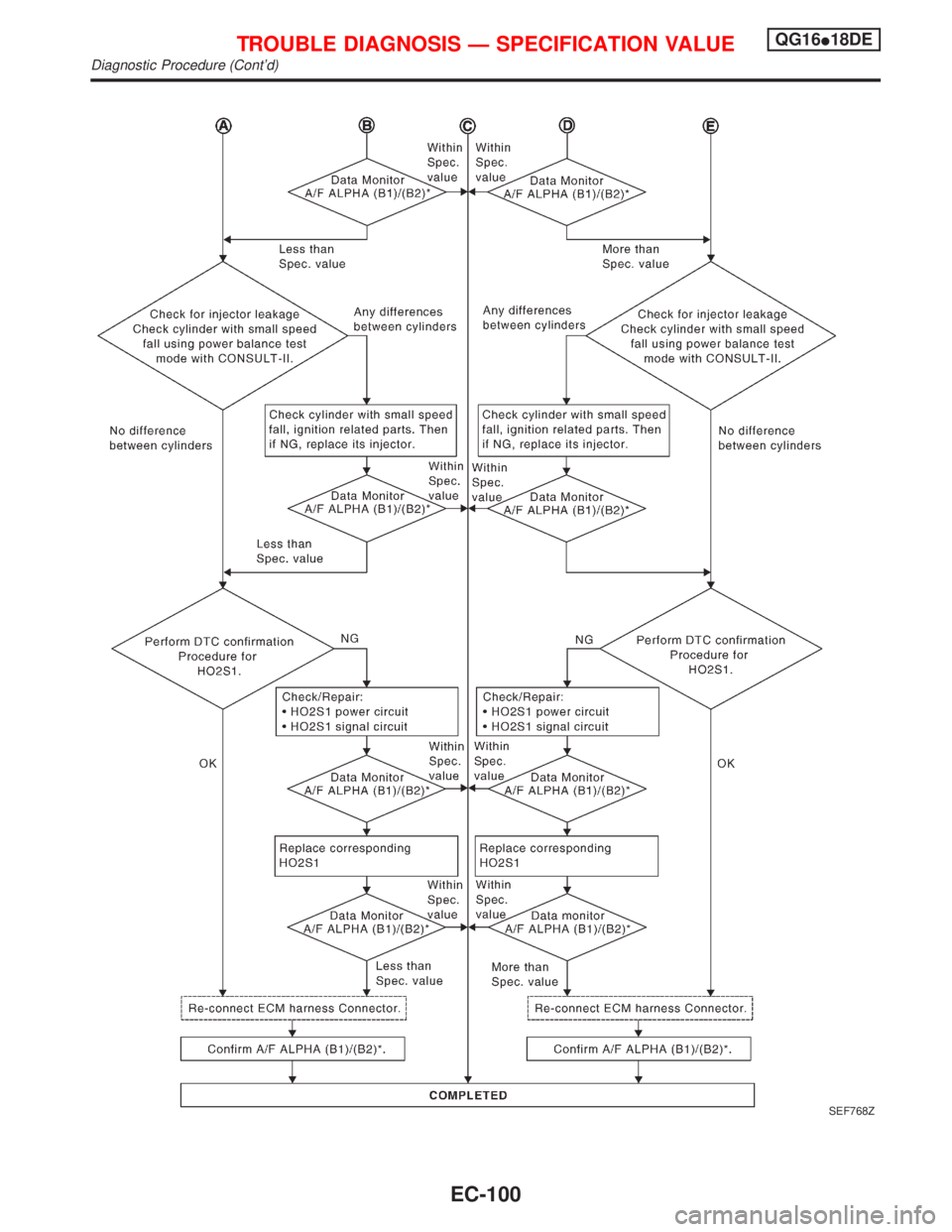

TROUBLE DIAGNOSIS Ð SPECIFICATION VALUEQG16I18DE
Diagnostic Procedure (Cont'd)
EC-100
Page 543 of 2267
SEF615Z

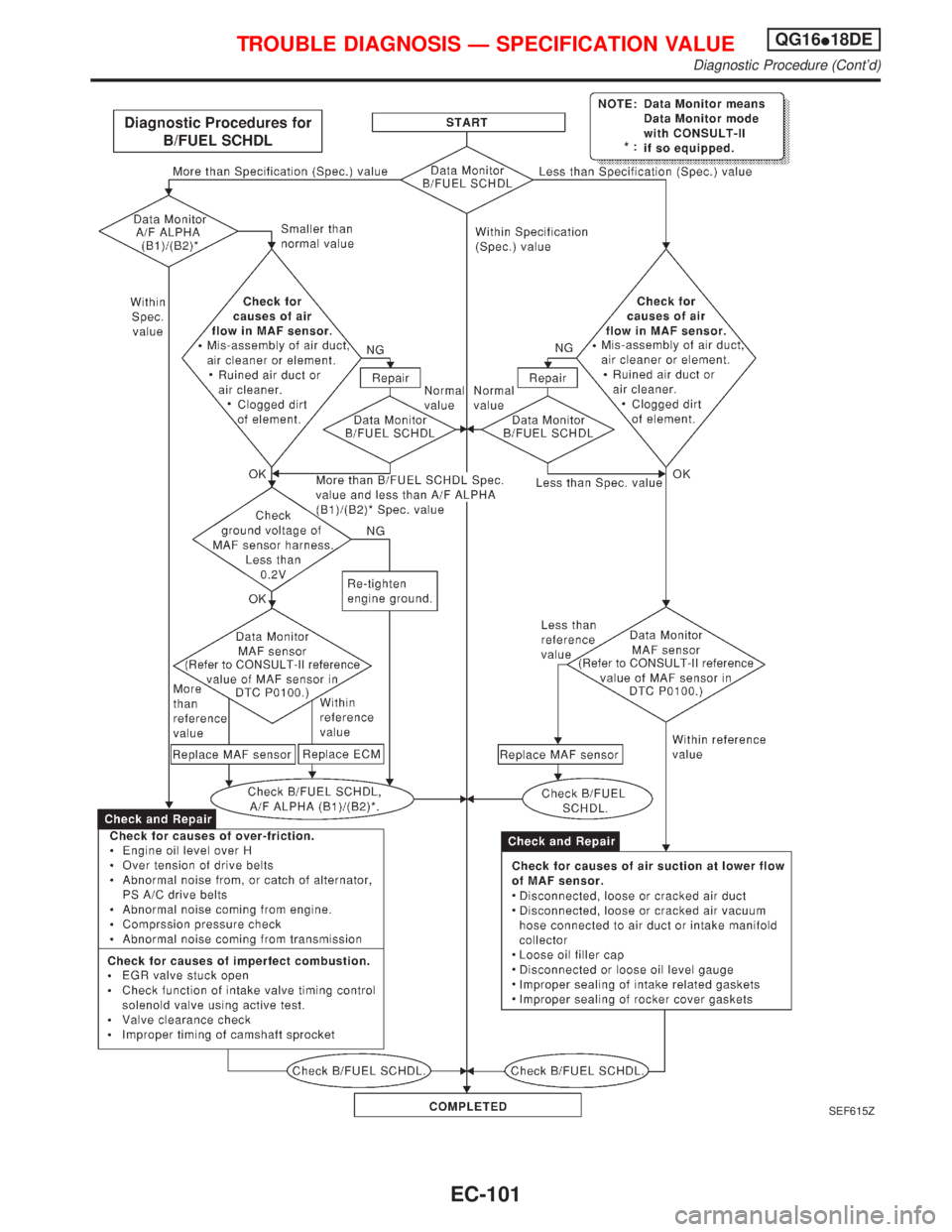

TROUBLE DIAGNOSIS Ð SPECIFICATION VALUEQG16I18DE
Diagnostic Procedure (Cont'd)
EC-101
Page 544 of 2267

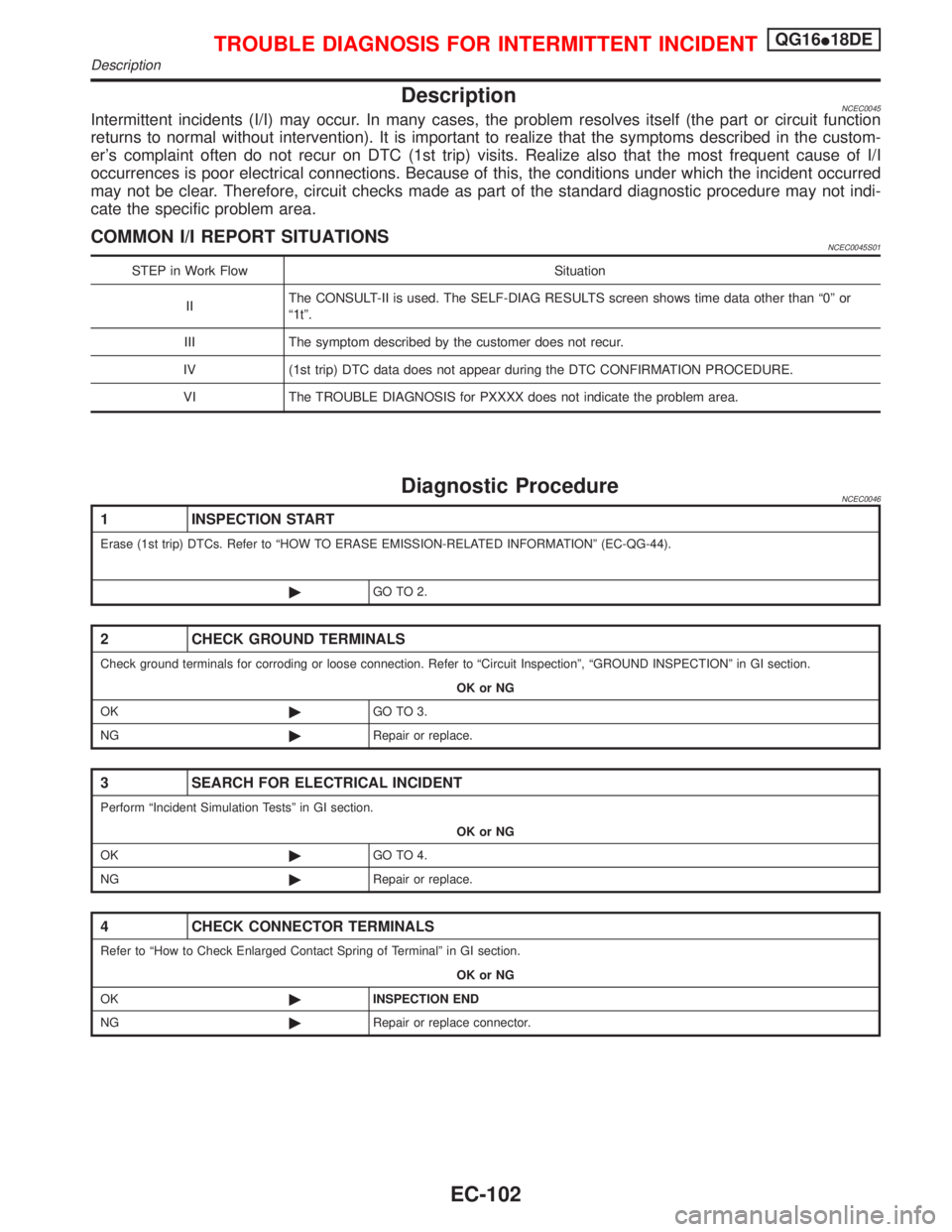

DescriptionNCEC0045Intermittent incidents (I/I) may occur. In many cases, the problem resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the custom-
er's complaint often do not recur on DTC (1st trip) visits. Realize also that the most frequent cause of I/I
occurrences is poor electrical connections. Because of this, the conditions under which the incident occurred
may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indi-
cate the specific problem area.
COMMON I/I REPORT SITUATIONSNCEC0045S01
STEP in Work Flow Situation
IIThe CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than ª0º or
ª1tº.
III The symptom described by the customer does not recur.
IV (1st trip) DTC data does not appear during the DTC CONFIRMATION PROCEDURE.
VI The TROUBLE DIAGNOSIS for PXXXX does not indicate the problem area.
Diagnostic ProcedureNCEC0046
1 INSPECTION START
Erase (1st trip) DTCs. Refer to ªHOW TO ERASE EMISSION-RELATED INFORMATIONº (EC-QG-44).
©GO TO 2.
2 CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection. Refer to ªCircuit Inspectionº, ªGROUND INSPECTIONº in GI section.
OK or NG
OK©GO TO 3.
NG©Repair or replace.
3 SEARCH FOR ELECTRICAL INCIDENT
Perform ªIncident Simulation Testsº in GI section.
OK or NG
OK©GO TO 4.
NG©Repair or replace.
4 CHECK CONNECTOR TERMINALS
Refer to ªHow to Check Enlarged Contact Spring of Terminalº in GI section.
OK or NG
OK©INSPECTION END
NG©Repair or replace connector.
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTQG16I18DE
Description
