NISSAN PRIMERA 1999 Electronic Repair Manual Without CONSULT-II
1) Start engine and warm it up to normal operating temperature.
2) Set voltmeter probes between ECM terminal 62 (Heated oxy-
gen sensor 1 (front) signal) and engine ground.
3) Check

Page 962 of 2267

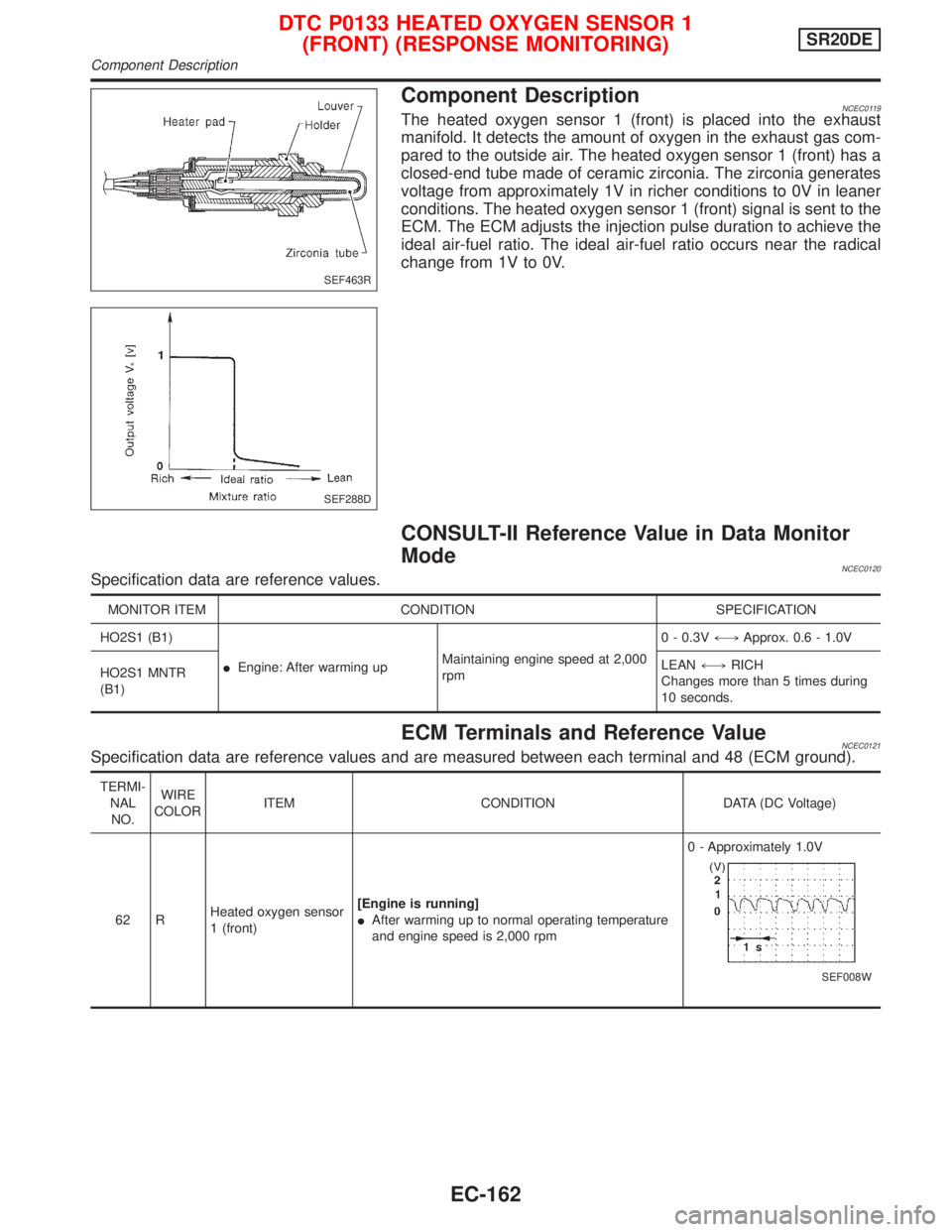

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0119The heated oxygen sensor 1 (front) is placed into the exhaust
manifold. It detects the amount of oxygen in the exhaust gas com-
pared to the outside air. The heated oxygen

Page 963 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual On Board Diagnosis LogicNCEC0122To judge the malfunction of heated oxygen sensor 1 (front), this
diagnosis measures response time of heated oxygen sensor 1
(front) signal. The time is compensated by e

On Board Diagnosis LogicNCEC0122To judge the malfunction of heated oxygen sensor 1 (front), this
diagnosis measures response time of heated oxygen sensor 1
(front) signal. The time is compensated by engine operating (speed
and load), fuel feedback control constant, and heated oxygen sen-
sor 1 (front) temperature index. Judgment is based on whether the
compensated time (heated oxygen sensor 1 (front) cycling time
index) is inordinately long or not.
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0133
0133IThe response of the voltage signal from the sensor takes
more than the specified time.IHarness or connectors
(The sensor circuit is open or shorted.)
IHeated oxygen sensor 1 (front)
IHeated oxygen sensor 1 (front) heater
IFuel pressure
IInjectors
IIntake air leaks
IExhaust gas leaks
IPCV
IMass air flow sensor
DTC Confirmation ProcedureNCEC0123CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 9 seconds
before conducting the next test.
TESTING CONDITION:
IAlways perform at a temperature above þ10ÉC (14ÉF).
IBefore performing the following procedure, confirm that
battery voltage is more than 11V at idle.

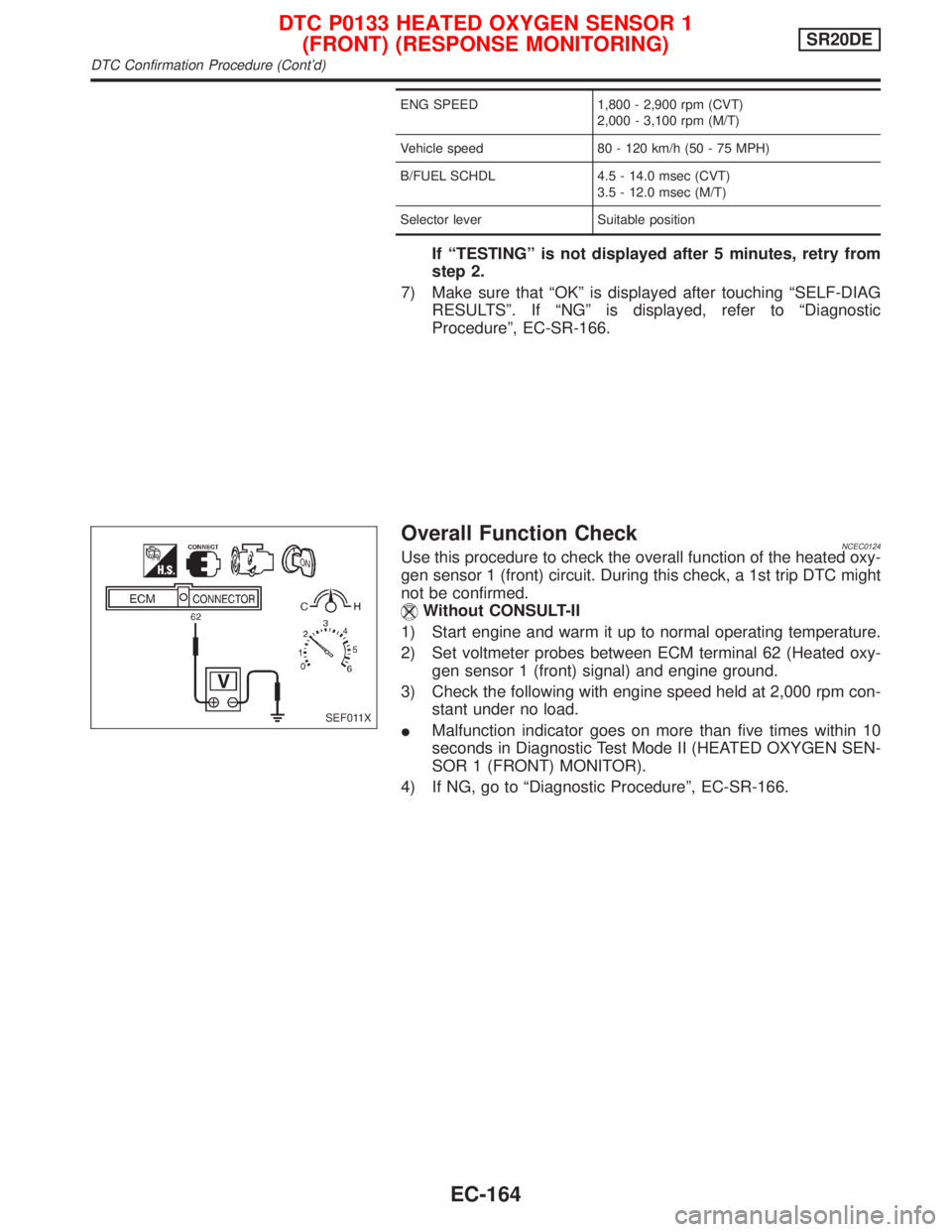

With CONSULT-II
1) Start engine and warm it up to normal operating temperature.
2) Stop engine and wait at least 9 seconds.
3) Turn ignition switch ªONº and select ªHO2S1 (B1) P0133º of
ªHO2S1º in ªDTC WORK SUPPORTº mode with CONSULT-II.
4) Touch ªSTARTº.
5) Start engine and let it idle for at least 3.5 minutes.
NOTE:
Never raise engine speed above 3,200 rpm after this step. If
the engine speed limit is exceeded, return to step 5.
6) When the following conditions are met, ªTESTINGº will be dis-
played on the CONSULT-II screen. Maintain the conditions
continuously until ªTESTINGº changes to ªCOMPLETEDº. (It
will take approximately 20 seconds.)
SEF010V
SEF831Y
SEF832Y
SEF658Y
DTC P0133 HEATED OXYGEN SENSOR 1
(FRONT) (RESPONSE MONITORING)SR20DE
On Board Diagnosis Logic
EC-163

Page 964 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ENG SPEED 1,800 - 2,900 rpm (CVT)
2,000 - 3,100 rpm (M/T)
Vehicle speed 80 - 120 km/h (50 - 75 MPH)
B/FUEL SCHDL 4.5 - 14.0 msec (CVT)
3.5 - 12.0 msec (M/T)
Selector lever Suitable position
If ªTESTI

Page 965 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0125
YEC084A
DTC P0133 HEATED OXYGEN SENSOR 1
(FRONT) (RESPONSE MONITORING)SR20DE
Wiring Diagram
EC-165

Page 966 of 2267

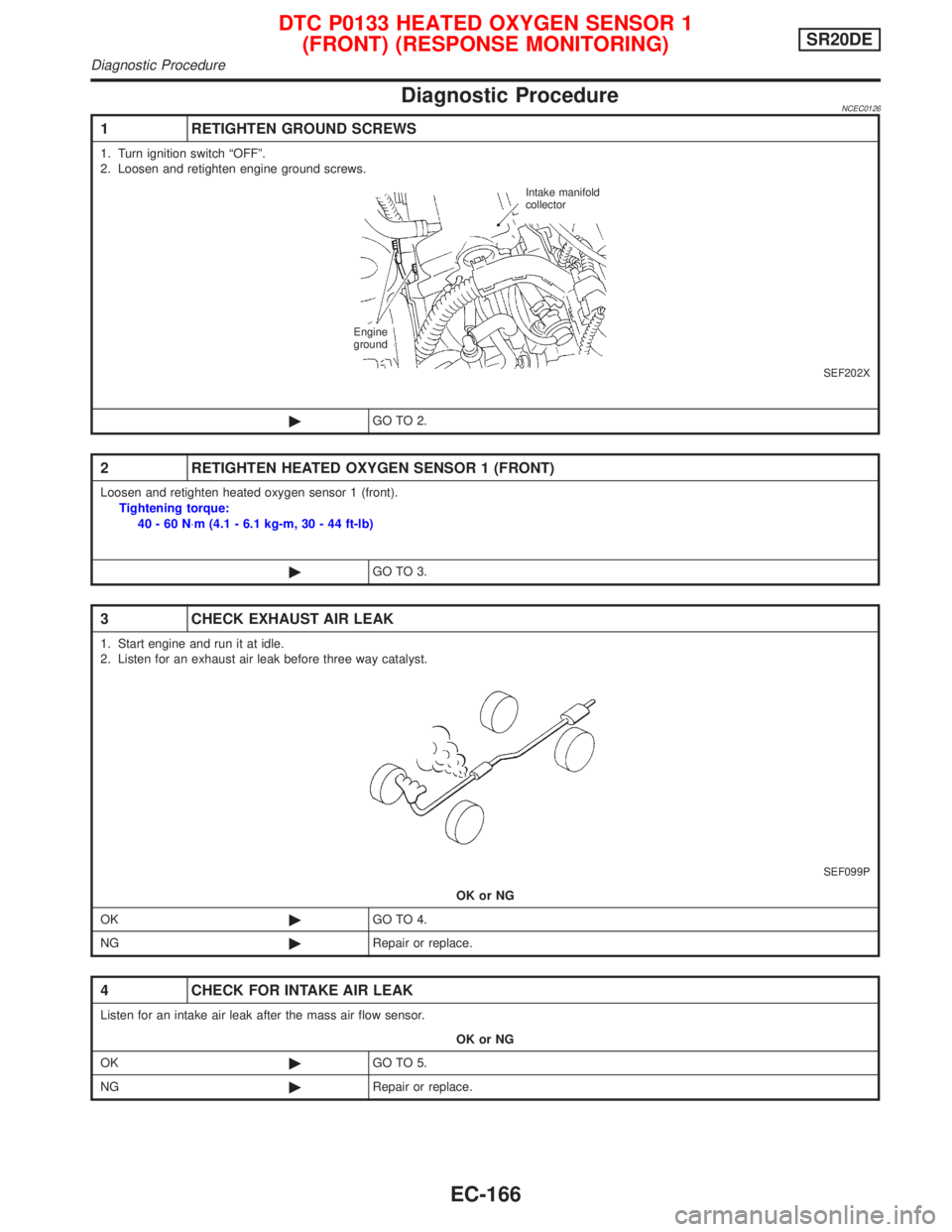

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCEC0126
1 RETIGHTEN GROUND SCREWS
1. Turn ignition switch ªOFFº.
2. Loosen and retighten engine ground screws.
SEF202X
©GO TO 2.
2 RETIGHTEN HEATED OXYGEN SENSOR 1 (FRONT)
Loos

Page 967 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 5 CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select ªSELF-LEARN CONTROLº in ªWORK SUPPORTº mode with CONSULT-II.
3. Clear the s

Page 968 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 7 CHECK HEATED OXYGEN SENSOR 1 (FRONT) HEATER
Refer to ªComponent Inspectionº, EC-SR-179.
OK or NG
OK©GO TO 8.
NG©Replace heated oxygen sensor 1 (front).
8 CHECK HEATED OXYGEN SENSOR 1 (FRONT)
Ref
