Page 2209 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 3. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
4. The lamp on the right side of the tool, marked ªdeployment
tool powerº, should glow gree

Page 2210 of 2267

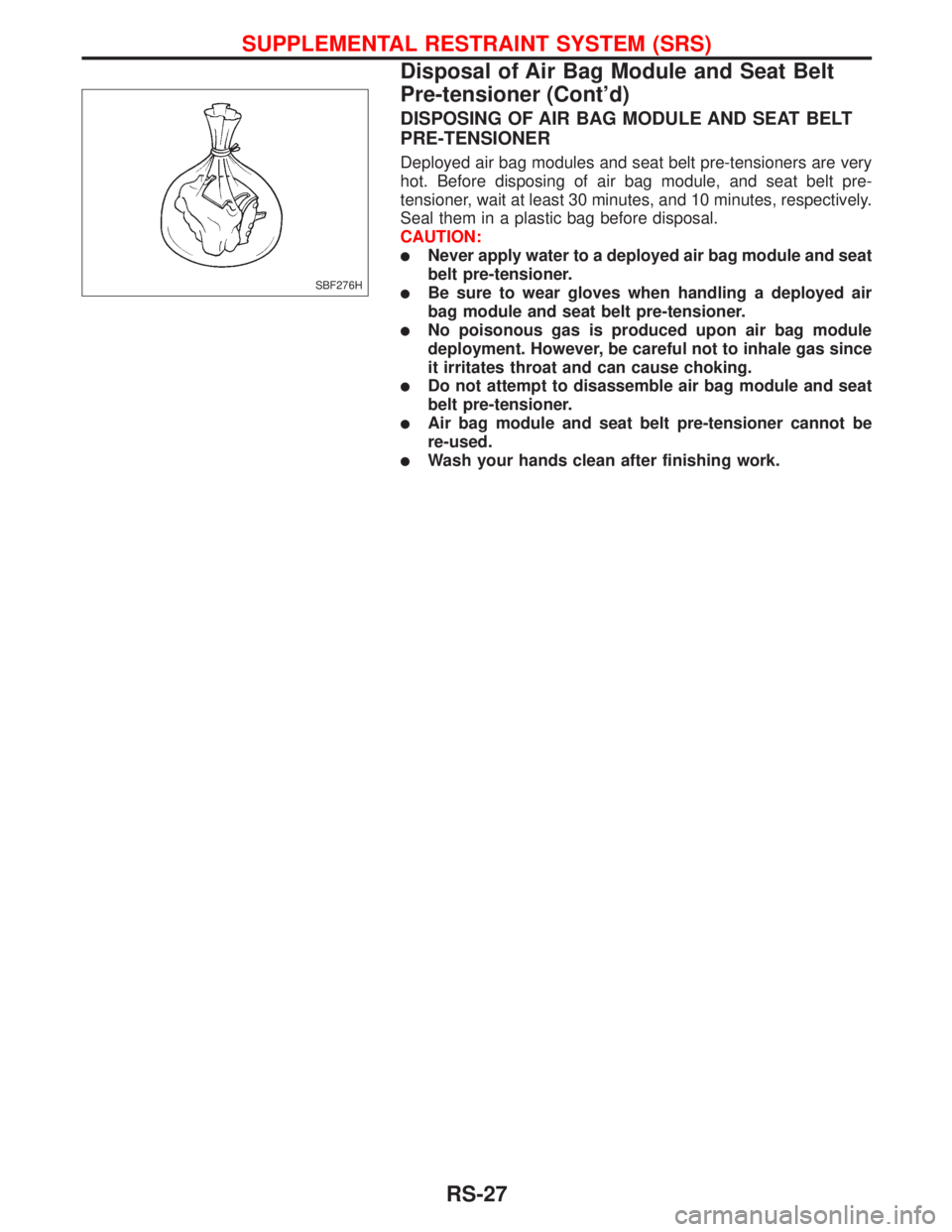

NISSAN PRIMERA 1999 Electronic Repair Manual DISPOSING OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER
Deployed air bag modules and seat belt pre-tensioners are very
hot. Before disposing of air bag module, and seat belt pre-
tensioner, wait at le

Page 2211 of 2267

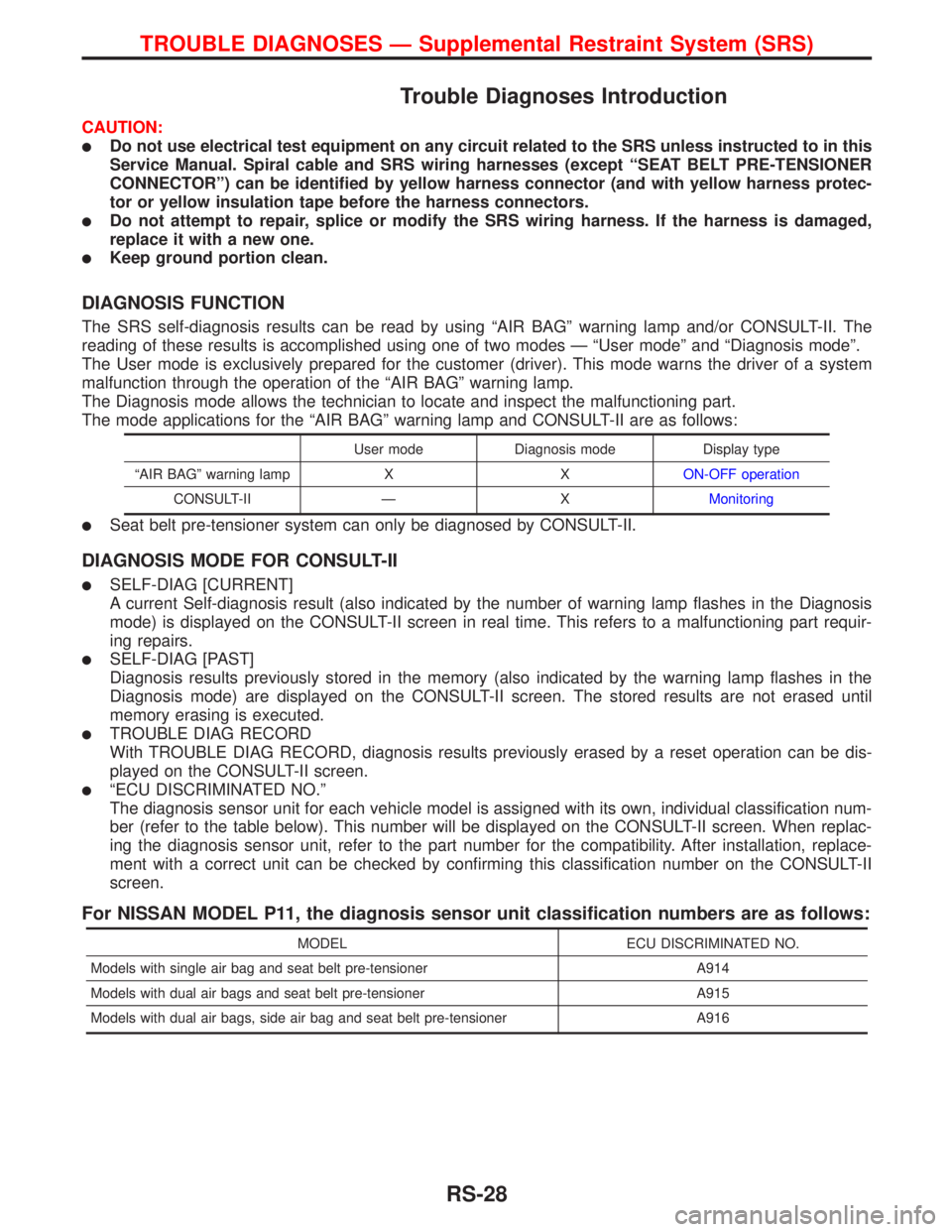

NISSAN PRIMERA 1999 Electronic Repair Manual Trouble Diagnoses Introduction
CAUTION:
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and SRS wiring harnesses (exce

Trouble Diagnoses Introduction
CAUTION:
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and SRS wiring harnesses (except ªSEAT BELT PRE-TENSIONER
CONNECTORº) can be identified by yellow harness connector (and with yellow harness protec-
tor or yellow insulation tape before the harness connectors.
lDo not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged,
replace it with a new one.
lKeep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnosis results can be read by using ªAIR BAGº warning lamp and/or CONSULT-II. The
reading of these results is accomplished using one of two modes Ð ªUser modeº and ªDiagnosis modeº.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system
malfunction through the operation of the ªAIR BAGº warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the ªAIR BAGº warning lamp and CONSULT-II are as follows:
User mode Diagnosis mode Display type
ªAIR BAGº warning lamp X XON-OFF operation
CONSULT-II Ð XMonitoring
lSeat belt pre-tensioner system can only be diagnosed by CONSULT-II.
DIAGNOSIS MODE FOR CONSULT-II
lSELF-DIAG [CURRENT]
A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.
lSELF-DIAG [PAST]
Diagnosis results previously stored in the memory (also indicated by the warning lamp flashes in the
Diagnosis mode) are displayed on the CONSULT-II screen. The stored results are not erased until
memory erasing is executed.
lTROUBLE DIAG RECORD
With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
lªECU DISCRIMINATED NO.º
The diagnosis sensor unit for each vehicle model is assigned with its own, individual classification num-
ber (refer to the table below). This number will be displayed on the CONSULT-II screen. When replac-
ing the diagnosis sensor unit, refer to the part number for the compatibility. After installation, replace-
ment with a correct unit can be checked by confirming this classification number on the CONSULT-II
screen.
For NISSAN MODEL P11, the diagnosis sensor unit classification numbers are as follows:
MODEL ECU DISCRIMINATED NO.
Models with single air bag and seat belt pre-tensioner A914
Models with dual air bags and seat belt pre-tensioner A915
Models with dual air bags, side air bag and seat belt pre-tensioner A916
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-28

Page 2212 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual HOW TO CHANGE SELF-DIAGNOSIS MODE
With CONSULT-II
From User mode to Diagnosis mode
After selecting AIR BAG on the ªSELECT SYSTEMº screen, User mode automatically changes to Diagno-
sis mode.
From Di

Page 2213 of 2267

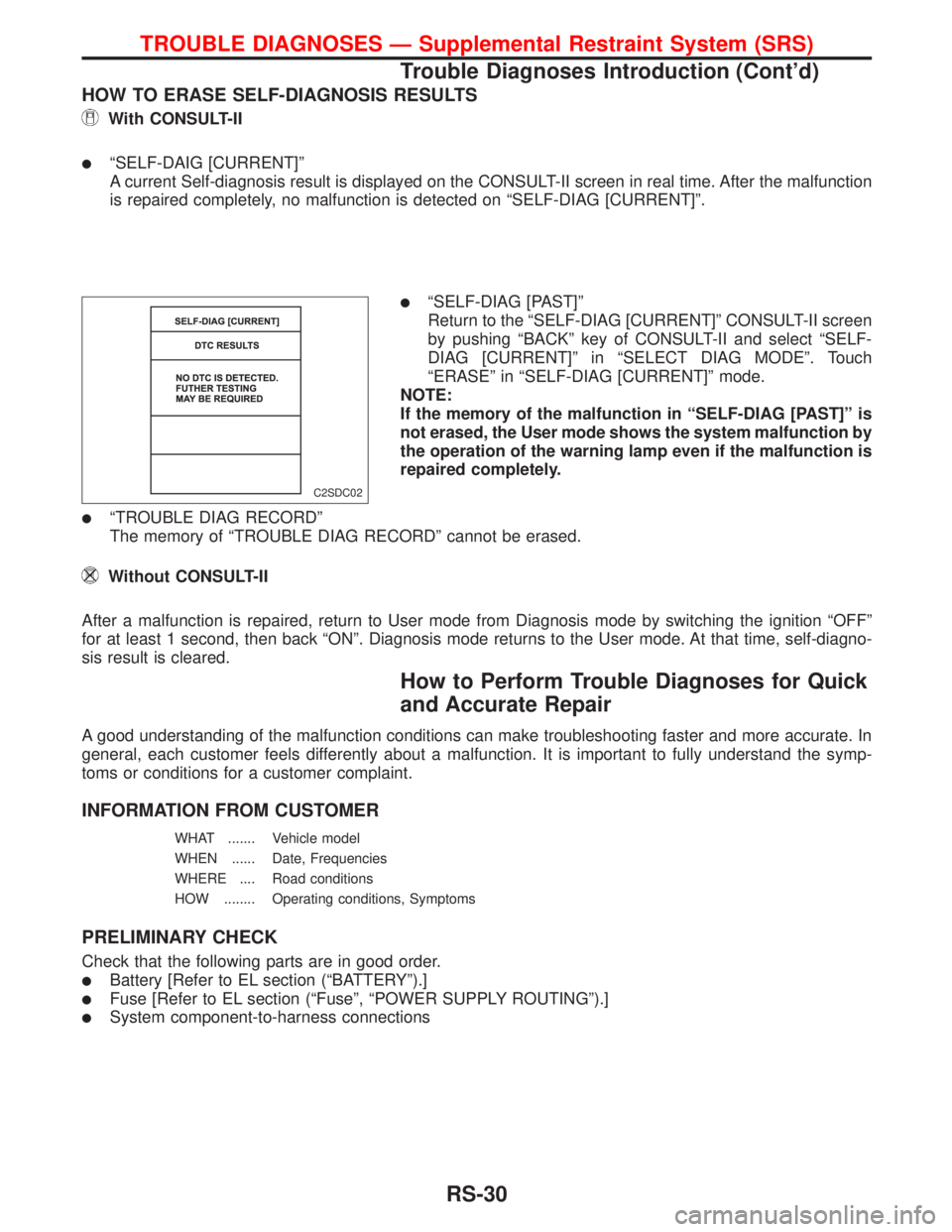

NISSAN PRIMERA 1999 Electronic Repair Manual HOW TO ERASE SELF-DIAGNOSIS RESULTS
With CONSULT-II
lªSELF-DAIG [CURRENT]º
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time. After the malfunction
is repaired compl

Page 2214 of 2267

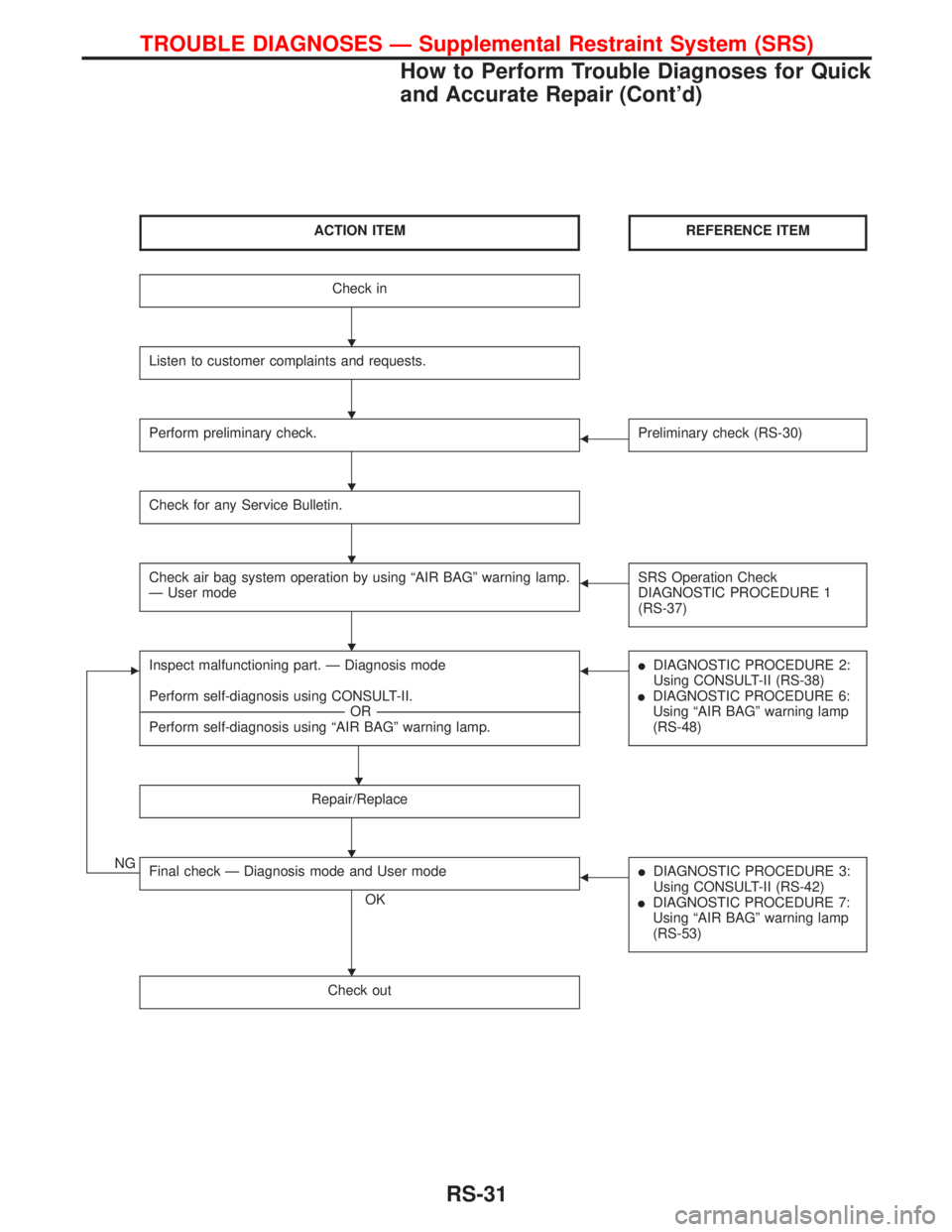

NISSAN PRIMERA 1999 Electronic Repair Manual ACTION ITEMREFERENCE ITEM
Check in
Listen to customer complaints and requests.
Perform preliminary check.FPreliminary check (RS-30)
Check for any Service Bulletin.
Check air bag system operation by us

Page 2215 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Schematic
YRS058
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-32

Page 2216 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram Ð SRS Ð
YRS059
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-33
