Page 809 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual P1605 1605 A/T DIAG COMM LINE *7 EC-SR-295
P1610 - 1615 1610 - 1615 NATS MALFUNCTION Refer to EL section.
P1705 1705 TP SEN/CIRC A/T *7 Refer to AT section.
P1706 1706 P-N POS SW/CIRCUIT *7 EC-SR-298

Page 810 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
NCEC0002The Supplemental Restraint System ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº, used along with a seat
belt, help

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
NCEC0002The Supplemental Restraint System ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº, used along with a seat
belt, help to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of air bag modules (located in the center of the steering wheel and
on the instrument panel on the passenger side), seat belt pre-tensioners, a diagnosis sensor unit, warning
lamp, wiring harness and spiral cable.
In addition to the supplemental air bag modules for a frontal collision, the supplemental side air bag used along
with the seat belt helps to reduce the risk or severity of injury to the driver and front passenger in a side col-
lision. The supplemental side air bag consists of air bag modules (located in the outer side of front seats),
satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal collision),
wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision). Information
necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
ITo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized NISSAN dealer.
IImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
IDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses (except ªSEAT BELT PRE-TENSIONERº connector) can be
identified with yellow harness connector (and with yellow harness protector or yellow insulation
tape before the harness connectors).
Precautions for On Board Diagnostic (OBD)
System of Engine and CVT
NCEC0003The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver
of a malfunction causing emission deterioration.
CAUTION:
IBe sure to turn the ignition switch ªOFFº and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc.
will cause the MI to light up.
IBe sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
ICertain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector.
For description and how to disconnect, refer to EL section, ªDescriptionº, ªHARNESS CONNEC-
TORº.
IBe sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MI to light up due to the short circuit.
IBe sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel injection system, etc.
IBe sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission Control Module) before returning the vehicle to the customer.
PRECAUTIONSSR20DE
Supplemental Restraint System (SRS) ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº
EC-10

Page 811 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Engine Fuel & Emission Control SystemNCEC0004
SEF331WB
PRECAUTIONSSR20DE
Engine Fuel & Emission Control System
EC-11

Page 812 of 2267

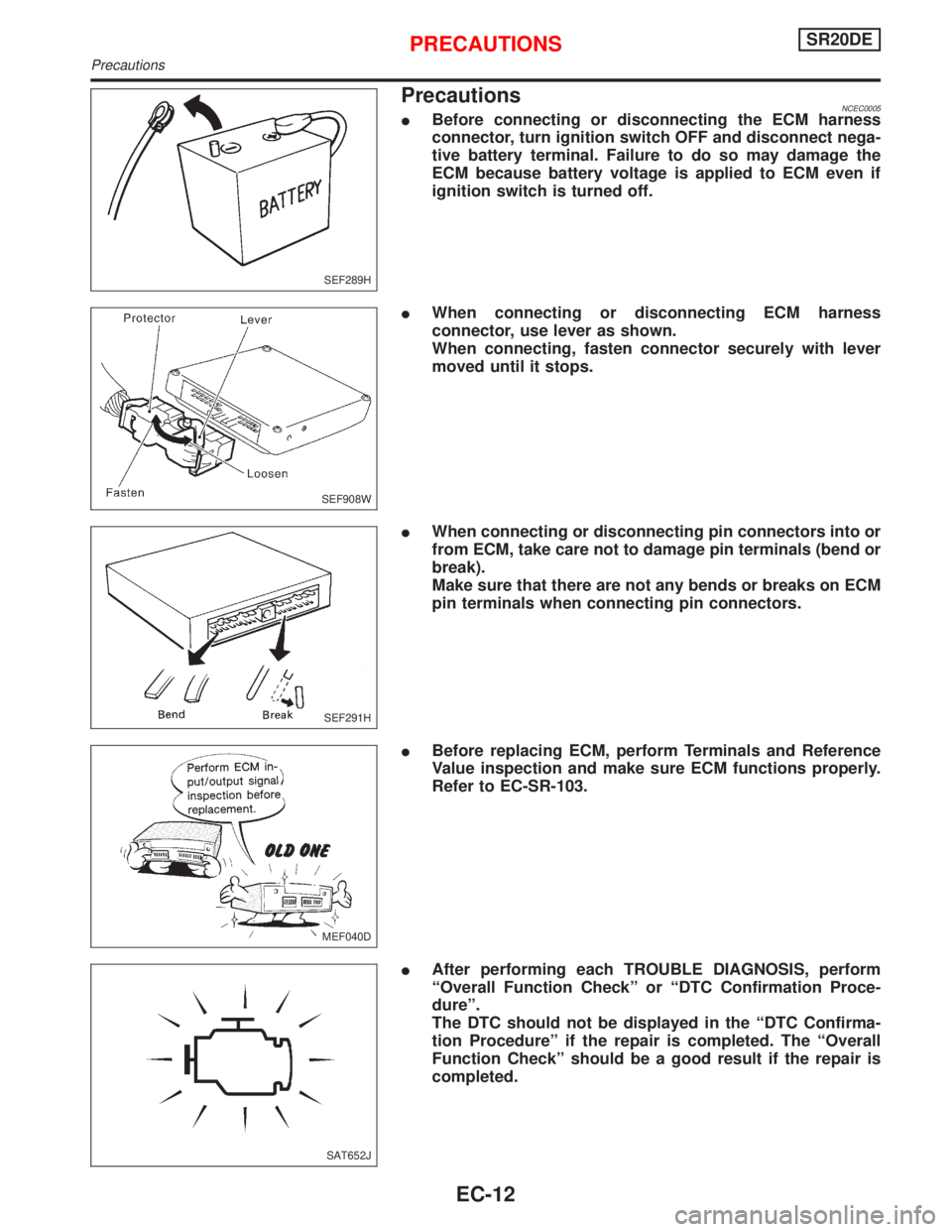

NISSAN PRIMERA 1999 Electronic Repair Manual PrecautionsNCEC0005IBefore connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the
ECM because batte

Page 813 of 2267

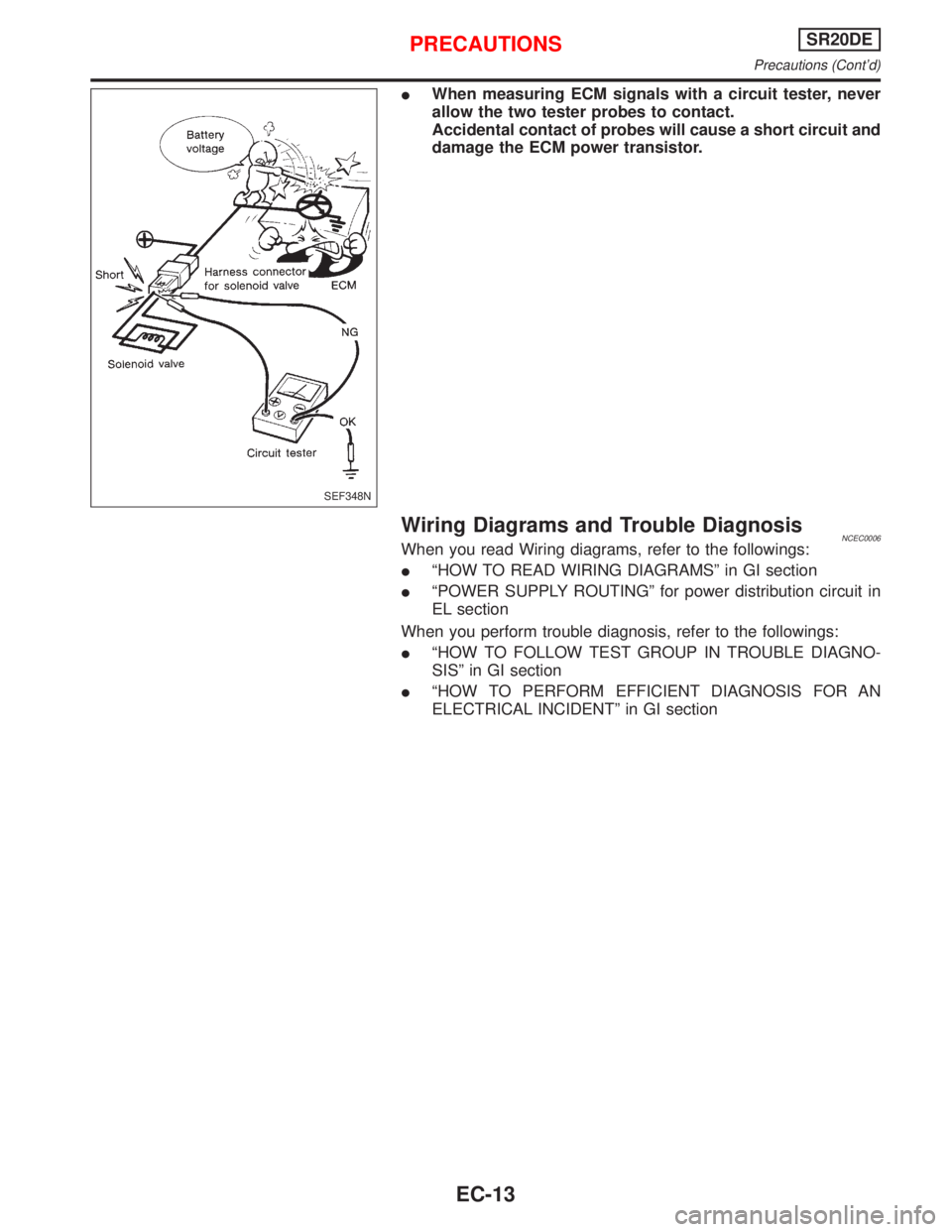

NISSAN PRIMERA 1999 Electronic Repair Manual IWhen measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
Wiring Dia

Page 814 of 2267

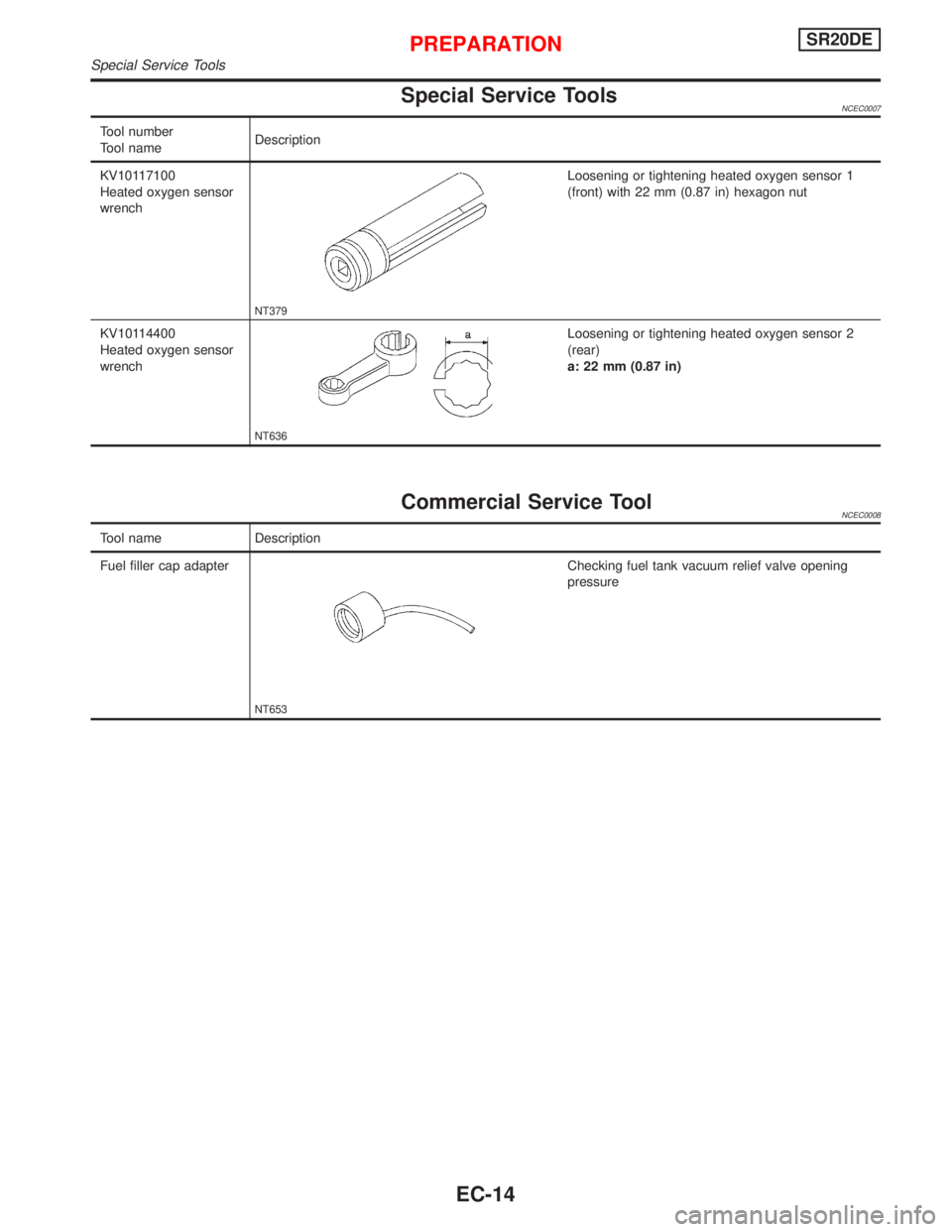

NISSAN PRIMERA 1999 Electronic Repair Manual Special Service ToolsNCEC0007
Tool number
Tool nameDescription
KV10117100
Heated oxygen sensor
wrench
NT379
Loosening or tightening heated oxygen sensor 1
(front) with 22 mm (0.87 in) hexagon nut
KV10

Page 815 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Engine Control Component Parts LocationNCEC0009
NEF235A Throttle position sensor
IACV-AAC valve
Mass air flow sensor and intake
air temperature sensor
Ignition coil, power transistor &
camshaft positi

Page 816 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NEF232A
.IACV-AAC valve
Mass air flow sensor
View from under the vehicle
Crankshaft position
sensor (OBD)Radiator
lower hose Heated oxygen sensor 1
(front) harness connector
Heated oxygen
sensor 1 (fr
