lPulley removal

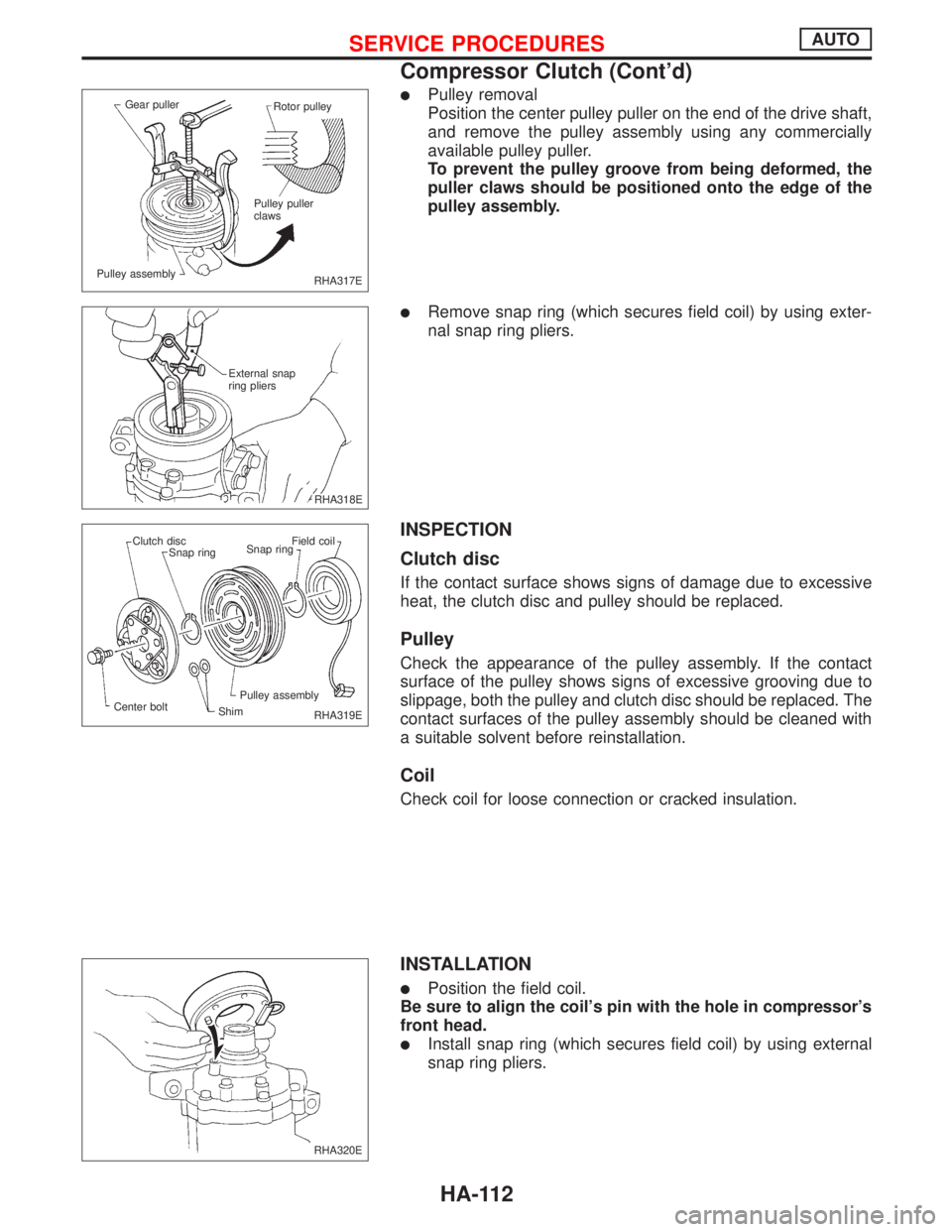

Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially
available pulley puller.
To prevent the pulley groove from being deformed, the
puller claws should be positioned onto the edge of the
pulley assembly.
lRemove snap ring (which secures field coil) by using exter-
nal snap ring pliers.
INSPECTION
Clutch disc
If the contact surface shows signs of damage due to excessive
heat, the clutch disc and pulley should be replaced.
Pulley
Check the appearance of the pulley assembly. If the contact
surface of the pulley shows signs of excessive grooving due to
slippage, both the pulley and clutch disc should be replaced. The
contact surfaces of the pulley assembly should be cleaned with
a suitable solvent before reinstallation.
Coil
Check coil for loose connection or cracked insulation.
INSTALLATION
lPosition the field coil.
Be sure to align the coil's pin with the hole in compressor's
front head.
lInstall snap ring (which secures field coil) by using external
snap ring pliers.
RHA317E Gear puller
Rotor pulley
Pulley puller
claws
Pulley assembly
.RHA318E External snap
ring pliers
RHA319E Clutch disc
Snap ringSnap ringField coil
Center bolt
ShimPulley assembly
RHA320E
SERVICE PROCEDURESAUTO
Compressor Clutch (Cont'd)
HA-112
Page 1962 of 2267

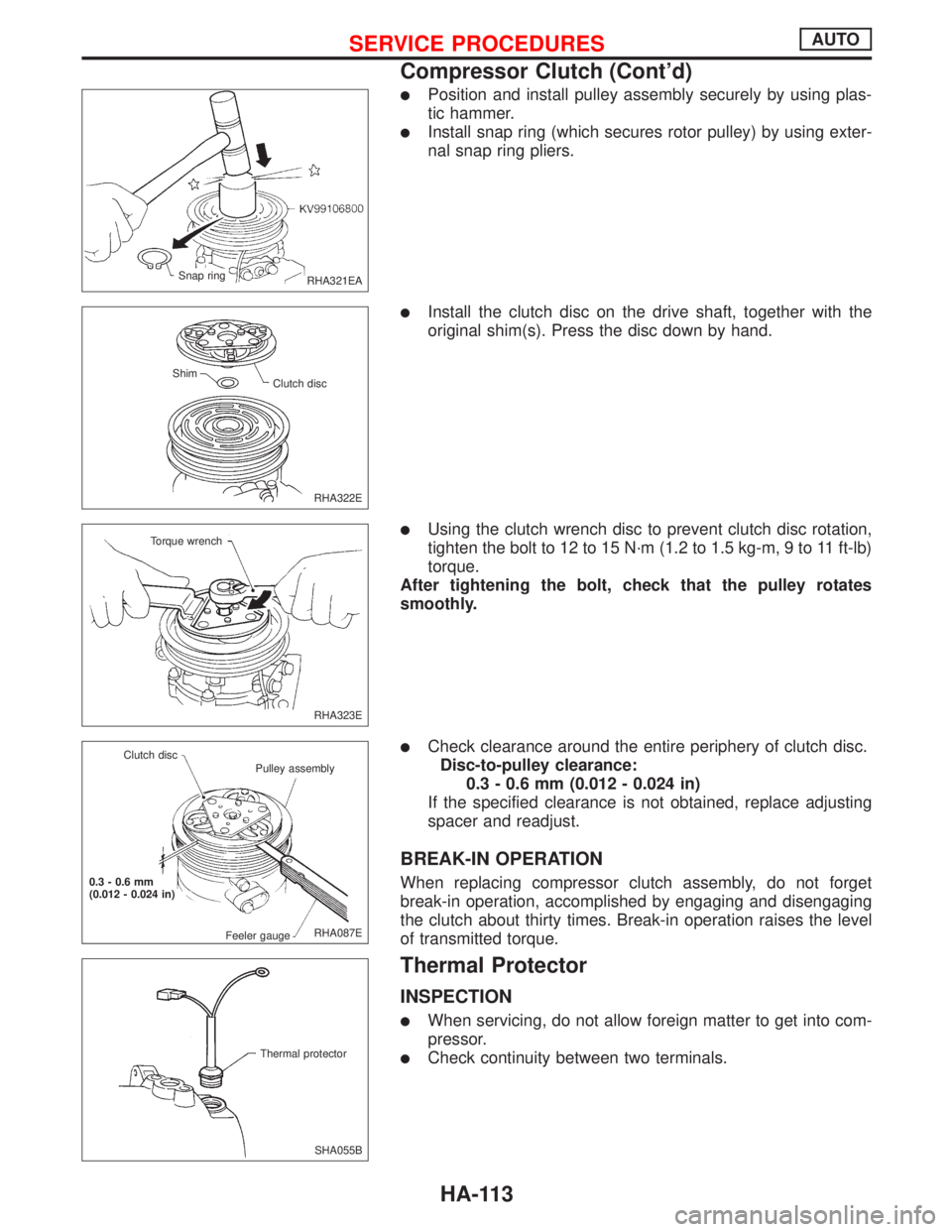

lPosition and install pulley assembly securely by using plas-
tic hammer.
lInstall snap ring (which secures rotor pulley) by using exter-
nal snap ring pliers.
lInstall the clutch disc on the drive shaft, together with the
original shim(s). Press the disc down by hand.
lUsing the clutch wrench disc to prevent clutch disc rotation,
tighten the bolt to 12 to 15 N´m (1.2 to 1.5 kg-m, 9 to 11 ft-lb)
torque.
After tightening the bolt, check that the pulley rotates
smoothly.
lCheck clearance around the entire periphery of clutch disc.
Disc-to-pulley clearance:
0.3 - 0.6 mm (0.012 - 0.024 in)
If the specified clearance is not obtained, replace adjusting
spacer and readjust.
BREAK-IN OPERATION
When replacing compressor clutch assembly, do not forget
break-in operation, accomplished by engaging and disengaging
the clutch about thirty times. Break-in operation raises the level
of transmitted torque.
Thermal Protector
INSPECTION
lWhen servicing, do not allow foreign matter to get into com-
pressor.
lCheck continuity between two terminals.
RHA321EA Snap ring
RHA322E Shim
Clutch disc
RHA323E Torque wrench
RHA087E Clutch disc
Pulley assembly
0.3 - 0.6 mm
(0.012 - 0.024 in)
Feeler gauge
SHA055B Thermal protector
SERVICE PROCEDURESAUTO
Compressor Clutch (Cont'd)
HA-113
Page 1963 of 2267

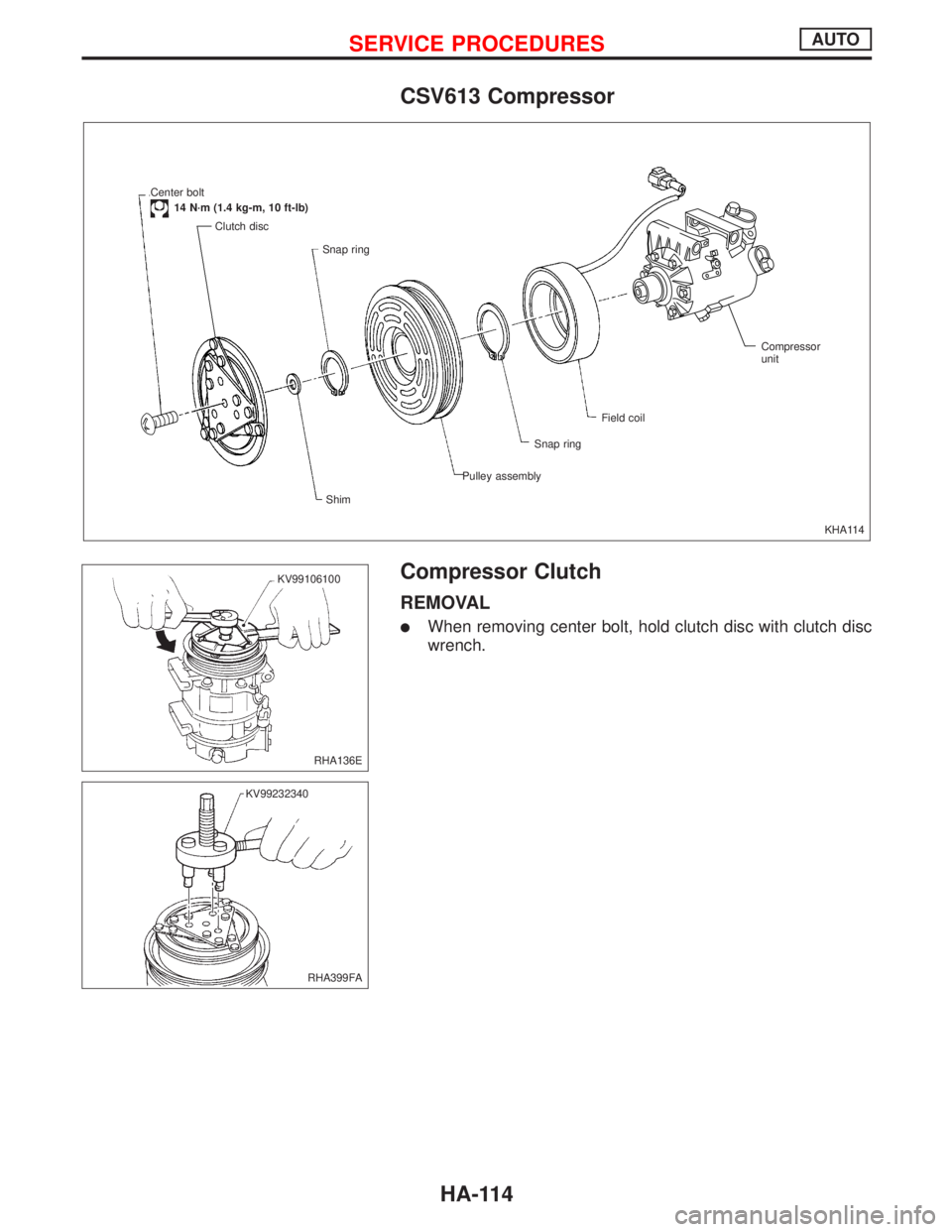

CSV613 Compressor
Compressor Clutch
REMOVAL
lWhen removing center bolt, hold clutch disc with clutch disc
wrench.
KHA114 Field coil
Snap ring
Pulley assembly Snap ring
Shim Clutch disc Center bolt
14 N´m (1.4 kg-m, 10 ft-lb)
Compressor
unit
RHA136E KV99106100
RHA399FA KV99232340
SERVICE PROCEDURESAUTO
HA-114
Page 1964 of 2267

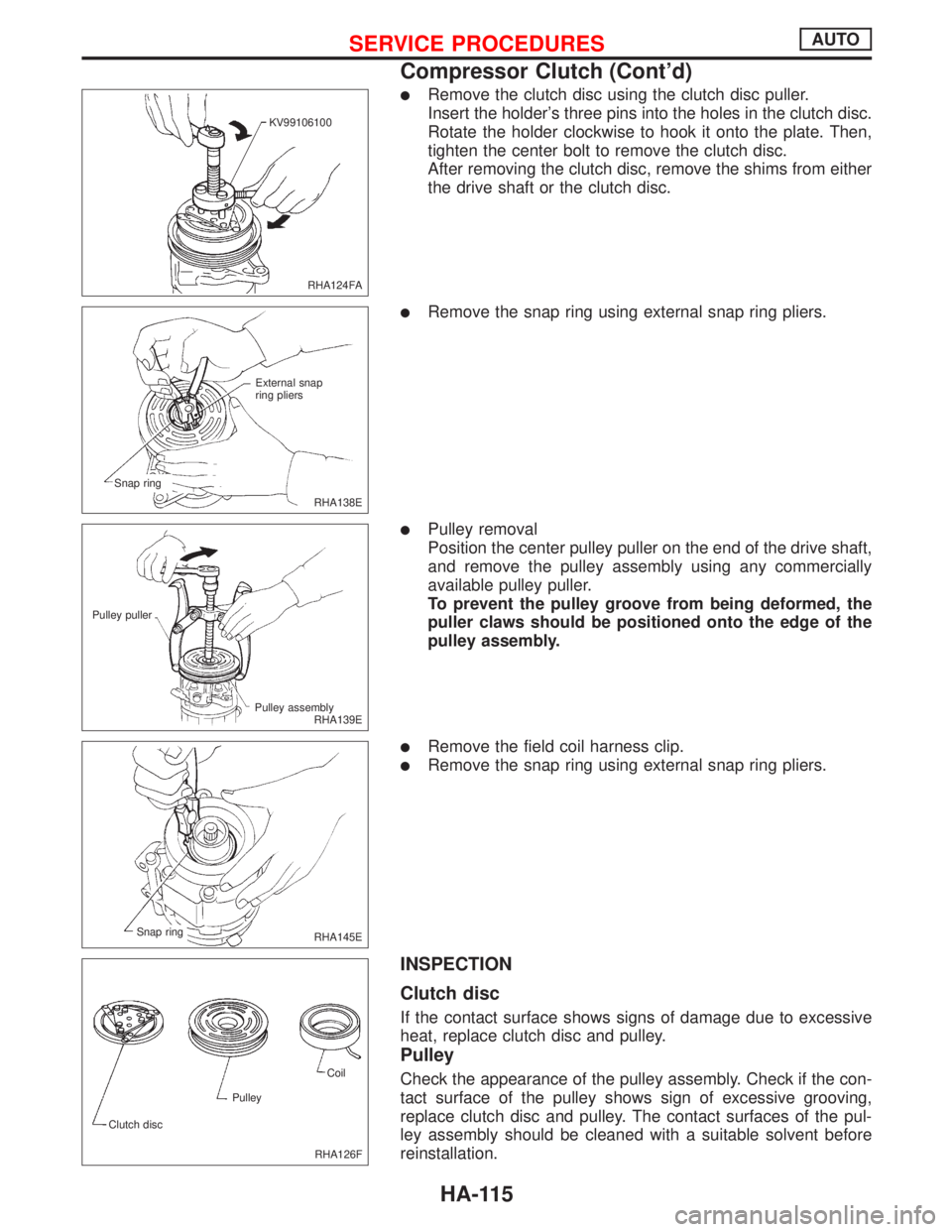

lRemove the clutch disc using the clutch disc puller.
Insert the holder's three pins into the holes in the clutch disc.
Rotate the holder clockwise to hook it onto the plate. Then,
tighten the center bolt to remove the clutch disc.
After removing the clutch disc, remove the shims from either
the drive shaft or the clutch disc.
lRemove the snap ring using external snap ring pliers.
lPulley removal
Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially
available pulley puller.
To prevent the pulley groove from being deformed, the
puller claws should be positioned onto the edge of the
pulley assembly.
lRemove the field coil harness clip.
lRemove the snap ring using external snap ring pliers.
INSPECTION
Clutch disc
If the contact surface shows signs of damage due to excessive
heat, replace clutch disc and pulley.
Pulley
Check the appearance of the pulley assembly. Check if the con-
tact surface of the pulley shows sign of excessive grooving,
replace clutch disc and pulley. The contact surfaces of the pul-
ley assembly should be cleaned with a suitable solvent before
reinstallation.
RHA124FA KV99106100
RHA138E External snap
ring pliers
Snap ring
RHA139E Pulley puller
Pulley assembly
RHA145E Snap ring
RHA126F Clutch discPulleyCoil
SERVICE PROCEDURESAUTO
Compressor Clutch (Cont'd)
HA-115
Page 1965 of 2267

Coil
Check coil for loose connection or cracked insulation.
INSTALLATION

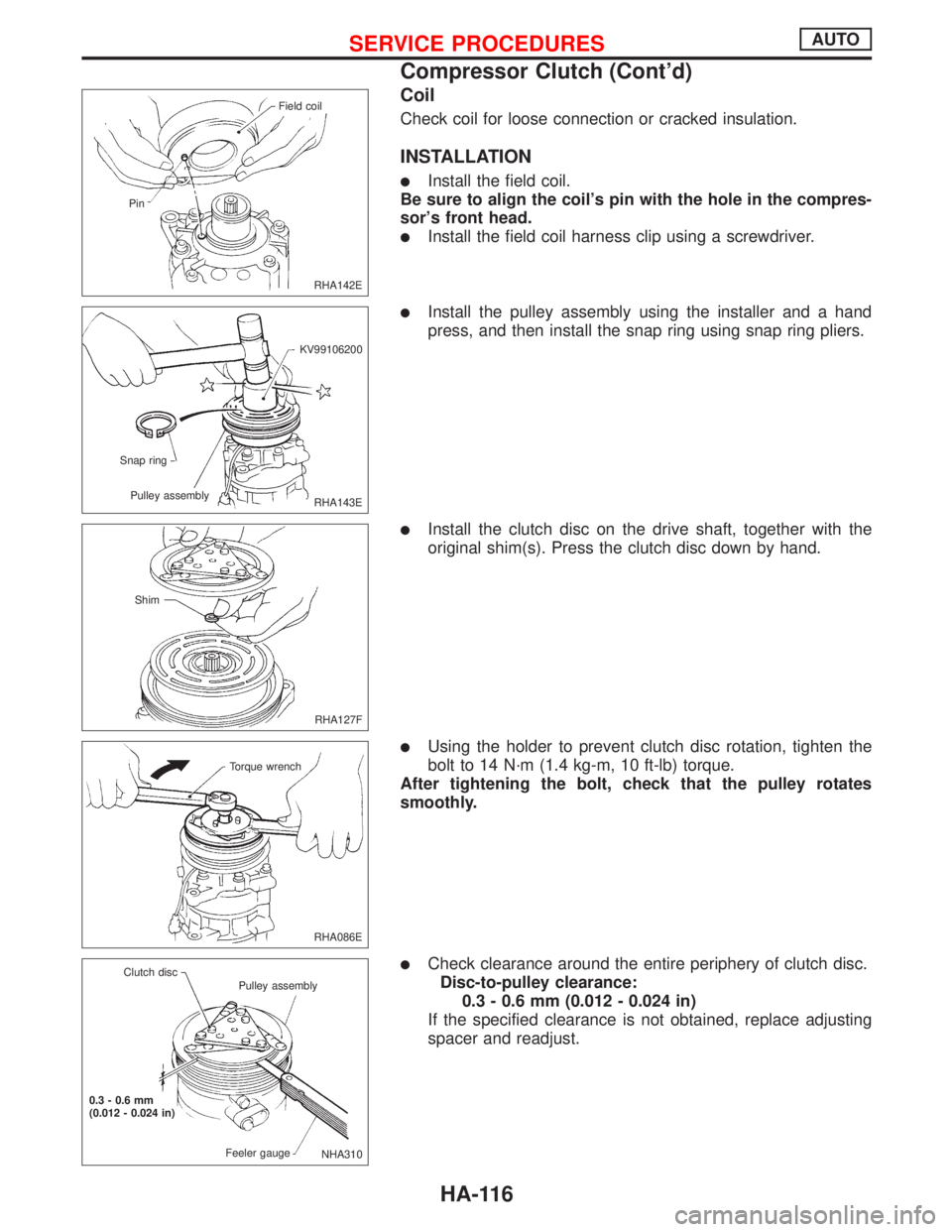

lInstall the field coil.
Be sure to align the coil's pin with the hole in the compres-
sor's front head.
lInstall the field coil harness clip using a screwdriver.
lInstall the pulley assembly using the installer and a hand
press, and then install the snap ring using snap ring pliers.
lInstall the clutch disc on the drive shaft, together with the
original shim(s). Press the clutch disc down by hand.
lUsing the holder to prevent clutch disc rotation, tighten the
bolt to 14 N´m (1.4 kg-m, 10 ft-lb) torque.
After tightening the bolt, check that the pulley rotates
smoothly.
lCheck clearance around the entire periphery of clutch disc.
Disc-to-pulley clearance:
0.3 - 0.6 mm (0.012 - 0.024 in)
If the specified clearance is not obtained, replace adjusting
spacer and readjust.
RHA142E PinField coil
RHA143E Snap ringKV99106200
Pulley assembly
RHA127F Shim
RHA086E Torque wrench
NHA310 Clutch disc
Pulley assembly
0.3 - 0.6 mm
(0.012 - 0.024 in)
Feeler gauge
SERVICE PROCEDURESAUTO
Compressor Clutch (Cont'd)
HA-116
Page 1966 of 2267
BREAK-IN OPERATION

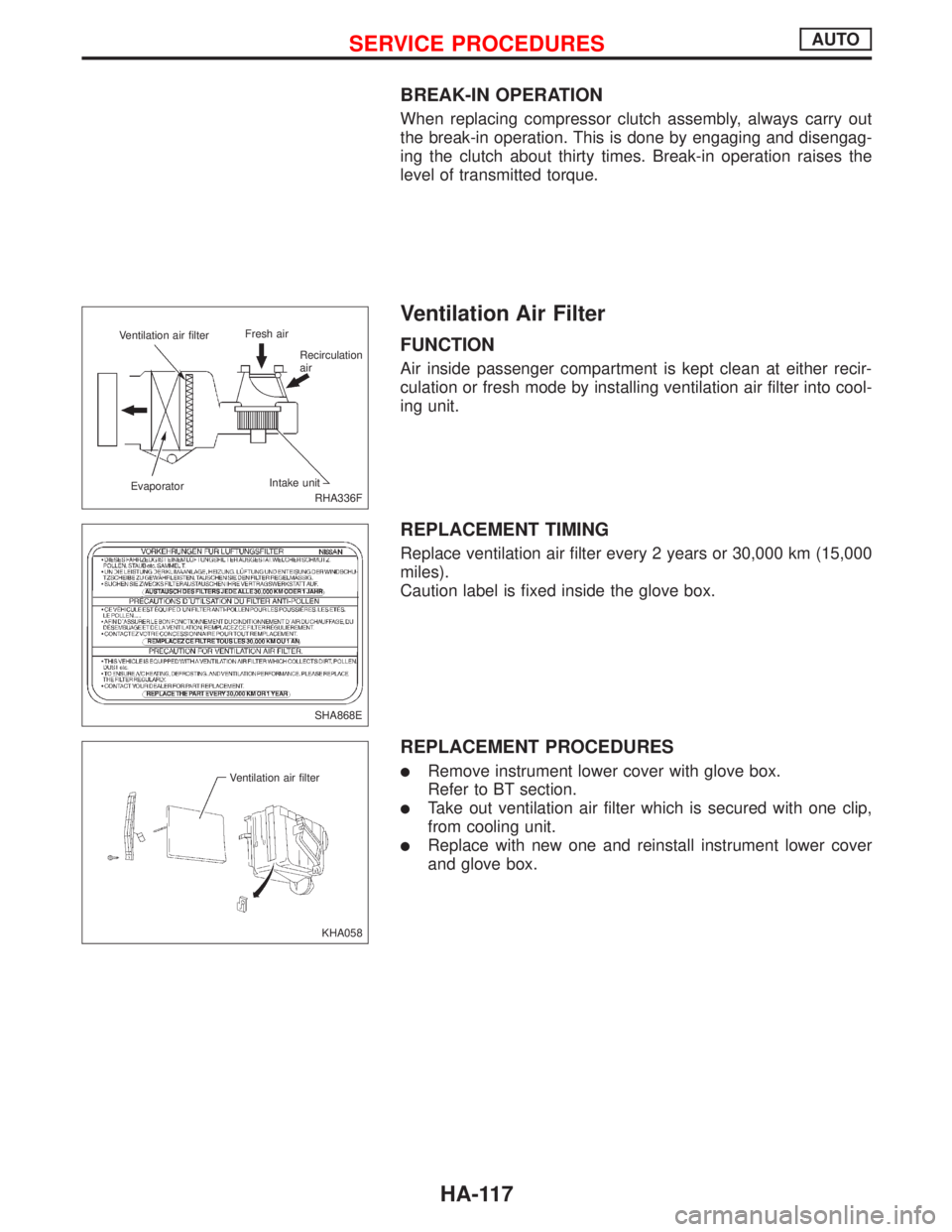

When replacing compressor clutch assembly, always carry out
the break-in operation. This is done by engaging and disengag-
ing the clutch about thirty times. Break-in operation raises the
level of transmitted torque.
Ventilation Air Filter
FUNCTION
Air inside passenger compartment is kept clean at either recir-
culation or fresh mode by installing ventilation air filter into cool-
ing unit.
REPLACEMENT TIMING
Replace ventilation air filter every 2 years or 30,000 km (15,000
miles).
Caution label is fixed inside the glove box.
REPLACEMENT PROCEDURES
lRemove instrument lower cover with glove box.
Refer to BT section.
lTake out ventilation air filter which is secured with one clip,
from cooling unit.
lReplace with new one and reinstall instrument lower cover
and glove box.
RHA336F Ventilation air filterFresh air
Recirculation
air
EvaporatorIntake unit
SHA868E
KHA058 Ventilation air filter
SERVICE PROCEDURESAUTO
HA-117
Page 1967 of 2267

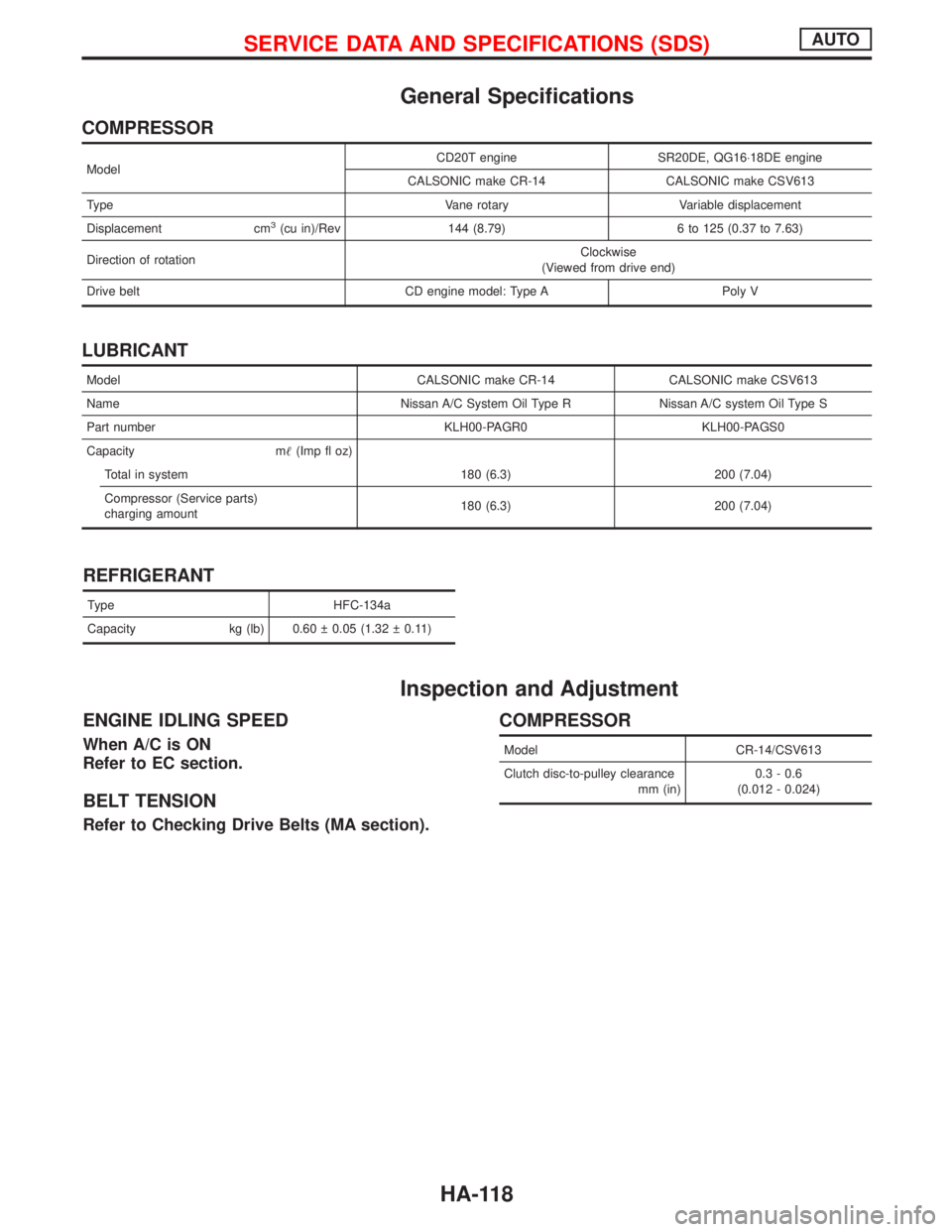

General Specifications
COMPRESSOR
ModelCD20T engine SR20DE, QG16×18DE engine
CALSONIC make CR-14 CALSONIC make CSV613
Type Vane rotary Variable displacement
Displacement cm
3(cu in)/Rev 144 (8.79) 6 to 125 (0.37 to 7.63)
Direction of rotationClockwise
(Viewed from drive end)
Drive belt CD engine model: Type A Poly V
LUBRICANT
Model CALSONIC make CR-14 CALSONIC make CSV613
Name Nissan A/C System Oil Type R Nissan A/C system Oil Type S
Part number KLH00-PAGR0 KLH00-PAGS0
Capacity m(Imp fl oz)
Total in system 180 (6.3) 200 (7.04)
Compressor (Service parts)
charging amount180 (6.3) 200 (7.04)
REFRIGERANT
Type HFC-134a
Capacity kg (lb) 0.60 0.05 (1.32 0.11)
Inspection and Adjustment
ENGINE IDLING SPEED
When A/C is ON
Refer to EC section.
BELT TENSION
Refer to Checking Drive Belts (MA section).
COMPRESSOR
Model CR-14/CSV613
Clutch disc-to-pulley clearance
mm (in)0.3 - 0.6
(0.012 - 0.024)
SERVICE DATA AND SPECIFICATIONS (SDS)AUTO
HA-118
