Page 2089 of 2267

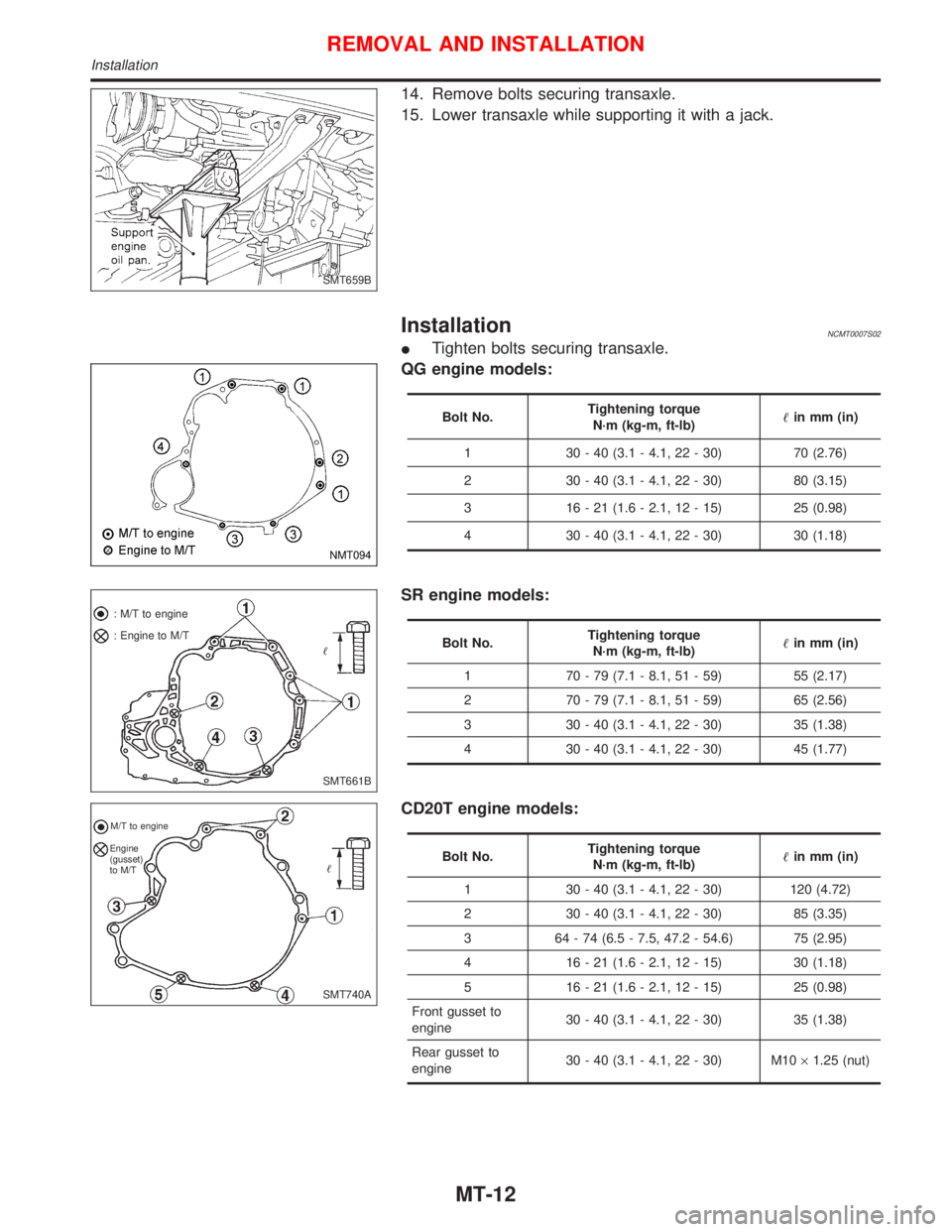

NISSAN PRIMERA 1999 Electronic Repair Manual 14. Remove bolts securing transaxle. 15. Lower transaxle while supporting it with a jack. InstallationNCMT0007S02 ITighten bolts securing transaxle. QG engine models: Bolt No.Tightening torque N´m (k

Page 2090 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Cross-sectional View SMT123D DESCRIPTIONRS5F32A Cross-sectional View MT-13

Page 2091 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Transaxle Gear Control p1Control lever knob p2Boot p3Control lever socket p4Control lever p5Bushing p6Hand lever socket p7Plate bolt p8Transaxle hole cover p9Support rod p10Plate p11Collar p12Bushing

Page 2092 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Case Components YMT004 MAJOR OVERHAULRS5F32A Case Components MT-15

Page 2093 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Gear Components NMT024 . Reverse idler gear Reverse idler bushing Reverse idler spacerInput shaft front bearing 5th gear needle bearing 5th input gear Baulk ring Spread ring Insert springCoupling slee

Page 2094 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Shift Control Components p1Check plunger p2Select return spring p3O-ring p4Check sleeve p5Striking lever p6Snap ring p7Striking interlock p8Reverse brake cam p9Reverse brake cam spring p10Check ball p

Page 2095 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1. Remove case cover. 2. Remove mainshaft bearing snap ring. 3. Remove transmission case while slightly tilting it to prevent 5th shift fork from interfering with case. 4. Draw out reverse idler space

Page 2096 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 6. Remove control bracket with 1st & 2nd shift fork. 7. Remove gear components from clutch housing. a. Remove input shaft front bearing retainer securing bolts. b. Remove input shaft with bearing reta
