Major Sensor Reference Graph in Data
Monitor Mode

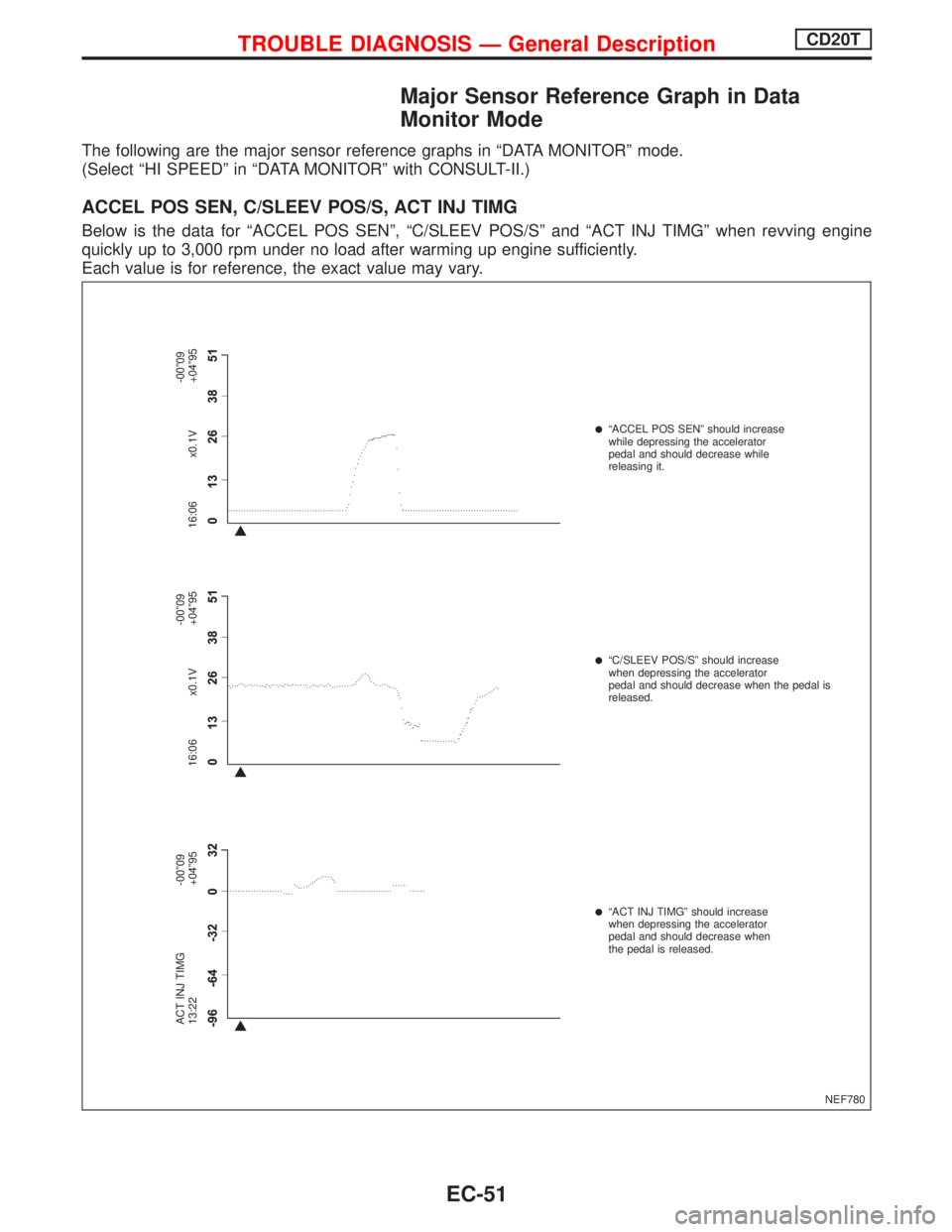

The following are the major sensor reference graphs in ªDATA MONITORº mode.
(Select ªHI SPEEDº in ªDATA MONITORº with CONSULT-II.)
ACCEL POS SEN, C/SLEEV POS/S, ACT INJ TIMG
Below is the data for ªACCEL POS SENº, ªC/SLEEV POS/Sº and ªACT INJ TIMGº when revving engine
quickly up to 3,000 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.
NEF780
lªACCEL POS SENº should increase
while depressing the accelerator
pedal and should decrease while
releasing it.
lªC/SLEEV POS/Sº should increase
when depressing the accelerator
pedal and should decrease when the pedal is
released.
lªACT INJ TIMGº should increase
when depressing the accelerator
pedal and should decrease when
the pedal is released.
ACT INJ TIMG
13:22-00º09
+04º95 16:06 x0.1V-00º09
+04º95 16:06 x0.1V-00º09
+04º95
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
EC-51
Page 346 of 2267
ECM Terminals and Reference Value
PREPARATION
The ECM is located beneath the heater unit. To access the ECM,
remove the center console under cover at the passenger side.
Perform all voltage measurements with all connectors con-
nected. Since the ECM harness connector cannot be accessed
from the backside, voltages should be measured by connecting
a break out box (SST) between ECM and ECM harness connec-
tor.
When measuring:
lUse extreme care not to touch 2 pins at the same time.
lNote that the data is for comparison and may not be exact.
lBe sure ECM unit is properly grounded before checking.
SEF883Y
NEF162A ECM
Y-adapter
Breakout box
Y-adapterTo ECM har-
ness connec-
tor
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
EC-52
Page 347 of 2267

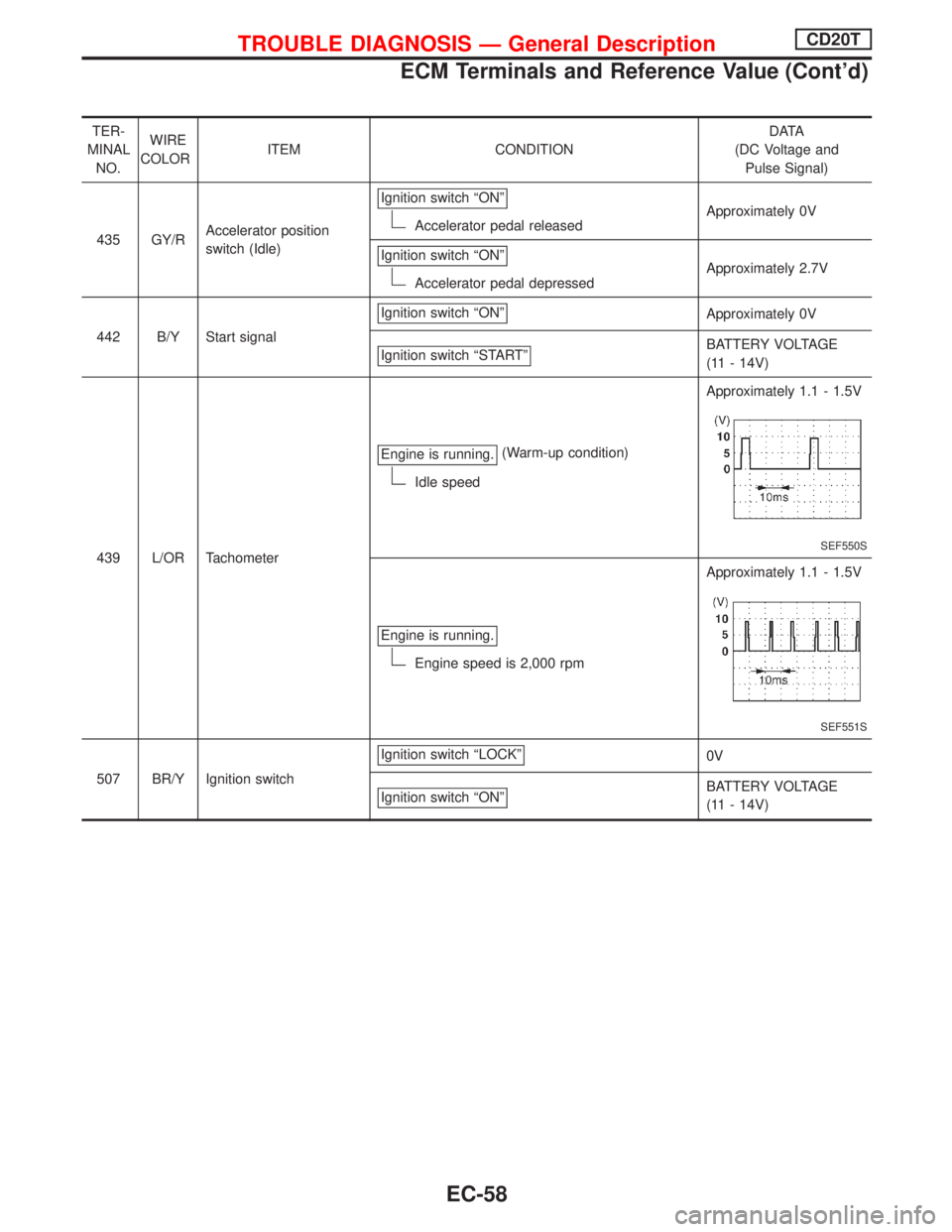

ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in
damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
101
102
103B/L Electric governor groundEngine is running.
(Warm-up condition)
Idle speedqApproximately 10.5V
SEF562S
Engine is running.(Warm-up condition)
Engine speed is 2,000 rpmApproximately 10.5
SEF563S
104
105
106B ECM groundEngine is running.
Idle speedEngine ground
(Probe this terminal with
@tester probe when
measuring.)
107
108
109R Power supply for ECM
Ignition switch ªONº
BATTERY VOLTAGE
(11 - 14V)
202 B/WInjection timing control
valveEngine is running.
(Warm-up condition)
Idle speedApproximately 9V
SEF564S
Engine is running.(Warm-up condition)
Engine speed is 2,000 rpmApproximately 8V
SEF565S
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
EC-53
Page 348 of 2267

TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
204 L/W Air conditioner relayEngine is running.
Both A/C switch and blower switch are
ªONºApproximately 0.4V
Engine is running.
A/C switch is ªOFFºBATTERY VOLTAGE
(11 - 14V)
208 P EGRC-solenoid valve AEngine is running.
(Warm-up condition)
Idle speedBATTERY VOLTAGE (11
- 14V)
Engine is running.
(Warm-up condition)
Engine speed is 2,800 rpmApproximately 0.3V
214 W/R Glow relay Refer to ªGlow control Systemº.
215 OR/L Malfunction indicatorIgnition switch ªONº
Approximately 1.0V
Engine is running.
Idle speedBATTERY VOLTAGE
(11 - 14V)
218 ORMass air flow sensor
groundEngine is running.
Idle speedApproximately 0V
219 LG/RCooling fan relay
(Low speed)Engine is running.
Cooling fan is not operating.BATTERY VOLTAGE
(11 - 14V)
Engine is running.
Cooling fan is operating.Approximately 0.4V
220 LGCooling fan relay
(High speed)Engine is running.
Cooling fan is not operating.
Cooling fan is operating at low speed.BATTERY VOLTAGE
(11 - 14V)
Engine is running.
Cooling fan is operating at high speed.Approximately 0.5V
221 P/L Glow lampIgnition switch ªONº
Glow lamp is ªONº.Approximately 1.0V
Ignition switch ªONº
Glow lamp is ªOFFºBATTERY VOLTAGE
(11 - 14V)
223 W/LMass air flow sensor
power supplyIgnition switch ªONº
Approximately 5V
224 L/W Mass air flow sensorEngine is running.
(Warm-up condition)
Idle speed1.9 - 2.3V
Engine is running.
(Warm-up condition)
Engine speed is 2,000 rpm2.5 - 2.9V
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
EC-54
Page 349 of 2267

TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
320 WControl sleeve position
sensor power supplyEngine is running.
Idle speedApproximately 2.6V
SEF559S
321 BControl sleeve position
sensor groundEngine is running.Idle speedApproximately 2.6V
SEF560S
322 RControl sleeve position
sensor (Reference sig-
nal)Engine is running.(Warm-up condition)
Idle speedApproximately 2.6V
SEF561S
325 W/GEngine control module
relay (Self-shutoff)Engine is running.
Ignition switch ªLOCKº
For a few seconds after turning ignition
switch to the ªLOCKº position0-1V
Ignition switch ªLOCKº
Following a few seconds delay after turning
ignition switch to the ªLOCKº positionBATTERY VOLTAGE
(11 - 14V)
331 ORCrankshaft position sen-
sor (TDC) groundEngine is running.
Idle speedApproximately 0V
333 BNeedle lift sensor
groundIgnition switch ªONº
Approximately 0V
334
335
436B Sensors' groundEngine is running.
Idle speedApproximately 0V
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
EC-55
Page 350 of 2267
TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
344 WCrankshaft position sen-
sor (TDC) (Signal)Engine is running.
(Warm-up condition)
Idle speedApproximately 0V
NEF867
Engine is running.
Engine speed is 2,000 rpmApproximately 0V
NEF868
345 W Needle lift sensorEngine is running.
(Warm-up condition)
Idle speedApproximately 3.8 - 4.0V
NEF869
Engine is running.(Warm-up condition)
Engine speed is 2,000 rpmApproximately 3.8 - 4.0V
NEF870
347 L/BEngine coolant tempera-
ture sensorEngine is running.
0.6 - 4.8V
Output voltage varies
with engine coolant tem-
perature.
348
411R/Y Fuel temperature sensor
Engine is running.
0.6 - 4.8V
Output voltage varies
with fuel temperature.
349 SB Fuel cut solenoid valveIgnition switch ªLOCKº
Approximately 0V
Ignition switch ªONº
BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
EC-56
Page 351 of 2267

TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
403 GY Air conditioner switchEngine is running.
Both air conditioner switch and blower
switch are ªONº (Compressor operates)Approximately 0V
Engine is running.
Air conditioner switch is ªOFFºBATTERY VOLTAGE
(11 - 14V)
405 R/G Stop lamp switchIgnition switch ªONº
Brake pedal released0V
Ignition switch ªONº
Brake pedal depressedBattery voltage
(11 - 14V)
410 ORImmobilizer communica-
tionIgnition switch ªONº
BATTERY VOLTAGE
(4 - 14V)
416 R/B Brake switch 2Ignition switch ªONº
Brake pedal releasedBattery voltage
(11 -14V)
Ignition switch ªONº
Brake pedal depressed0V
417 OR/WVehicle speed sensor or
ABS actuator and elec-
tric unit (control unit)Engine is running.
Lift up the vehicle.
In 2nd gear position
Vehicle speed is 40 km/h (25 mph)0 - Approximately 4.2V
SEF552S
420 BR/W
Data link connector for
CONSULT-IIEngine is running.
Idle speed (CONSULT-II is connected and
turned on)Approximately4-9V
415 G/RApproximately 0V
425 BRAccelerator position sen-
sor groundEngine is running.
Idle speedApproximately 0V
433 LG/WAccelerator position sen-
sor power supplyIgnition switch ªONº
Approximately 5V
434 W/PUAccelerator position sen-
sorIgnition switch ªONº
Accelerator pedal released0.4 - 0.6V
Ignition switch ªONº
Accelerator pedal fully depressedApproximately 4.0V
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
EC-57
Page 352 of 2267
TER-
MINAL
NO.WIRE
COLORITEM CONDITIOND ATA
(DC Voltage and
Pulse Signal)
435 GY/RAccelerator position
switch (Idle)Ignition switch ªONº
Accelerator pedal releasedApproximately 0V
Ignition switch ªONº
Accelerator pedal depressedApproximately 2.7V
442 B/Y Start signalIgnition switch ªONº
Approximately 0V
Ignition switch ªSTARTº
BATTERY VOLTAGE
(11 - 14V)
439 L/OR TachometerEngine is running.
(Warm-up condition)
Idle speedApproximately 1.1 - 1.5V
SEF550S
Engine is running.
Engine speed is 2,000 rpmApproximately 1.1 - 1.5V
SEF551S
507 BR/Y Ignition switchIgnition switch ªLOCKº
0V
Ignition switch ªONº
BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSIS Ð General DescriptionCD20T
ECM Terminals and Reference Value (Cont'd)
