Page 529 of 2267

MONITOR ITEM CONDITION SPECIFICATION
INJ PULSE-B1IEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 2.4 - 3.2 msec
2,000 rpm 1.9 - 3.2 msec
LOAD SIGNALIEngine: runningRear window defogger or headlamp
ªONºON
Except the above OFF
B/FUEL SCHDLIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 1.5 - 2.5 msec
2,000 rpm 1.5 - 2.5 msec
IGN TIMINGIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 8É BTDC
2,000 rpm Approx. 30É BTDC
IACV-AAC/VIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 5 - 20 steps
2,000 rpm Ð
PURG VOL C/VIEngine: After warming up
INo-load
IM/T models: Lift up drive
wheels and shift to 1st gear
position.Idle 0%
Rev engine up from 2,000 to 4,000
rpm.Ð
A/F ALPHA-B1IEngine: After warming upMaintaining engine speed at 2,000
rpm75 - 125%
AIR COND RLYIAir conditioner switch: OFF,ON OFF,ON
FUEL PUMP RLYIIgnition switch is turned to ON (Operates for 1 second)
IEngine running and cranking
IWhen engine is stopped (stops in 1.5 seconds)ON
IExcept as shown above OFF
COOLING FANIAfter warming up engine, idle
the engine.
IAir conditioner switch: OFFEngine coolant temperature is 99ÉC
(210ÉF) or lessOFF
Engine coolant temperature is 100ÉC
(212ÉF) or moreON
HO2S1 HTR (B1)IEngine speed: Below 3,200 rpm ON
IEngine speed: Above 3,200 rpm OFF
HO2S2 HTR (B1)IEngine speedBelow 3,600 rpm [After driving for 2
minutes at a speed of 70 km/h (43
MPH) or more]ON
Above 3,600 rpm OFF
IIgnition switch ON (Engine stopped) OFF
INT/V SOL-B1IEngine: After warming upIdle OFF
Revving engine with full throttle open-
ing (Under 4,600 rpm)ON
EGR VOL CON/V*IEngine: After warming up
IAir conditioner switch: ªOFFº
IShift lever: ªNº
INo-loadIdle 0 step
Revving engine up to 3,000 rpm
quickly10 - 55 steps
*: If so equipped
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
CONSULT-II Reference Value in Data Monitor Mode (Cont'd)
EC-87
Page 530 of 2267

MONITOR ITEM CONDITION SPECIFICATION
HEATER FAN SWIHeater fan switch is ªONº ON
IHeater fan switch is ªOFF' OFF
CAL/LD VALUEIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle Not used
2,500 rpm Not used
ABSOL TH×P/SIEngine: Idle Throttle valve fully closed 0.0É
IIgnition switch: ON
(Engine stopped)Throttle valve fully opened Approx. 80É
MASS AIRFLOWIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: N
INo-loadIdle 1.0 - 4.0 g×m/s
2,500 rpm 5.0 - 10.0 g×m/s
IDL A/V LEARNIIgnition switch: ONIDLE AIR VOL LEARN in ACTIVE
TEST has not been performedYET
IDLE AIR VOL LEARN in ACTIVE
TEST has already been performed
successfullyCMPLT
IDLE AIR VOL LEARN in ACTIVE
TEST has not been performed suc-
cessfullyINCMP
TRVL AFTER MILIIgnition switch: ONVehicle has traveled after MI has
turned ON.0 - 65,535 km
(0 - 40,722 mile)
Major Sensor Reference Graph in Data Monitor
Mode
NCEC0043The following are the major sensor reference graphs in ªDATA MONITORº mode.
(Select ªHI SPEEDº in ªDATA MONITORº with CONSULT-II.)
THRTL POS SEN, ABSOL TH×P/S, CLSD THL POSNCEC0043S01Below is the data for ªTHRTL POS SENº, ªABSOL TH×P/Sº and ªCLSD THL POSº when depressing the accel-
erator pedal with the ignition switch ªONº.
The signal of ªTHRTL POS SENº and ªABSOL TH×P/Sº should rise gradually without any intermittent drop or
rise after ªCLSD THL POSº is changed from ªONº to ªOFFº.
ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1),
INJ PULSE-B1
NCEC0043S02Below is the data for ªENG SPEEDº, ªMAS A/F SE-B1º, ªTHRTL POS SENº, ªHO2S1 (B1)º, ªHO2S2 (B1)º and
ªINJ PULSE-B1º when revving engine quickly up to 4,800 rpm under no load after warming up engine to nor-
mal operating temperature.
Each value is for reference, the exact value may vary.
Full
Release
Full
DepressCLSD THL POS -00"09 ABSOL TH P/S -00"09 THRTL POS SEN -00"09
10:22 +02"69 10:22 % +02"69 10:22 x0.1V +02"69
OFF ON 0 25 50 75 100 0 13 26 38 51
SEF580W
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
CONSULT-II Reference Value in Data Monitor Mode (Cont'd)
EC-88
Page 531 of 2267
NEF066A
lªENG SPEEDº should increase gradually while
depressing the accelerator pedal and should
decrease gradually after releasing
the pedal without any intermittent drop.
lªMAS A/F SE-B1º should increase when
depressing the accelerator pedal and should
decrease at the moment ªTHRTL POS SENº is
closed (accelerator pedal is released).
MAS A/F SE-B1 ENG SPEED
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
Major Sensor Reference Graph in Data Monitor Mode (Cont'd)
EC-89
Page 532 of 2267

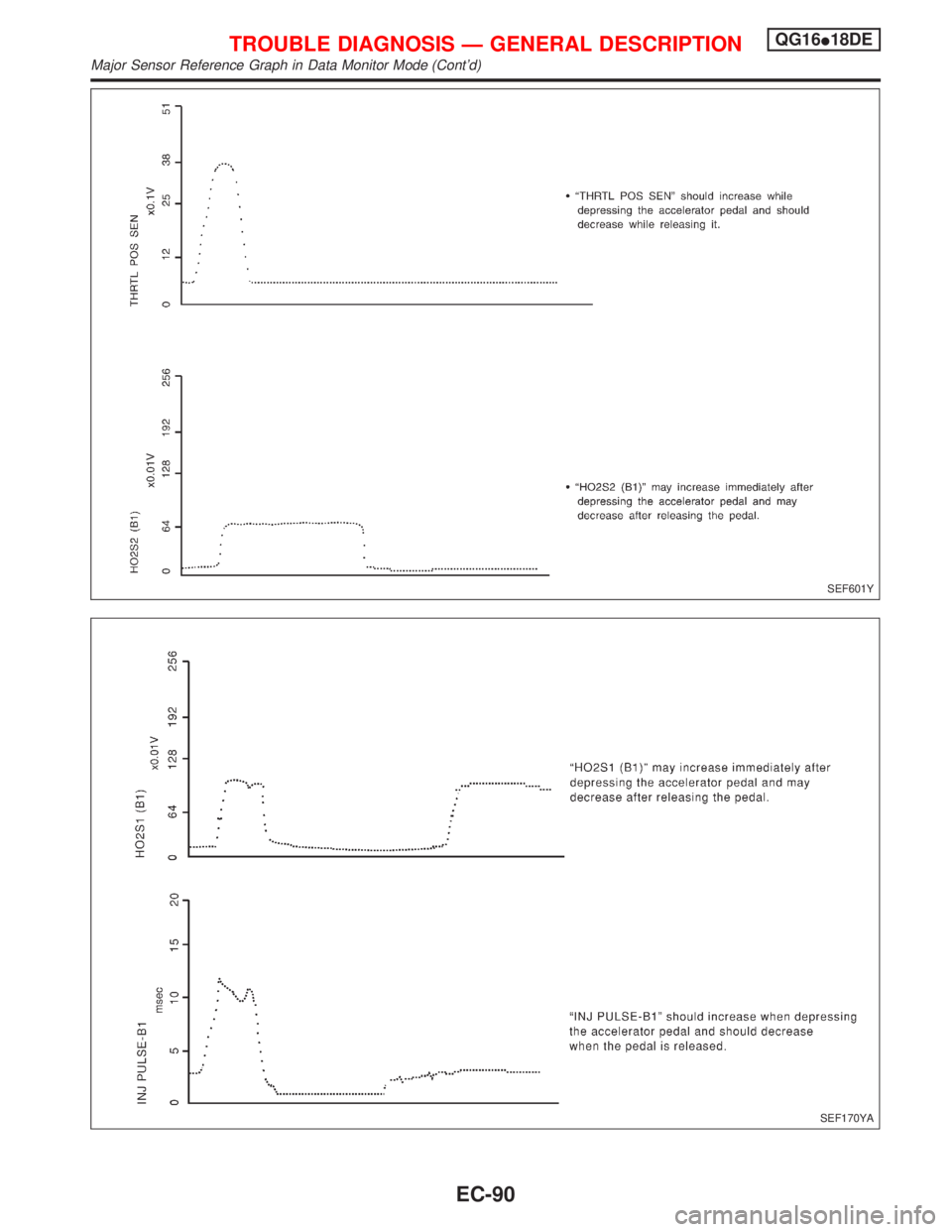

SEF601Y
SEF170YA
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
Major Sensor Reference Graph in Data Monitor Mode (Cont'd)
EC-90
Page 533 of 2267
ECM Terminals and Reference ValueNCEC0044PREPARATIONNCEC0044S011. ECM is located behind the center console. For this inspection:
Remove the front passenger center console panel.
2. Remove ECM harness protector.
3. Perform all voltage measurements with the connector con-
nected. Extend tester probe as shown to perform tests easily.
IOpen harness securing clip to make testing easier.
IUse extreme care not to touch 2 pins at one time.
IData is for comparison and may not be exact.
ECM HARNESS CONNECTOR TERMINAL LAYOUTNCEC0044S02
ECM INSPECTION TABLENCEC0044S03Specification data are reference values and are measured between
each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
SEF967W
SEF367I
SEF970W
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value
EC-91
Page 534 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 Y/RIntake valve timing con-
trol solenoid valve[Engine is running]
IIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
ILift up drive w NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 Y/RIntake valve timing con-
trol solenoid valve[Engine is running]
IIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
ILift up drive w](/manual-img/5/57377/w960_57377-533.png)
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 Y/RIntake valve timing con-
trol solenoid valve[Engine is running]
IIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
ILift up drive wheels and shift gear ªONº
IRev engine up from 1,200 to 3,000 rpmApproximately 0V
3 W/RHeated oxygen sensor
2 heater (rear)[Engine is running]
IEngine speed is below 3,600 rpm
IAfter driving for 2 minutes at a speed of 70
km/h (43 MPH) or moreApproximately 0.7V
[Ignition switch ªONº]
IEngine stopped
IEngine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
4LHeated oxygen sensor
1 heater (front)[Engine is running]
IEngine speed is below 3,200 rpmApproximately 0V
[Engine is running]
IEngine speed is above 3,200 rpmBATTERY VOLTAGE
(11 - 14V)
6
7
15
16BR
Y/B
P
ORIACV-AAC valve[Engine is running]
IWarm-up condition
IIdle speed0.1 - 14V
8*
9*
17*
18*W/B
SB
G/R
R/YEGR volume control
valve[Engine is running]
IWarm-up condition
IRev engine up from 2,000 to 4,000 rpm0 - 14V
13 LG/R Cooling fan relay[Engine is running]
ICooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
ICooling fan is operatingApproximately 0V
14 P/BEVAP canister purge
volume control valve
(ON/OFF duty)[Engine is running]
IWarm-up condition
IAccelerator pedal depressed5 - 12V
SEF975W
21 B/P Fuel pump relay[Ignition switch ªONº]
IFor 1 second after turning ignition switch ªONº
[Engine is running]0-1V
[Ignition switch ªONº]
IMore than 1 second after turning ignition switch
ªONºBATTERY VOLTAGE
(11 - 14V)
22 OR/L Malfunction indicator[Ignition switch ªONº]0-1V
[Engine is running]
IIdle speedBATTERY VOLTAGE
(11 - 14V)
23 L/W Air conditioner relay[Engine is running]
IBoth A/C switch and blower switch are ªONºApproximately 0V
[Engine is running]
IA/C switch is ªOFFºBATTERY VOLTAGE
(11 - 14V)
*: If so equipped
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-92
Page 535 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
31 W/GECM relay (Self shut-
off)[Ignition switch ªOFFº]
IFor 9 seconds after turning ignition switch
ªOFFº0-1V
[Ignition switch ªOFFº]
I9 NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
31 W/GECM relay (Self shut-
off)[Ignition switch ªOFFº]
IFor 9 seconds after turning ignition switch
ªOFFº0-1V
[Ignition switch ªOFFº]
I9](/manual-img/5/57377/w960_57377-534.png)
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

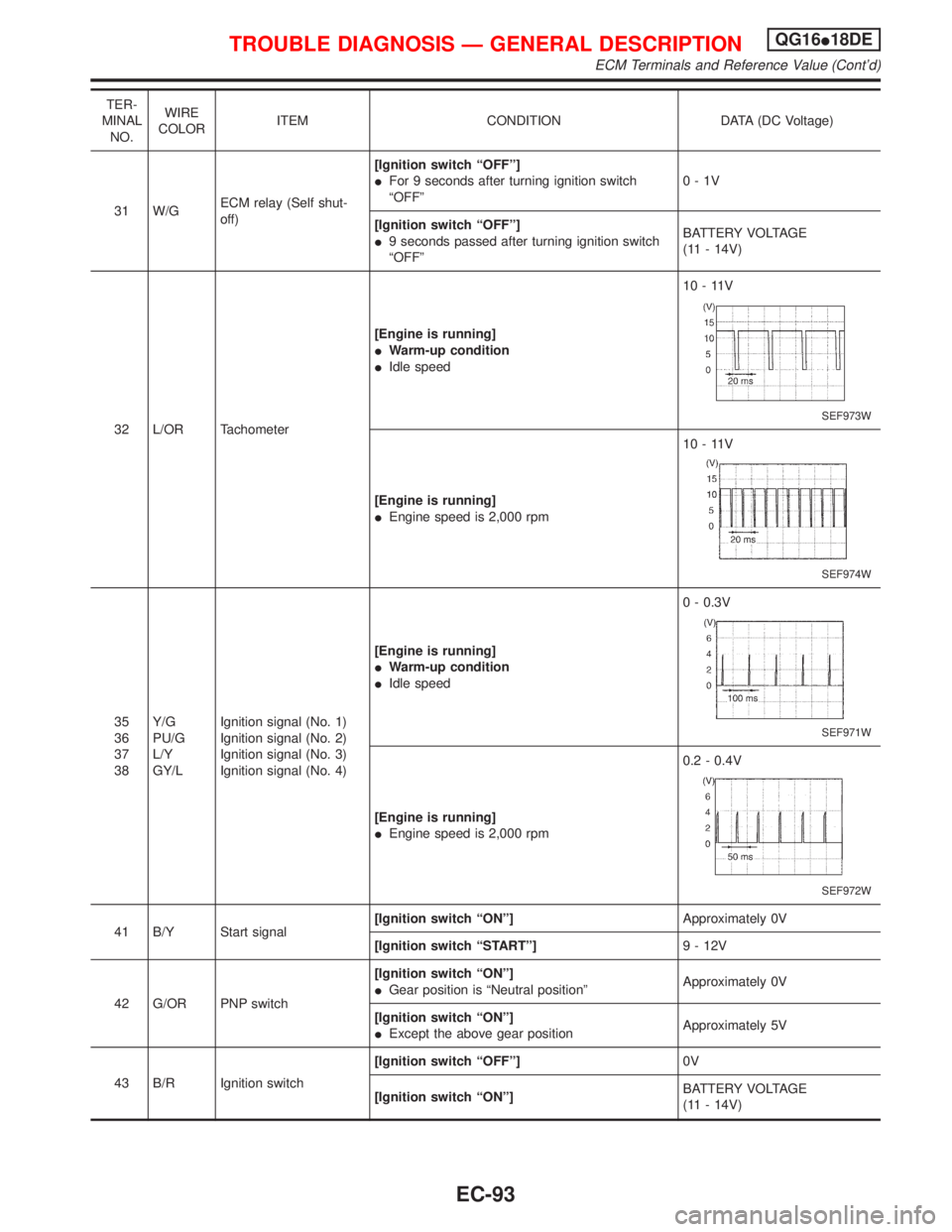

31 W/GECM relay (Self shut-
off)[Ignition switch ªOFFº]
IFor 9 seconds after turning ignition switch
ªOFFº0-1V
[Ignition switch ªOFFº]
I9 seconds passed after turning ignition switch
ªOFFºBATTERY VOLTAGE
(11 - 14V)
32 L/OR Tachometer[Engine is running]
IWarm-up condition
IIdle speed10-11V
SEF973W
[Engine is running]
IEngine speed is 2,000 rpm10-11V
SEF974W
35
36
37
38Y/G
PU/G
L/Y
GY/LIgnition signal (No. 1)
Ignition signal (No. 2)
Ignition signal (No. 3)
Ignition signal (No. 4)[Engine is running]
IWarm-up condition
IIdle speed0 - 0.3VSEF971W
[Engine is running]
IEngine speed is 2,000 rpm0.2 - 0.4V
SEF972W
41 B/Y Start signal[Ignition switch ªONº]Approximately 0V
[Ignition switch ªSTARTº]9 - 12V
42 G/OR PNP switch[Ignition switch ªONº]
IGear position is ªNeutral positionºApproximately 0V
[Ignition switch ªONº]
IExcept the above gear positionApproximately 5V
43 B/R Ignition switch[Ignition switch ªOFFº]0V
[Ignition switch ªONº]BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-93
Page 536 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
44 GY Air conditioner switch[Engine is running]
IBoth air conditioner switch and blower switch
are ªONº (Compressor operates)Approximately 0V NISSAN PRIMERA 1999 Electronic Repair Manual TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
44 GY Air conditioner switch[Engine is running]
IBoth air conditioner switch and blower switch
are ªONº (Compressor operates)Approximately 0V](/manual-img/5/57377/w960_57377-535.png)
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
44 GY Air conditioner switch[Engine is running]
IBoth air conditioner switch and blower switch
are ªONº (Compressor operates)Approximately 0V
[Engine is running]
IAir conditioner switch is ªOFFºApproximately 5V
46 PU/WPower steering oil pres-
sure switch[Engine is running]
ISteering wheel is fully turnedApproximately 0V
[Engine is running]
ISteering wheel is not turnedApproximately 5V
48 B ECM ground[Engine is running]
IIdle speedEngine ground
50 RElectrical load signal
(Headlamp
Rear defogger)[Engine is running]
IHeadlamp switch or rear defogger switch is
ªONºBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
IHeadlamp switch and rear defogger switch are
ªOFFºApproximately 0V
51 LG/B Blower fan SW[Ignition switch ªONº]
IBlower fan switch is ªONºApproximately 0V
57 B ECM ground[Engine is running]
IIdle speedEngine ground
58 B Sensors' ground[Engine is running]
IWarm-up condition
IIdle speedApproximately 0V
61 B Mass air flow sensor[Engine is running]
IWarm-up condition
IIdle speed1.0 - 1.7V
[Engine is running]
IWarm-up condition
IEngine speed is 2,500 rpm1.5 - 2.1V
62 RHeated oxygen sensor
1 (front)[Engine is running]
IWarm-up condition
IEngine speed is 2,000 rpm0 - Approximately 0.7V
SEF008W
63 LHeated oxygen sensor
2 (rear)[Engine is running]
IAfter warming up to normal operating tempera-
ture and engine speed is 3,000 rpm0 - Approximately 1.0V
64 GIntake air temperature
sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with
intake air temperature
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONQG16I18DE
ECM Terminals and Reference Value (Cont'd)
EC-94
