Page 73 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram Ð AT Ð TCVNCAT0207 M48 GY/R GY/RF102 GY/R M48 F71 AT-TCV-01 M53 5 15 16 17 1918620414313212721822923W 3 21LU DUTY SOL 9 11110 24 W 3 2 1 45678 910 11 12 13 14 15 16 17 18 19 20 21 22

Page 74 of 2267

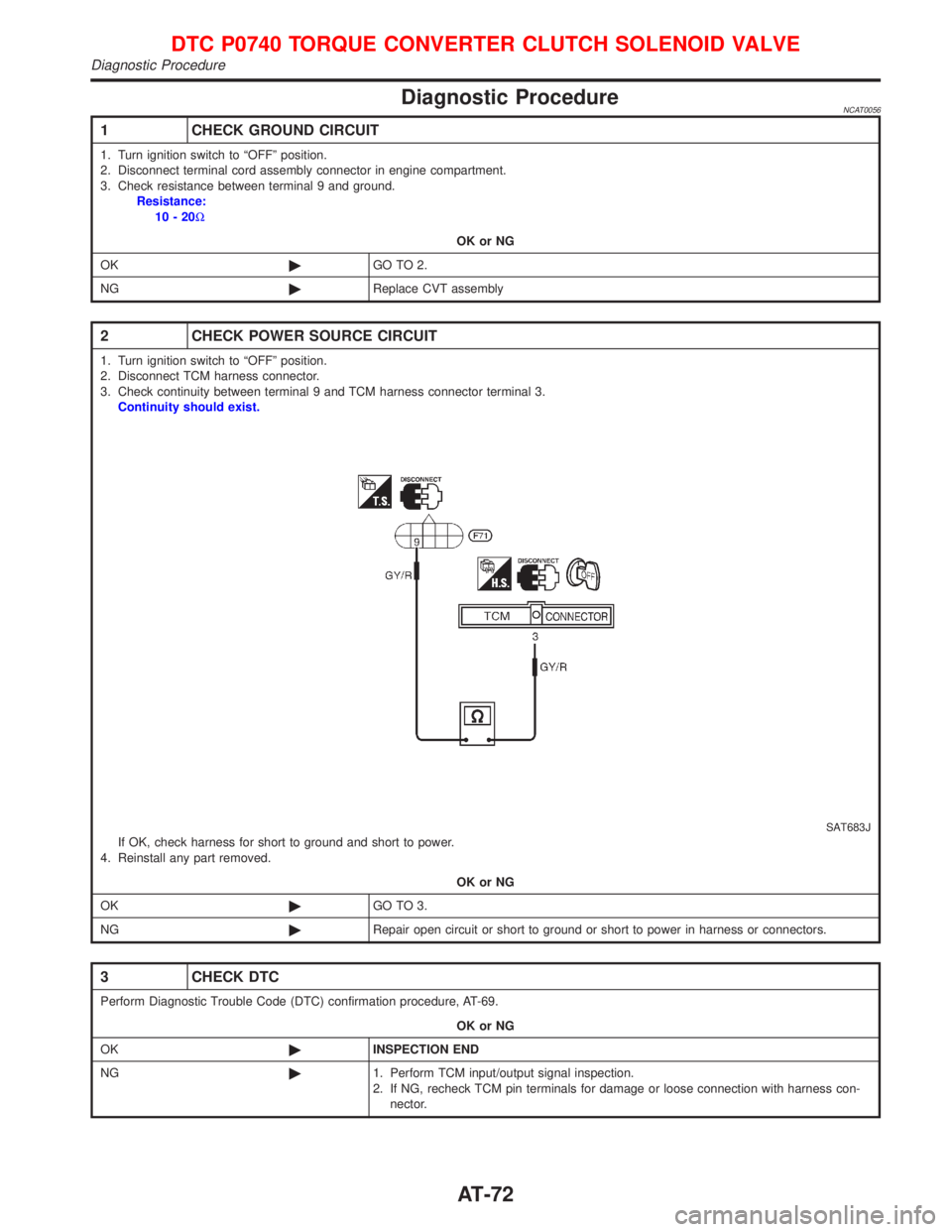

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCAT0056 1 CHECK GROUND CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between termi

Page 75 of 2267

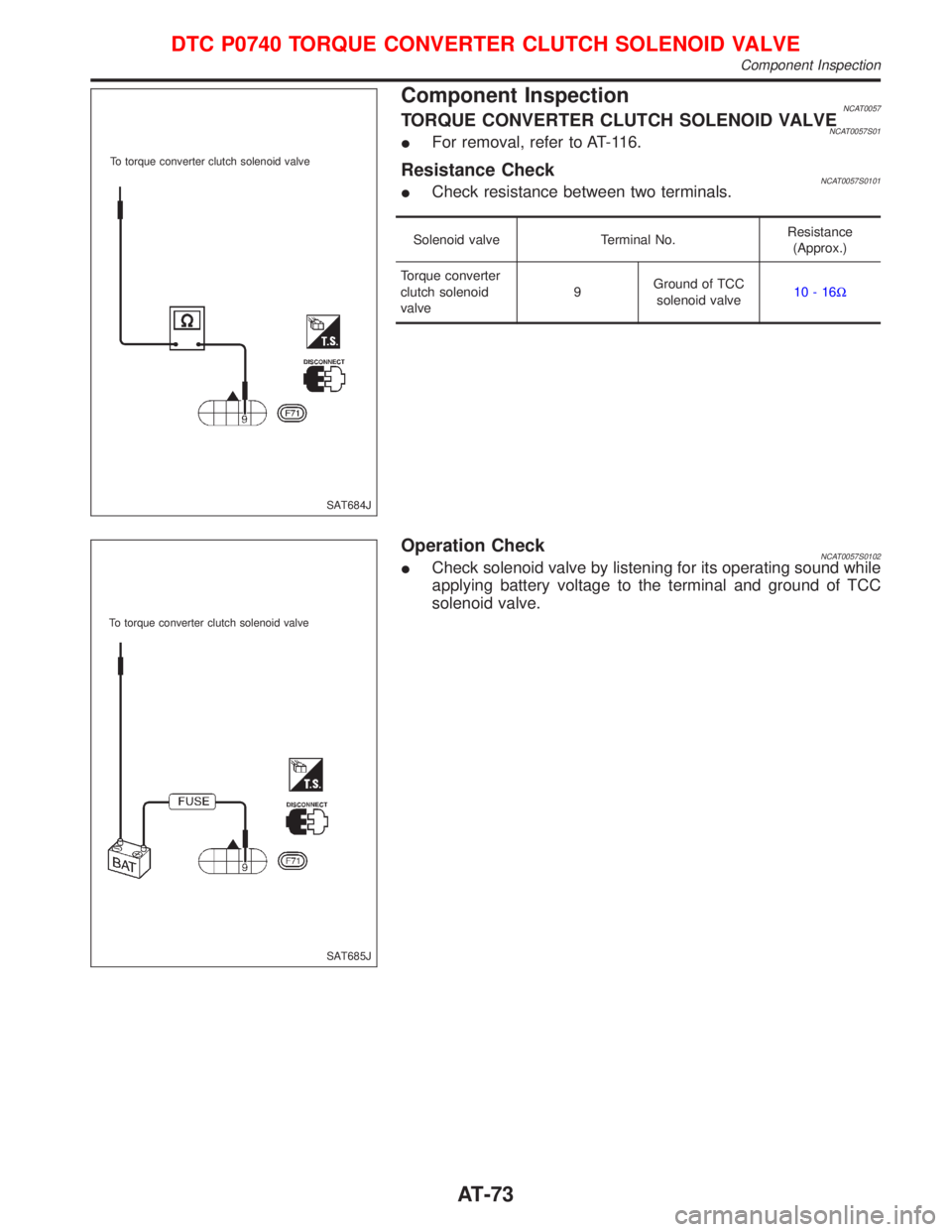

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNCAT0057TORQUE CONVERTER CLUTCH SOLENOID VALVENCAT0057S01IFor removal, refer to AT-116. Resistance CheckNCAT0057S0101ICheck resistance between two terminals. Solenoid valve Termina

Page 76 of 2267

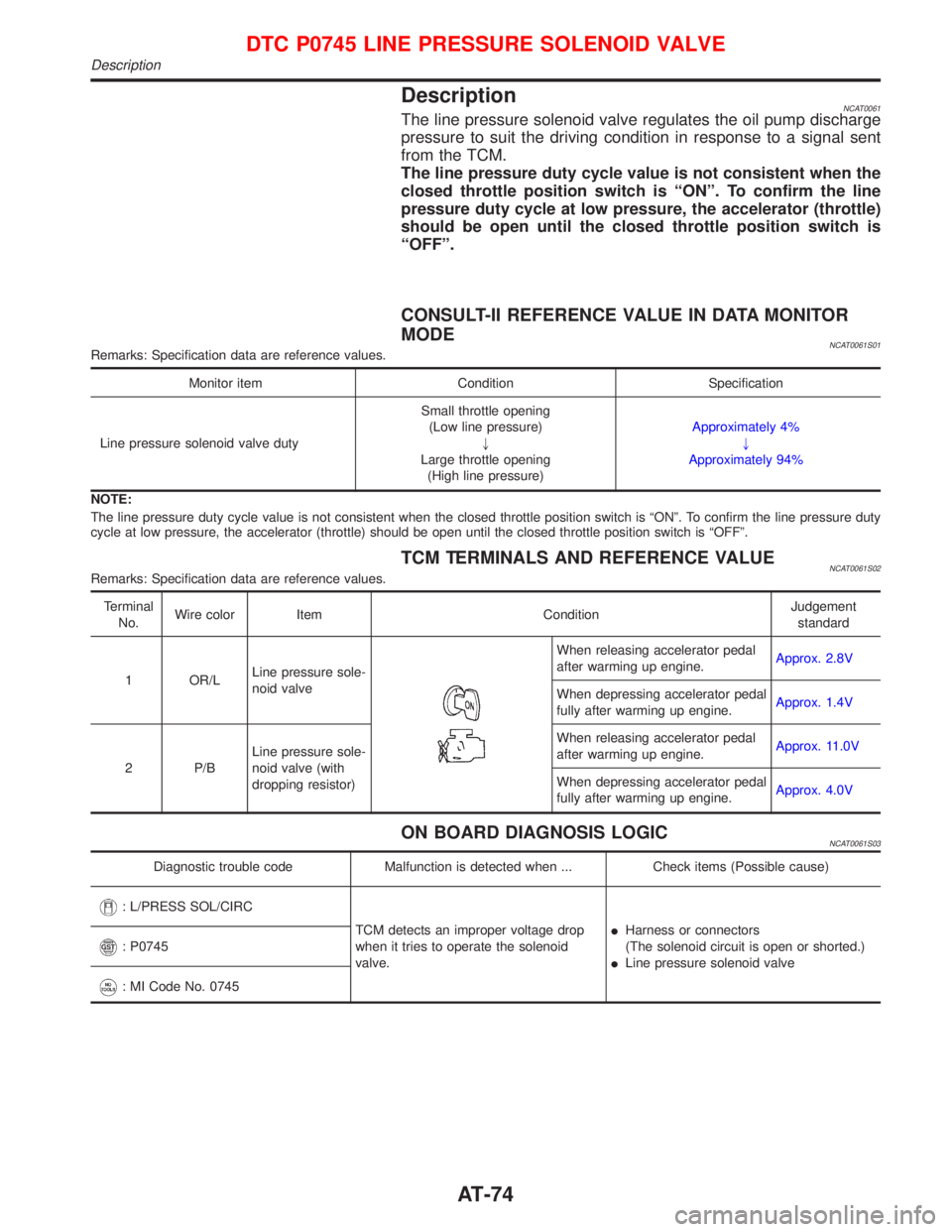

NISSAN PRIMERA 1999 Electronic Repair Manual DescriptionNCAT0061The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM. The line pressure duty cycle valu

Page 77 of 2267

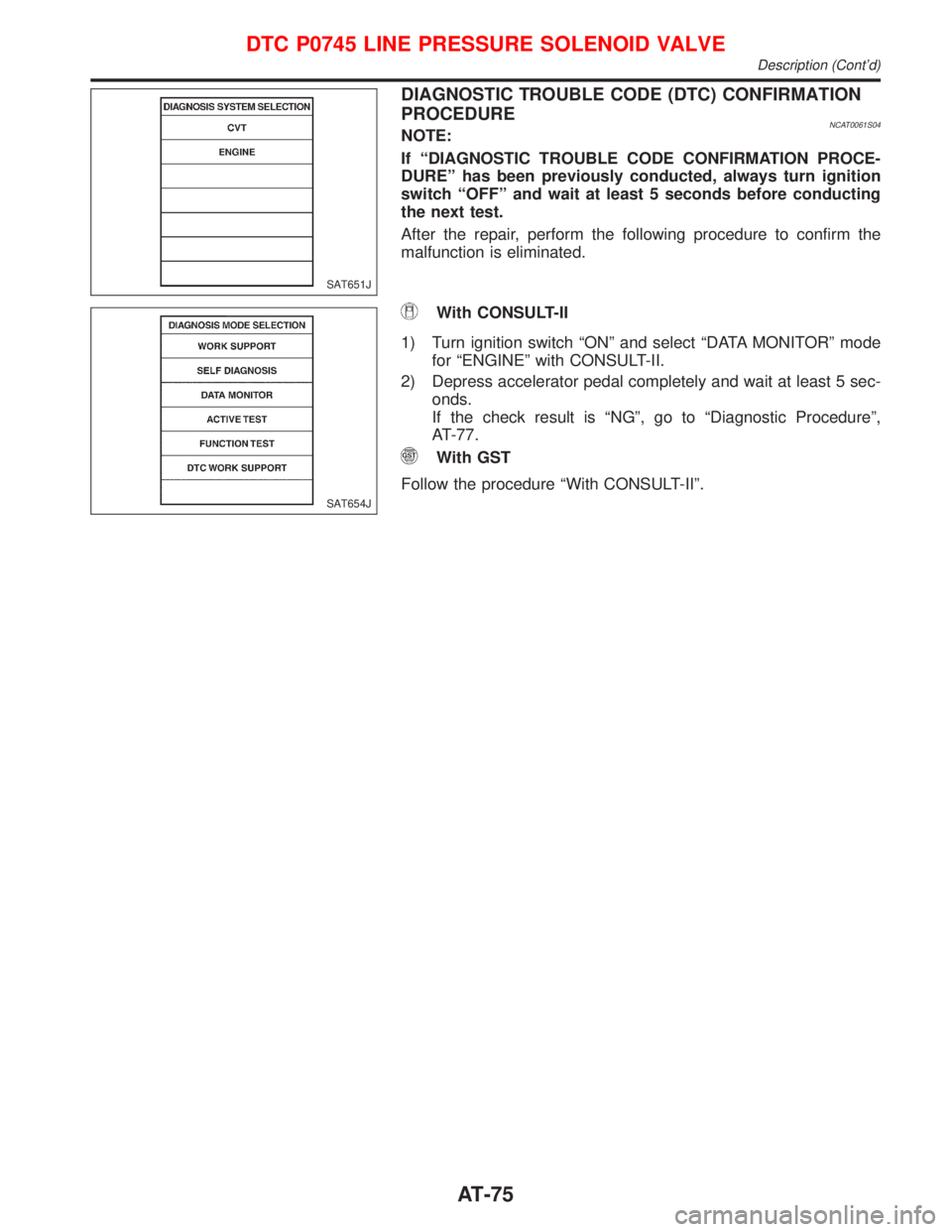

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NCAT0061S04NOTE: If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº has been previously conducted, always turn ignition switch ªOFFº and wai

Page 78 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram Ð AT Ð LPSVNCAT0209 OR/L P/B OR/L P/B OR/L P/B P/B OR/L22 20M53 M48 OR/L M48 F86F102F71 AT-LPSV-01 515 16 17 1918620414313212721822923W 1 PL DUTY SOL 8 2 2 1F86 11110 24 PL DUTY SOL (

Page 79 of 2267

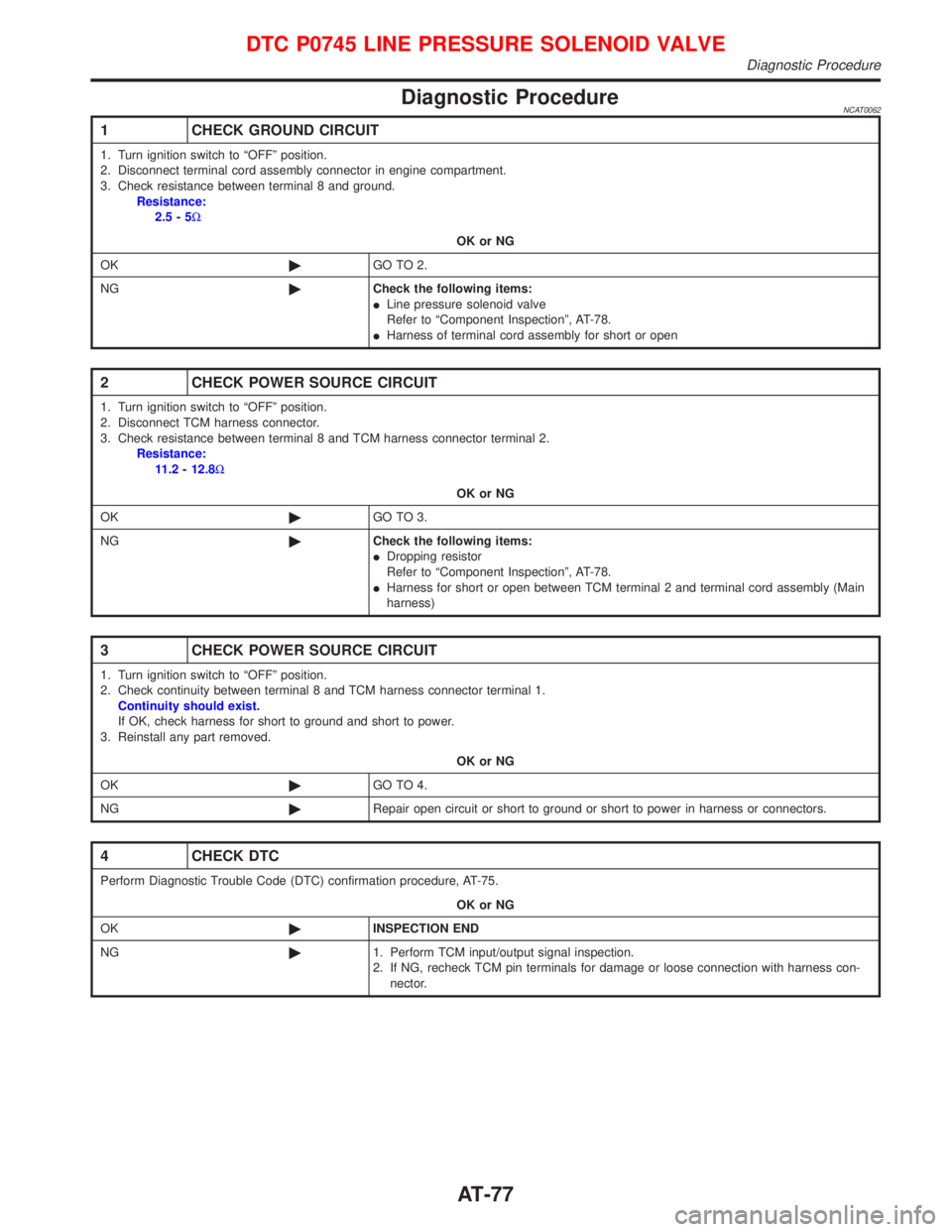

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCAT0062 1 CHECK GROUND CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between termi

Page 80 of 2267

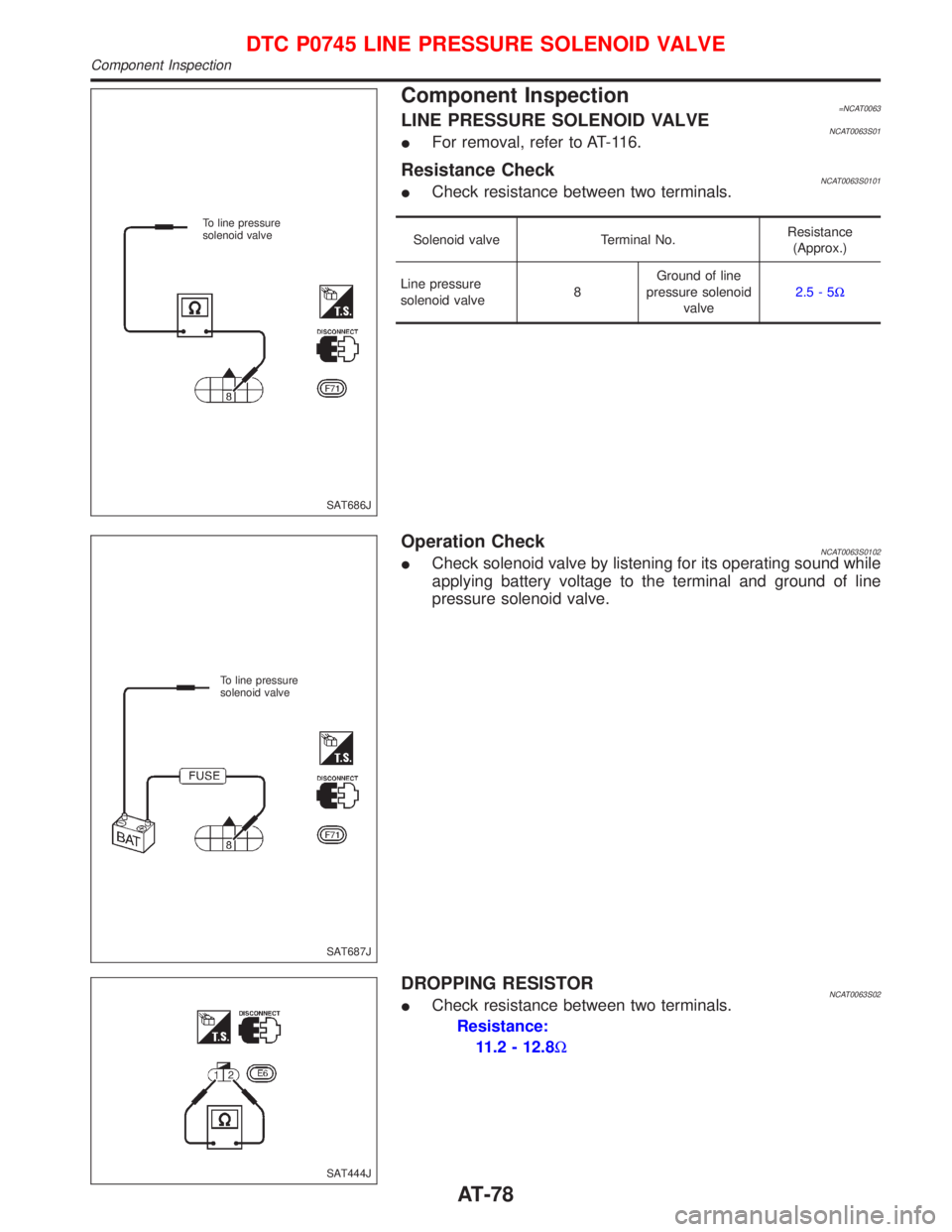

NISSAN PRIMERA 1999 Electronic Repair Manual Component Inspection=NCAT0063LINE PRESSURE SOLENOID VALVENCAT0063S01IFor removal, refer to AT-116. Resistance CheckNCAT0063S0101ICheck resistance between two terminals. Solenoid valve Terminal No.Resi
