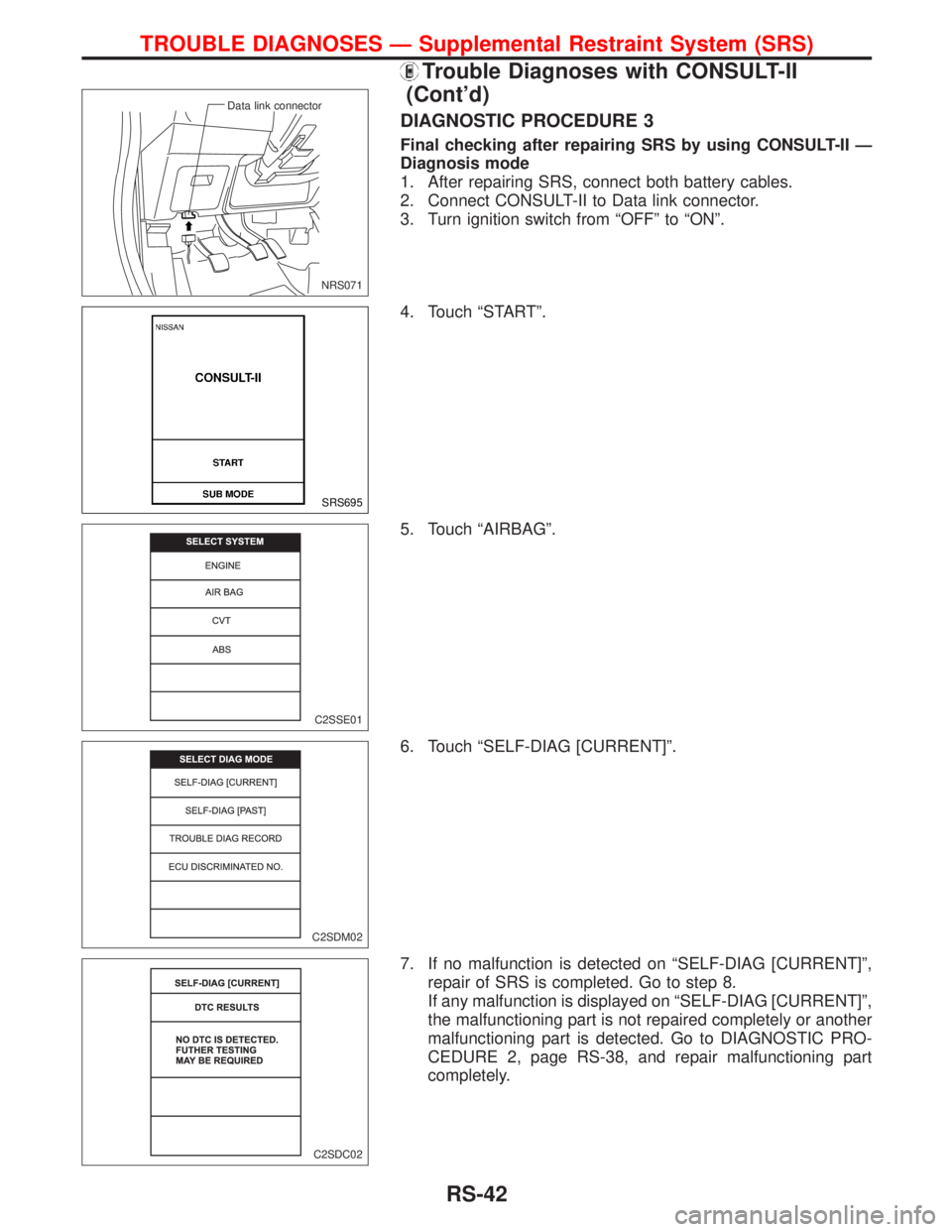

Page 2225 of 2267
DIAGNOSTIC PROCEDURE 3
Final checking after repairing SRS by using CONSULT-II Ð
Diagnosis mode
1. After repairing SRS, connect both battery cables.
2. Connect CONSULT-II to Data link connector.
3. Turn ignition switch from ªOFFº to ªONº.
4. Touch ªSTARTº.
5. Touch ªAIRBAGº.
6. Touch ªSELF-DIAG [CURRENT]º.
7. If no malfunction is detected on ªSELF-DIAG [CURRENT]º,
repair of SRS is completed. Go to step 8.
If any malfunction is displayed on ªSELF-DIAG [CURRENT]º,
the malfunctioning part is not repaired completely or another
malfunctioning part is detected. Go to DIAGNOSTIC PRO-
CEDURE 2, page RS-38, and repair malfunctioning part
completely.
NRS071 Data link connector
SRS695
C2SSE01
C2SDM02
C2SDC02
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-42
Page 2226 of 2267

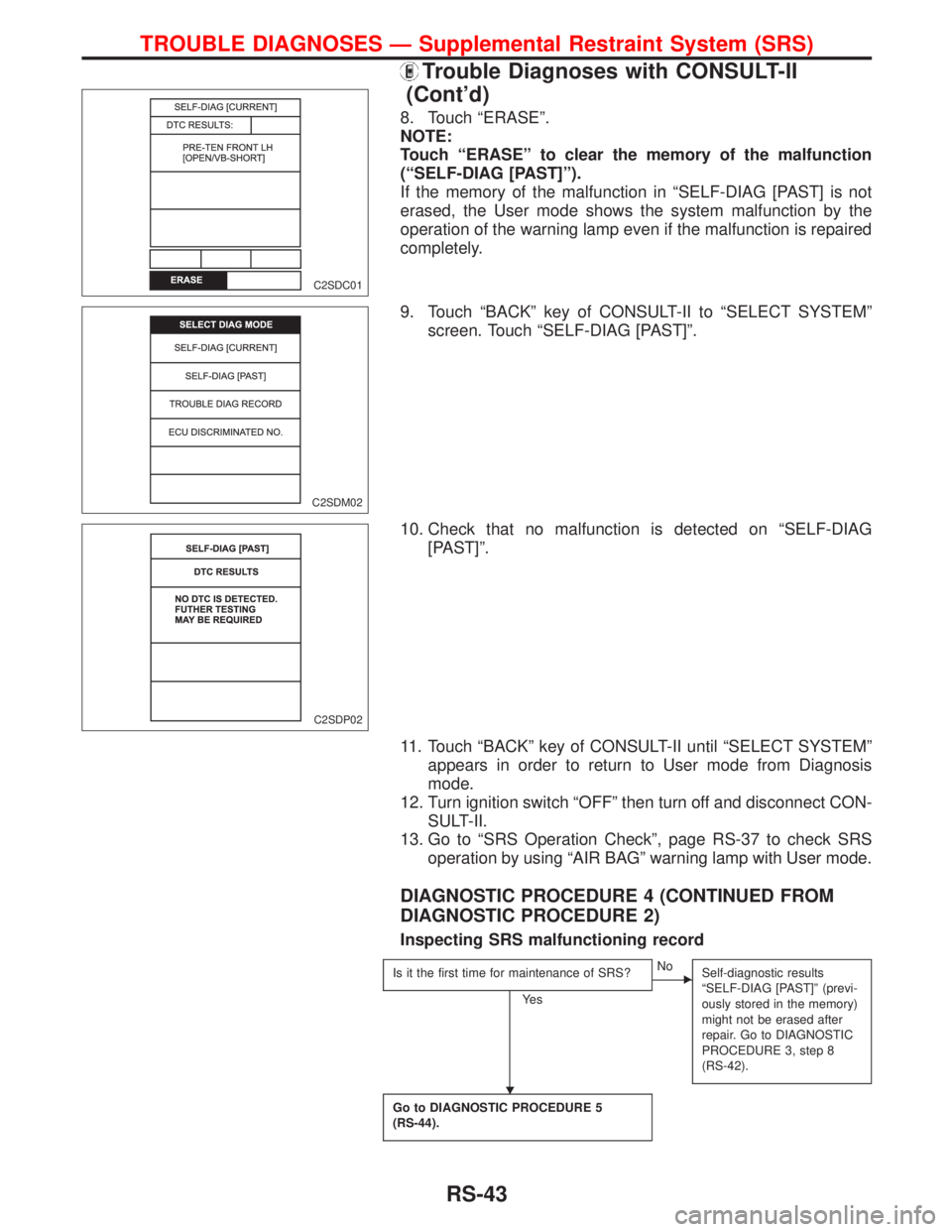

![NISSAN PRIMERA 1999 Electronic Repair Manual 8. Touch ªERASEº.
NOTE:
Touch ªERASEº to clear the memory of the malfunction
(ªSELF-DIAG [PAST]º).
If the memory of the malfunction in ªSELF-DIAG [PAST] is not
erased, the User mode shows the s NISSAN PRIMERA 1999 Electronic Repair Manual 8. Touch ªERASEº.
NOTE:
Touch ªERASEº to clear the memory of the malfunction
(ªSELF-DIAG [PAST]º).
If the memory of the malfunction in ªSELF-DIAG [PAST] is not
erased, the User mode shows the s](/manual-img/5/57377/w960_57377-2225.png)
8. Touch ªERASEº.
NOTE:
Touch ªERASEº to clear the memory of the malfunction
(ªSELF-DIAG [PAST]º).
If the memory of the malfunction in ªSELF-DIAG [PAST] is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.
9. Touch ªBACKº key of CONSULT-II to ªSELECT SYSTEMº
screen. Touch ªSELF-DIAG [PAST]º.
10. Check that no malfunction is detected on ªSELF-DIAG
[PAST]º.
11. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears in order to return to User mode from Diagnosis
mode.
12. Turn ignition switch ªOFFº then turn off and disconnect CON-
SULT-II.
13. Go to ªSRS Operation Checkº, page RS-37 to check SRS
operation by using ªAIR BAGº warning lamp with User mode.
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)
Inspecting SRS malfunctioning record
Is it the first time for maintenance of SRS?
Ye s
ENo
Self-diagnostic results
ªSELF-DIAG [PAST]º (previ-
ously stored in the memory)
might not be erased after
repair. Go to DIAGNOSTIC
PROCEDURE 3, step 8
(RS-42).
Go to DIAGNOSTIC PROCEDURE 5
(RS-44).
C2SDC01
C2SDM02
C2SDP02
H
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-43
Page 2227 of 2267

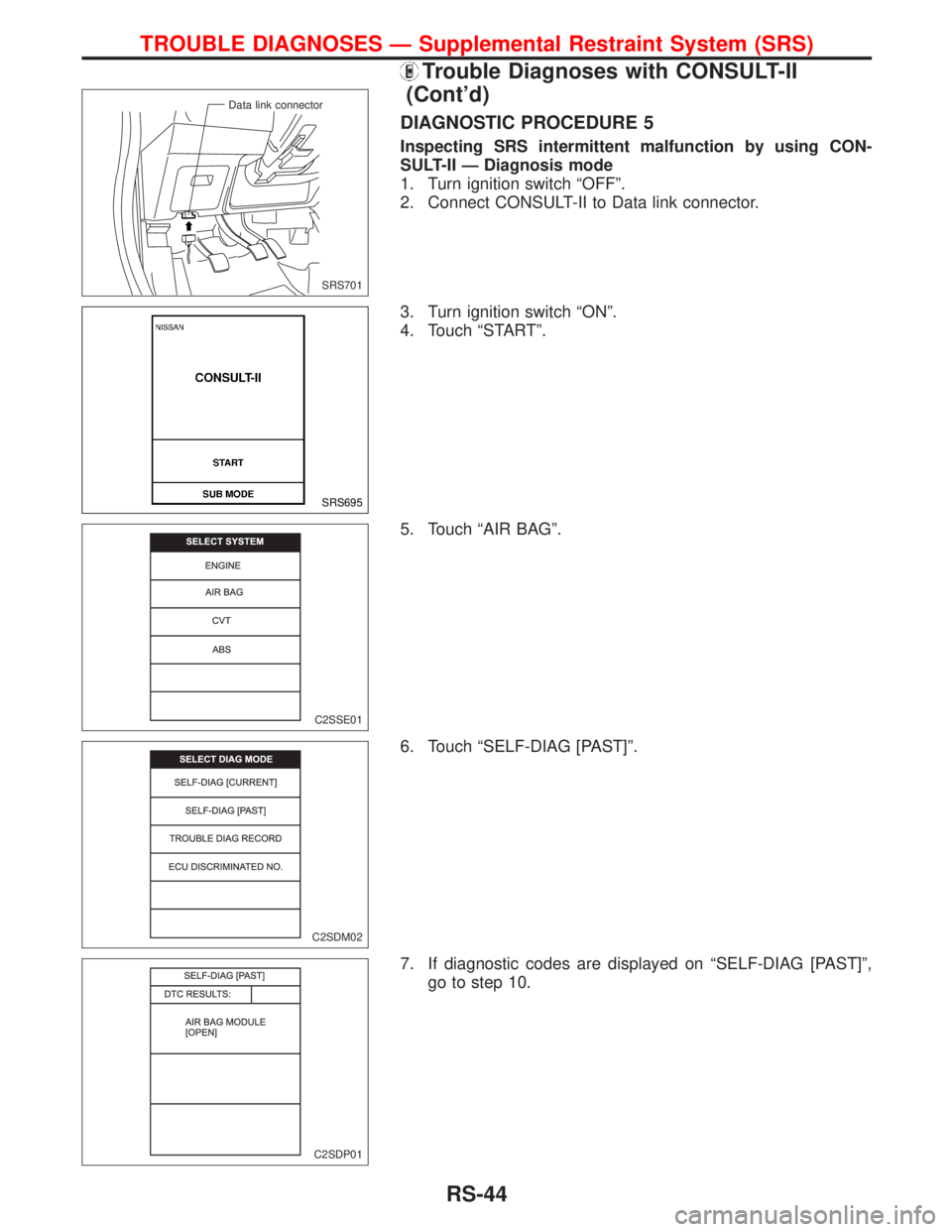

DIAGNOSTIC PROCEDURE 5
Inspecting SRS intermittent malfunction by using CON-
SULT-II Ð Diagnosis mode
1. Turn ignition switch ªOFFº.
2. Connect CONSULT-II to Data link connector.
3. Turn ignition switch ªONº.
4. Touch ªSTARTº.
5. Touch ªAIR BAGº.
6. Touch ªSELF-DIAG [PAST]º.
7. If diagnostic codes are displayed on ªSELF-DIAG [PAST]º,
go to step 10.
SRS701 Data link connector
SRS695
C2SSE01
C2SDM02
C2SDP01
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-44
Page 2228 of 2267

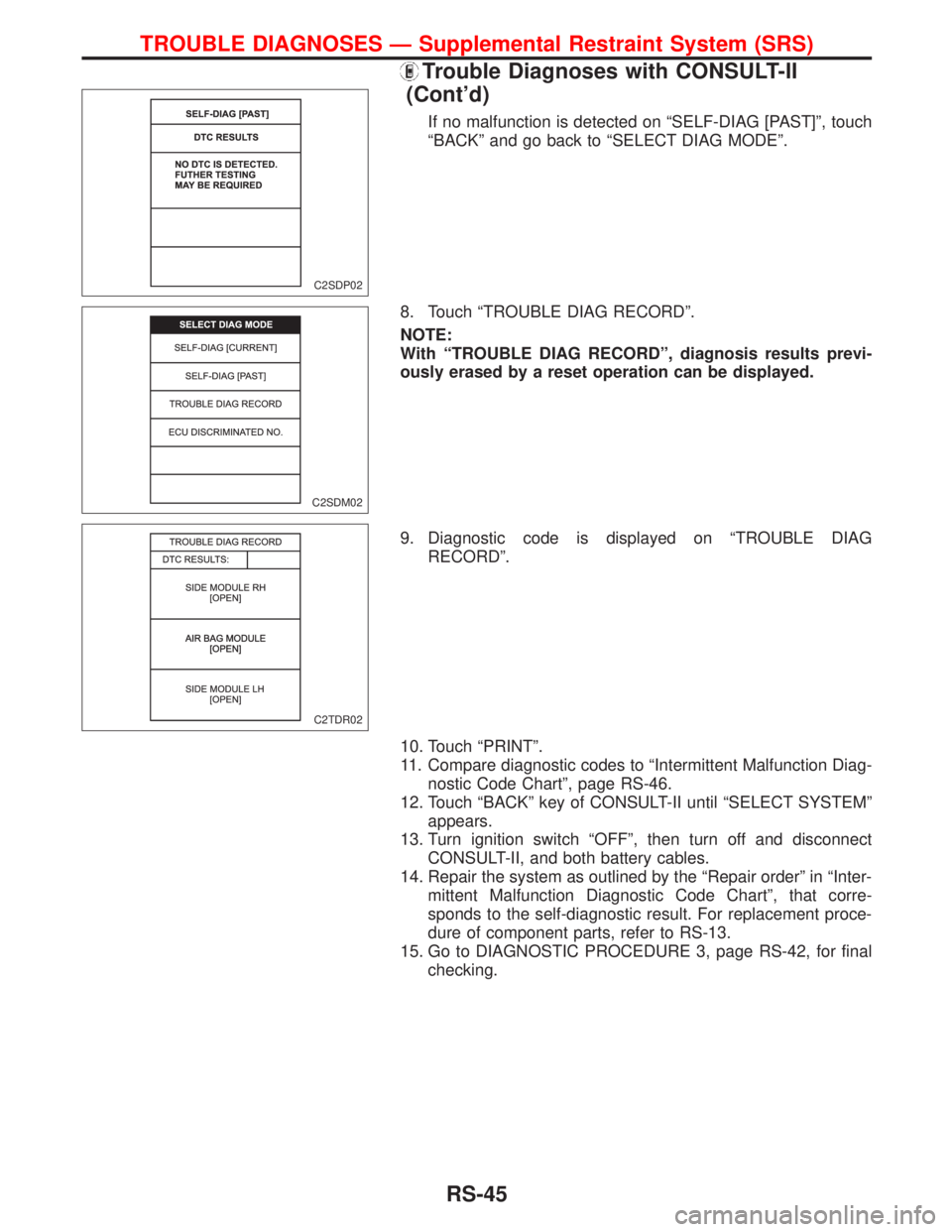

![NISSAN PRIMERA 1999 Electronic Repair Manual If no malfunction is detected on ªSELF-DIAG [PAST]º, touch
ªBACKº and go back to ªSELECT DIAG MODEº.
8. Touch ªTROUBLE DIAG RECORDº.
NOTE:
With ªTROUBLE DIAG RECORDº, diagnosis results previ NISSAN PRIMERA 1999 Electronic Repair Manual If no malfunction is detected on ªSELF-DIAG [PAST]º, touch
ªBACKº and go back to ªSELECT DIAG MODEº.
8. Touch ªTROUBLE DIAG RECORDº.
NOTE:
With ªTROUBLE DIAG RECORDº, diagnosis results previ](/manual-img/5/57377/w960_57377-2227.png)
If no malfunction is detected on ªSELF-DIAG [PAST]º, touch
ªBACKº and go back to ªSELECT DIAG MODEº.
8. Touch ªTROUBLE DIAG RECORDº.
NOTE:
With ªTROUBLE DIAG RECORDº, diagnosis results previ-
ously erased by a reset operation can be displayed.
9. Diagnostic code is displayed on ªTROUBLE DIAG
RECORDº.
10. Touch ªPRINTº.
11. Compare diagnostic codes to ªIntermittent Malfunction Diag-
nostic Code Chartº, page RS-46.
12. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears.
13. Turn ignition switch ªOFFº, then turn off and disconnect
CONSULT-II, and both battery cables.
14. Repair the system as outlined by the ªRepair orderº in ªInter-
mittent Malfunction Diagnostic Code Chartº, that corre-
sponds to the self-diagnostic result. For replacement proce-
dure of component parts, refer to RS-13.
15. Go to DIAGNOSTIC PROCEDURE 3, page RS-42, for final
checking.
C2SDP02
C2SDM02
C2TDR02
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-45
Page 2229 of 2267

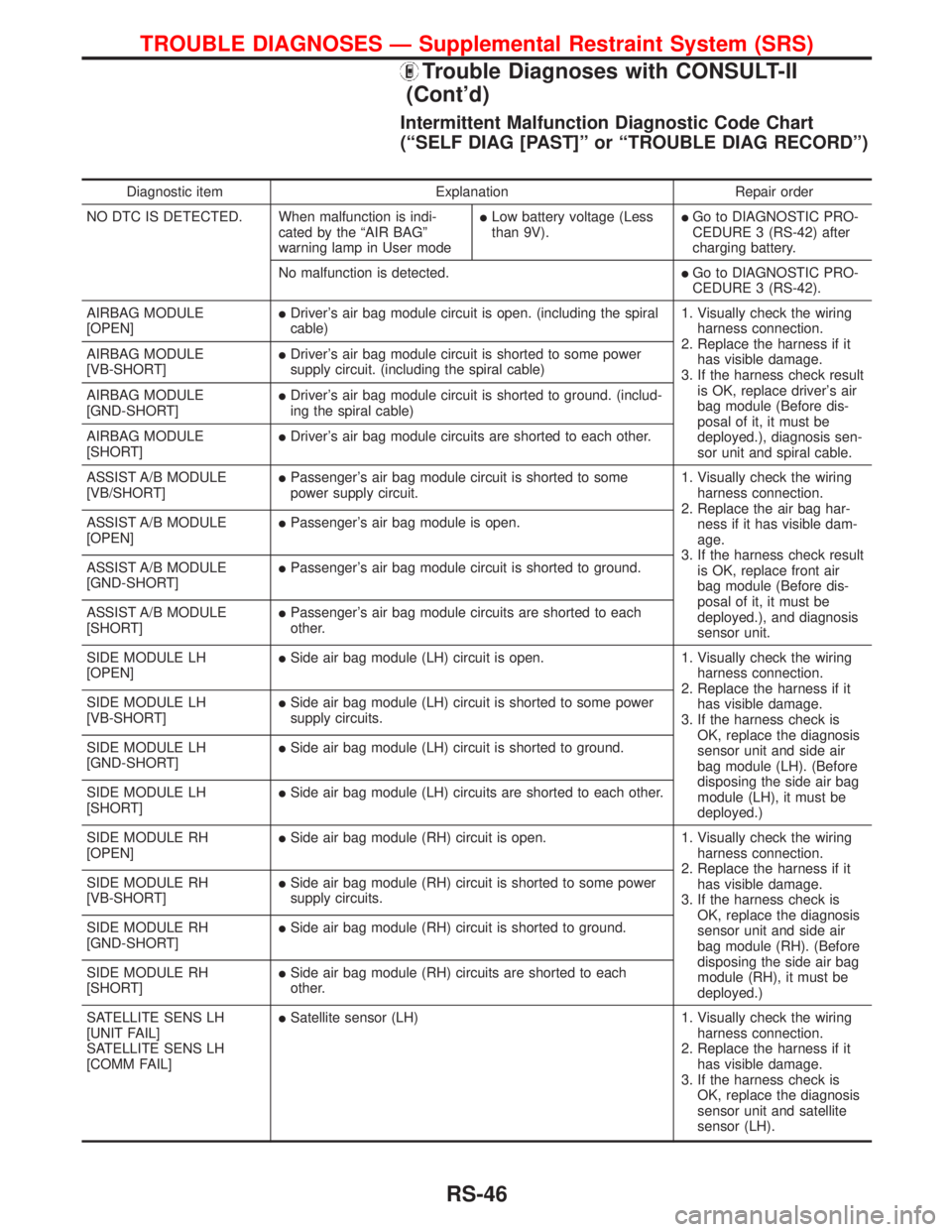

![NISSAN PRIMERA 1999 Electronic Repair Manual Intermittent Malfunction Diagnostic Code Chart
(ªSELF DIAG [PAST]º or ªTROUBLE DIAG RECORDº)
Diagnostic item Explanation Repair order
NO DTC IS DETECTED. When malfunction is indi-
cated by the ªA NISSAN PRIMERA 1999 Electronic Repair Manual Intermittent Malfunction Diagnostic Code Chart
(ªSELF DIAG [PAST]º or ªTROUBLE DIAG RECORDº)
Diagnostic item Explanation Repair order
NO DTC IS DETECTED. When malfunction is indi-
cated by the ªA](/manual-img/5/57377/w960_57377-2228.png)
Intermittent Malfunction Diagnostic Code Chart
(ªSELF DIAG [PAST]º or ªTROUBLE DIAG RECORDº)
Diagnostic item Explanation Repair order
NO DTC IS DETECTED. When malfunction is indi-
cated by the ªAIR BAGº
warning lamp in User mode
lLow battery voltage (Less
than 9V).lGo to DIAGNOSTIC PRO-
CEDURE 3 (RS-42) after
charging battery.
No malfunction is detected.
lGo to DIAGNOSTIC PRO-
CEDURE 3 (RS-42).
AIRBAG MODULE
[OPEN]
lDriver's air bag module circuit is open. (including the spiral
cable)1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check result
is OK, replace driver's air
bag module (Before dis-
posal of it, it must be
deployed.), diagnosis sen-
sor unit and spiral cable. AIRBAG MODULE
[VB-SHORT]
lDriver's air bag module circuit is shorted to some power
supply circuit. (including the spiral cable)
AIRBAG MODULE
[GND-SHORT]
lDriver's air bag module circuit is shorted to ground. (includ-
ing the spiral cable)
AIRBAG MODULE
[SHORT]
lDriver's air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[VB/SHORT]
lPassenger's air bag module circuit is shorted to some
power supply circuit.1. Visually check the wiring
harness connection.
2. Replace the air bag har-
ness if it has visible dam-
age.
3. If the harness check result
is OK, replace front air
bag module (Before dis-
posal of it, it must be
deployed.), and diagnosis
sensor unit. ASSIST A/B MODULE
[OPEN]
lPassenger's air bag module is open.
ASSIST A/B MODULE
[GND-SHORT]
lPassenger's air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
lPassenger's air bag module circuits are shorted to each
other.
SIDE MODULE LH
[OPEN]
lSide air bag module (LH) circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and side air
bag module (LH). (Before
disposing the side air bag
module (LH), it must be
deployed.) SIDE MODULE LH
[VB-SHORT]
lSide air bag module (LH) circuit is shorted to some power
supply circuits.
SIDE MODULE LH
[GND-SHORT]
lSide air bag module (LH) circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
lSide air bag module (LH) circuits are shorted to each other.
SIDE MODULE RH
[OPEN]
lSide air bag module (RH) circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and side air
bag module (RH). (Before
disposing the side air bag
module (RH), it must be
deployed.) SIDE MODULE RH
[VB-SHORT]
lSide air bag module (RH) circuit is shorted to some power
supply circuits.
SIDE MODULE RH
[GND-SHORT]
lSide air bag module (RH) circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
lSide air bag module (RH) circuits are shorted to each
other.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]
lSatellite sensor (LH) 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and satellite
sensor (LH).
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-46
Page 2230 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic item Explanation Repair order
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
lSatellite sensor (RH) 1. Visually check the wiring
harness connection.
2. Replace the harness if i NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic item Explanation Repair order
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
lSatellite sensor (RH) 1. Visually check the wiring
harness connection.
2. Replace the harness if i](/manual-img/5/57377/w960_57377-2229.png)
Diagnostic item Explanation Repair order
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
lSatellite sensor (RH) 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and satellite
sensor (RH).
PRE-TEN LH
[OPEN/VB-SHORT]
lThe circuit for LH seat belt pre-tensioner is open or shorted
to some power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and LH seat
belt. (Before disposing the
LH seat belt pre-tensioner,
if must be deployed.) PRE-TEN LH
[GND-SHORT]
lThe circuit for LH seat belt pre-tensioner is shorted to
ground.
PRE-TEN RH
[OPEN/VB-SHORT]
lThe circuit for RH seat belt pre-tensioner is open or shorted
to some power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit and RH seat
belt. (Before disposing the
RH seat belt pre-tensioner,
if must be deployed.) PRE-TEN RH
[GND-SHORT]
lThe circuit for RH seat belt pre-tensioner is shorted to
ground.
CONTROL UNIT
lDiagnosis sensor unit is malfunctioning. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. If the harness check is
OK, replace the diagnosis
sensor unit.
* Follow the procedures in numerical order when repairing malfunctioning parts, then make the final system check.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses with CONSULT-II
(Cont'd)
RS-47
Page 2231 of 2267
Trouble Diagnoses without CONSULT-II
DIAGNOSTIC PROCEDURE 6
Inspecting SRS malfunction parts by using ªAIR BAGº
warning lamp Ð Diagnosis mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is
detected in User mode.
1. Turn ignition switch ªONº.
2. After ªAIR BAGº warning lamp lights for 7 seconds, turn igni-
tion switch ªOFFº within 1 second.
3. Wait more than 3 seconds.
4. Repeat steps 1 to 3 three times.
5. Turn ignition switch ªONº.
SRS is now in Diagnosis mode.
6. ªAIR BAGº warning lamp operates in Diagnosis mode as fol-
lows:
NOTE:
If SRS does not enter Diagnosis mode even though malfunction
is detected in User mode, check the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go
to DIAGNOSTIC PROCEDURE 7, page RS-53.
If the battery voltage is OK, replace the diagnosis sensor unit.
SRS800
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-48
Page 2232 of 2267

7. Malfunctioning part is indicated by the number of flashes
(part
pdorpf). Compare the number of flashes to ªAir Bag
Warning Lamp Flash Code Chartº, page RS-50, and locate
malfunctioning part.
8. Turn ignition switch ªOFFº, and disconnect both battery
cables.
9. Repair the system as outlined by the ªRepair orderº in ªWarn-
ing Lamp Flash Code Chartº that corresponds to the flash
code. For replacement procedure of component parts, refer
to RS-13.
10. After repairing the system, go to DIAGNOSTIC PROCE-
DURE 7, page RS-53.
No. ªAIR BAGº warning lamp flash pattern Ð Diagnosis mode Ð SRS condition
1
SRS333
pathroughpbare repeated.lDiagnosis
results (pre-
viously
stored in the
memory)
might not be
erased after
repair.
lIntermittent
malfunction
has been
detected in
the past.
Go to DIAG-
NOSTIC
PROCEDURE
8 (RS-55).
2
SRS341
pathroughpdare repeated.
pbÐ Driver and passenger's
air bag marker (For identifying
driver's passenger's air bag
and/or front seat belt pre-ten-
sioner malfunctioning)
pdÐ Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)The system is
malfunctioning
and needs to
be repaired.
3
SRS342-A
pathroughpfare repeated.
pb,pc,pdÐ Side air bag
marker (For identifying side air
bag malfunctioning)
pfÐ Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)
IGN ON
ON
OFF
7 sec.3 sec.
2 sec.
IGN ON
ON
OFF
7 sec.3 sec.
2 sec.2 sec.
0.5 sec.
1.5 sec. IGN ON
ON
OFF
7 sec.
2sec.
1.5 sec.2 sec.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-49
