Page 1713 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CYLINDER BLOCK DISTORTION Clean upper face of cylinder block and measure the distortion. Limit: 0.10 mm (0.0039 in) If out of specification, resurface it. The resurfacing limit of cylinder block is de

Page 1714 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Reboring 1. The size to which cylinders must be honed, is determined by adding piston-to-cylinder clearance to the piston skirt diameter ªAº. Dimension ªaº: Approximately 62 mm (2.44 in) Rebored s

Page 1715 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Using feeler gauge 1. Set piston and feeler gauge with spring scale. 2. Measure extracting force while pulling up scale slowly. Feeler gauge used: 0.05 - 0.07 mm (0.0020 - 0.0028 in) Extracting force:

Page 1716 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2. Apply engine oil to main bearing surfaces on crankshaft jour- nal side. 3. Install crankshaft and main bearing caps. 4. Tighten main bearing cap bolts. : 69 - 78 N´m (7.0 - 8.0 kg-m, 51 - 58 ft-lb

Page 1717 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2. Install pistons with connecting rods. IInstall them into corresponding cylinder using Tool. IBe careful not to scratch cylinder wall with connecting rod. IApply engine oil to cylinder wall, piston

Page 1718 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual General SpecificationsNCEM0028 EngineQG16DE QG18DE ClassificationGasoline Cylinder arrangement4, in-line Displacement cm 3(cu in)1,596 (97.39) 1,769 (107.94) Bore´stroke mm (in)76.0´88.0 (2.992´3.4

Page 1719 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ValveNCEM0031VA LV ENCEM0031S01Unit: mm (in) SEM188A T (Margin thickness) Valve head diameter ªDºIntake 29.9 - 30.2 (1.177 - 1.189) Exhaust 24.9 - 25.2 (0.980 - 0.992) Valve length ªLºIntake 92.00

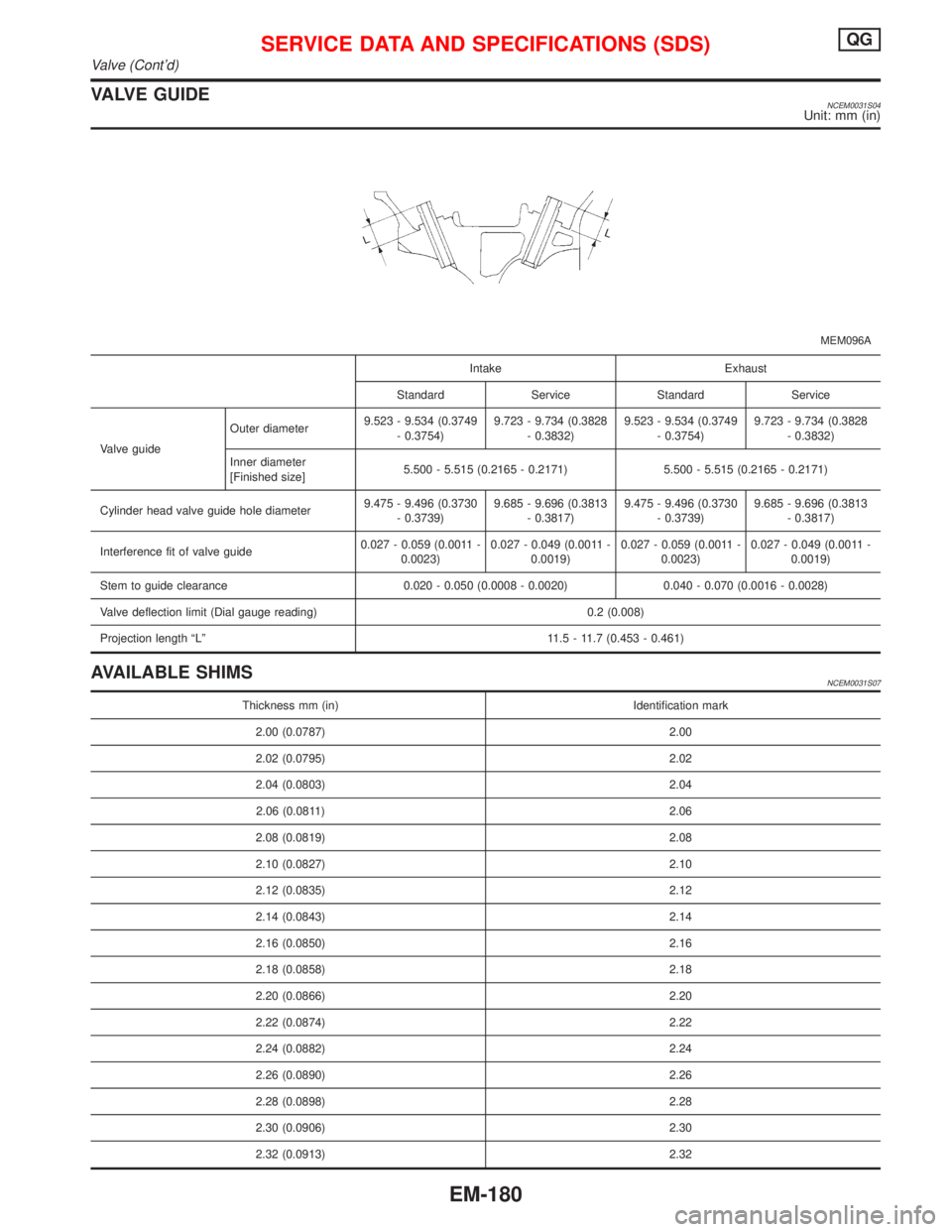

Page 1720 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual VALVE GUIDENCEM0031S04Unit: mm (in) MEM096A Intake Exhaust Standard Service Standard Service Valve guideOuter diameter9.523 - 9.534 (0.3749 - 0.3754)9.723 - 9.734 (0.3828 - 0.3832)9.523 - 9.534 (0.374
