1999 NISSAN PRIMERA child seat

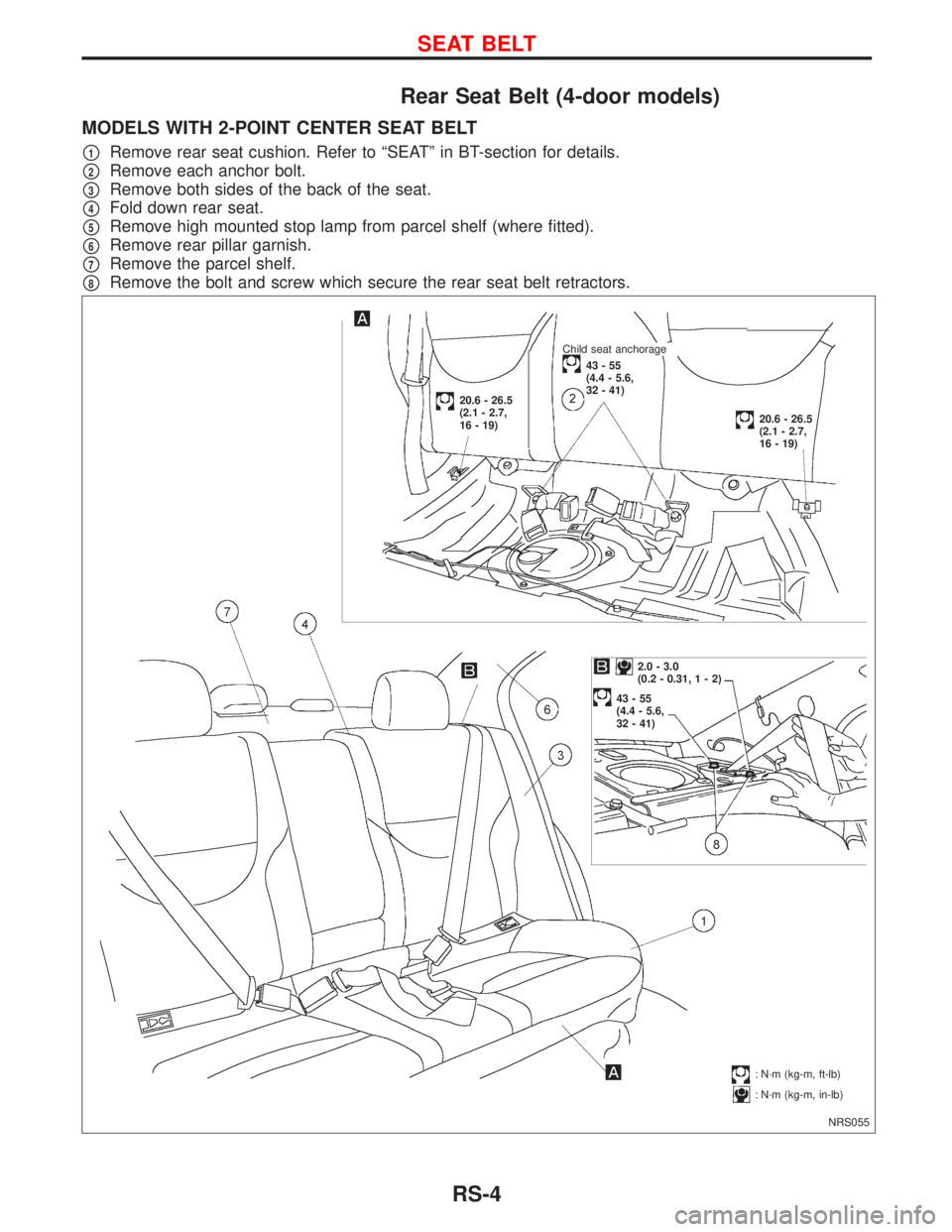

Rear Seat Belt (4-door models)
MODELS WITH 2-POINT CENTER SEAT BELT
p1Remove rear seat cushion. Refer to ªSEATº in BT-section for details.
p2Remove each anchor bolt.
p3Remove both sides of the back of the seat.
p4Fold down rear seat.
p5Remove high mounted stop lamp from parcel shelf (where fitted).
p6Remove rear pillar garnish.
p7Remove the parcel shelf.
p8Remove the bolt and screw which secure the rear seat belt retractors.
NRS055
2.0 - 3.0
(0.2 - 0.31,1-2)
43-55
(4.4 - 5.6,
32 - 41)
.: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
.Child seat anchorage
43-55
(4.4 - 5.6,
32 - 41)
20.6 - 26.5
(2.1 - 2.7,
16 - 19)
20.6 - 26.5
(2.1 - 2.7,
16 - 19)
SEAT BELT
RS-4

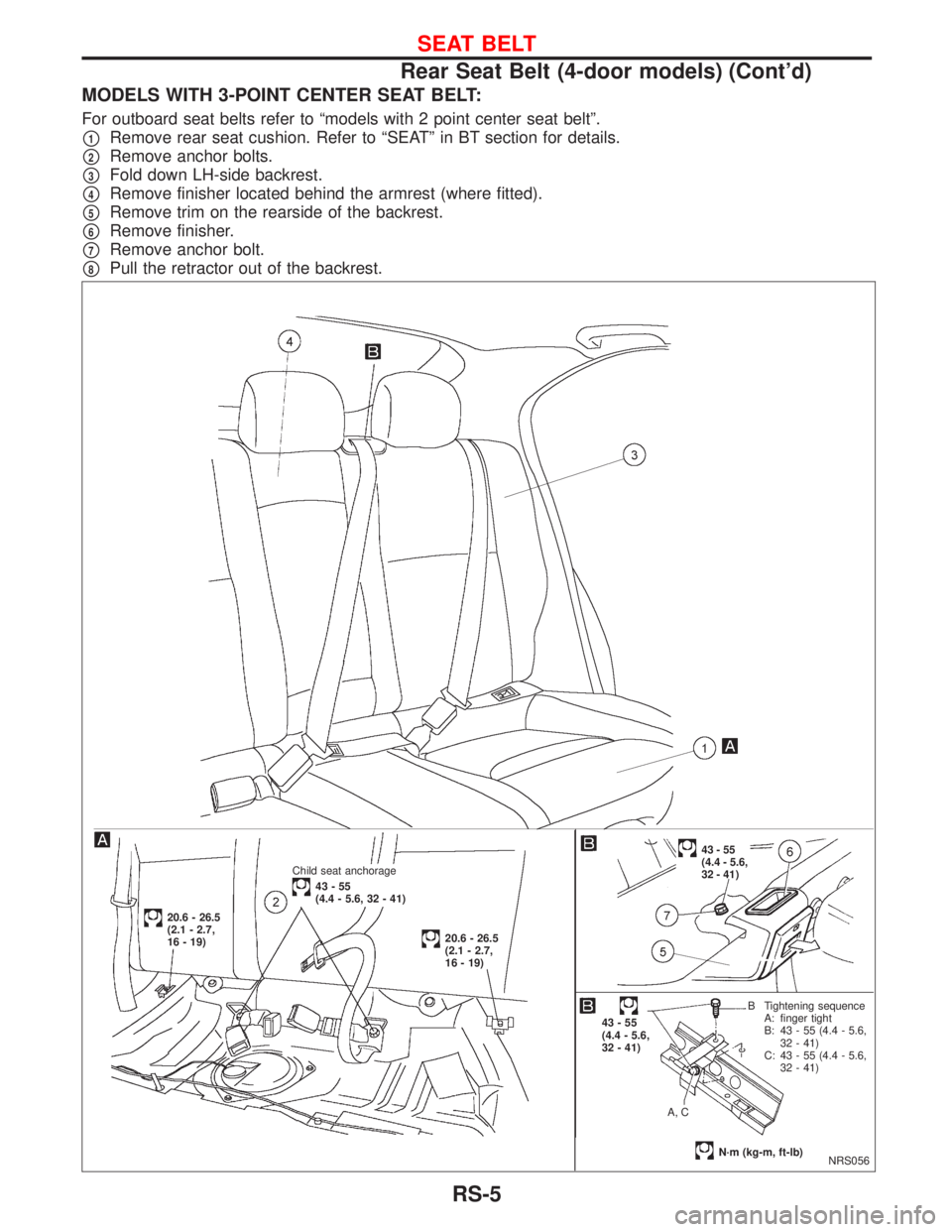

MODELS WITH 3-POINT CENTER SEAT BELT:
For outboard seat belts refer to ªmodels with 2 point center seat beltº.
p1Remove rear seat cushion. Refer to ªSEATº in BT section for details.
p2Remove anchor bolts.
p3Fold down LH-side backrest.
p4Remove finisher located behind the armrest (where fitted).
p5Remove trim on the rearside of the backrest.
p6Remove finisher.
p7Remove anchor bolt.
p8Pull the retractor out of the backrest.
NRS056
.Child seat anchorage
43-55
(4.4 - 5.6, 32 - 41)
.43-55
(4.4 - 5.6,
32 - 41)
43-55
(4.4 - 5.6,
32 - 41)
A, CB Tightening sequence
A: finger tight
B: 43 - 55 (4.4 - 5.6,
32 - 41)
C: 43 - 55 (4.4 - 5.6,
32 - 41)
N´m (kg-m, ft-lb)
20.6 - 26.5
(2.1 - 2.7,
16 - 19)
20.6 - 26.5
(2.1 - 2.7,
16 - 19)
SEAT BELT
Rear Seat Belt (4-door models) (Cont'd)
RS-5

NRS057
.Child seat anchorage
43-55
(4.4 - 5.6, 32 - 41)
Clip
.Rear seat back
43-55
(4.4 - 5.6,
32 - 41) Suitable
tool
Seat belt
retractor
Clip
Seat belt
retractor
Pawl Pawl
.20.6 - 26.5
(2.1 - 2.7,
16 - 19)
.20.6 - 26.5
(2.1 - 2.7,
16 - 19)
SEAT BELT
Rear Seat Belt (Wagon and 5-door models)
(Cont'd)
RS-7
