Page 1169 of 2267

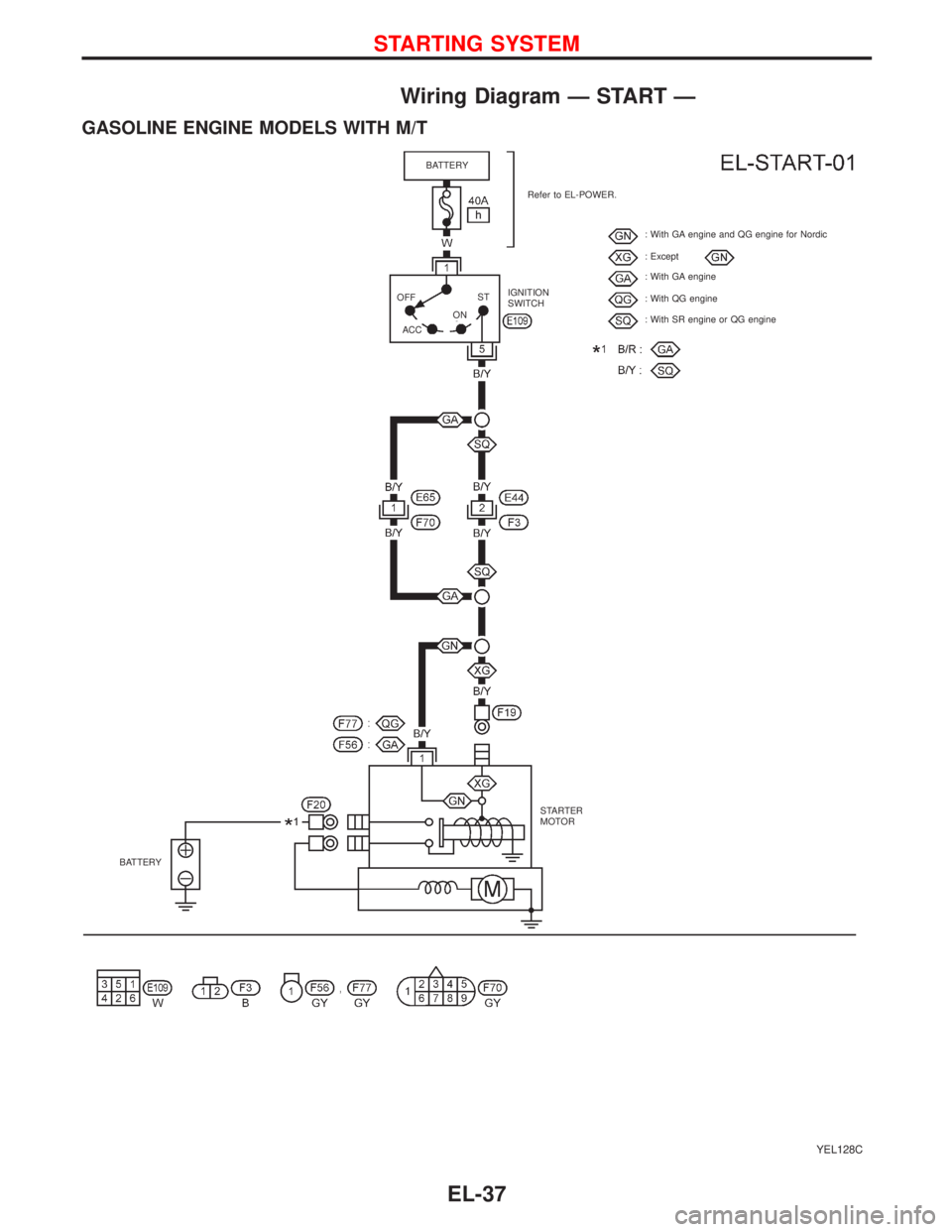

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram—START— GASOLINE ENGINE MODELS WITH M/T YEL128C BATTERY Refer to EL-POWER. IGNITION SWITCH: With GA engine and QG engine for Nordic : Except : With GA engine : With QG engine : With

Page 1170 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual GASOLINE ENGINE MODELS WITH CVT YEL999C STARTING SYSTEM Wiring Diagram—START—(Cont’d) EL-38

Page 1171 of 2267

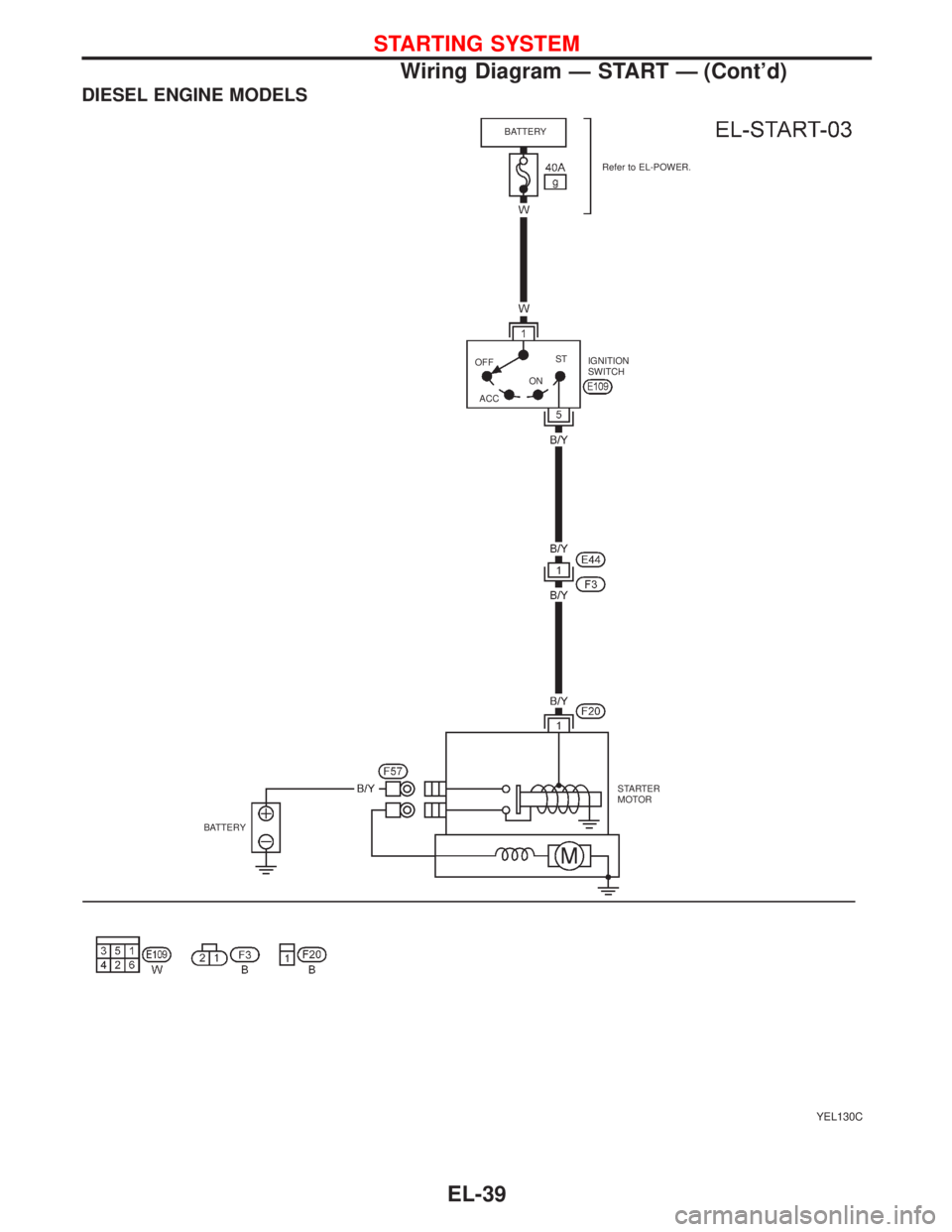

NISSAN PRIMERA 1999 Electronic Repair Manual DIESEL ENGINE MODELS YEL130C BATTERY Refer to EL-POWER. IGNITION SWITCH BATTERYSTARTER MOTOR ST ON ACC OFF STARTING SYSTEM Wiring Diagram—START—(Cont’d) EL-39

Page 1172 of 2267

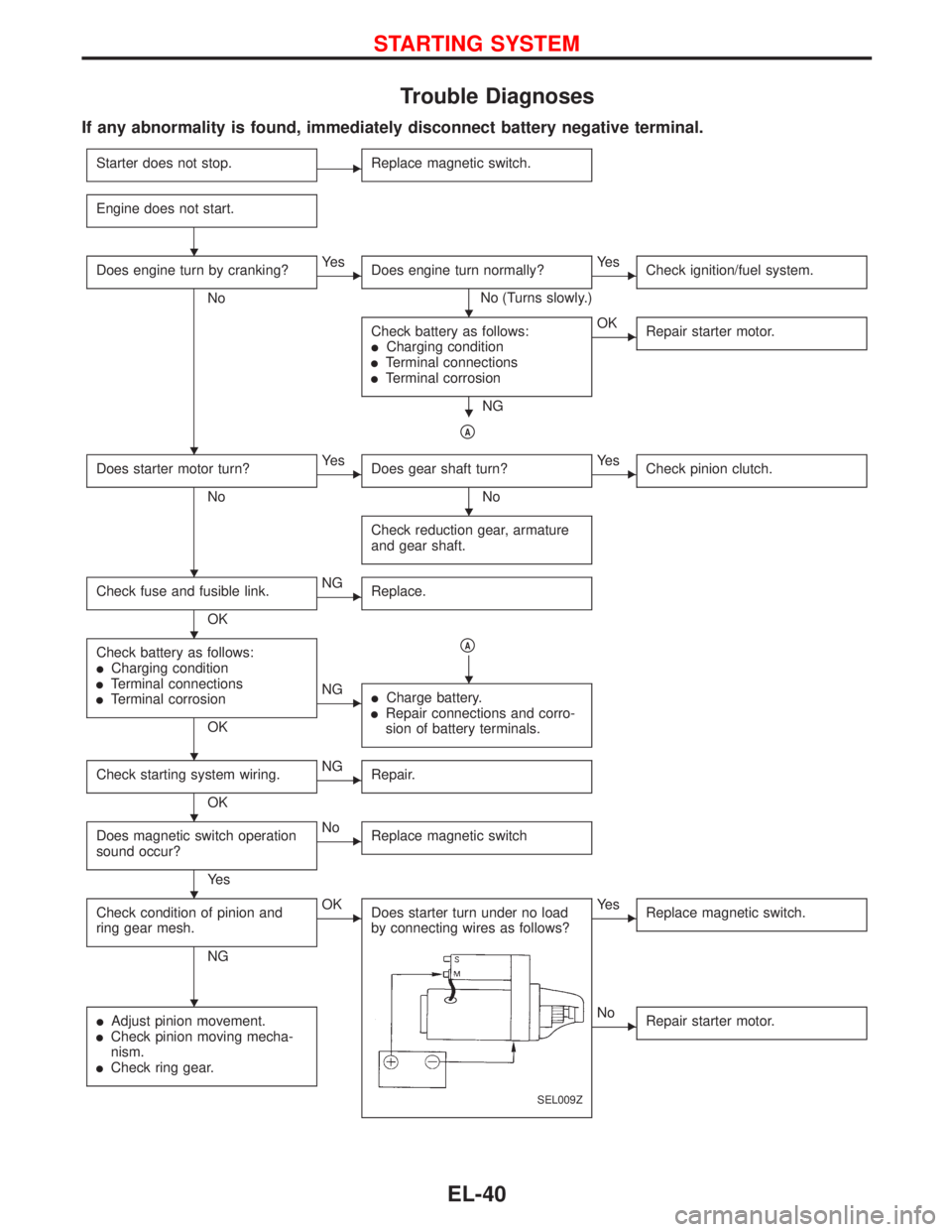

NISSAN PRIMERA 1999 Electronic Repair Manual Trouble Diagnoses If any abnormality is found, immediately disconnect battery negative terminal. Starter does not stop.Replace magnetic switch. Engine does not start. Does engine turn by cranking? No

Page 1173 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Construction MEL675EB Through-bolts 4.9 - 6.4 (0.50 - 0.65, 43.4 - 56.40) Internal gear Planetary gear Pinion shaft Thrust washer E-ring Pinion assembly Pinion stopper 6.4 - 7.8 (0.65 - 0.80, 56.4 - 6

Page 1174 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1Shift lever 2Adjusting plate 3Magnetic switch assembly 4Internal gear 5Planetary gear 6Pinion shaft 7Rear cover 8Brush spring 9Brush (�) 10Brush (+) 11Armature 12Yoke 13Pinion assembly

Page 1175 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1Magnetic switch assembly 2Shift lever assembly 3Gear case 4Pinion assembly 5Pinion shaft assembly 6Planetary gear assembly 7Centre bracket 8Armature 9Pinion stopper 10Yoke assembly 11Brush

Page 1176 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1Bearing retainer 2Pinion shaft 3Clutch assembly 4Return spring 5Pinion stopper 6Stopper clip 7Gear case 8Adjusting plates 9Torsion spring 10Shift lever 11Magnetic switch assembly 12Armatu
