Page 1281 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram—METER—/CVT MODELS AFTER VIN - P11U0548750 YEL871C METER AND GAUGES EL-149

Page 1282 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEL872C METER AND GAUGES Wiring Diagram—METER—/CVT MODELS AFTER VIN - P11U0548750 (Cont’d) EL-150

Page 1283 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEL873C METER AND GAUGES Wiring Diagram—METER—/CVT MODELS AFTER VIN - P11U0548750 (Cont’d) EL-151

Page 1284 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Combination Meter Self-Diagnosis PERFORMING SELF-DIAGNOSIS MODE 1. Turn the ignition switch to the“LOCK”position. 2. Press both reset buttons on the combination meter and keep them depressed. 3. T

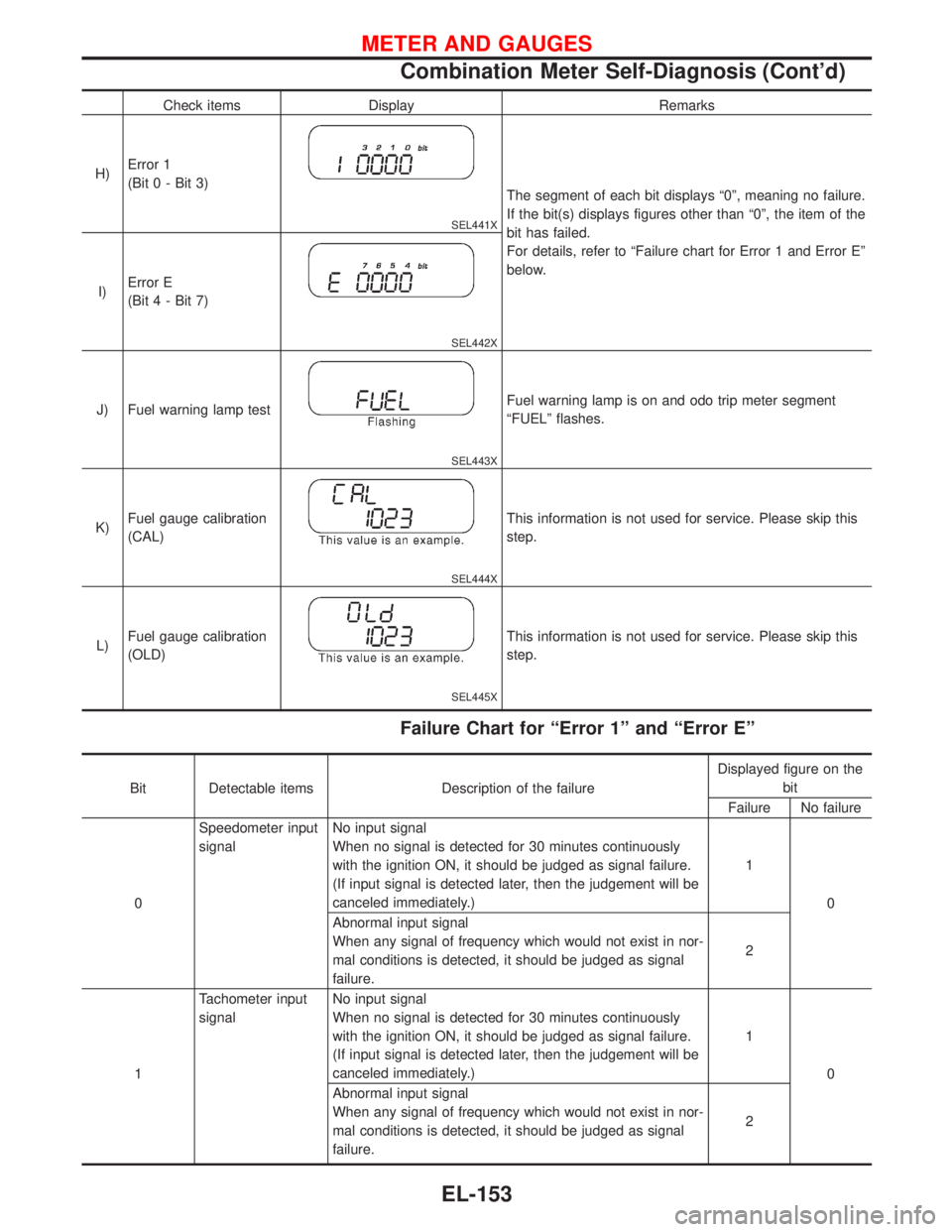

Page 1285 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Check items Display Remarks H)Error 1 (Bit 0 - Bit 3) SEL441X The segment of each bit displays“0”, meaning no failure. If the bit(s) displays figures other than“0”, the item of the bit has fai

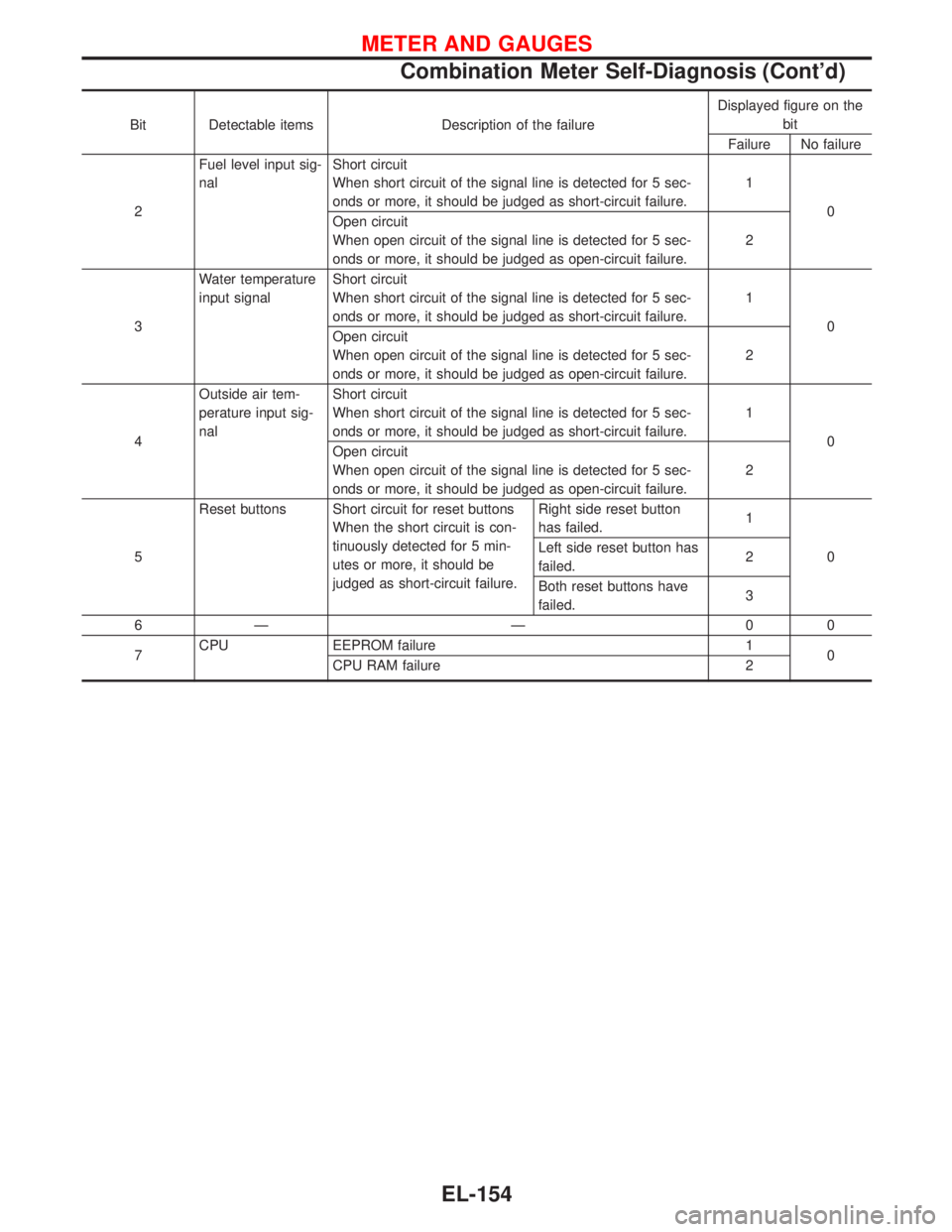

Page 1286 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Bit Detectable items Description of the failureDisplayed figure on the bit Failure No failure 2Fuel level input sig- nalShort circuit When short circuit of the signal line is detected for 5 sec- onds

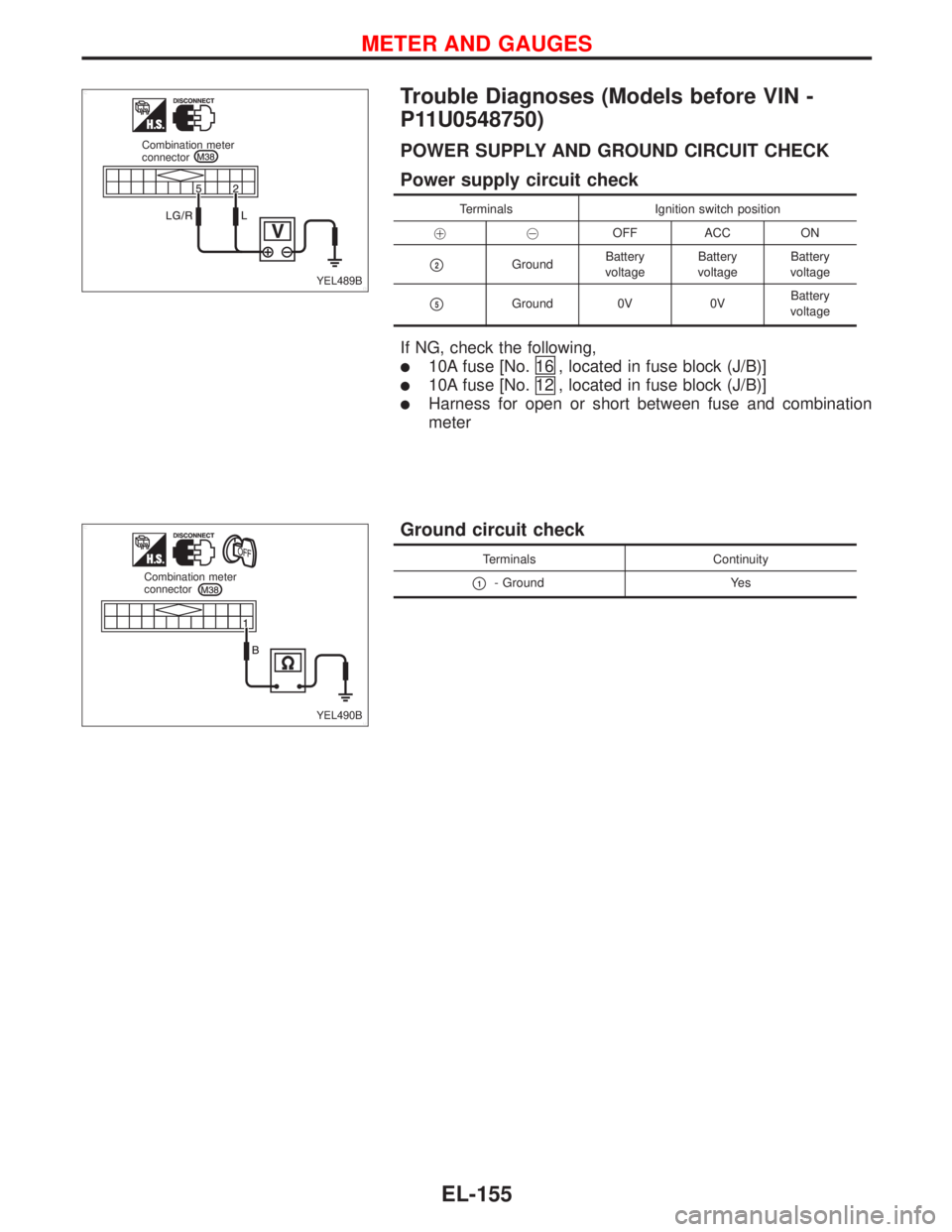

Page 1287 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Trouble Diagnoses (Models before VIN - P11U0548750) POWER SUPPLY AND GROUND CIRCUIT CHECK Power supply circuit check Terminals Ignition switch position OFF ACC ON 2GroundBattery voltageBattery volt

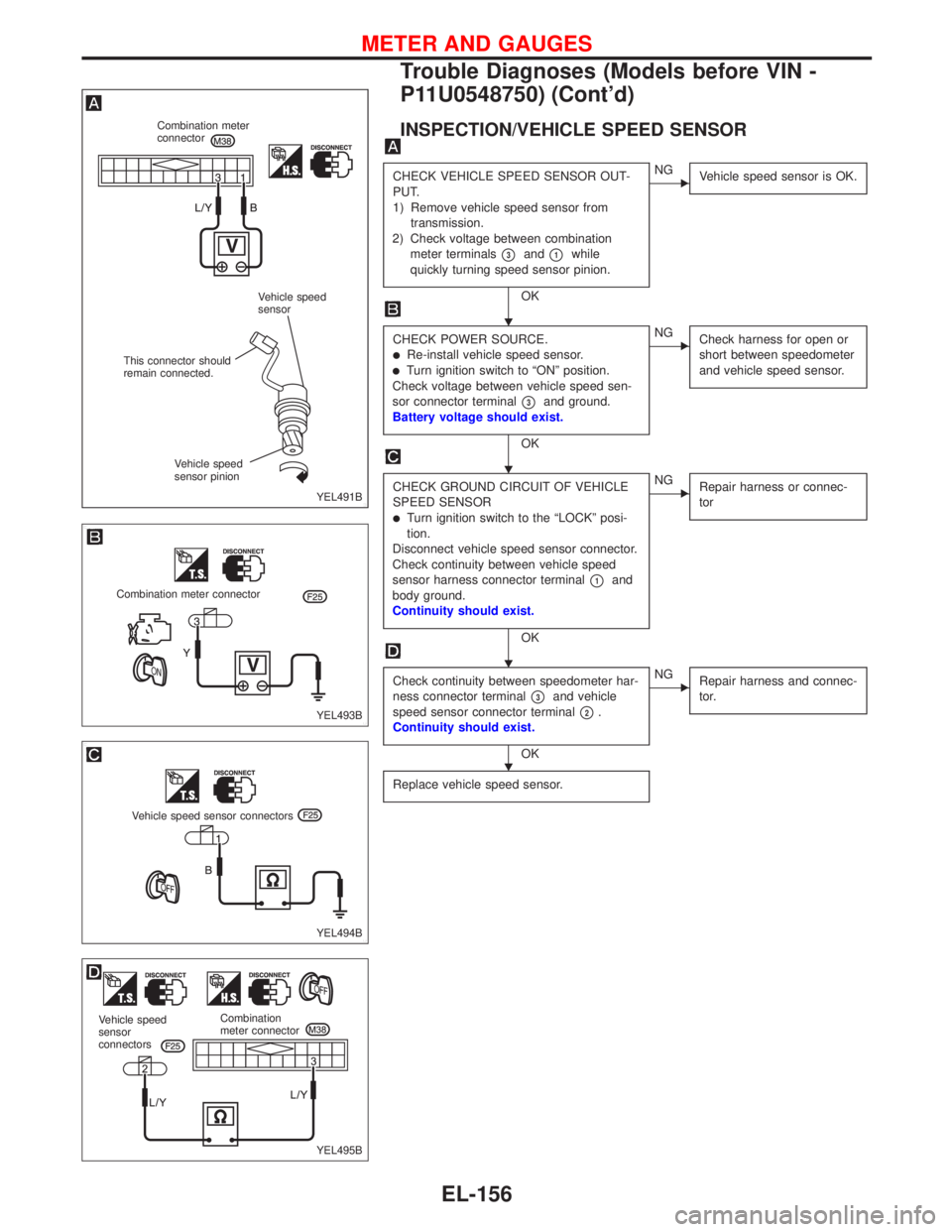

Page 1288 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual INSPECTION/VEHICLE SPEED SENSOR CHECK VEHICLE SPEED SENSOR OUT- PUT. 1) Remove vehicle speed sensor from transmission. 2) Check voltage between combination meter terminals 3and1while quickly turning
