Page 1121 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0451The power steering oil pressure switch is attached to the power steering high-pressure tube and detects a power steering load. When a power steering load is detected, it s

Page 1122 of 2267

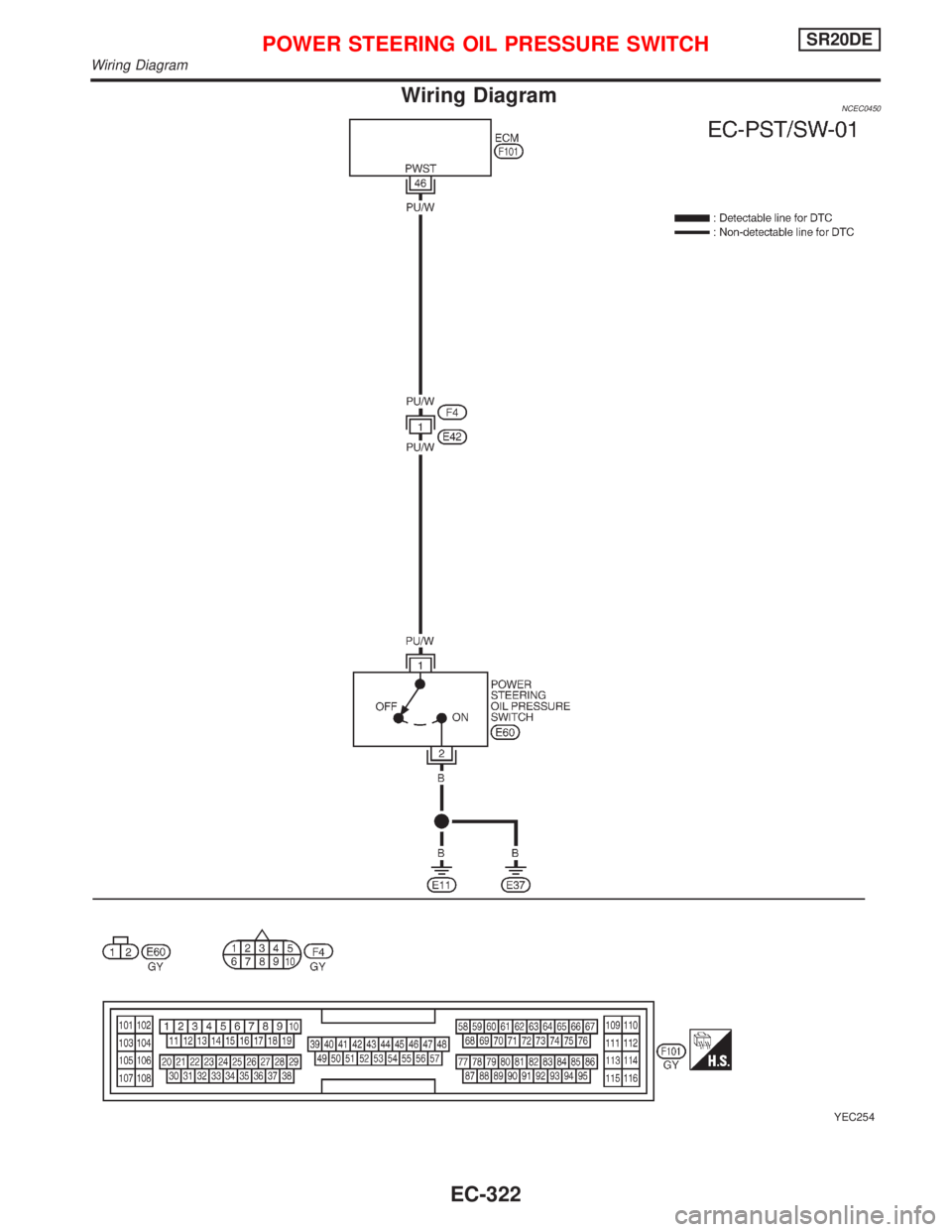

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0450 YEC254 POWER STEERING OIL PRESSURE SWITCHSR20DE Wiring Diagram EC-322

Page 1123 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic Procedure=NCEC0454 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Check ªPW/ST SIGNALº in ªDA

Page 1124 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNCEC0455POWER STEERING OIL PRESSURE SWITCHNCEC0455S011. Disconnect power steering oil pressure switch harness con- nector then start engine. 2. Check continuity between terminals 1

Page 1125 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CONSULT-II Reference Value in Data Monitor Mode NCEC0548Specification data are reference values. MONITOR ITEM CONDITION SPECIFICATION LOAD SIGNALIEngine: runningRear window defogger or head- lamp ªON

Page 1126 of 2267

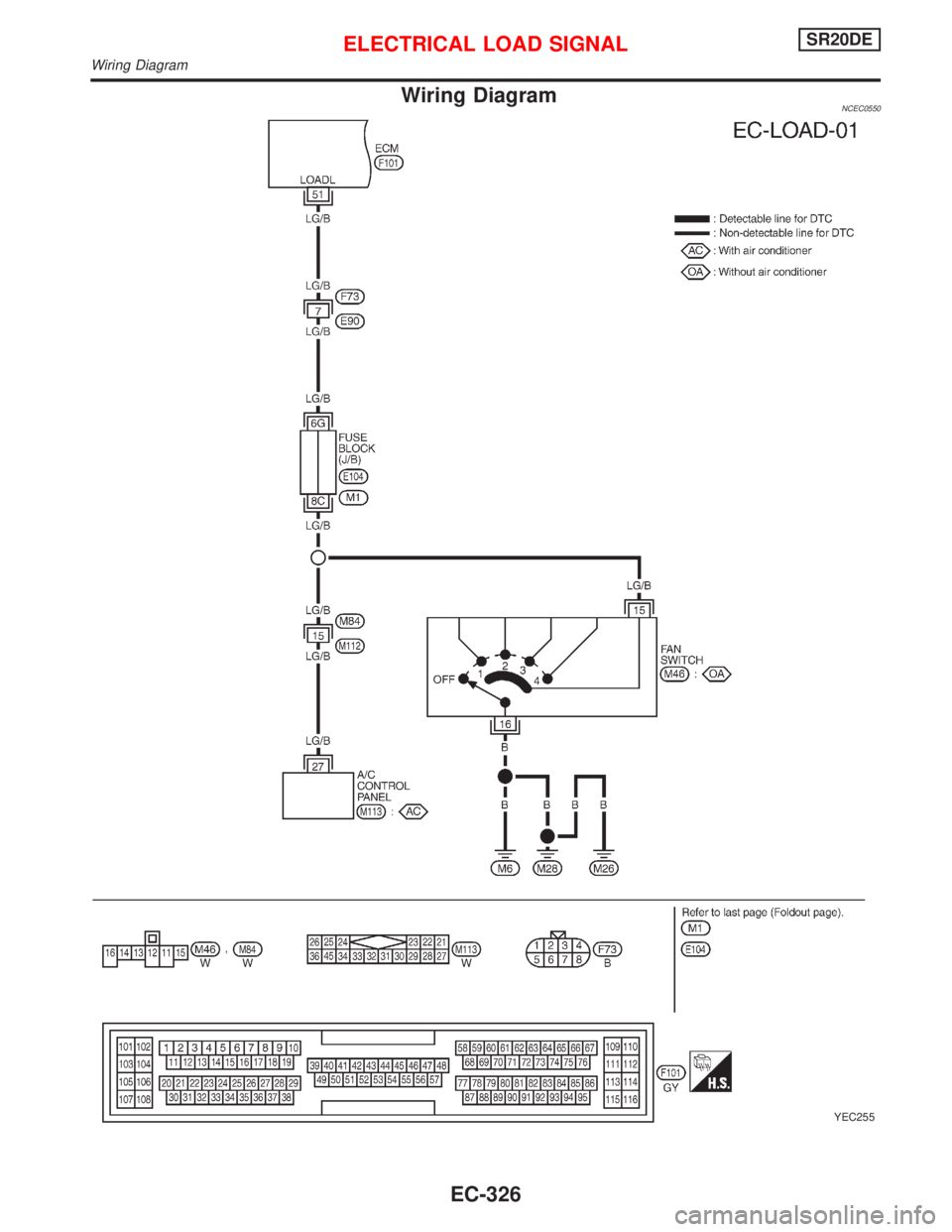

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0550 YEC255 ELECTRICAL LOAD SIGNALSR20DE Wiring Diagram EC-326

Page 1127 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIODE TYPE - 1 YEC853 ECM: Detectable line for DTC : Non-detectable line for DTC : With XENON headlamp or daytime light system : Except HD : Hyper CVT models : M/T models OFFFUSE BLOCK (J/B) REFER TO

Page 1128 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIODE TYPE - 2 YEC095A ELECTRICAL LOAD SIGNALSR20DE Wiring Diagram (Contd) EC-328
