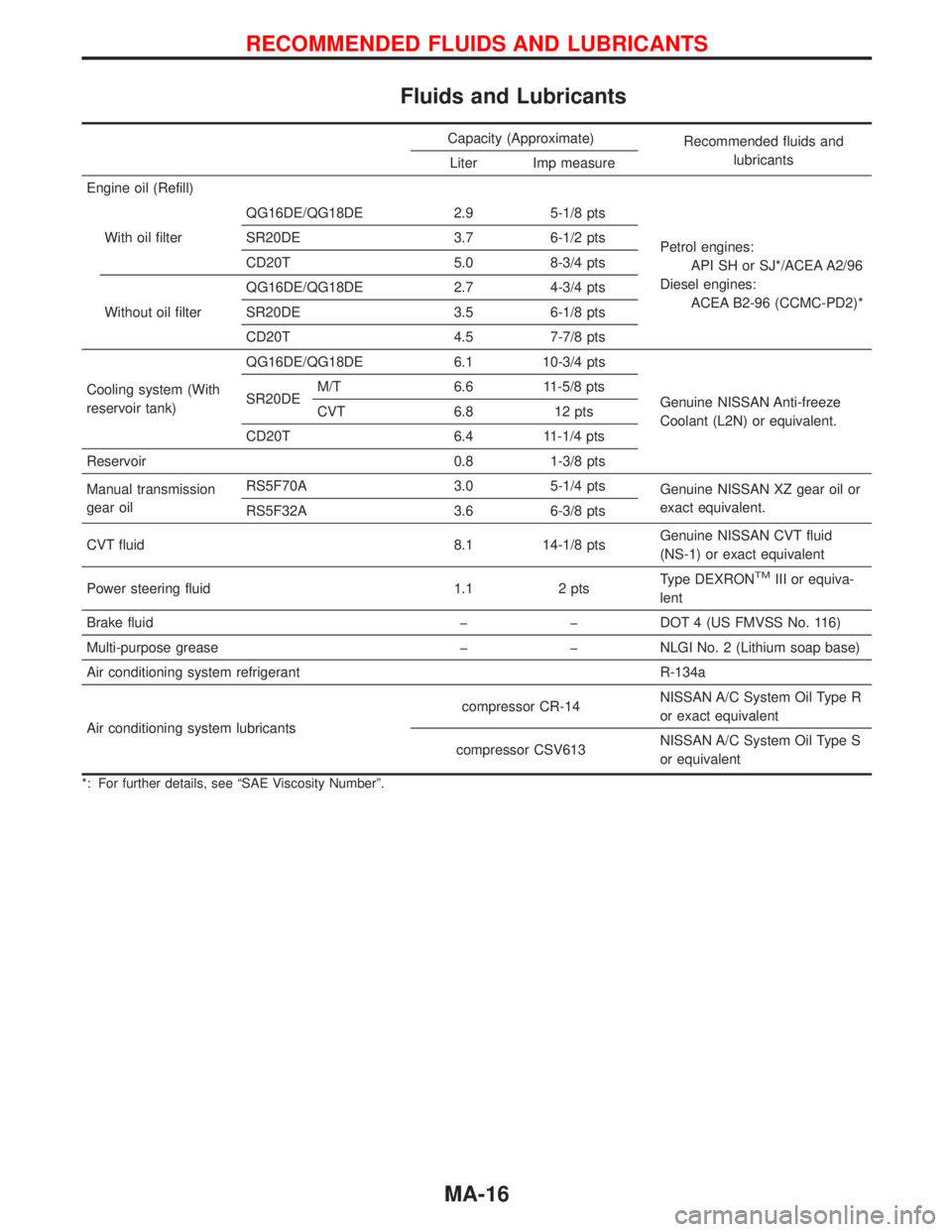

Fluids and Lubricants
Capacity (Approximate)
Recommended fluids and
lubricants
Liter Imp measure
Engine oil (Refill)
With oil filterQG16DE/QG18DE 2.9 5-1/8 pts
Petrol engines:
API SH or SJ*/ACEA A2/96
Diesel engines:
ACEA B2-96 (CCMC-PD2)* SR20DE 3.7 6-1/2 pts
CD20T 5.0 8-3/4 pts
Without oil filterQG16DE/QG18DE 2.7 4-3/4 pts
SR20DE 3.5 6-1/8 pts
CD20T 4.5 7-7/8 pts
Cooling system (With
reservoir tank)QG16DE/QG18DE 6.1 10-3/4 pts
Genuine NISSAN Anti-freeze
Coolant (L2N) or equivalent. SR20DEM/T 6.6 11-5/8 pts
CVT 6.8 12 pts
CD20T 6.4 11-1/4 pts
Reservoir 0.8 1-3/8 pts
Manual transmission
gear oilRS5F70A 3.0 5-1/4 pts
Genuine NISSAN XZ gear oil or
exact equivalent.
RS5F32A 3.6 6-3/8 pts
CVT fluid 8.1 14-1/8 ptsGenuine NISSAN CVT fluid
(NS-1) or exact equivalent
Power steering fluid 1.1 2 ptsType DEXRON
TMIII or equiva-
lent
Brake fluidDOT 4 (US FMVSS No. 116)
Multi-purpose greaseNLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant R-134a
Air conditioning system lubricantscompressor CR-14NISSAN A/C System Oil Type R
or exact equivalent
compressor CSV613NISSAN A/C System Oil Type S
or equivalent
*: For further details, see“SAE Viscosity Number”.
RECOMMENDED FLUIDS AND LUBRICANTS
MA-16

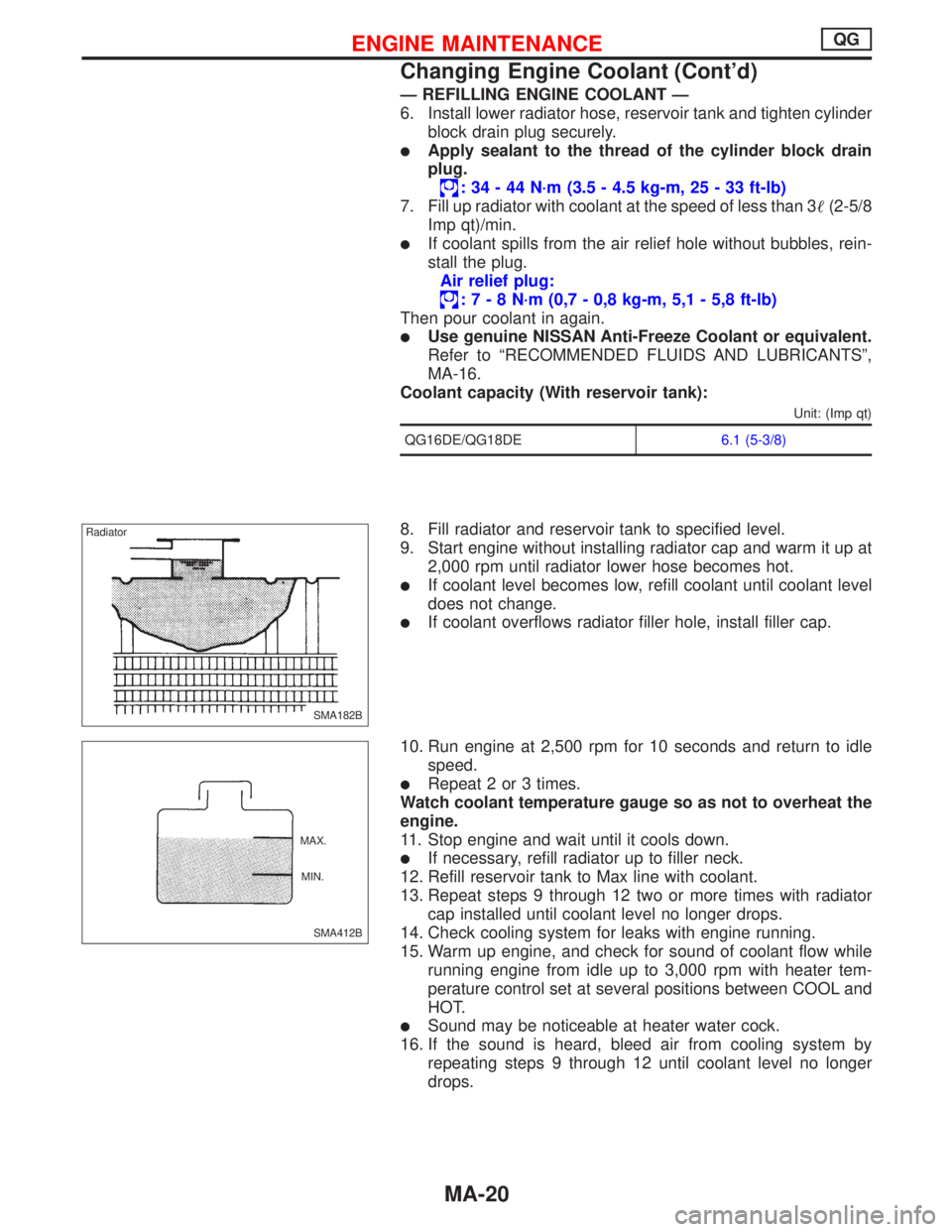

—REFILLING ENGINE COOLANT—
6. Install lower radiator hose, reservoir tank and tighten cylinder
block drain plug securely.

Apply sealant to the thread of the cylinder block drain
plug.
:34-44N·m (3.5 - 4.5 kg-m, 25 - 33 ft-lb)
7. Fill up radiator with coolant at the speed of less than 3
(2-5/8
Imp qt)/min.

If coolant spills from the air relief hole without bubbles, rein-
stall the plug.
Air relief plug:
:7-8N·m (0,7 - 0,8 kg-m, 5,1 - 5,8 ft-lb)
Then pour coolant in again.

Use genuine NISSAN Anti-Freeze Coolant or equivalent.
Refer to“RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-16.
Coolant capacity (With reservoir tank):
Unit: (Imp qt)
QG16DE/QG18DE6.1 (5-3/8)
8. Fill radiator and reservoir tank to specified level.
9. Start engine without installing radiator cap and warm it up at
2,000 rpm until radiator lower hose becomes hot.

If coolant level becomes low, refill coolant until coolant level
does not change.

If coolant overflows radiator filler hole, install filler cap.
10. Run engine at 2,500 rpm for 10 seconds and return to idle
speed.

Repeat 2 or 3 times.
Watch coolant temperature gauge so as not to overheat the
engine.
11. Stop engine and wait until it cools down.

If necessary, refill radiator up to filler neck.
12. Refill reservoir tank to Max line with coolant.
13. Repeat steps 9 through 12 two or more times with radiator
cap installed until coolant level no longer drops.
14. Check cooling system for leaks with engine running.
15. Warm up engine, and check for sound of coolant flow while
running engine from idle up to 3,000 rpm with heater tem-
perature control set at several positions between COOL and
HOT.

Sound may be noticeable at heater water cock.
16. If the sound is heard, bleed air from cooling system by
repeating steps 9 through 12 until coolant level no longer
drops.
SMA182B Radiator
SMA412B MAX.
MIN.
ENGINE MAINTENANCEQG
Changing Engine Coolant (Cont’d)
MA-20

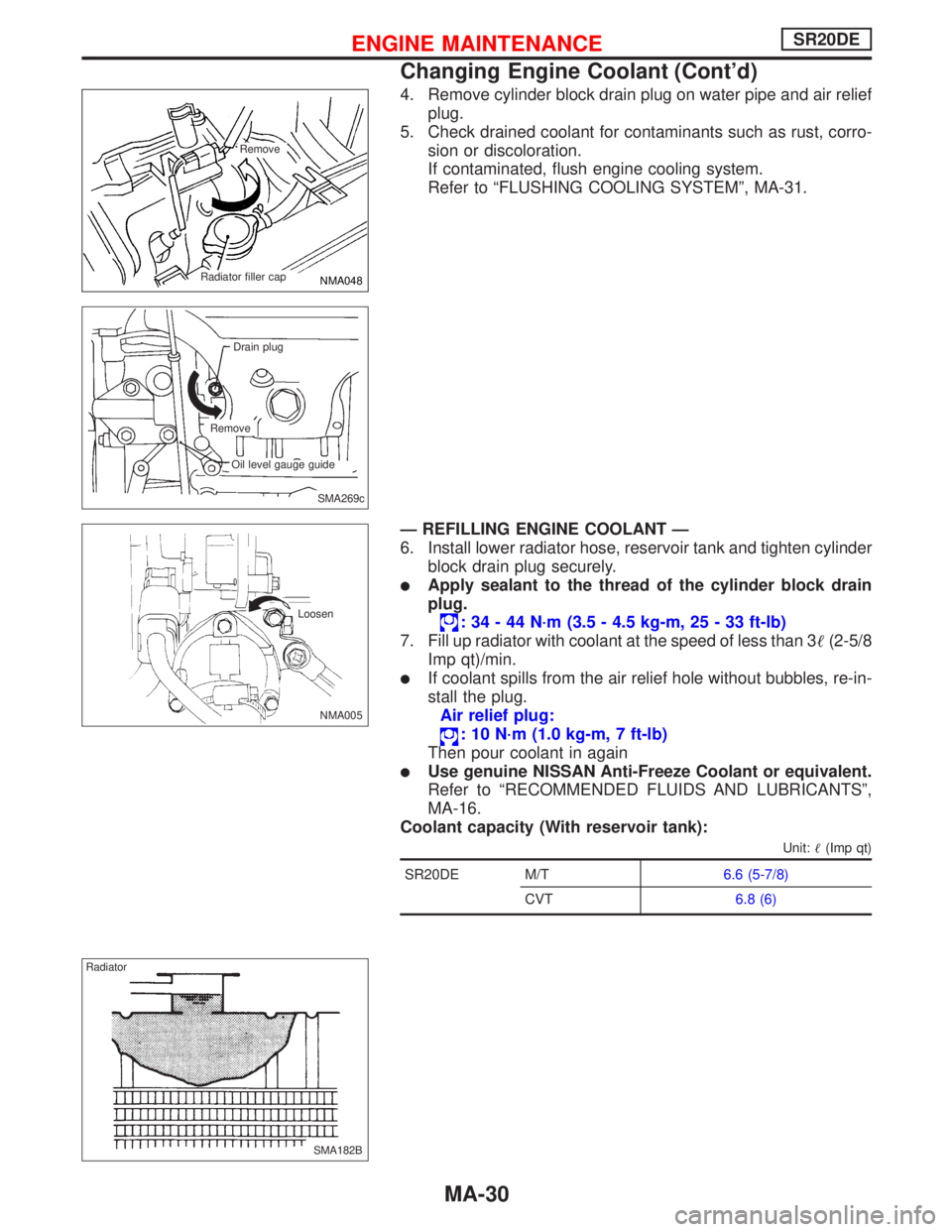

4. Remove cylinder block drain plug on water pipe and air relief
plug.
5. Check drained coolant for contaminants such as rust, corro-
sion or discoloration.
If contaminated, flush engine cooling system.
Refer to“FLUSHING COOLING SYSTEM”, MA-31.
—REFILLING ENGINE COOLANT—
6. Install lower radiator hose, reservoir tank and tighten cylinder
block drain plug securely.

Apply sealant to the thread of the cylinder block drain
plug.
:34-44N·m (3.5 - 4.5 kg-m, 25 - 33 ft-lb)
7. Fill up radiator with coolant at the speed of less than 3
(2-5/8
Imp qt)/min.

If coolant spills from the air relief hole without bubbles, re-in-
stall the plug.
Air relief plug:
:10N·m (1.0 kg-m, 7 ft-lb)
Then pour coolant in again

Use genuine NISSAN Anti-Freeze Coolant or equivalent.
Refer to“RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-16.
Coolant capacity (With reservoir tank):
Unit:
(Imp qt)
SR20DE M/T6.6 (5-7/8)
CVT6.8 (6)
NMA048
.Remove
.Radiator filler cap
.SMA269c Drain plug
Remove
Oil level gauge guide
NMA005 Loosen
SMA182B Radiator
ENGINE MAINTENANCESR20DE
Changing Engine Coolant (Cont’d)
MA-30

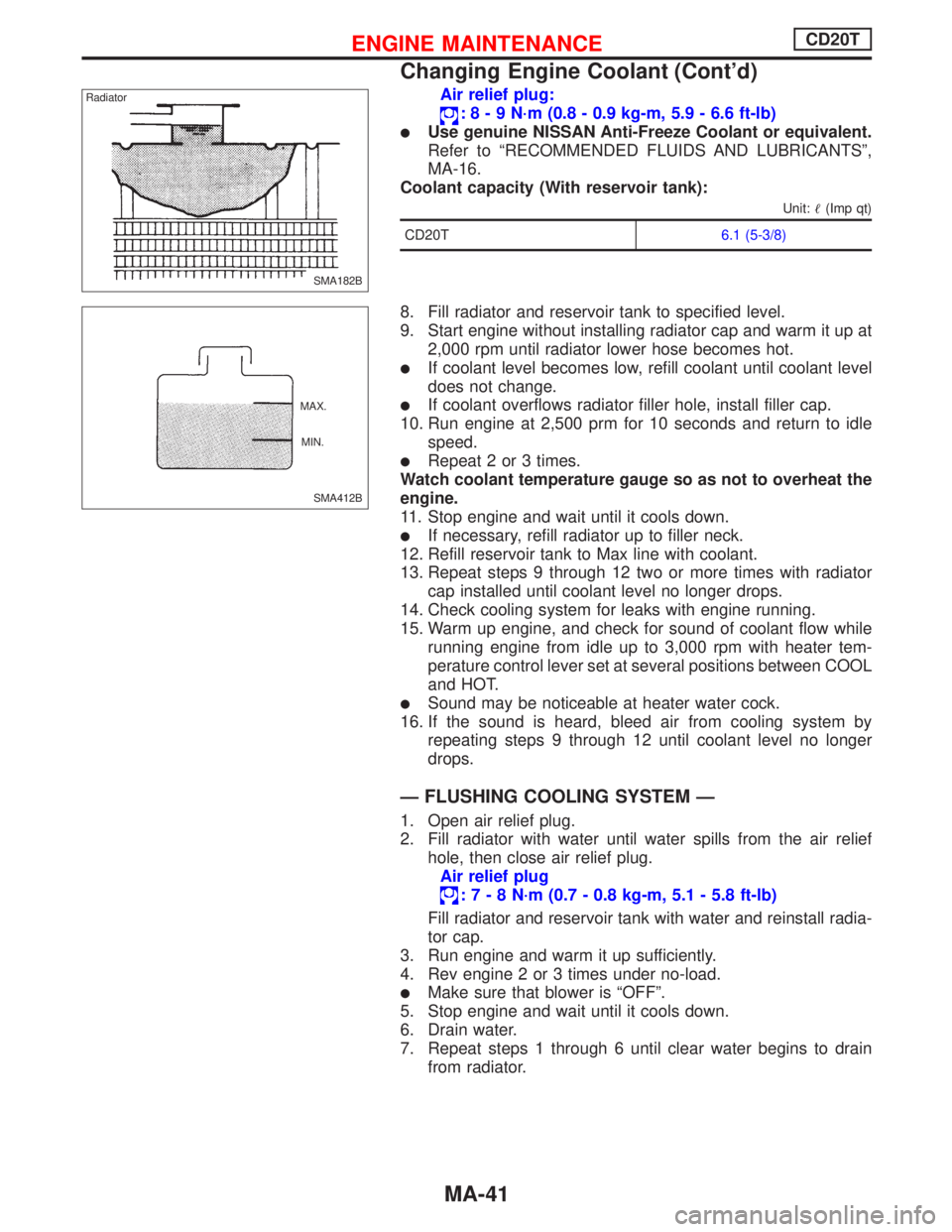

Air relief plug:
:8-9N·m (0.8 - 0.9 kg-m, 5.9 - 6.6 ft-lb)

Use genuine NISSAN Anti-Freeze Coolant or equivalent.
Refer to“RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-16.
Coolant capacity (With reservoir tank):
Unit:
(Imp qt)
CD20T6.1 (5-3/8)
8. Fill radiator and reservoir tank to specified level.
9. Start engine without installing radiator cap and warm it up at
2,000 rpm until radiator lower hose becomes hot.

If coolant level becomes low, refill coolant until coolant level
does not change.

If coolant overflows radiator filler hole, install filler cap.
10. Run engine at 2,500 prm for 10 seconds and return to idle
speed.

Repeat 2 or 3 times.
Watch coolant temperature gauge so as not to overheat the
engine.
11. Stop engine and wait until it cools down.

If necessary, refill radiator up to filler neck.
12. Refill reservoir tank to Max line with coolant.
13. Repeat steps 9 through 12 two or more times with radiator
cap installed until coolant level no longer drops.
14. Check cooling system for leaks with engine running.
15. Warm up engine, and check for sound of coolant flow while
running engine from idle up to 3,000 rpm with heater tem-
perature control lever set at several positions between COOL
and HOT.

Sound may be noticeable at heater water cock.
16. If the sound is heard, bleed air from cooling system by
repeating steps 9 through 12 until coolant level no longer
drops.
—FLUSHING COOLING SYSTEM—
1. Open air relief plug.
2. Fill radiator with water until water spills from the air relief
hole, then close air relief plug.
Air relief plug
:7-8N·m (0.7 - 0.8 kg-m, 5.1 - 5.8 ft-lb)
Fill radiator and reservoir tank with water and reinstall radia-
tor cap.
3. Run engine and warm it up sufficiently.
4. Rev engine 2 or 3 times under no-load.

Make sure that blower is“OFF”.
5. Stop engine and wait until it cools down.
6. Drain water.
7. Repeat steps 1 through 6 until clear water begins to drain
from radiator.
SMA182B Radiator
SMA412B MAX.
MIN.
ENGINE MAINTENANCECD20T
Changing Engine Coolant (Cont’d)
MA-41

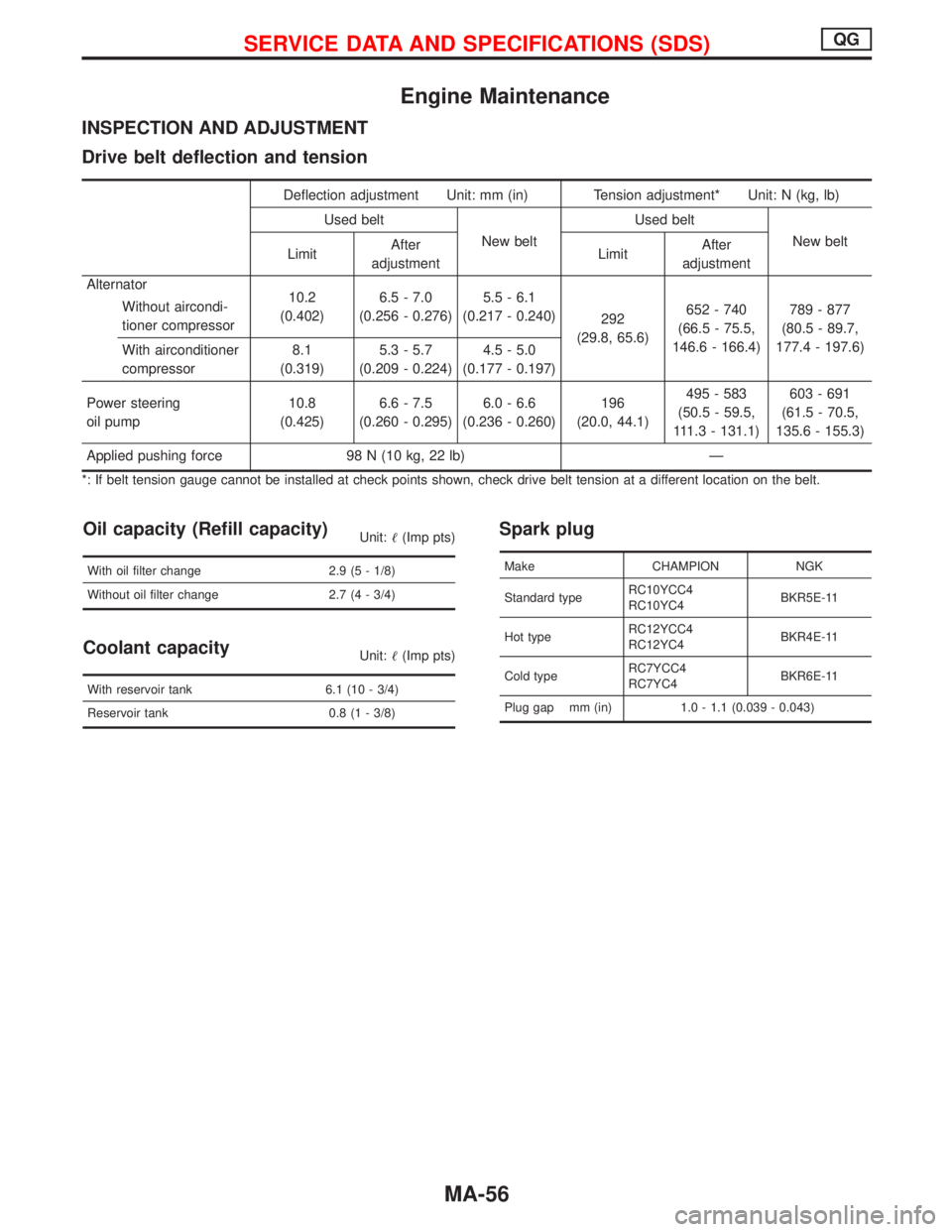

Engine Maintenance
INSPECTION AND ADJUSTMENT
Drive belt deflection and tension
Deflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
LimitAfter
adjustmentLimitAfter
adjustment
Alternator
Without aircondi-
tioner compressor10.2
(0.402)6.5 - 7.0
(0.256 - 0.276)5.5 - 6.1
(0.217 - 0.240)
292
(29.8, 65.6)652 - 740
(66.5 - 75.5,
146.6 - 166.4)789 - 877
(80.5 - 89.7,
177.4 - 197.6)
With airconditioner
compressor8.1
(0.319)5.3 - 5.7
(0.209 - 0.224)4.5 - 5.0
(0.177 - 0.197)
Power steering
oil pump10.8
(0.425)6.6 - 7.5
(0.260 - 0.295)6.0 - 6.6
(0.236 - 0.260)196
(20.0, 44.1)495 - 583
(50.5 - 59.5,
111.3 - 131.1)603 - 691
(61.5 - 70.5,
135.6 - 155.3)
Applied pushing force 98 N (10 kg, 22 lb)—
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at a different location on the belt.
Oil capacity (Refill capacity)Unit:
(Imp pts)
With oil filter change 2.9 (5 - 1/8)
Without oil filter change 2.7 (4 - 3/4)
Coolant capacityUnit:
(Imp pts)
With reservoir tank 6.1 (10 - 3/4)
Reservoir tank 0.8 (1 - 3/8)
Spark plug
Make CHAMPION NGK
Standard typeRC10YCC4
RC10YC4BKR5E-11
Hot typeRC12YCC4
RC12YC4BKR4E-11
Cold typeRC7YCC4
RC7YC4BKR6E-11
Plug gap mm (in) 1.0 - 1.1 (0.039 - 0.043)
SERVICE DATA AND SPECIFICATIONS (SDS)QG
MA-56

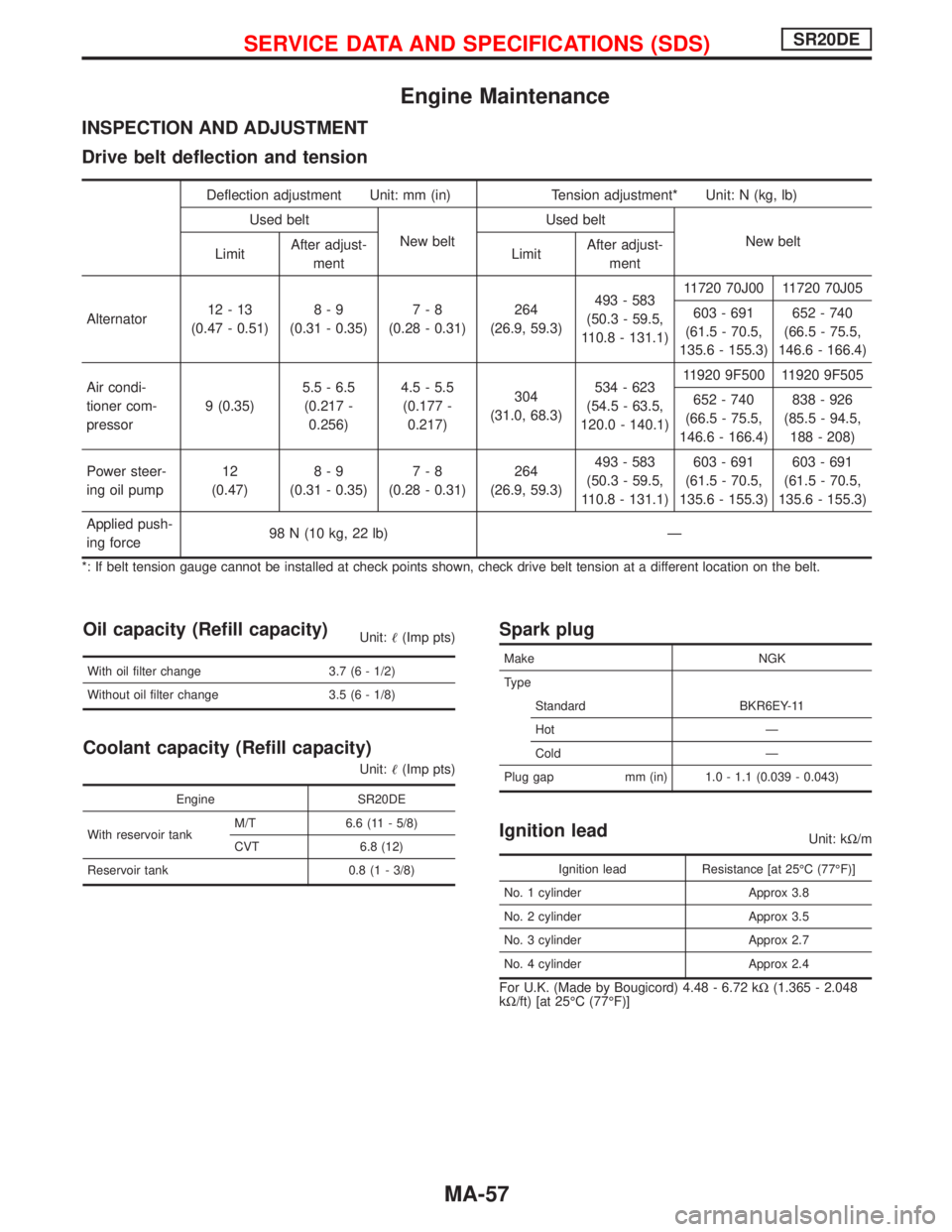

Engine Maintenance
INSPECTION AND ADJUSTMENT
Drive belt deflection and tension
Deflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
LimitAfter adjust-
mentLimitAfter adjust-
ment
Alternator12-13
(0.47 - 0.51)8-9
(0.31 - 0.35)7-8
(0.28 - 0.31)264
(26.9, 59.3)493 - 583
(50.3 - 59.5,
110.8 - 131.1)11720 70J00 11720 70J05
603 - 691
(61.5 - 70.5,
135.6 - 155.3)652 - 740
(66.5 - 75.5,
146.6 - 166.4)
Air condi-
tioner com-
pressor9 (0.35)5.5 - 6.5
(0.217 -
0.256)4.5 - 5.5
(0.177 -
0.217)304
(31.0, 68.3)534 - 623
(54.5 - 63.5,
120.0 - 140.1)11920 9F500 11920 9F505
652 - 740
(66.5 - 75.5,
146.6 - 166.4)838 - 926
(85.5 - 94.5,
188 - 208)
Power steer-
ing oil pump12
(0.47)8-9
(0.31 - 0.35)7-8
(0.28 - 0.31)264
(26.9, 59.3)493 - 583
(50.3 - 59.5,
110.8 - 131.1)603 - 691
(61.5 - 70.5,
135.6 - 155.3)603 - 691
(61.5 - 70.5,
135.6 - 155.3)
Applied push-
ing force98 N (10 kg, 22 lb)—
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at a different location on the belt.
Oil capacity (Refill capacity)Unit:
(Imp pts)
With oil filter change 3.7 (6 - 1/2)
Without oil filter change 3.5 (6 - 1/8)
Coolant capacity (Refill capacity)
Unit:
(Imp pts)
Engine SR20DE
With reservoir tankM/T 6.6 (11 - 5/8)
CVT 6.8 (12)
Reservoir tank 0.8 (1 - 3/8)
Spark plug
Make NGK
Ty p e
Standard BKR6EY-11
Hot—
Cold—
Plug gap mm (in) 1.0 - 1.1 (0.039 - 0.043)
Ignition leadUnit: kΩ/m
Ignition lead Resistance [at 25°C(77°F)]
No. 1 cylinder Approx 3.8
No. 2 cylinder Approx 3.5
No. 3 cylinder Approx 2.7
No. 4 cylinder Approx 2.4
For U.K. (Made by Bougicord) 4.48 - 6.72 kΩ(1.365 - 2.048
kΩ/ft) [at 25°C (77°F)]
SERVICE DATA AND SPECIFICATIONS (SDS)SR20DE
MA-57

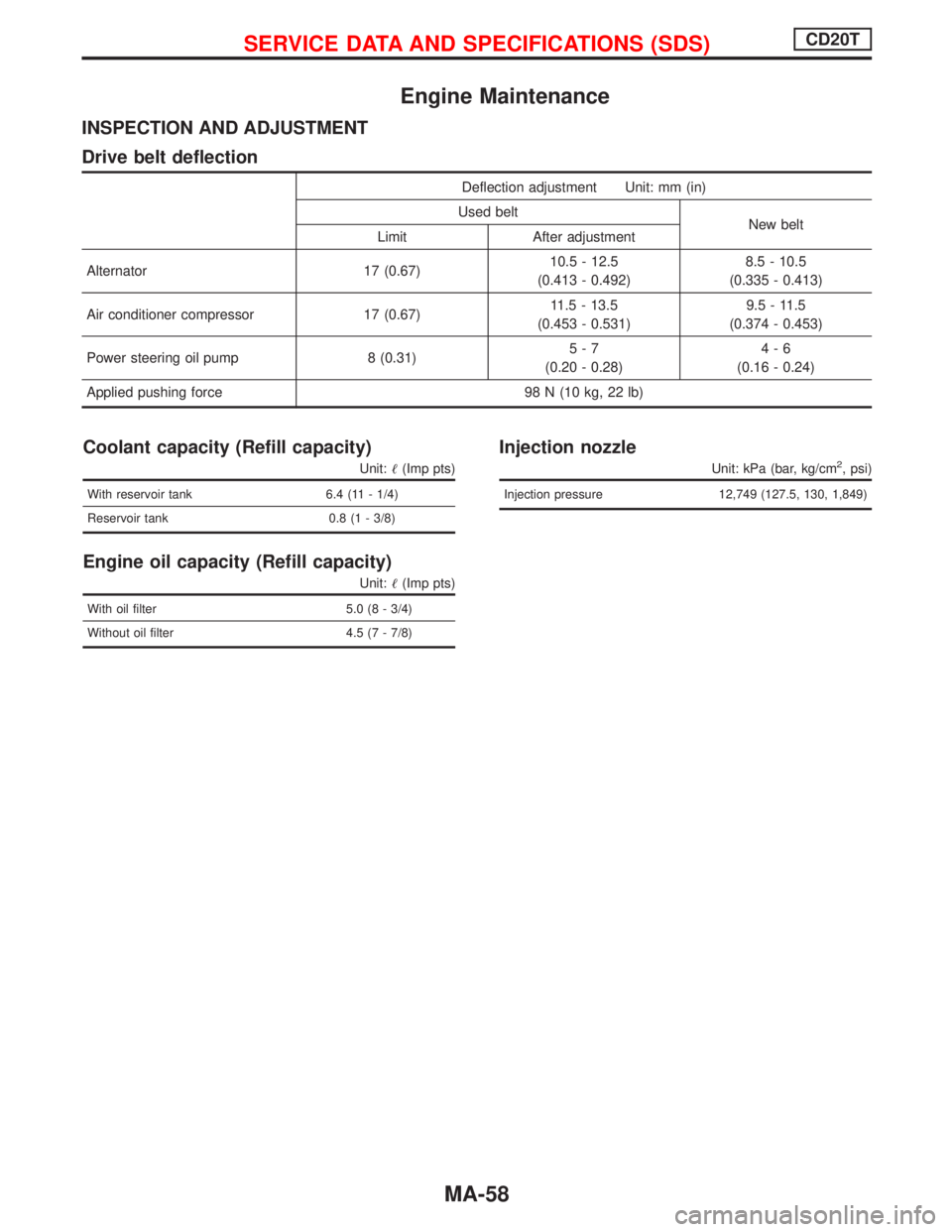

Engine Maintenance
INSPECTION AND ADJUSTMENT
Drive belt deflection
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
Alternator 17 (0.67)10.5 - 12.5
(0.413 - 0.492)8.5 - 10.5
(0.335 - 0.413)
Air conditioner compressor 17 (0.67)11.5 - 13.5
(0.453 - 0.531)9.5 - 11.5
(0.374 - 0.453)
Power steering oil pump 8 (0.31)5-7
(0.20 - 0.28)4-6
(0.16 - 0.24)
Applied pushing force 98 N (10 kg, 22 lb)
Coolant capacity (Refill capacity)
Unit:
(Imp pts)
With reservoir tank 6.4 (11 - 1/4)
Reservoir tank 0.8 (1 - 3/8)
Engine oil capacity (Refill capacity)
Unit:
(Imp pts)
With oil filter 5.0 (8 - 3/4)
Without oil filter 4.5 (7 - 7/8)
Injection nozzle
Unit: kPa (bar, kg/cm2, psi)
Injection pressure 12,749 (127.5, 130, 1,849)
SERVICE DATA AND SPECIFICATIONS (SDS)CD20T
MA-58
