Page 1489 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual A CHECK HARNESS CONNECTOR CONNECTION. Check the following harness connector connection. E125/M70 M85 Does the engine start? No Ye s System is OK. (The malfunction is caused by improper con- nector c

Page 1490 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 5 Self-diagnostic results: “ID DISCORD, IMM-ECM”displayed on CONSULT-II screen Confirm SELF-DIAGNOSTIC RESULTS“ID DISCORD, IMM- ECM*”displayed on CON- SULT-II screen.*“I

Page 1491 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 6 —With security indicator on dashboard— “SECURITY INDICATOR LAMP DOES NOT LIGHT UP” Check 10A fuse [No.16 , located in the fuse block (J/B)]. OK NG Replace fuse. NATS IN

Page 1492 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 6 —With security indicator built-in combination meter— “SECURITY INDICATOR LAMP DOES NOT LIGHT UP” Check 10A fuse [No.16 , located in the fuse block (J/B)]. OK NG Replace

Page 1493 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 7 Self-diagnostic results: “LOCK MODE”displayed on CONSULT-II screen Confirm SELF-DIAGNOSTIC RESULTS“LOCK MODE”is dis- played on CONSULT-II screen. 1. Turn the ignition sw

Page 1494 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE 8 Perform initialization with CONSULT-II Check the following harness connector connection. E125/M70 M85 Then initialize NATS. For the operation of initialization, refer to“CONSU

Page 1495 of 2267

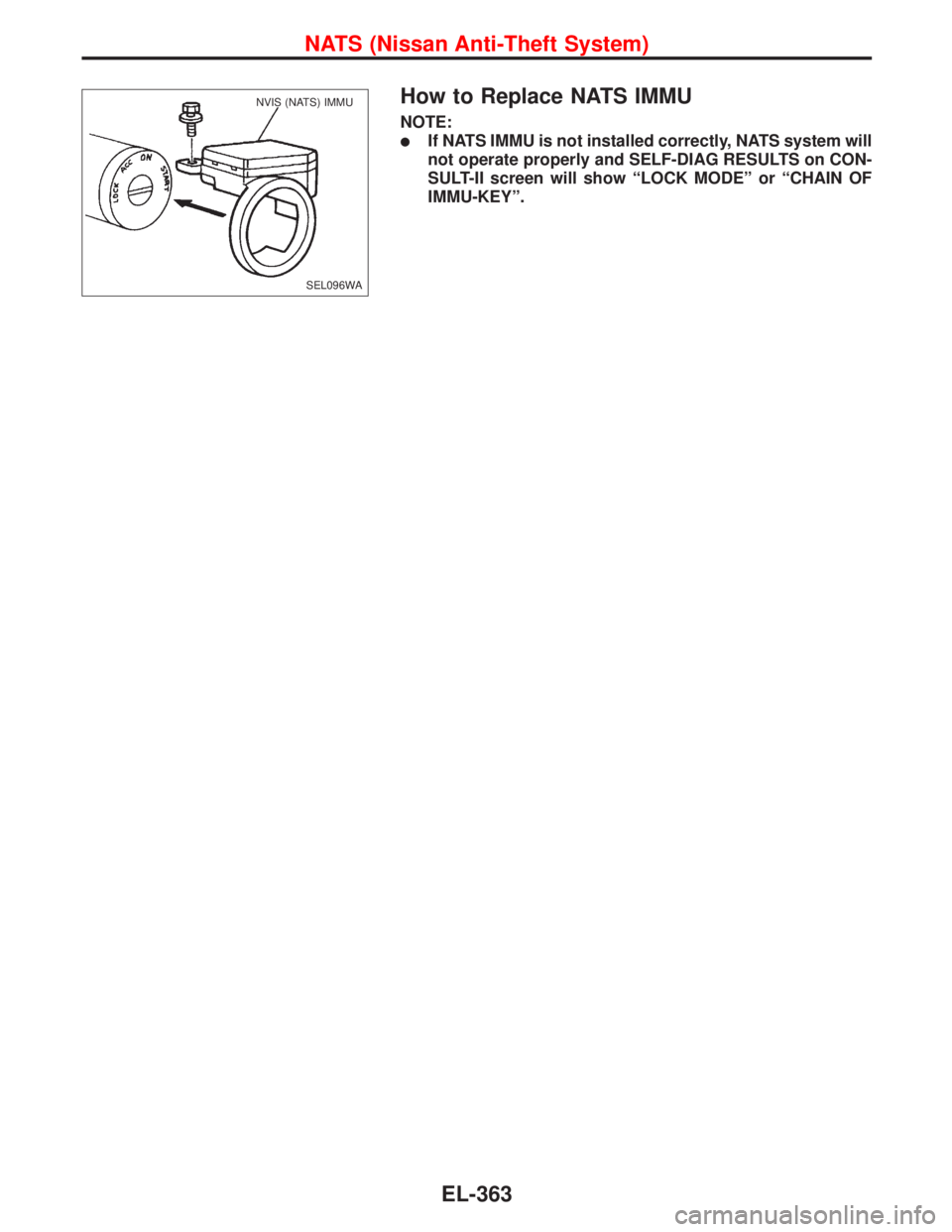

NISSAN PRIMERA 1999 Electronic Repair Manual How to Replace NATS IMMU NOTE: If NATS IMMU is not installed correctly, NATS system will not operate properly and SELF-DIAG RESULTS on CON- SULT-II screen will show“LOCK MODE”or“CHAIN OF IMMU-K

Page 1496 of 2267

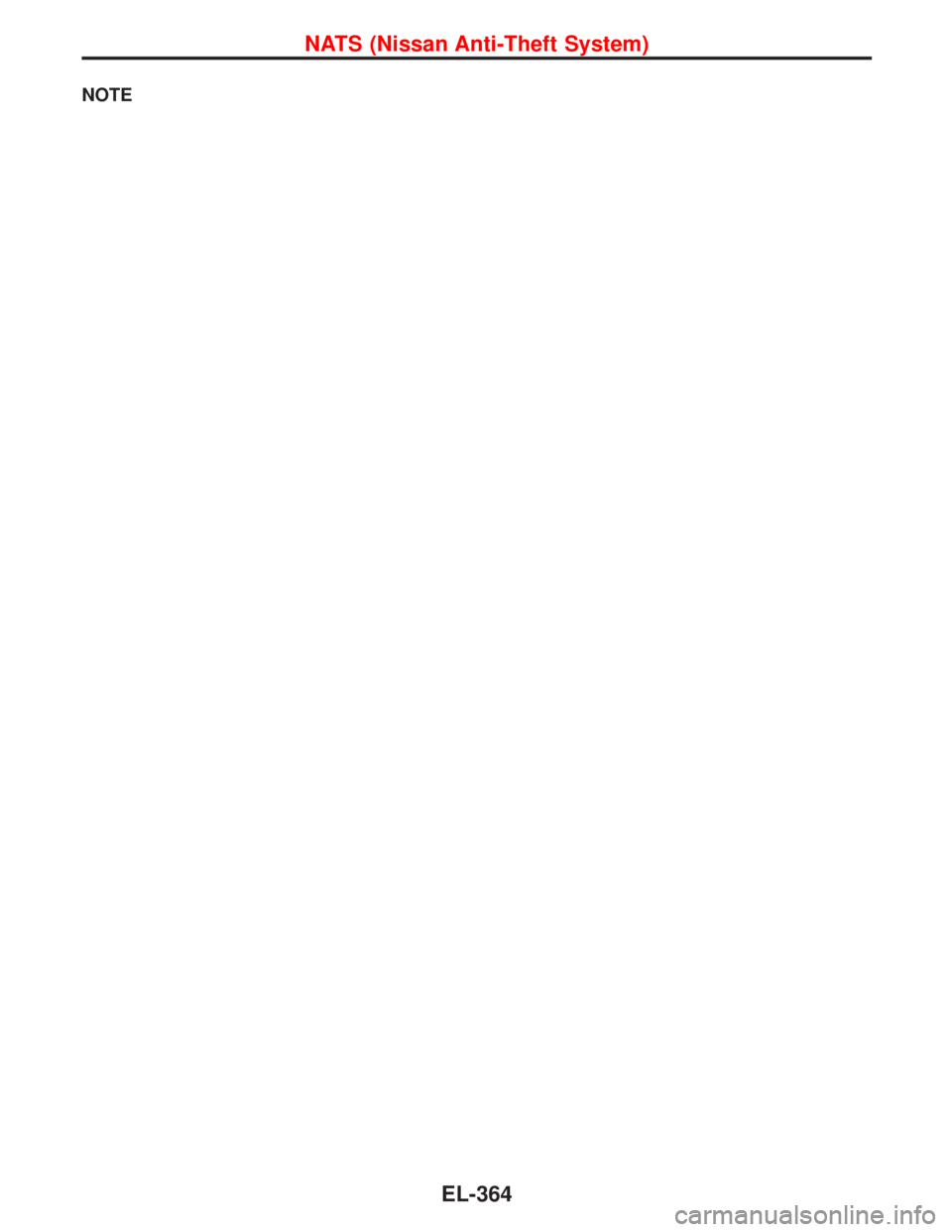

NISSAN PRIMERA 1999 Electronic Repair Manual NOTE NATS (Nissan Anti-Theft System) EL-364
