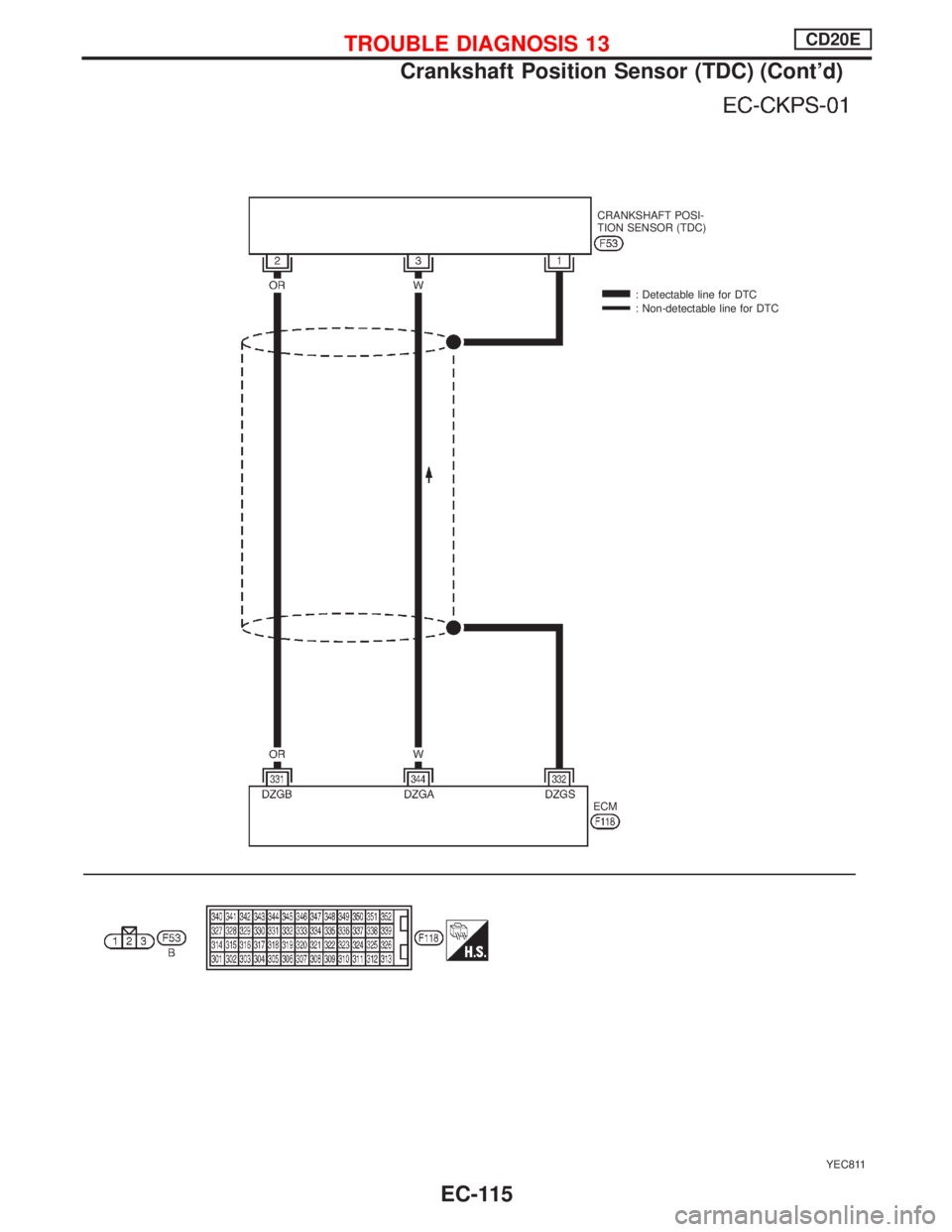

NISSAN PRIMERA 1999 Electronic Repair Manual YEC811 CRANKSHAFT POSI- TION SENSOR (TDC) : Detectable line for DTC : Non-detectable line for DTC ECM TROUBLE DIAGNOSIS 13CD20E Crankshaft Position Sensor (TDC) (Contd) EC-115

Page 410 of 2267

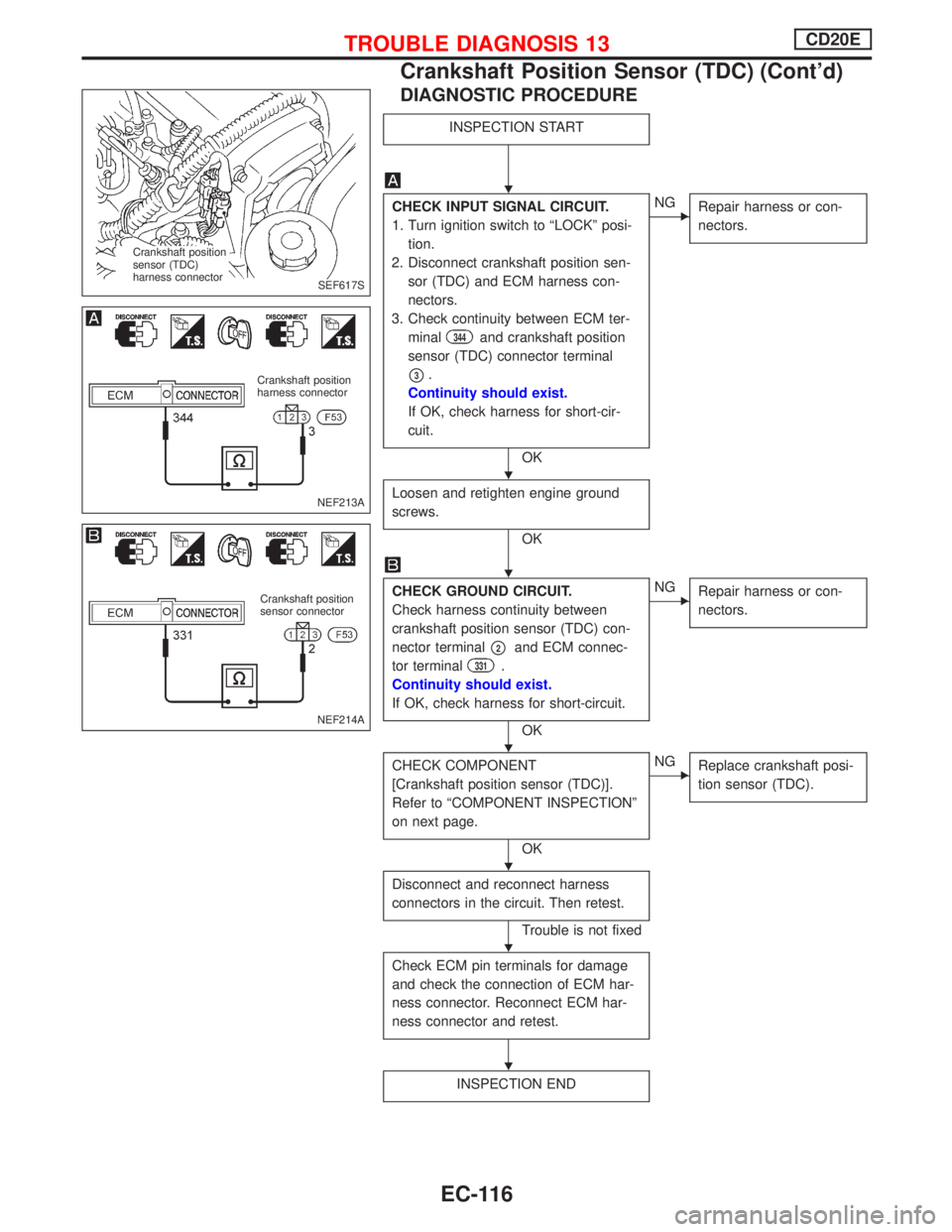

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE INSPECTION START CHECK INPUT SIGNAL CIRCUIT. 1. Turn ignition switch to ªLOCKº posi- tion. 2. Disconnect crankshaft position sen- sor (TDC) and ECM harness con- nectors. 3. Chec

Page 411 of 2267

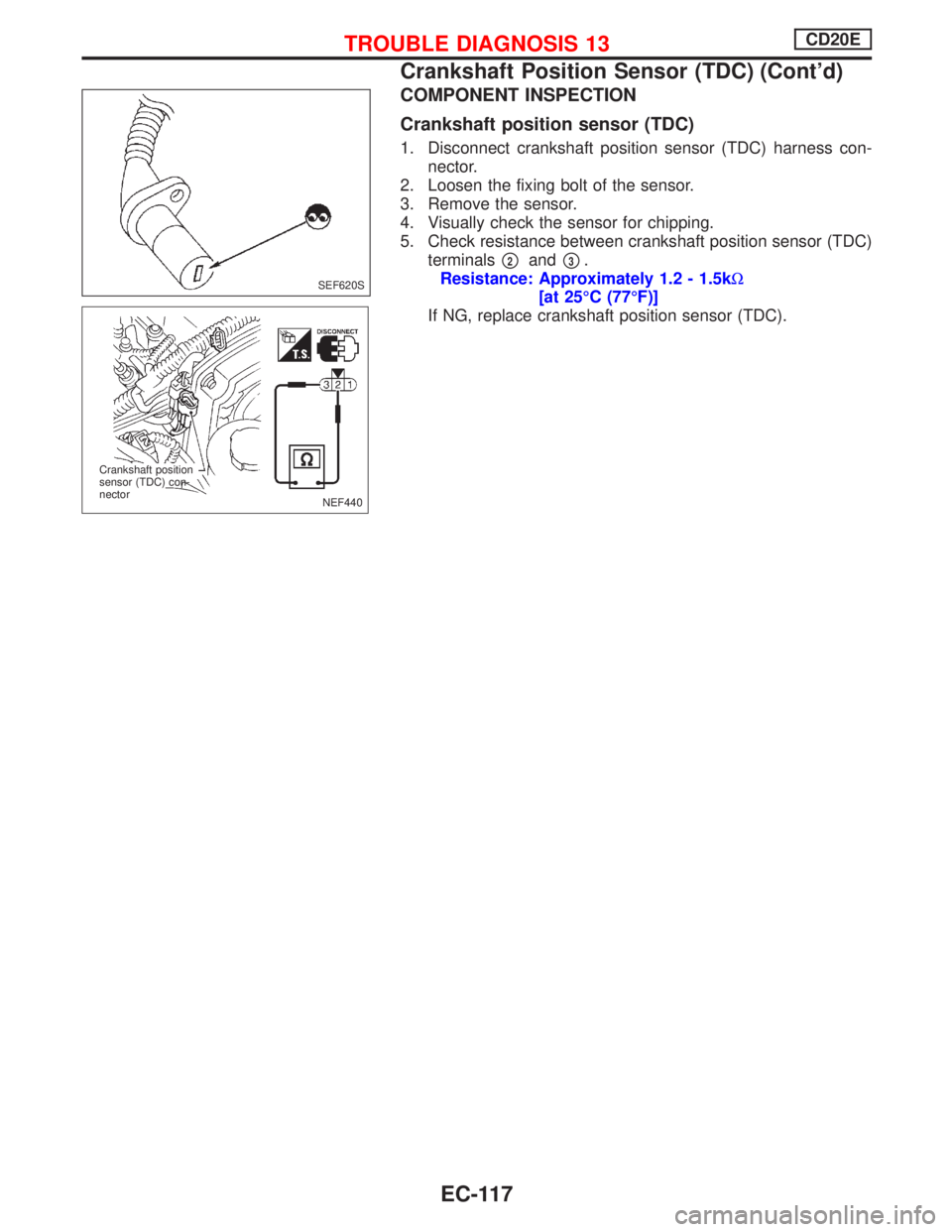

NISSAN PRIMERA 1999 Electronic Repair Manual COMPONENT INSPECTION Crankshaft position sensor (TDC) 1. Disconnect crankshaft position sensor (TDC) harness con- nector. 2. Loosen the fixing bolt of the sensor. 3. Remove the sensor. 4. Visually che

Page 412 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Glow Control System When coolant temperature is lower than 75ÉC (167ÉF): lIgnition switch ON After ignition switch has been turned to ON, the glow relay turns ON for a period of time depending on en

Page 413 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC TROUBLE CONFIRMATION PROCEDURE 1) Turn ignition switch to ªONº position. 2) Select ªDATA MONITORº mode with CONSULT-II. 3) Wait at least 5 seconds. TROUBLE DIAGNOSES 14CD20T Glow Contro

Page 414 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEC102A TROUBLE DIAGNOSES 14CD20T Glow Control System (Contd) EC-120

Page 415 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual DIAGNOSTIC PROCEDURE INSPECTION START (Glow relay signal circuit) CHECK MAIN POWER SUPPLY. Check power supply to ECCS-D relay. Refer to ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº (EC-CD-59). CHECK POWER S

Page 416 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual INSPECTION START (Glow indicator lamp circuit) CHECK POWER SUPPLY CIRCUIT. 1. Turn ignition switch to ªLOCKº posi- tion. 2. Disconnect combination meter har- ness connector. 3. Turn ignition switch
