Page 2113 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual ADJUSTMENT OF INPUT SHAFT BRAKING MECHANISM 1. Install striking lever & rod, striking interlock assembly and con- trol bracket on clutch housing exactly. IWhen installing control bracket on clutch hou

Page 2114 of 2267

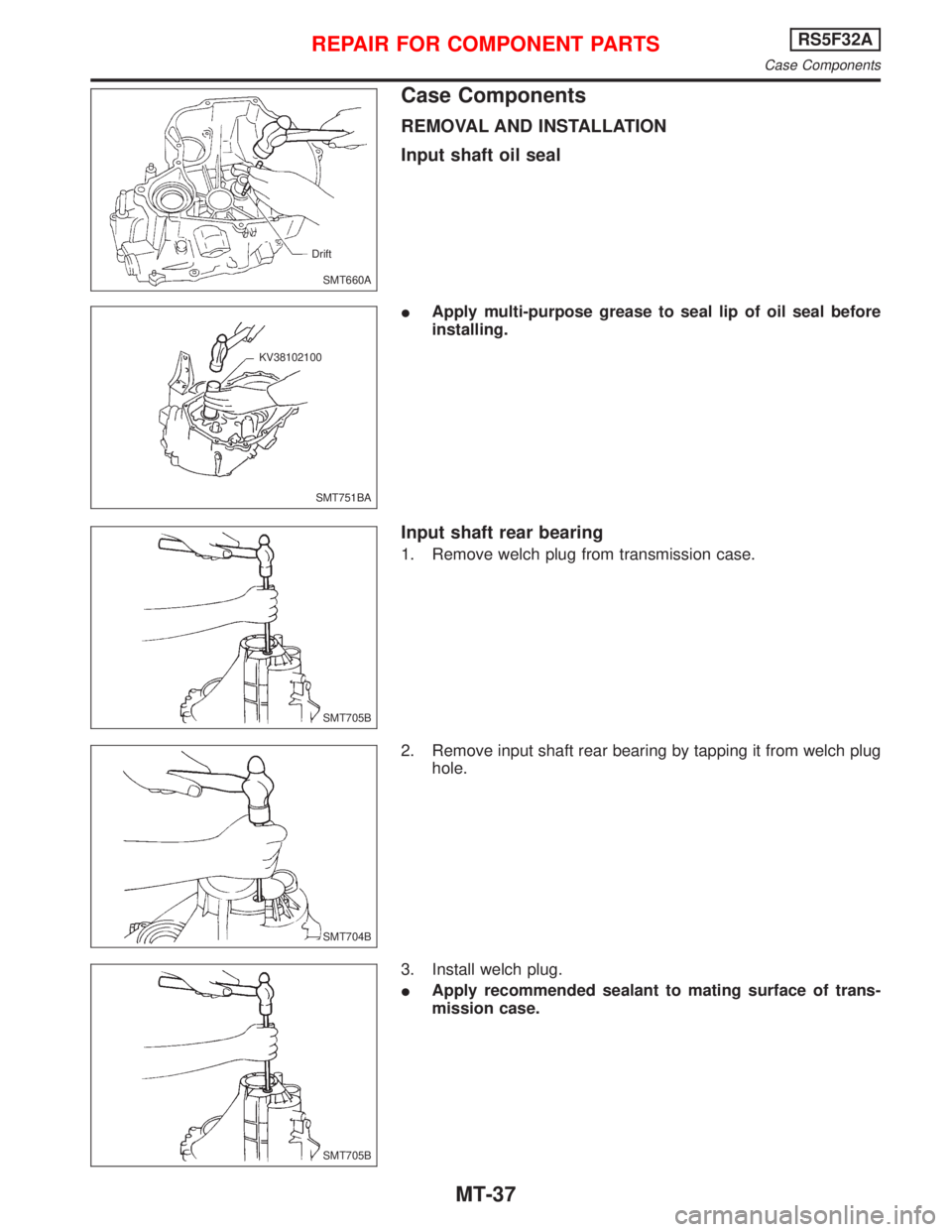

NISSAN PRIMERA 1999 Electronic Repair Manual Case Components REMOVAL AND INSTALLATION Input shaft oil seal IApply multi-purpose grease to seal lip of oil seal before installing. Input shaft rear bearing 1. Remove welch plug from transmission cas

Page 2115 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 4. Install input shaft rear bearing. Mainshaft front bearing and oil channel 1. Remove mainshaft front bearing retainer. 2. Remove mainshaft front bearing. 3. Remove oil channel. 4. Install oil channe

Page 2116 of 2267

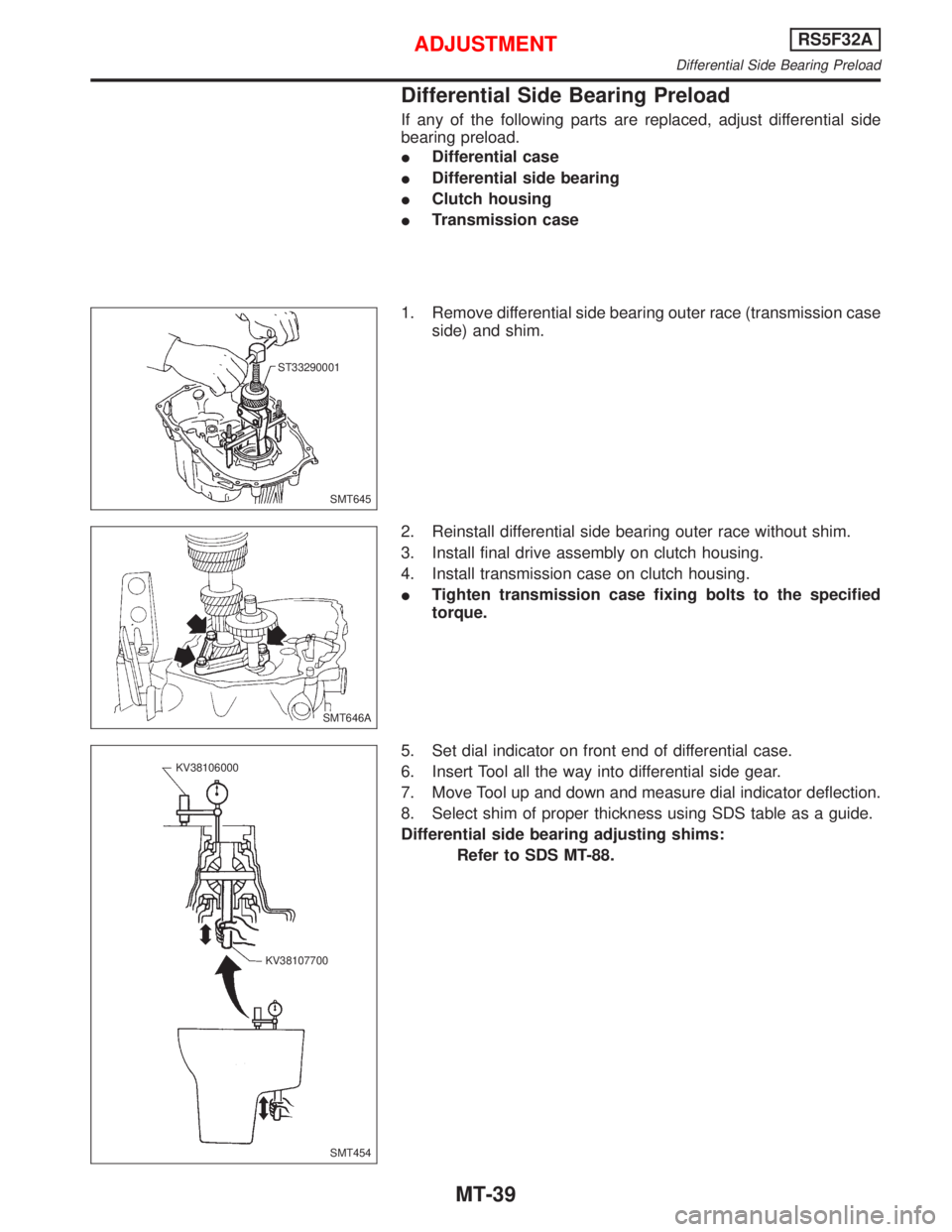

NISSAN PRIMERA 1999 Electronic Repair Manual Differential Side Bearing Preload If any of the following parts are replaced, adjust differential side bearing preload. IDifferential case IDifferential side bearing IClutch housing ITransmission case

Page 2117 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 9. Install selected shim and differential side bearing outer race. 10. Check differential side bearing turning torque. a. Install final drive assembly on clutch housing. b. Install transmission case o

Page 2118 of 2267

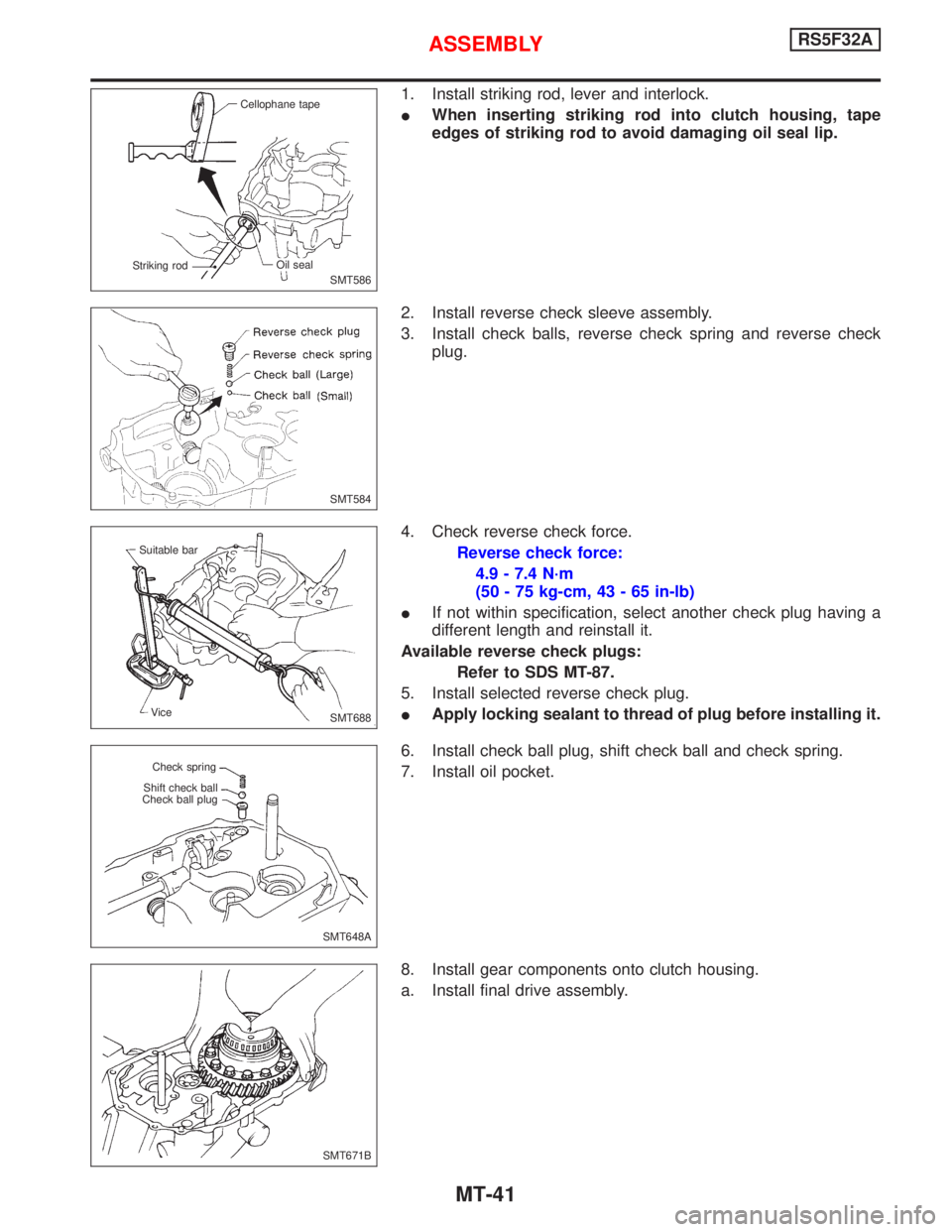

NISSAN PRIMERA 1999 Electronic Repair Manual 1. Install striking rod, lever and interlock. IWhen inserting striking rod into clutch housing, tape edges of striking rod to avoid damaging oil seal lip. 2. Install reverse check sleeve assembly. 3.

Page 2119 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual b. Install input shaft assembly with bearing retainer, mainshaft assembly and reverse idler gear. IBe careful not to damage oil seal lip with splines of input shaft while shaft is being inserted into

Page 2120 of 2267

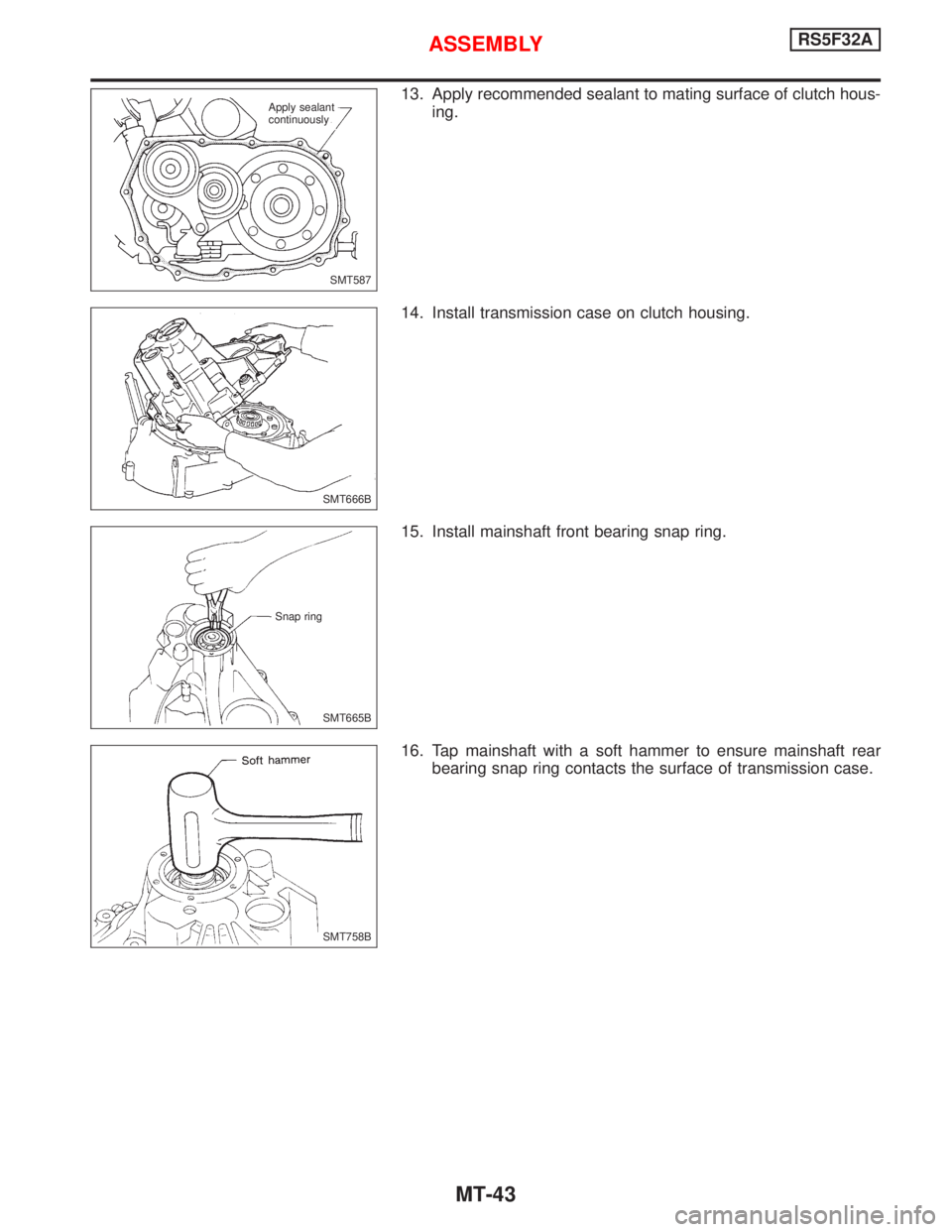

NISSAN PRIMERA 1999 Electronic Repair Manual 13. Apply recommended sealant to mating surface of clutch hous- ing. 14. Install transmission case on clutch housing. 15. Install mainshaft front bearing snap ring. 16. Tap mainshaft with a soft hamme
