NISSAN PRIMERA 1999 Electronic Repair Manual DescriptionNCAT0241The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the CVT. ON BOARD DIAGNOSIS LOGICNCAT0241S01 Diagnostic troubl

Page 106 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic Procedure=NCAT0242 1 CHECK DTC With CONSULT-II 1. Turn ignition switch ªONº and select ªSELF DIAG RESULTSº mode for CVT with CONSULT-II. 2. Move selector lever to ªRº position. 3. Dep

Page 107 of 2267

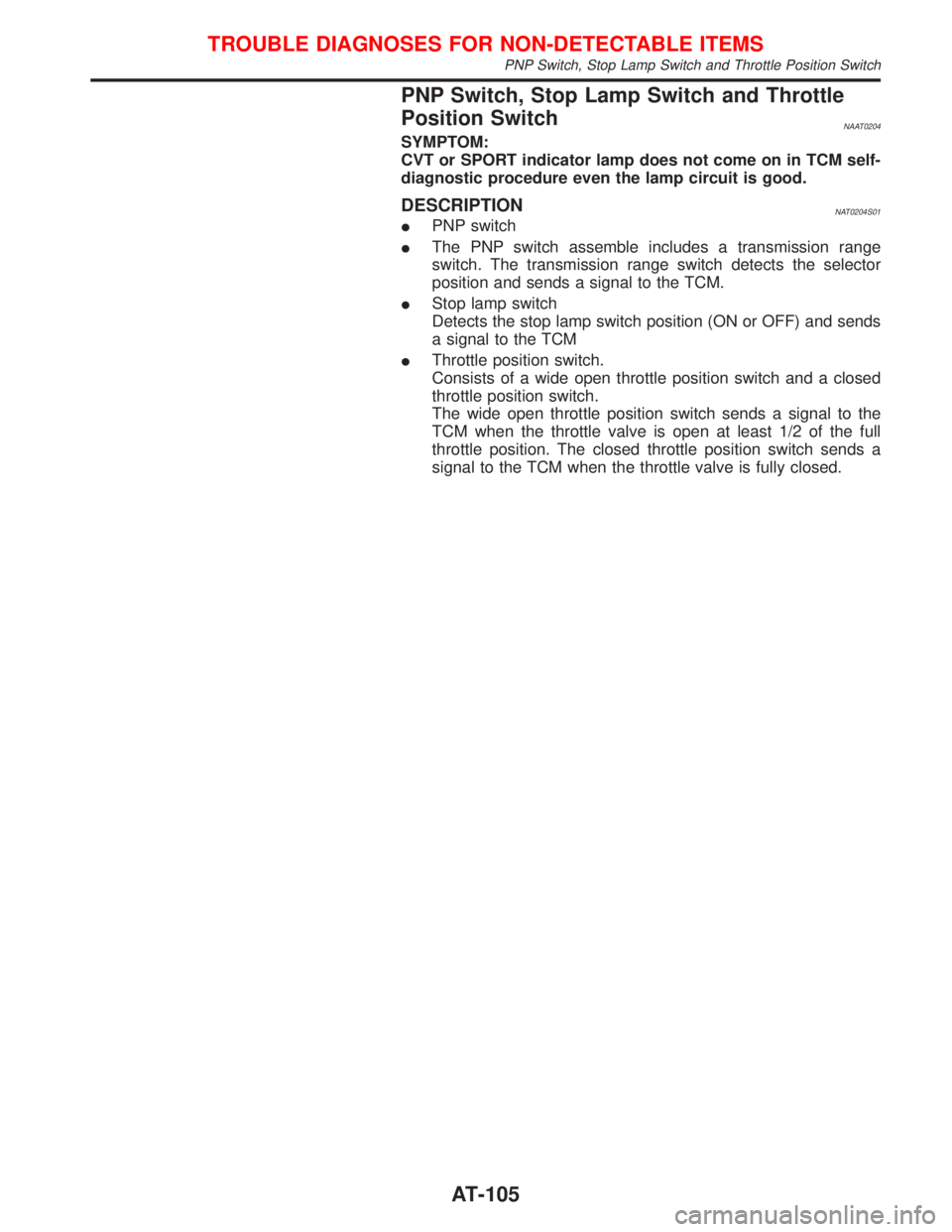

NISSAN PRIMERA 1999 Electronic Repair Manual PNP Switch, Stop Lamp Switch and Throttle Position Switch NAAT0204 SYMPTOM: CVT or SPORT indicator lamp does not come on in TCM self- diagnostic procedure even the lamp circuit is good. DESCRIPTIONNAT

Page 108 of 2267

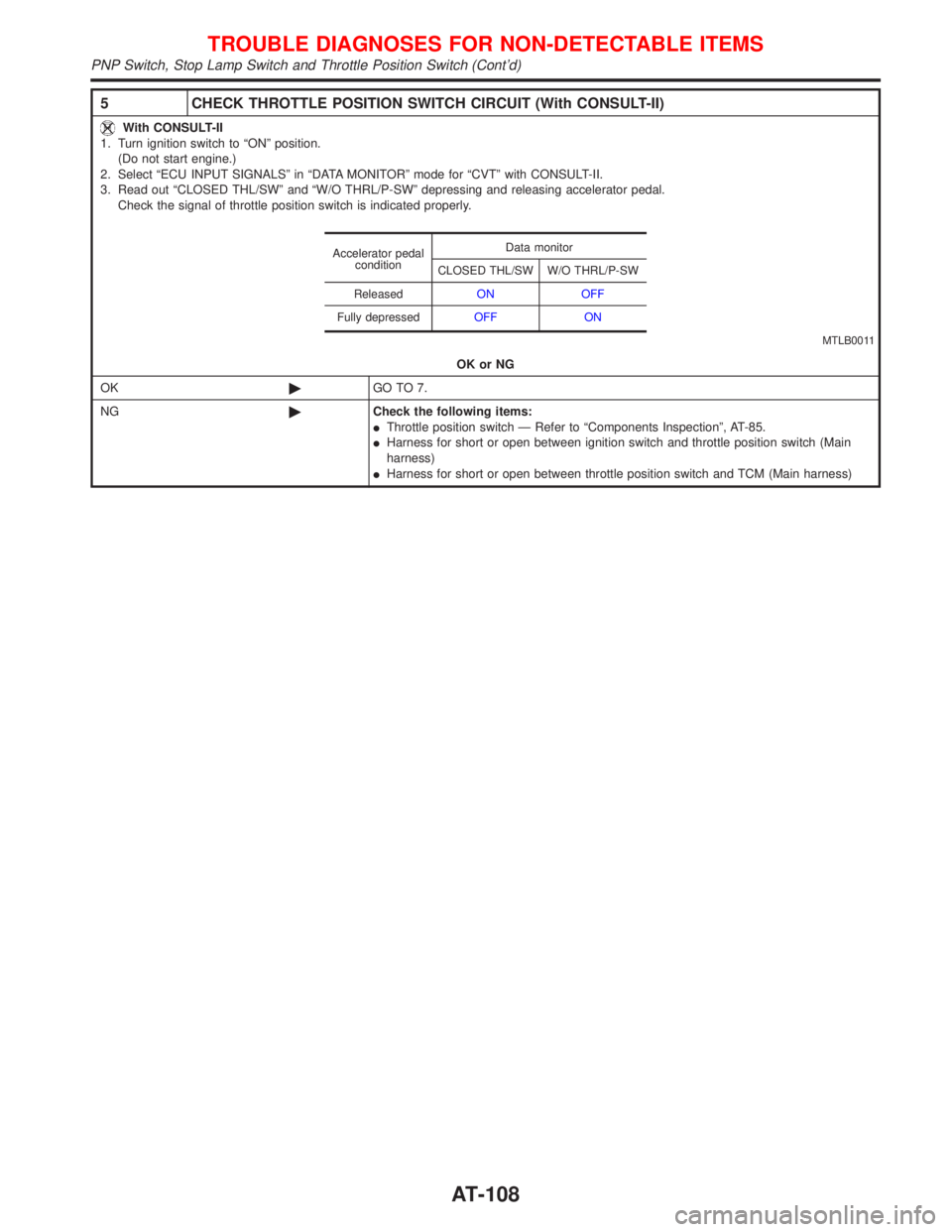

NISSAN PRIMERA 1999 Electronic Repair Manual 1 CHECK PNP SWITCH CIRCUIT (With CONSULT-II) With CONSULT-II 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº wit

Page 109 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 3 CHECK PNP SWITCH CIRCUIT (With CONSULT-II) With CONSULT-II 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº wit

Page 110 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 5 CHECK THROTTLE POSITION SWITCH CIRCUIT (With CONSULT-II) With CONSULT-II 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode f

Page 111 of 2267

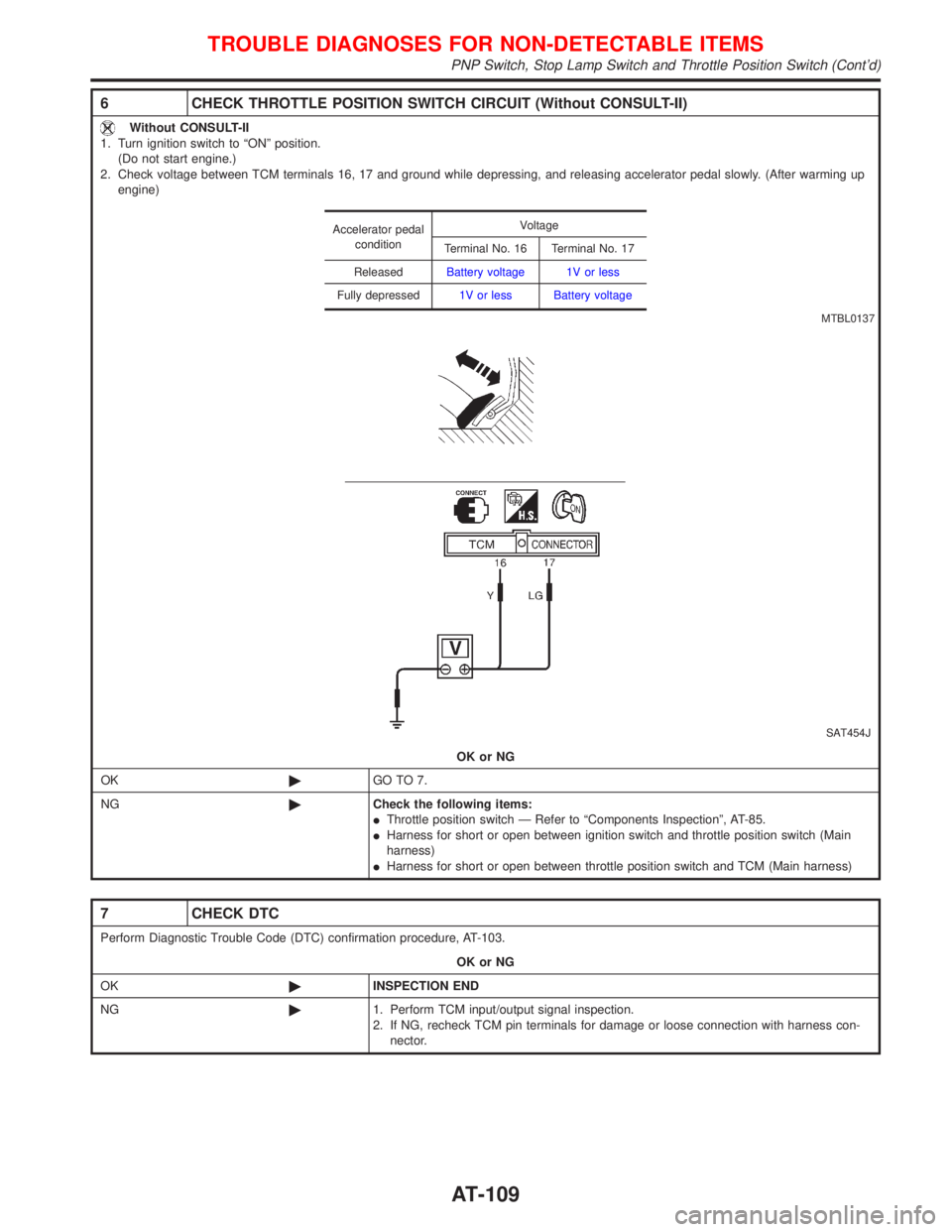

NISSAN PRIMERA 1999 Electronic Repair Manual 6 CHECK THROTTLE POSITION SWITCH CIRCUIT (Without CONSULT-II) Without CONSULT-II 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Check voltage between TCM terminals 16, 17 and gr

Page 112 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring Diagram Ð AT Ð NONDTC MODELS BEFORE VIN - P11U0548750NCAT0237 YAT155 BATTERYIGNITION SWITCH ON or START FUSE BLOCK (J/B)Refer to EL-POWER.TCM (TRANSMISSION CONTROL MODULE) Detectable line for
