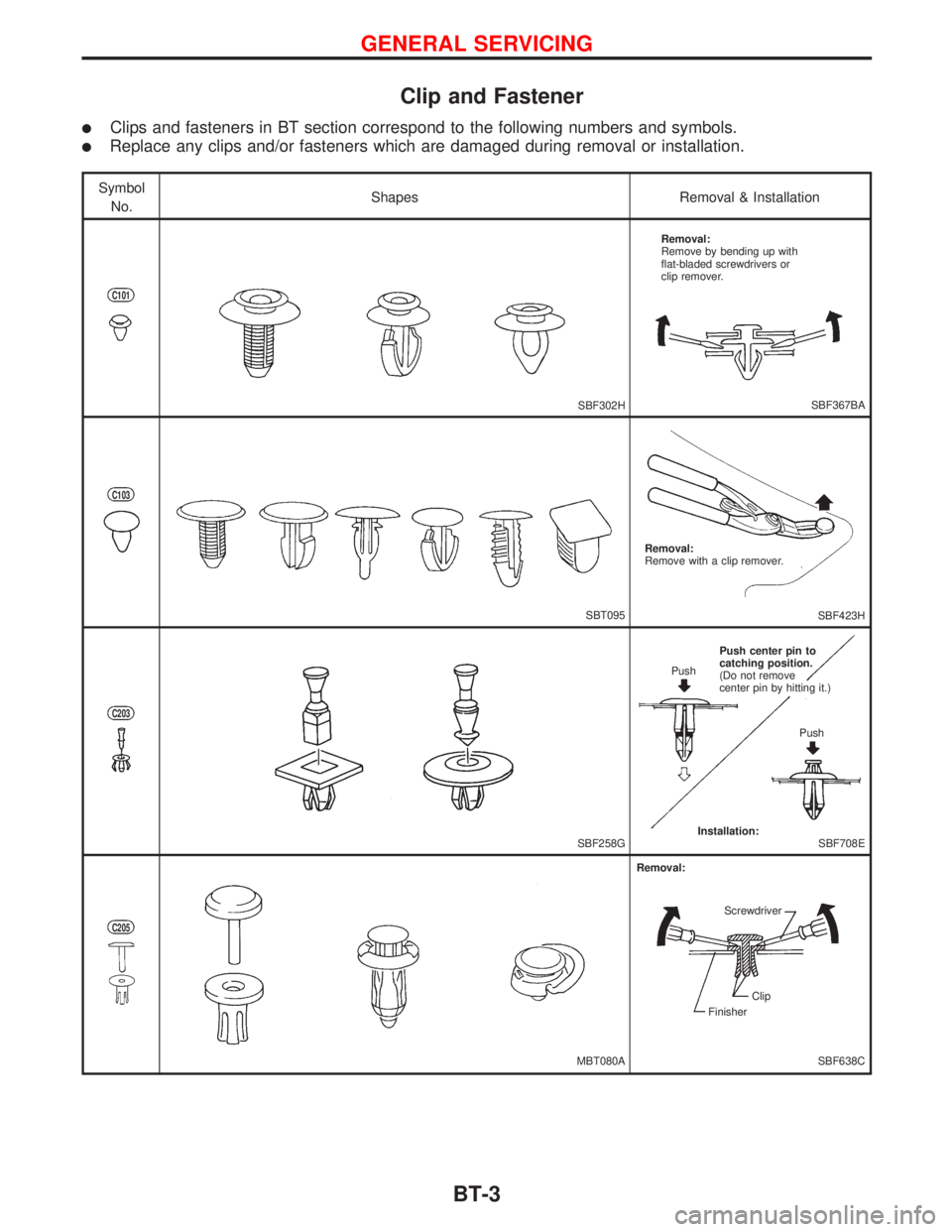

Page 217 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Clip and Fastener lClips and fasteners in BT section correspond to the following numbers and symbols. lReplace any clips and/or fasteners which are damaged during removal or installation. Symbol No.Sh

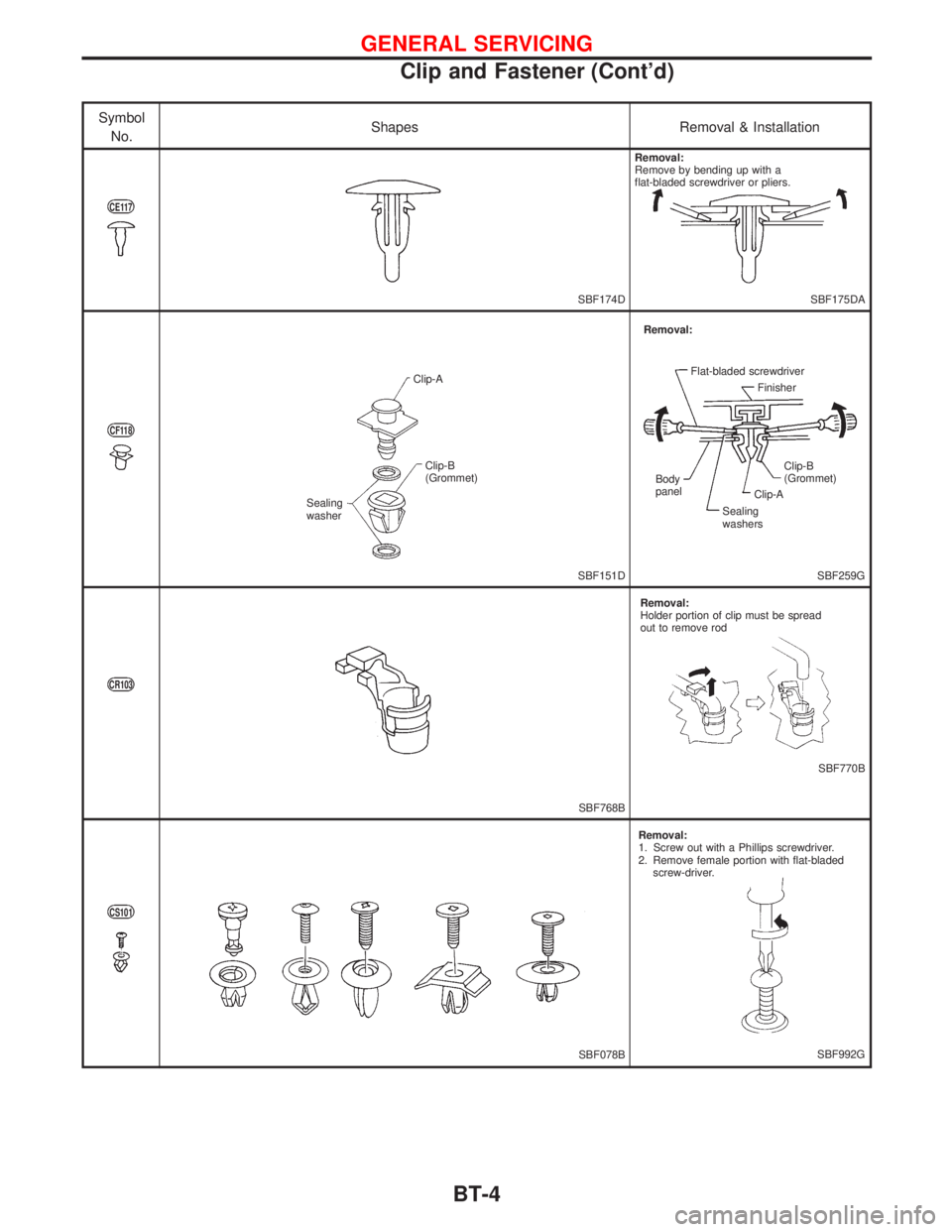

Page 218 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Symbol No.Shapes Removal & Installation CE117 SBF174DSBF175DA CF118 SBF151DSBF259G CR103 SBF768B SBF770B CS101 SBF078BSBF992G Removal: Remove by bending up with a flat-bladed screwdriver or pliers. Cl

Page 219 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Body Front End lWhen removing or installing hood, place a cloth or other padding on the front fender panels and cowl top. This prevents vehicle body from being scratched. lBumper fascia is made of pla

Page 220 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NBT033 SEC. 261×620×623×650×656 Hood lock adjustmentlAdjust hood so that hood primary lock meshes at a position 1 to 1.5 mm (0.039 to 0.059 in) lower than fender. lAfter hood lock adjustment, adju

Page 221 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Body Rear End and Opener 4-DOOR SEDAN lWhen removing or installing trunk lid, place a cloth or other padding on rear fender panels. This pre- vents vehicle body from being scratched. lBumper fascia is

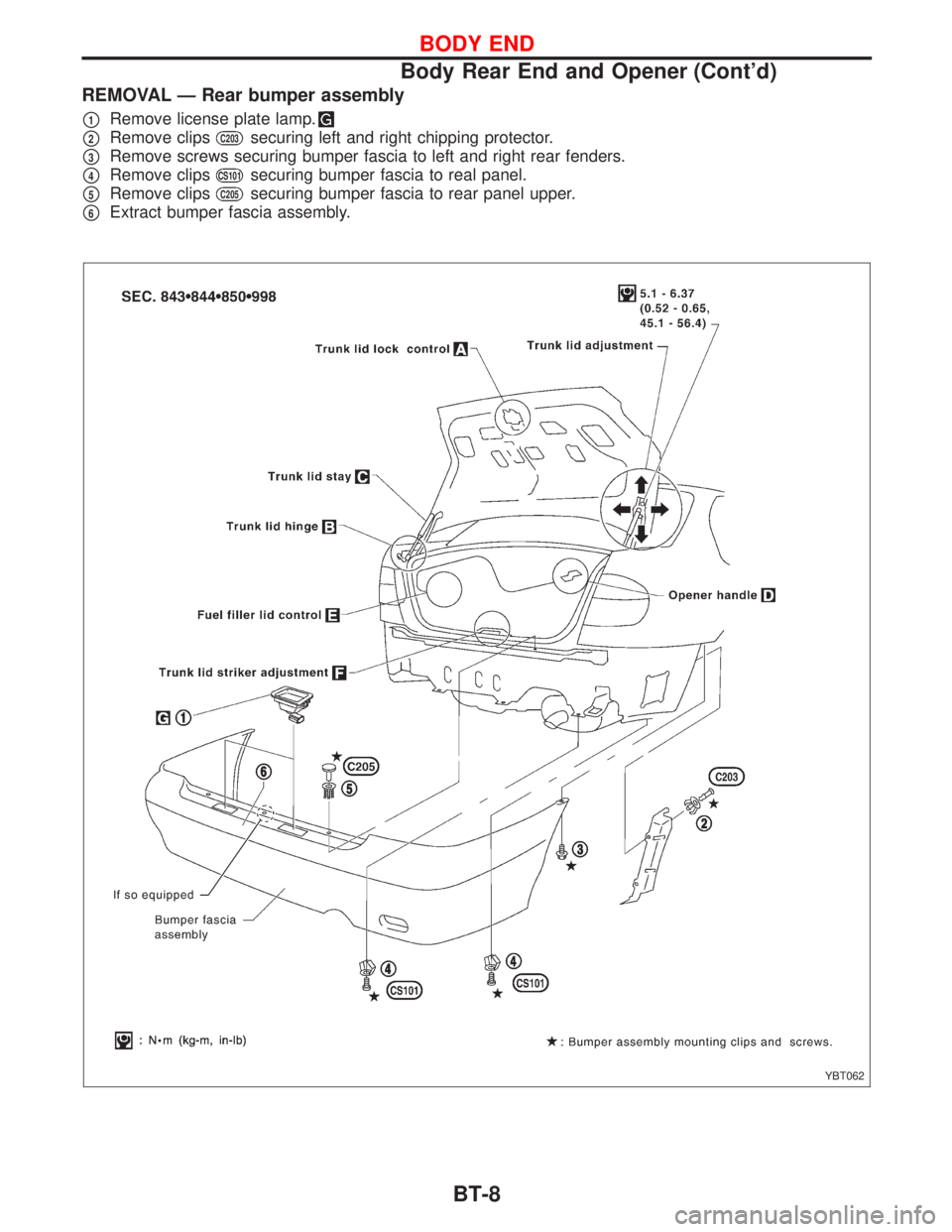

Page 222 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual REMOVAL Ð Rear bumper assembly p1Remove license plate lamp. p2Remove clipsC203securing left and right chipping protector. p3Remove screws securing bumper fascia to left and right rear fenders. p4Remo

Page 223 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 5-DOOR HATCHBACK lBack door adjustment: Adjust at hinge-body portion for proper back door fit. lBack door lock system adjustment: Adjust lock & striker so that they are in the center. After adjustment

Page 224 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YBT061 BODY END Body Rear End and Opener (Contd) BT-10
