Page 1649 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Components p1Rear oil seal retainer p2Cylinder block p3Water pump p4Power steering oil pump adjusting bar p5Front cover with oil pump p6Oil strainer p7Thrust bearing p8Crankshaft p9Connecting rod bush

Page 1650 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CAUTION: IWhen installing sliding parts (bearings, pistons, etc.), apply new engine oil to the sliding surfaces. IPlace removed parts such as bearings and bearing caps in their correct order and direc

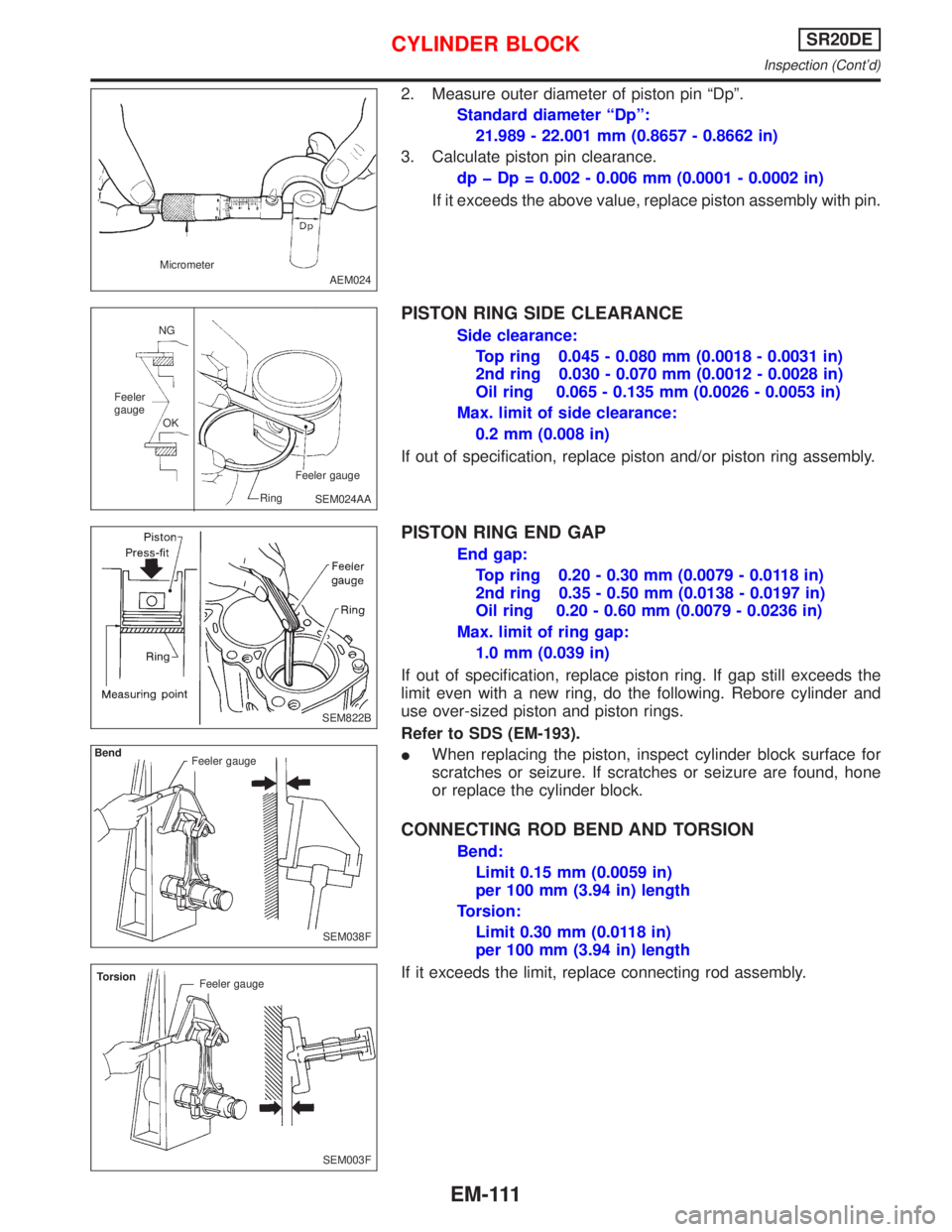

Page 1651 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 2. Measure outer diameter of piston pin ªDpº. Standard diameter ªDpº: 21.989 - 22.001 mm (0.8657 - 0.8662 in) 3. Calculate piston pin clearance. dp þ Dp = 0.002 - 0.006 mm (0.0001 - 0.0002 in) If

Page 1652 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CYLINDER BLOCK DISTORTION AND WEAR 1. Clean upper face of cylinder block and measure the distortion. Standard: Less than 0.03 mm (0.0012 in) Limit: 0.10 mm (0.0039 in) 2. If out of specification, resu

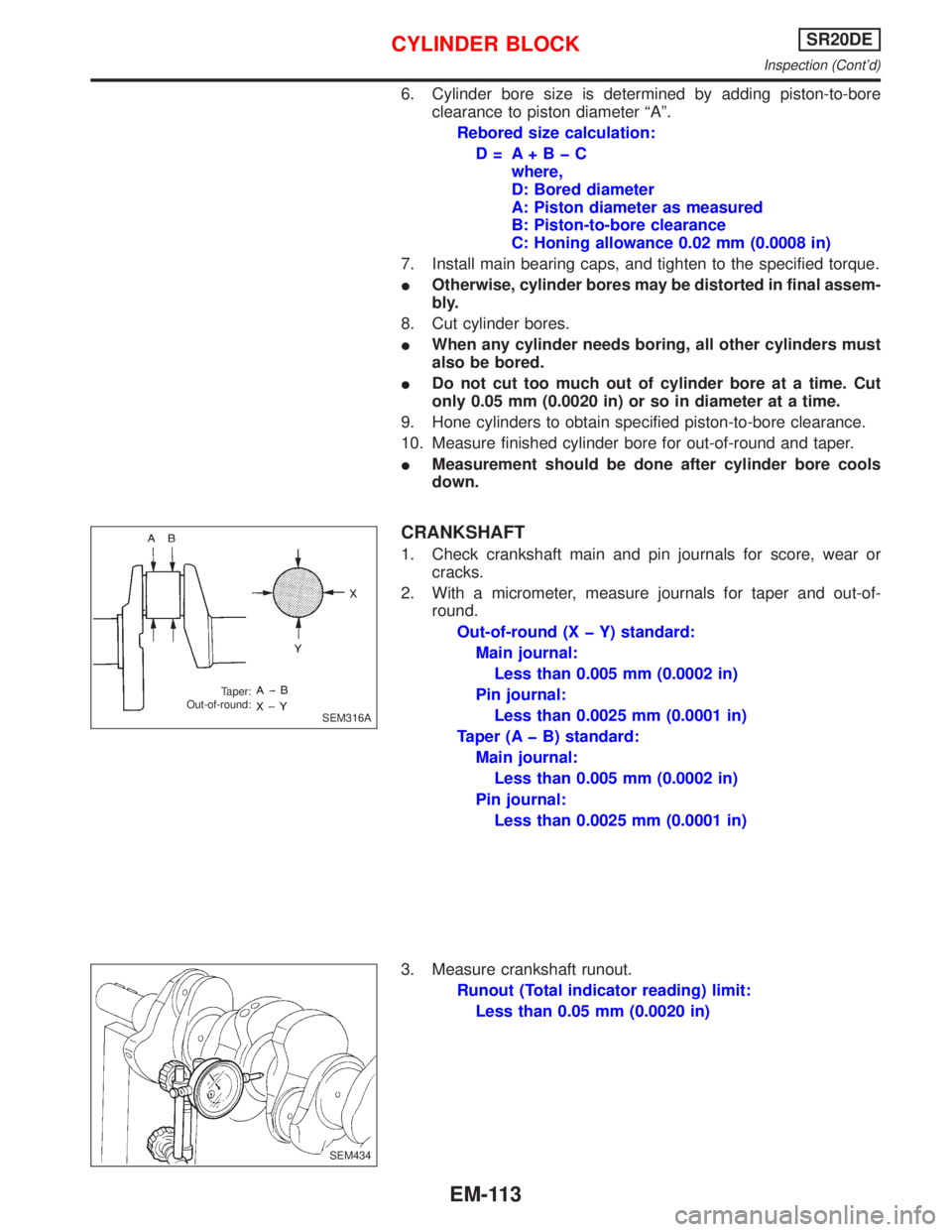

Page 1653 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 6. Cylinder bore size is determined by adding piston-to-bore clearance to piston diameter ªAº. Rebored size calculation: D= A+BþC where, D: Bored diameter A: Piston diameter as measured B: Piston-t

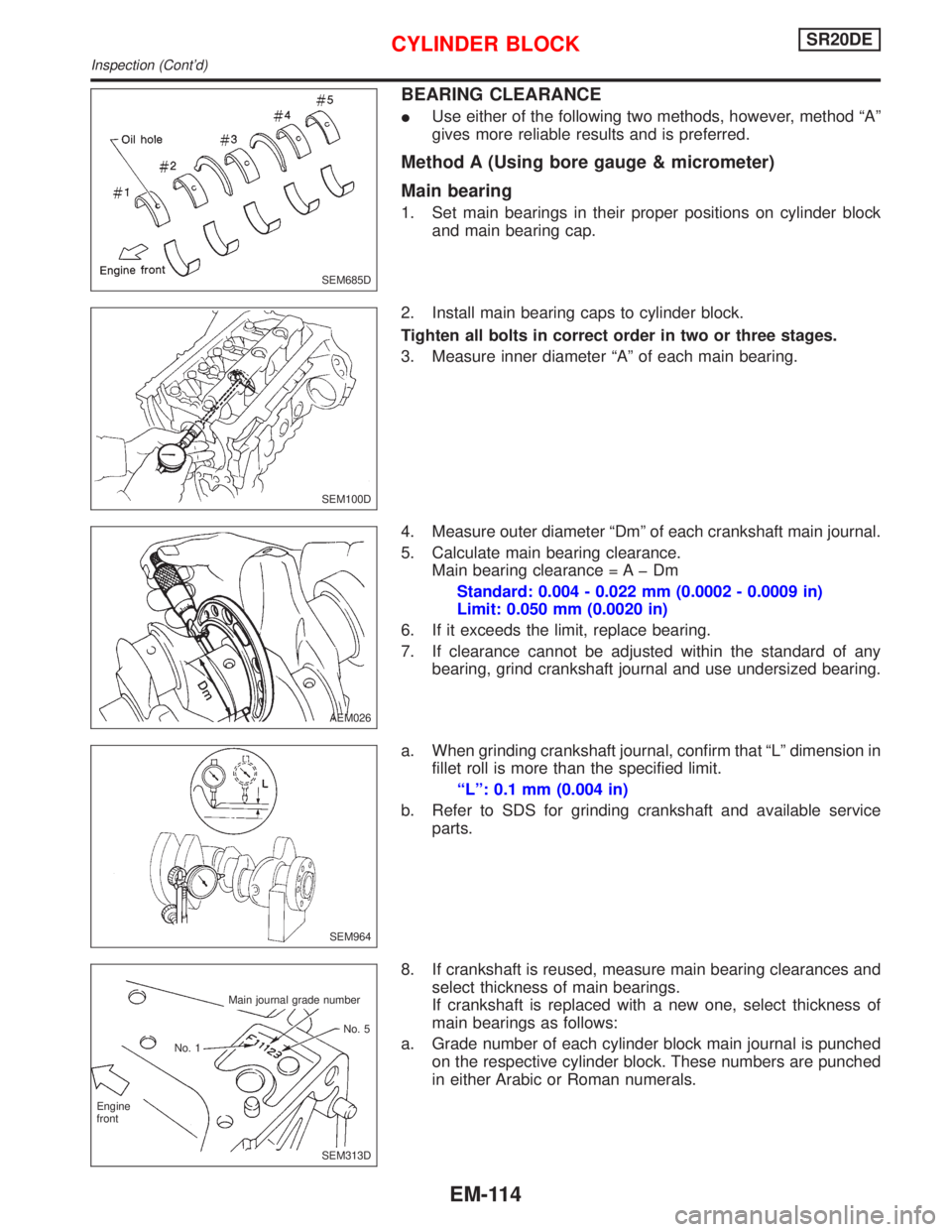

Page 1654 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual BEARING CLEARANCE IUse either of the following two methods, however, method ªAº gives more reliable results and is preferred. Method A (Using bore gauge & micrometer) Main bearing 1. Set main bearin

Page 1655 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual b. Grade number of each crankshaft main journal is punched on the respective crankshaft. These numbers are punched in either Arabic or Roman numerals. c. Select main bearing with suitable thickness ac

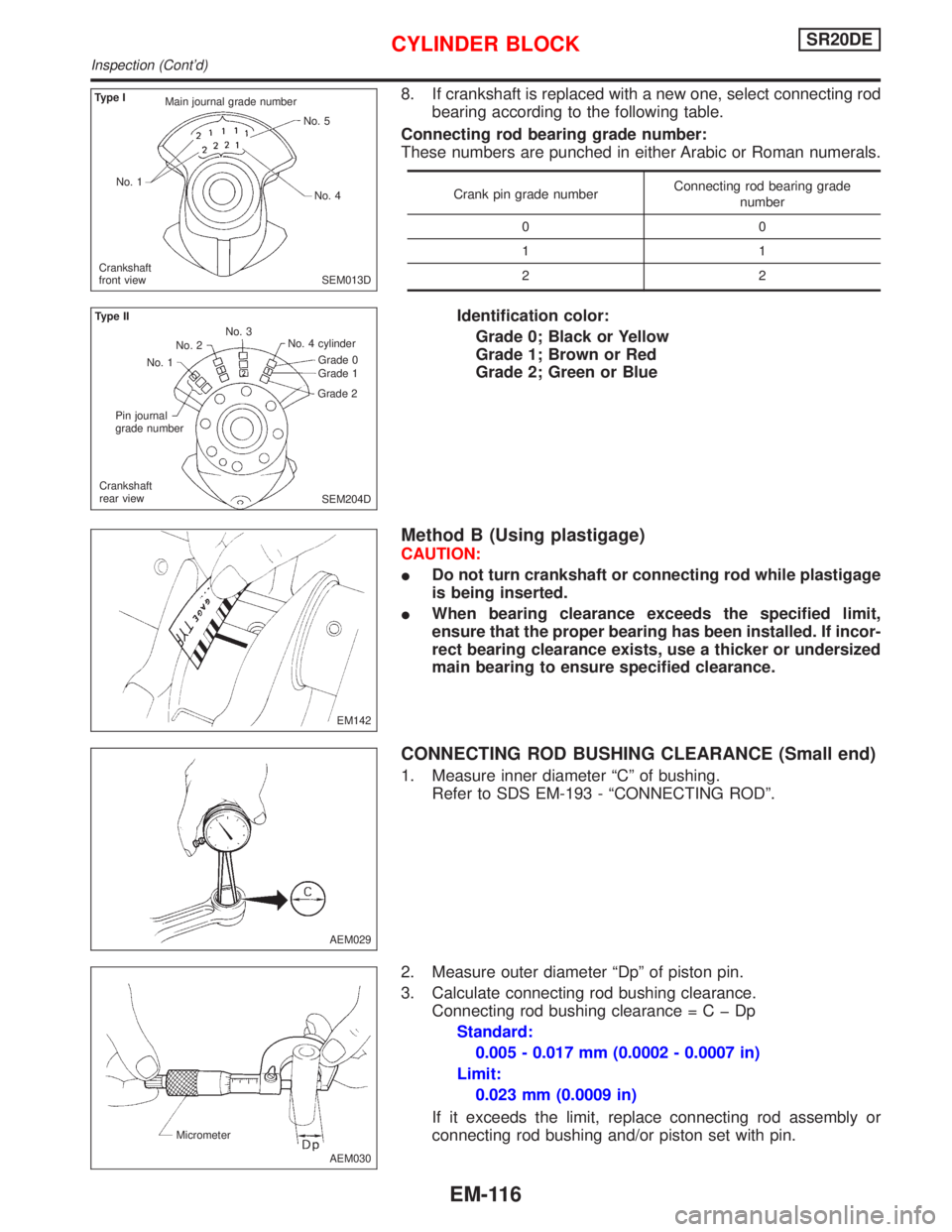

Page 1656 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 8. If crankshaft is replaced with a new one, select connecting rod bearing according to the following table. Connecting rod bearing grade number: These numbers are punched in either Arabic or Roman nu
