GROUND CONNECT TO CONN. CELL CODE
E11/E37 ACCESSORY RELAY E95 EL-POWER, EL-HORN
BRAKE FLUID LEVEL SWITCH E14 EL-WARN
CLEARANCE LAMP LH E85 EL-TAIL/L
CLEARANCE LAMP RH E87 EL-TAIL/L
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els before VIN - P11U0548750)E124 EL-F/FOG
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els after VIN - P11U0548750)E131 EL-F/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
before VIN - P11U0548750)E124 EL-R/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
after VIN - P11U0548750)E131 EL-R/FOG
COMBINATION METER (HIGH BEAM INDICATOR) (Models after
VIN - P11U0548750)E131 EL-H/LAMP, EL-DTRL
COMBINATION METER (ILLUMINATION) (Models after VIN -
P11U0548750)E131 EL-ILL
COMBINATION METER (TURN) (Models before VIN -
P11U0548750)E124 EL-TURN
COMBINATION METER (TURN) (Models after VIN -
P11U0548750)E131 EL-TURN
COMBINATION SWITCH (FRONT WIPER SWITCH) E114 EL-WIPER, EL-WIP/R
COMBINATION SWITCH (TRIP COMPUTER SWITCH) E114 EL-METER
COMBINATION SWITCH (TURN SIGNAL SWITCH) E111 EL-TURN
COOLING FAN MOTOR-1 (Gasoline engine) E19 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (CD20 engine) E18 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (QG18, SR20 engine) E28 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (With A/C) (GA16 engine) E94 HA-A/C, EC-COOL/F
COOLING FAN RELAY-2 (CD engine) E54 HA-A/C, EL-COOL/F
DAYTIME LIGHT CONTROL UNIT E117 EL-DTRL
FRONT FOG LAMP LH (Type-1) E6 EL-F/FOG
FRONT FOG LAMP LH (Type-2) E146 EL-F/FOG
FRONT FOG LAMP RH (Type-1) E34 EL-F/FOG
FRONT FOG LAMP RH (Type-2) E147 EL-F/FOG
FRONT TURN SIGNAL LAMP LH E8 EL-TURN, EL-THEFT
FRONT TURN SIGNAL LAMP RH E36 EL-TURN, EL-THEFT
FRONT WIPER MOTOR E62 EL-WIPER
FRONT WIPER RELAY E70 EL-WIPER
HEAD LAMP RELAY LH E74 EL-H/LAMP, EL-DTRL
HEAD LAMP RELAY RH E75 EL-HLC, EL-H/LAMP, EL-DTRL
HEAD LAMP WASHER MOTOR E38 EL-HLC
HEAD LAMP WASHER SWITCH E128 EL-HLC, EL-ILL
HEADLAMP AIMING MOTOR LH E4 EL-H/AIM
HEADLAMP AIMING MOTOR RH E33 EL-H/AIM
HEADLAMP LH E5 EL-H/LAMP, EL-DTRL
HEADLAMP RH E32 EL-H/LAMP, EL-DTRL
HOOD SWITCH E12 EL-THEFT
NATS IMMU E121 EL-NATS
POWER STEERING OIL PRESSURE SWITCH (Gasoline) E60 EC-PST/SW
RDNT BRAKE SWITCH (LHD) (CD20 engine) E122 EC-BRK/SW
REAR WIPER RELAY E52 EL-WIP/R
SEDIMENTER SENSOR E13 EL-WARN
SIDE TURN SIGNAL LAMP LH (Type-1) E9 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP LH (Type-2) E148 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-1) E59 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-2) E149 EL-TURN, EL-THEFT
TRIPLE-PRESSURE SWITCH (CD engine) E20 HA-A/C, EC-COOL/F
WASHER LEVEL SWITCH E39 EL-WARN
E68 ALTERNATOR (GA engine) E71 EL-CHARGE
E88 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) E78 BR-ABS
F9 ALTERNATOR (QG16, QG18, SR20, CD engine) F10 EL-CHARGE

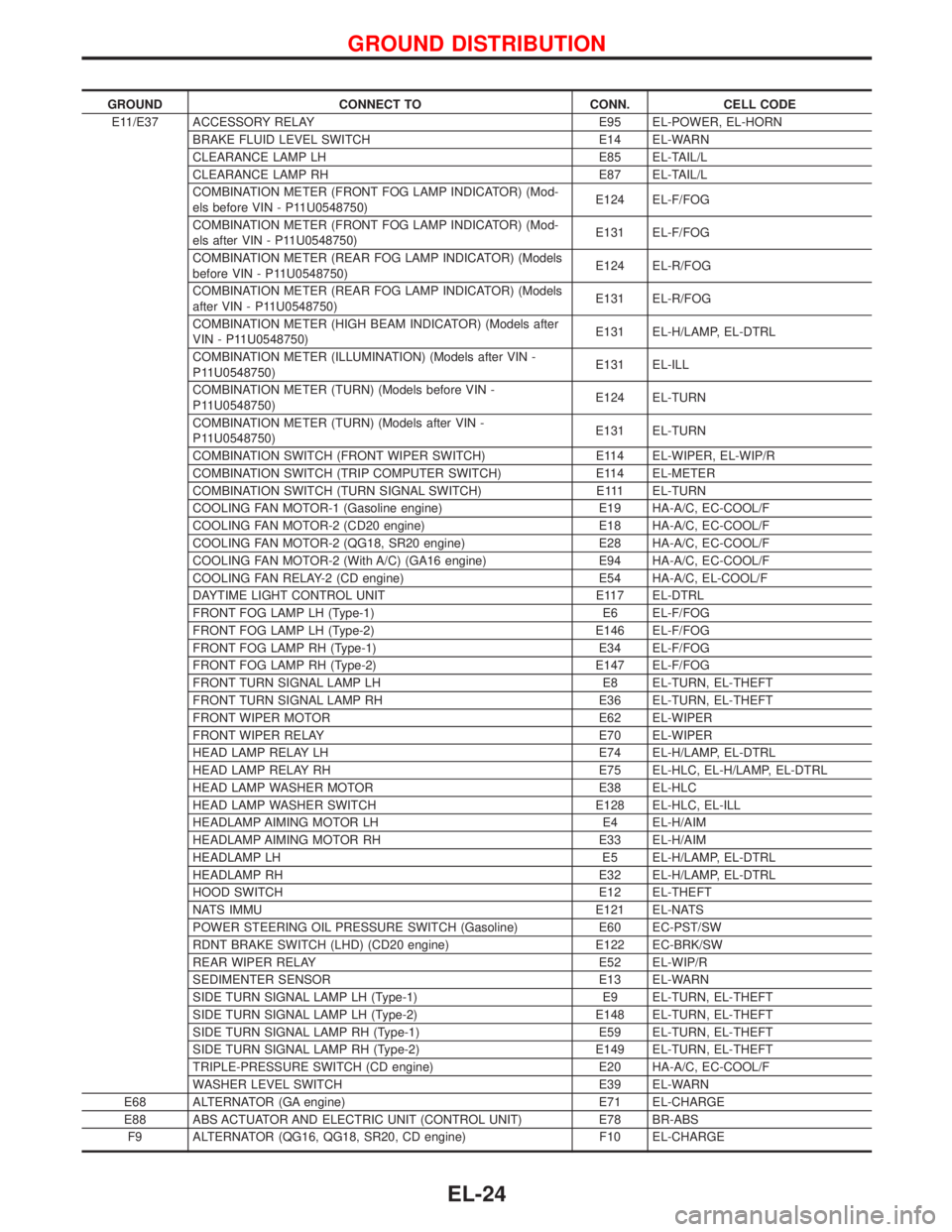

GROUND DISTRIBUTION
EL-24

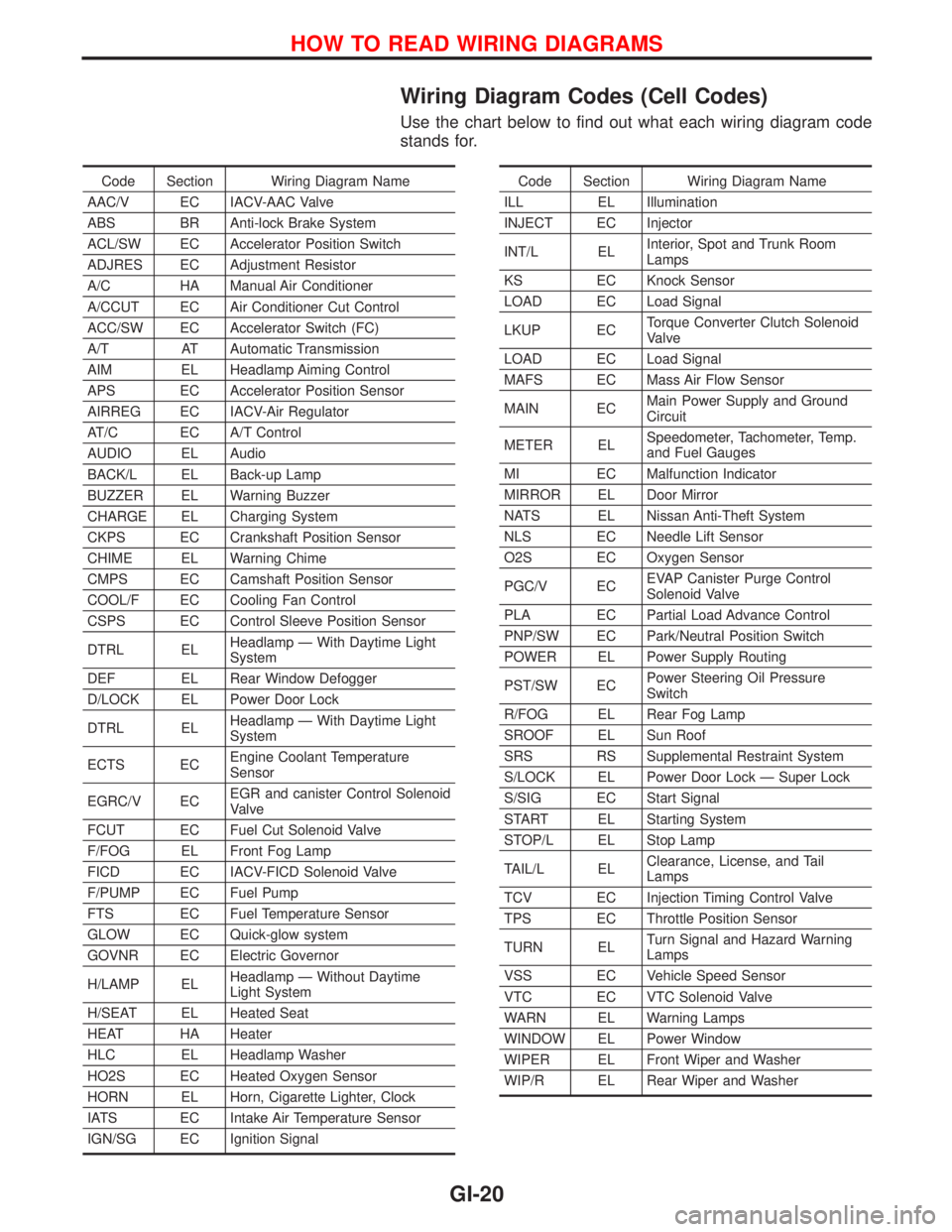

Wiring Diagram Codes (Cell Codes)
Use the chart below to find out what each wiring diagram code
stands for.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
ABS BR Anti-lock Brake System
ACL/SW EC Accelerator Position Switch
ADJRES EC Adjustment Resistor
A/C HA Manual Air Conditioner
A/CCUT EC Air Conditioner Cut Control
ACC/SW EC Accelerator Switch (FC)
A/T AT Automatic Transmission
AIM EL Headlamp Aiming Control
APS EC Accelerator Position Sensor
AIRREG EC IACV-Air Regulator
AT/C EC A/T Control
AUDIO EL Audio
BACK/L EL Back-up Lamp
BUZZER EL Warning Buzzer
CHARGE EL Charging System
CKPS EC Crankshaft Position Sensor
CHIME EL Warning Chime
CMPS EC Camshaft Position Sensor
COOL/F EC Cooling Fan Control
CSPS EC Control Sleeve Position Sensor
DTRL ELHeadlamp Ð With Daytime Light
System
DEF EL Rear Window Defogger
D/LOCK EL Power Door Lock
DTRL ELHeadlamp Ð With Daytime Light
System
ECTS ECEngine Coolant Temperature
Sensor
EGRC/V ECEGR and canister Control Solenoid
Valve
FCUT EC Fuel Cut Solenoid Valve
F/FOG EL Front Fog Lamp
FICD EC IACV-FICD Solenoid Valve
F/PUMP EC Fuel Pump
FTS EC Fuel Temperature Sensor
GLOW EC Quick-glow system
GOVNR EC Electric Governor
H/LAMP ELHeadlamp Ð Without Daytime
Light System
H/SEAT EL Heated Seat
HEAT HA Heater
HLC EL Headlamp Washer
HO2S EC Heated Oxygen Sensor
HORN EL Horn, Cigarette Lighter, Clock
IATS EC Intake Air Temperature Sensor
IGN/SG EC Ignition SignalCode Section Wiring Diagram Name
ILL EL Illumination
INJECT EC Injector
INT/L ELInterior, Spot and Trunk Room
Lamps
KS EC Knock Sensor
LOAD EC Load Signal
LKUP ECTorque Converter Clutch Solenoid
Valve
LOAD EC Load Signal
MAFS EC Mass Air Flow Sensor
MAIN ECMain Power Supply and Ground
Circuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MI EC Malfunction Indicator
MIRROR EL Door Mirror
NATS EL Nissan Anti-Theft System
NLS EC Needle Lift Sensor
O2S EC Oxygen Sensor
PGC/V ECEVAP Canister Purge Control
Solenoid Valve
PLA EC Partial Load Advance Control
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW ECPower Steering Oil Pressure
Switch
R/FOG EL Rear Fog Lamp
SROOF EL Sun Roof
SRS RS Supplemental Restraint System
S/LOCK EL Power Door Lock Ð Super Lock
S/SIG EC Start Signal
START EL Starting System
STOP/L EL Stop Lamp
TAIL/L ELClearance, License, and Tail
Lamps
TCV EC Injection Timing Control Valve
TPS EC Throttle Position Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VSS EC Vehicle Speed Sensor
VTC EC VTC Solenoid Valve
WARN EL Warning Lamps
WINDOW EL Power Window
WIPER EL Front Wiper and Washer
WIP/R EL Rear Wiper and Washer
HOW TO READ WIRING DIAGRAMS
GI-20
