Page 793 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CONSULT-II Reference Value in Data Monitor Mode NCEC0548Specification data are reference values. MONITOR ITEM CONDITION SPECIFICATION LOAD SIGNALIIgnition switch: ONRear window defogger is operating a

Page 794 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0550 YEC255 ELECTRICAL LOAD SIGNALQG16I18DE Wiring Diagram EC-352

Page 795 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual YEC077A ELECTRICAL LOAD SIGNALQG16I18DE Wiring Diagram (Contd) EC-353

Page 796 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0466 YEC078A MI & DATA LINK CONNECTORSQG16I18DE Wiring Diagram EC-354

Page 797 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Fuel Pressure RegulatorNCEC0467 Fuel pressure at idling kPa (bar, kg/cm2, psi)Vacuum hose is connected Approximately 235 (2.35, 2.4, 34) Vacuum hose is disconnected Approximately 294 (2.94, 3.0, 43) I

Page 798 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Crankshaft Position Sensor (POS)NCEC0558 Terminal No. (Polarity) ResistanceW[at 25ÉC (77ÉF)] 3 (+) - 1 (þ) Except 0 or¥ 2 (+) - 1 (þ) 3 (+) - 2 (þ) Camshaft Position Sensor (PHASE)NCEC0559 Termi

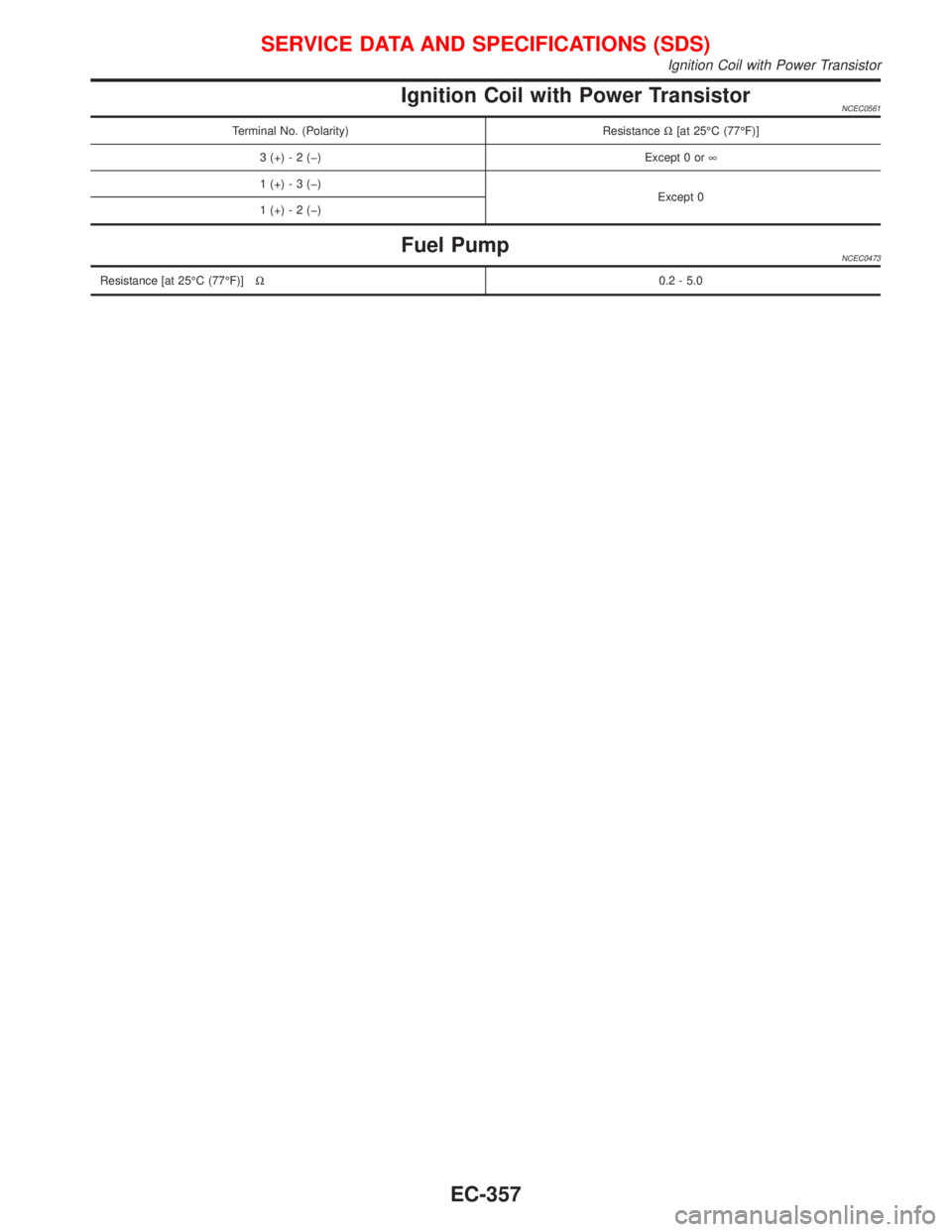

Page 799 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Ignition Coil with Power TransistorNCEC0561 Terminal No. (Polarity) ResistanceW[at 25ÉC (77ÉF)] 3 (+) - 2 (þ) Except 0 or¥ 1 (+) - 3 (þ) Except 0 1 (+) - 2 (þ) Fuel PumpNCEC0473 Resistance [at 2

Page 800 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NOTE SERVICE DATA AND SPECIFICATIONS (SDS) EC-358
