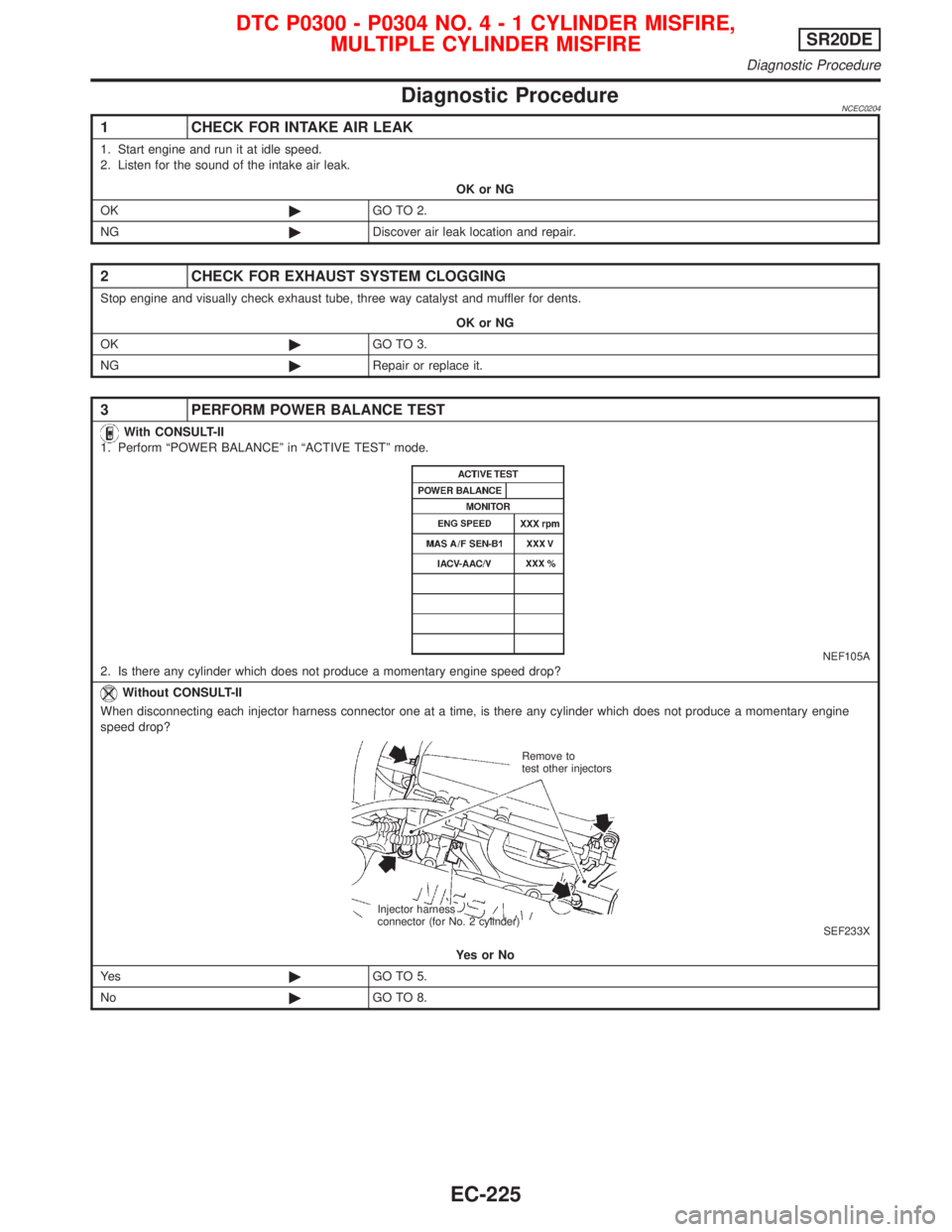

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCEC0204 1 CHECK FOR INTAKE AIR LEAK 1. Start engine and run it at idle speed. 2. Listen for the sound of the intake air leak. OK or NG OK©GO TO 2. NG©Discover air leak location

Page 1026 of 2267

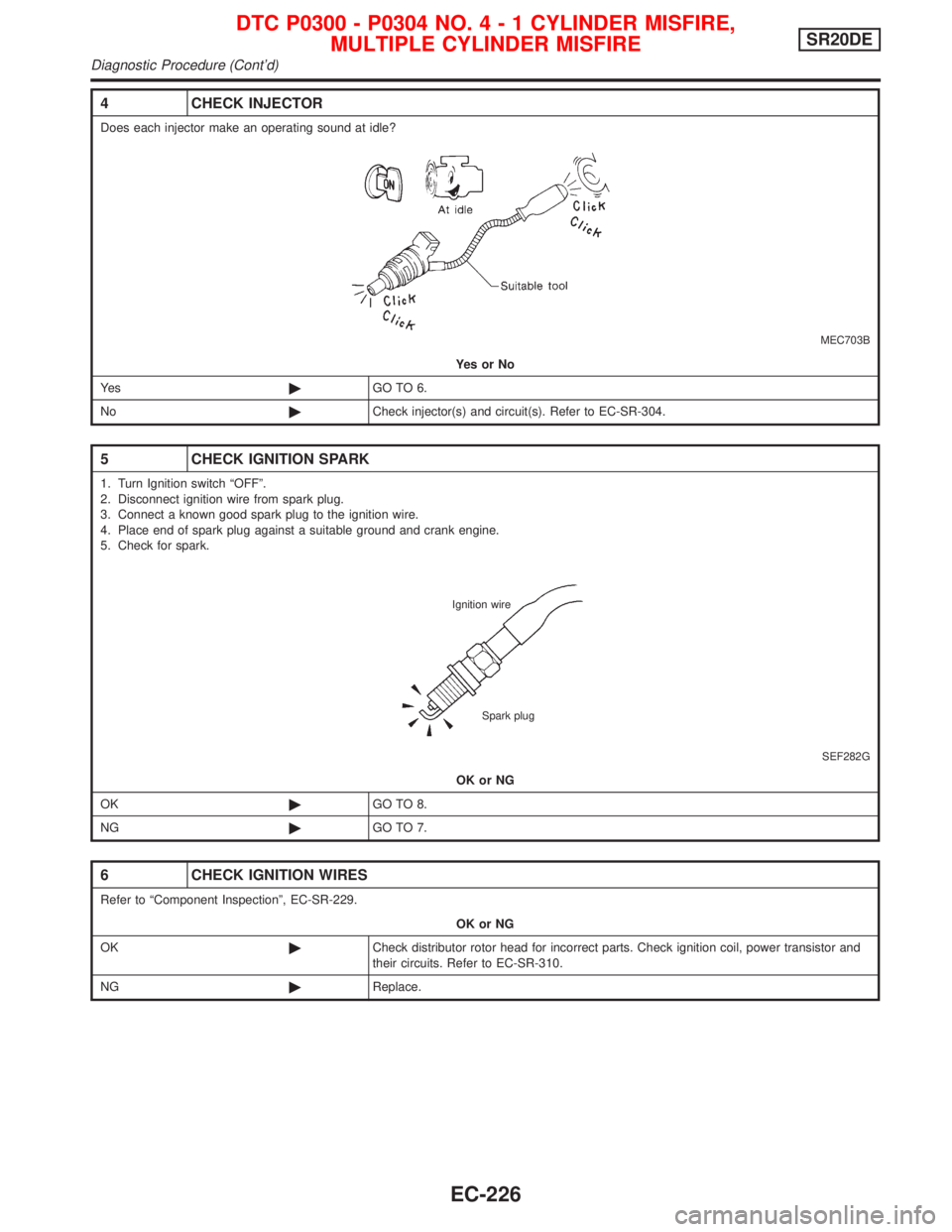

NISSAN PRIMERA 1999 Electronic Repair Manual 4 CHECK INJECTOR Does each injector make an operating sound at idle? MEC703B YesorNo Ye s©GO TO 6. No©Check injector(s) and circuit(s). Refer to EC-SR-304. 5 CHECK IGNITION SPARK 1. Turn Ignition sw

Page 1027 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 7 CHECK SPARK PLUGS Remove the spark plugs and check for fouling, etc. SEF156I OK or NG OK©GO TO 9. NG©Repair or replace spark plug(s) with standard type one(s). For spark plug type, refer to ªENGI

Page 1028 of 2267

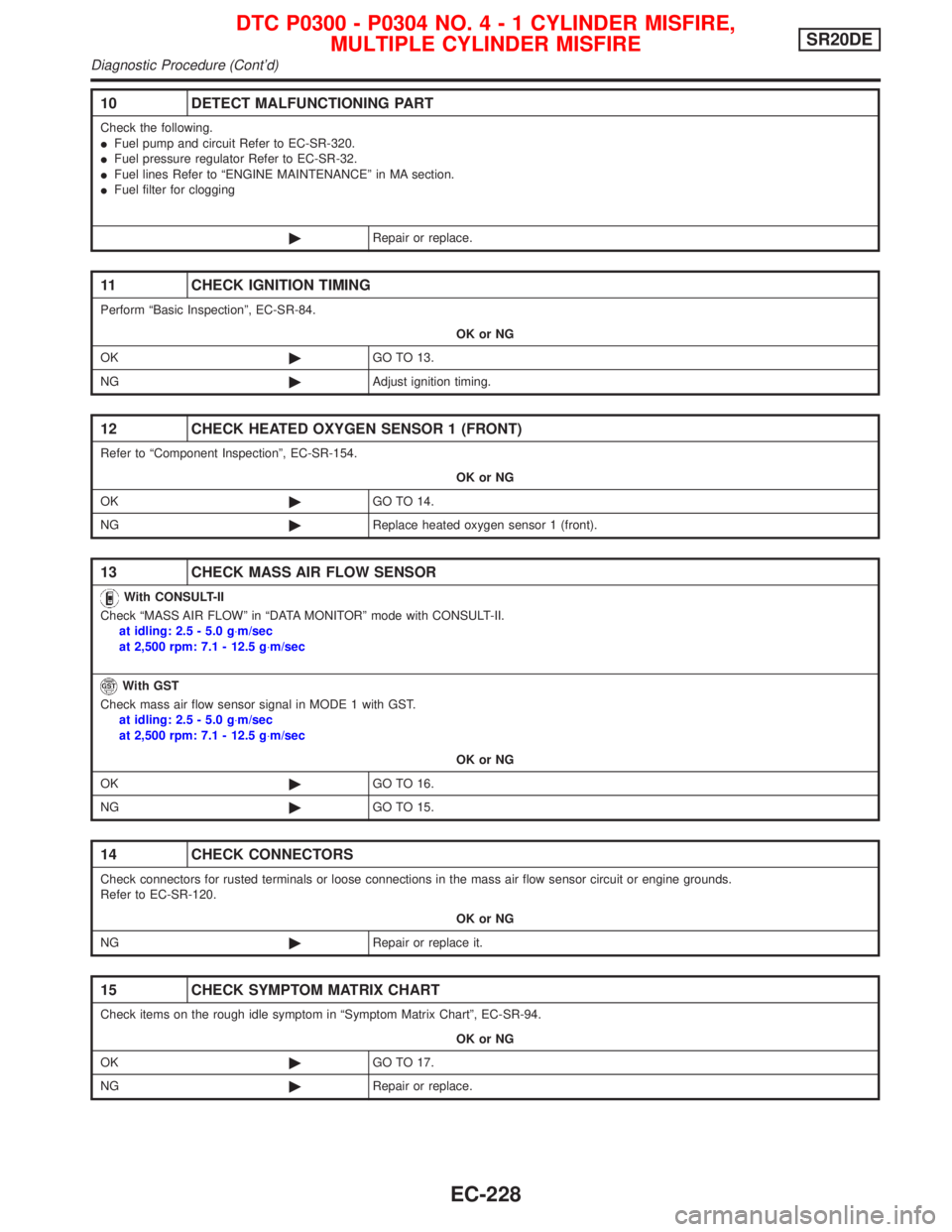

NISSAN PRIMERA 1999 Electronic Repair Manual 10 DETECT MALFUNCTIONING PART Check the following. IFuel pump and circuit Refer to EC-SR-320. IFuel pressure regulator Refer to EC-SR-32. IFuel lines Refer to ªENGINE MAINTENANCEº in MA section. IFu

Page 1029 of 2267

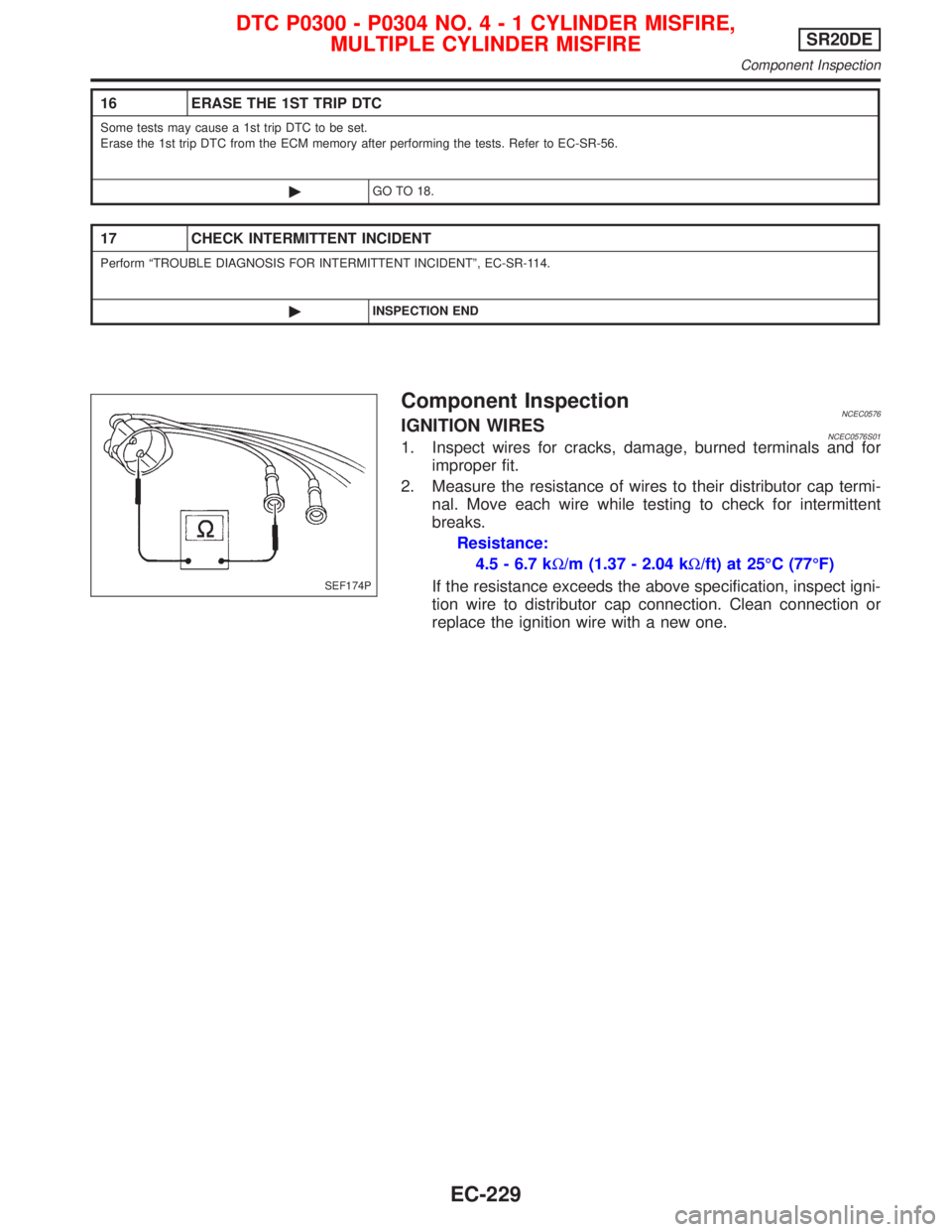

NISSAN PRIMERA 1999 Electronic Repair Manual Component InspectionNCEC0576IGNITION WIRESNCEC0576S011. Inspect wires for cracks, damage, burned terminals and for improper fit. 2. Measure the resistance of wires to their distributor cap termi- nal.

Page 1030 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Component DescriptionNCEC0206The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed as vibr

Page 1031 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Wiring DiagramNCEC0210 YEC089A DTC P0325 KNOCK SENSOR (KS)SR20DE Wiring Diagram EC-231

Page 1032 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Diagnostic ProcedureNCEC0211 1 RETIGHTEN GROUND SCREWS Loosen and retighten engine ground screws. SEF202X ©GO TO 2. 2 CHECK INPUT SIGNAL CIRCUIT-1 1. Turn ignition switch ªOFFº. 2. Disconnect ECM h
